G-SDI-E-16*3G Optical Extender + 2 Channels Independent 1000M IP + Network Gateway
This optical transceiver supports 16 channels of 3G SDI transmission at 2970Mbps and 2 independent 1000M IP channels. It adopts modular structure and complies with CE standards, SMPTE178, and SDI pathology code tests.
Save to Favorites

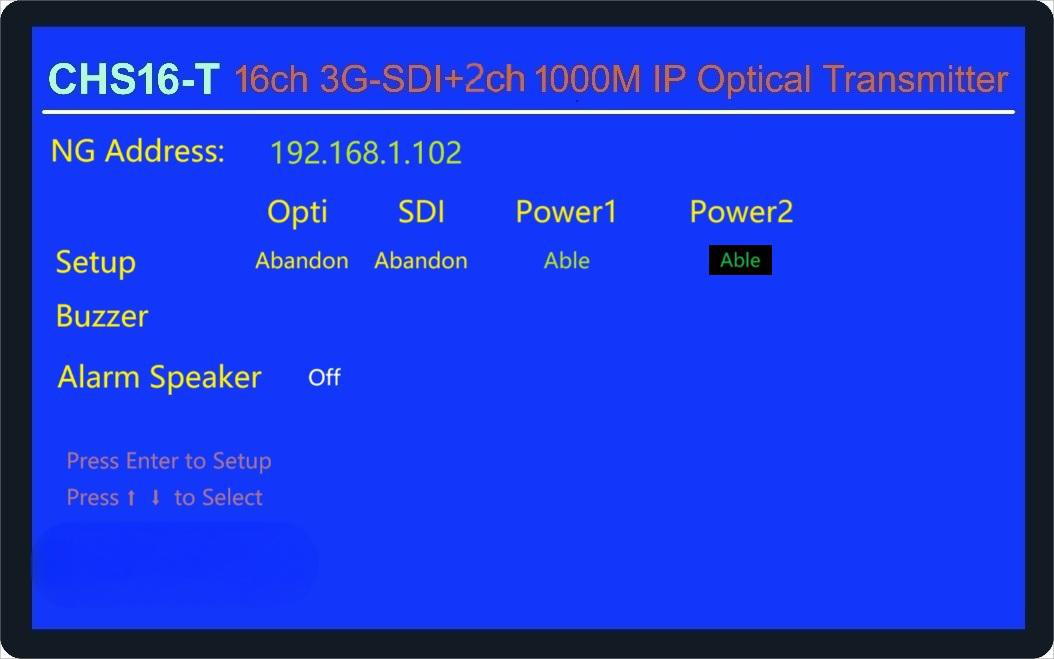

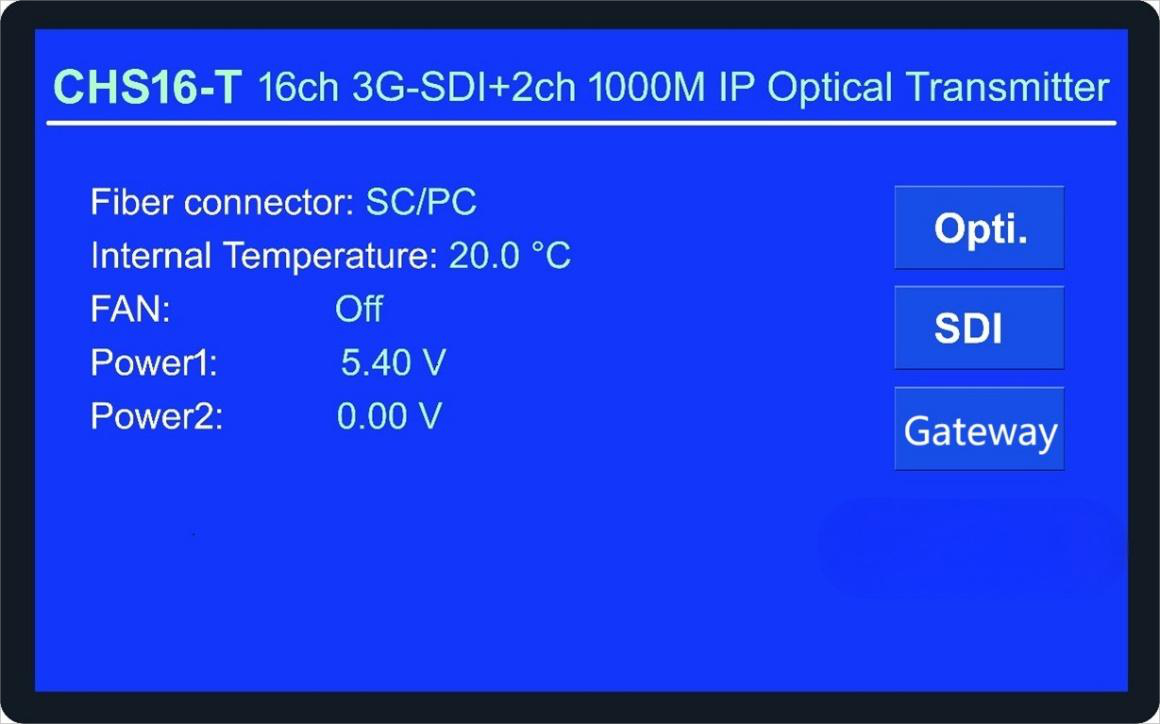

Overview
Specifications
| Parameter | Value |
|---|---|
| Input Channels | 16(one loop output for each channel) |
| Input Automatic Balance | ＞80m (2970Mbps, BELDEN8281 cable) |
| Cable Balance | ＞250m (2970Mbps, BELDEN8281 cable) |
| Input Reflection Loss | ＞16dB (＜270MHz), ＞12dB (＜2970MHz) |
| Input Impedance | 75Ω |
| Input Connector | BNC |
| Output Channels | 16 (dual output ports for each channel) |
| Output Level | 800mVp-p±10% |
| Ascent/Descent Time | ＜0.8ns |
| Max Jitter | ＜0.1UI (2970Mbps, 100% color bar), ＜0.2UI (2970Mbps, SDI pathology signal) |
| Output Impedance | 75Ω |
| Output Connector | BNC |
| IP Channels | 2 |
| IP Standard | 1000BASE-T, 100BASE-TX, IEEE802.3Z/AB |
| IP Bit Rate | 10M/100M/1000M self-adapt |
| IP Connector | RJ45 |
| Optical Wavelength | 1450nm, 11430nm, 1410nm, 1390nm, 1310nm, 1270nm, 1370nm, 1290nm, 1350nm, 1270nm |
| Optical Transmission Power | +5±3dBm, 0±3dBm |
| Optical Receiving Power | -22～-3dBm, -16～-3dBm |
| Optical Connector | SC/UPC |
| Power Supply | AC100～245V ＜15W |
| Size | 19'' 2U chassis, 430mm×230mm×86mm |
