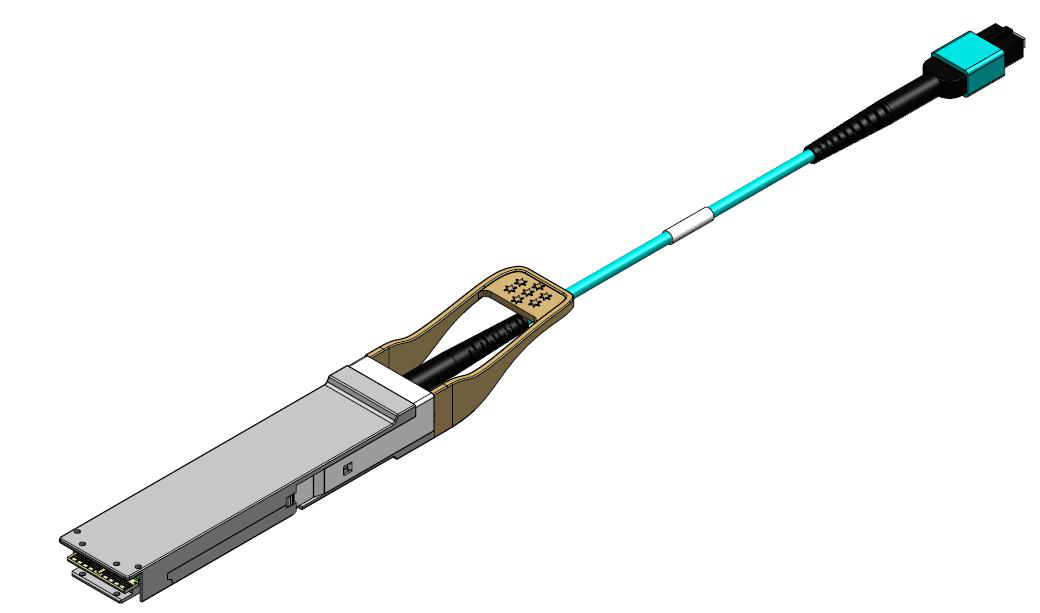

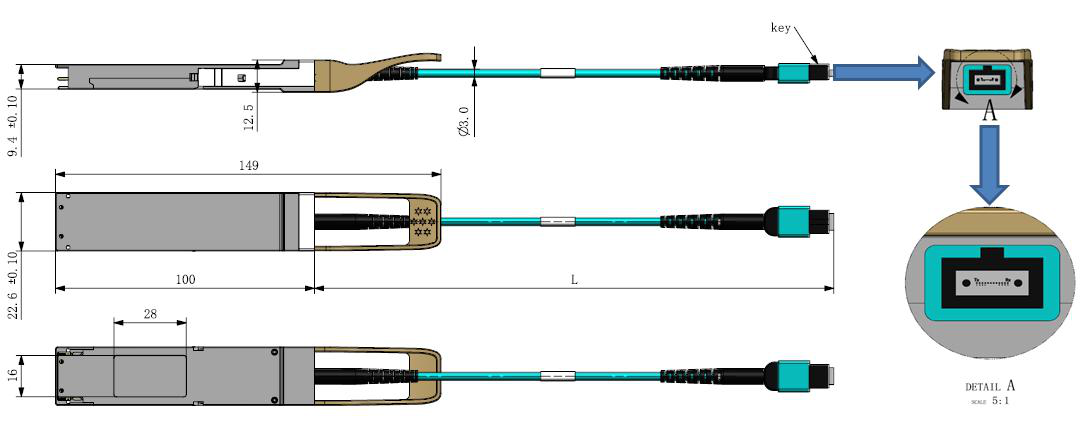

400G OSFP RHS SR4 Optical Transceiver Module for Liquid Cooling

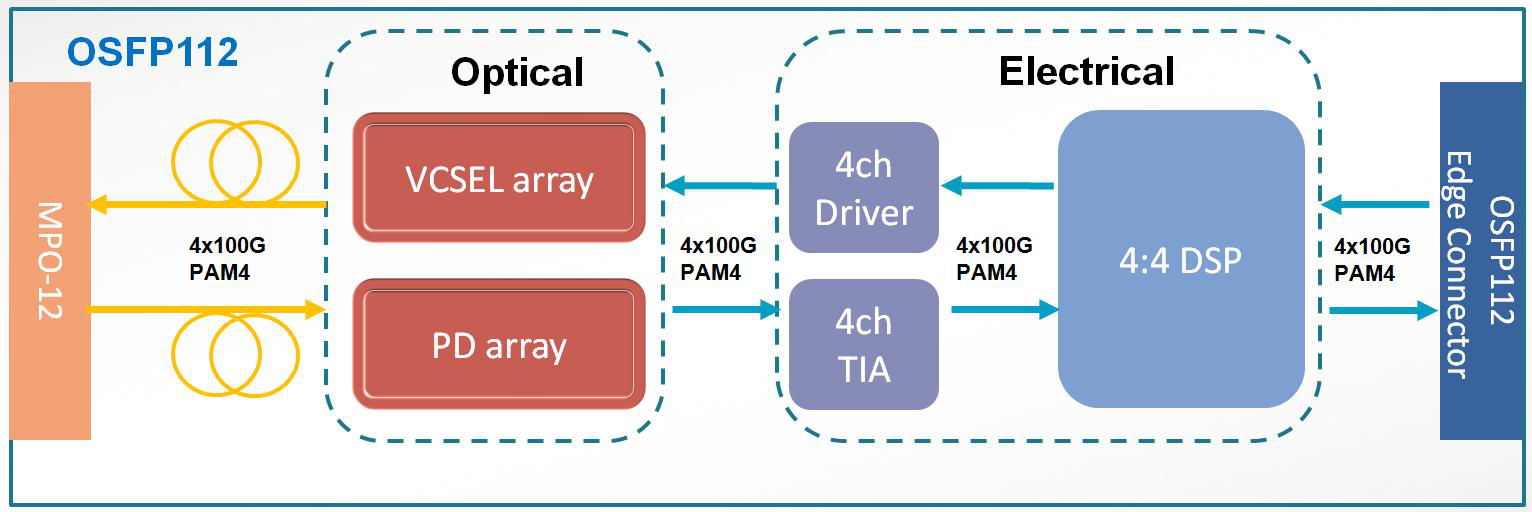

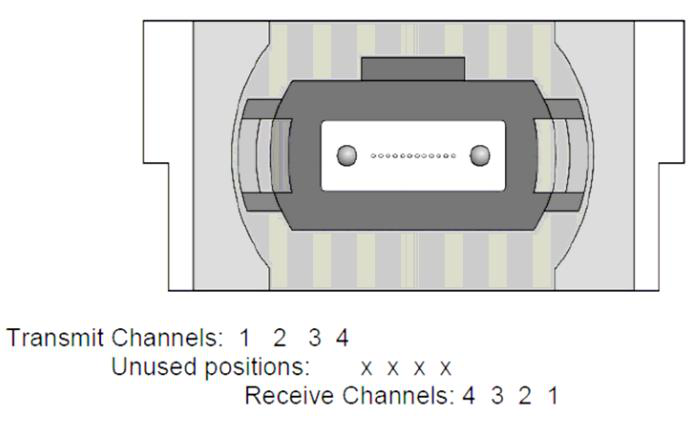

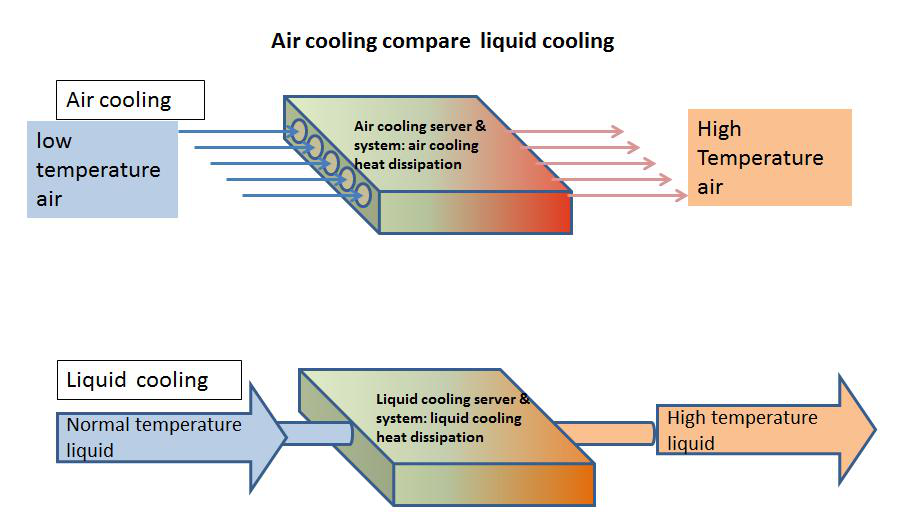

The Gigalight GL-H401SR4-MXXA is a high-performance module designed for short-range multi-lane data communication and interconnection applications in liquid immersion environments. It integrates four data lanes in each direction with 4x53.125Gbps. Each lane can operate at 106.25Gbps up to 60m using OM3 fiber or 100m using OM4 fiber with FEC. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm.
Save to Favorites
Overview
Specifications

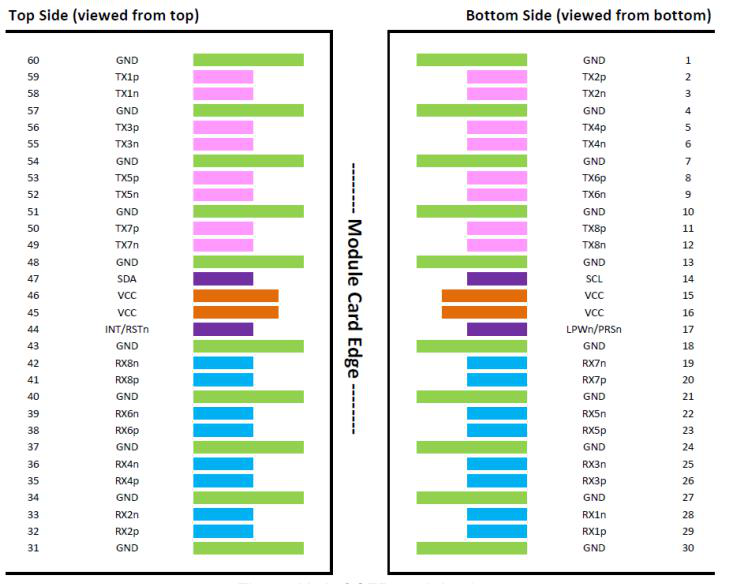

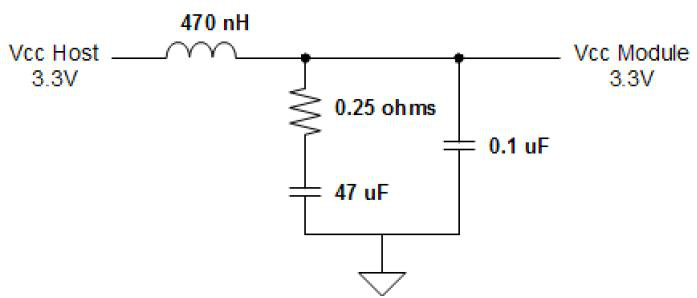

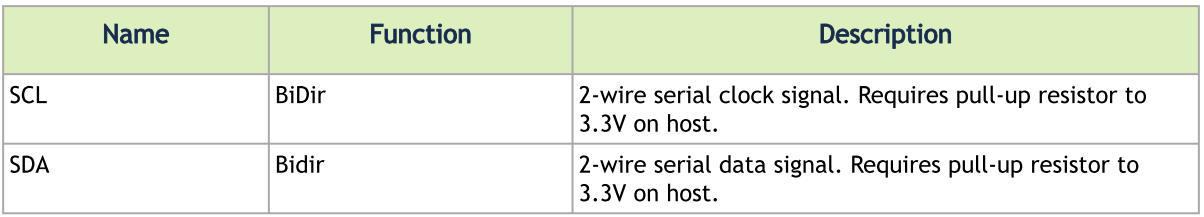

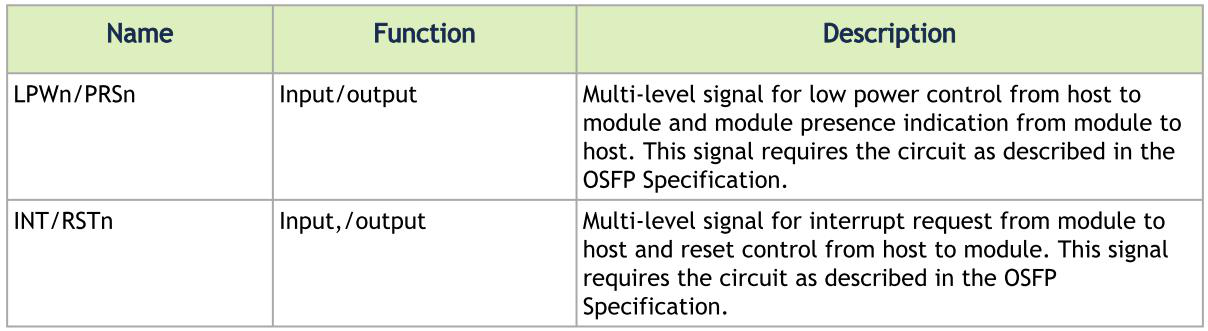

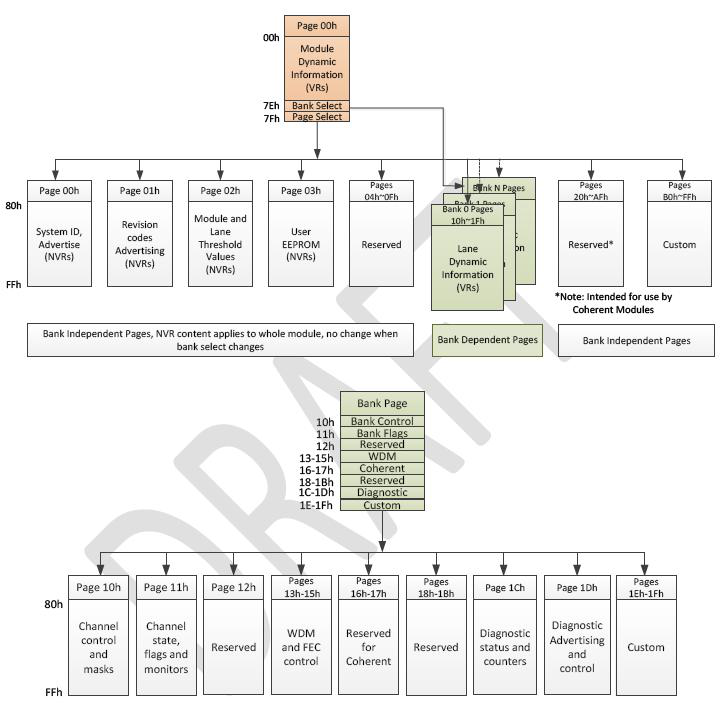

| Parameter | Value |
|---|---|
| Supply Voltage (Vcc) | -0.3~3.6 |
| Input Voltage (Vin) | -0.3~Vcc+0.3 |
| Storage Temperature (Tst) | -20~85°C |
| Case Operating Temperature (Top) | 0~70°C |
| Humidity (non-condensing) (Rh) | 5~95% |
| Recommended Supply Voltage (Vcc) | 3.13~3.47 |
| Recommended Operating Case Temperature (Tca) | 0~70°C |
| Data Rate Per Lane | 106.25Gbps |
| Recommended Humidity (Rh) | 5~85% |
| Power Dissipation (Pm) | <8W |
| Fiber Bend Radius (Rb) | ≥3cm |
| Liquid immersion depth | ≤10m |
| Differential Input Impedance (Zin) | 90~110ohm |
| Differential Output Impedance (Zout) | 90~110ohm |
| Differential Input Voltage (ΔVin) | 400~900mVp-p |
| Differential Output Voltage (ΔVout) | 850mVp-p |
| Bit Error Rate (BER) | 2.4E-4 |
| Input Logic Level High (VIH) | 2.0~Vcc |
| Input Logic Level Low (VIL) | 0~0.8V |
| Output Logic Level High (VOH) | Vcc-0.5~Vcc |
| Output Logic Level Low (VOL) | 0~0.4V |
| Centre Wavelength (λc) Transmitter | 844~850~863nm |
| RMS Spectral Width (Δλ) | 0.6nm |
| Average Launch Power Per Lane (Pout) | -4.6~4dBm |
| Optical Modulation Amplitude (OMAouter) Per Lane | -2.6~3.5dBm |
| Transmitter and Dispersion Eye Closure for PAM4 (TDECQ) Per Lane | 4.4dB |
| Extinction Ratio (ER) | ≥2.5dB |
| Average Launch Power of OFF Transmitter Per Lane | ≤-30dBm |
| Centre Wavelength (λc) Receiver | 842~850~948nm |
| Receiver Sensitivity in OMAout (RXsen) | ≤-4.6dBm |
| Stressed Receiver Sensitivity in OMAout (SRS) | ≤-2dBm |
| Maximum Average Power at Receiver Per Lane | ≤4dBm |
| Minimum Average Power at Receiver Per Lane | -6.4dBm |
| Receiver Reflectance | ≤-15dB |
| LOS Assert (LOSA) | -15~-8.5dB |
| LOS De-Assert (LOSD) | -6.5~0dB |
| LOS Hysteresis (LOSH) | 0.5dB |
| Digital Diagnostic Temperature (DMI_Temp) | -3~+3°C |
| Supply Voltage Monitor Absolute Error (DMI_VCC) | -0.1~+0.1V |
| Channel RX Power Monitor Absolute Error (DMI_RX) | -2~+2dB |
| Channel Bias Current Monitor (DMI_Ibias) | -10%~+10% |
| Channel TX Power Monitor Absolute Error (DMI_TX) | -2~+2dB |
