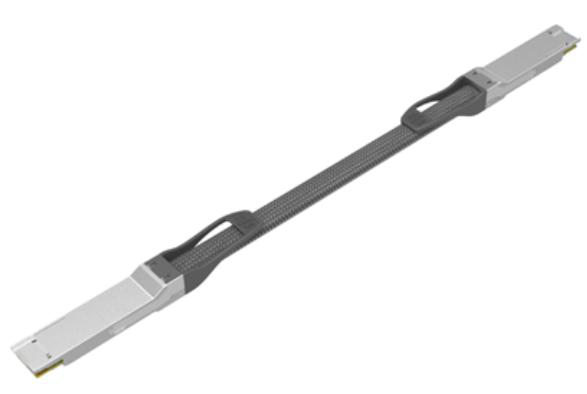

800GbE to 800GbE (QSFP-DD to QSFP-DD) Direct Attach Cable
Gigalight's passive copper cable assembly series provides superior signal integrity performance and reliability. The QSFP-DD passive copper cable assembly doubles the number of 25G NRZ & 50G PAM4 lanes from 4 to 8 lanes compared to QSFP cabling systems, maintaining backward plug compatibility to meet next-generation market needs.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Storage Temperature | -20°C to 85°C |
| Case Operating Temperature | 0°C to 70°C |
| Humidity (non-condensing) | 5% to 95% |
| Operating Case Temperature | 0°C to 70°C |
| Baud Rate per Lane (PAM4) | 53.125GBaud/s |
| Humidity | 5% to 85% |
| Wire Gauge | 26AWG, 30AWG |
| Length | 0.5m, 2m |
Applications
Key Features
Datasheet
Supplier Information
