800GbE to 800GbE (OSFP to OSFP) Direct Attach Cable
Gigalight's GOS-PC801-xxC cable assemblies are effective alternatives to fiber optics, connecting data signals from each of the 16 pairs on the single OSFP end to the other OSFP end, with each pair operating at data rates of up to 100Gb/s. The cable is compliant with OSFP-MSA and IEEE 802.3ck standards, offering high-performance and cost-effective I/O solutions for LAN, HPC, and SAN applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Storage Temperature | -20°C to 85°C |
| Case Operating Temperature | 0°C to 70°C |
| Humidity (non-condensing) | 5% to 95% |
| Operating Case Temperature | 0°C to 70°C |
| Baud Rate per Lane (PAM4) | 53.125GBaud/s |
| Humidity | 5% to 85% |
| Cable Gauge | 26AWG/25AWG |

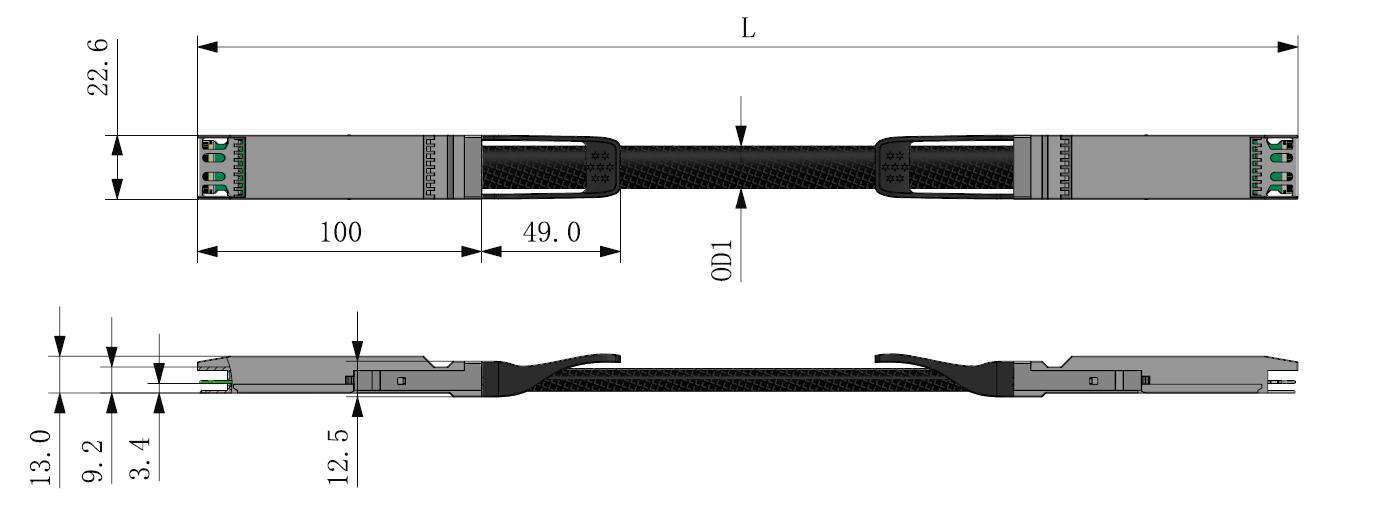

| Cable Diameter | 11mm/12mm (Horizontal), 8mm/9mm (Vertical) |
| Min Bend Radius C | 55mm/60mm (Horizontal), 40mm/45mm (Vertical) |
| Min Bend Radius A | 65mm/70mm (Horizontal), 50mm/55mm (Vertical) |
