800G OSFP112 AOC Optical Transceiver Module

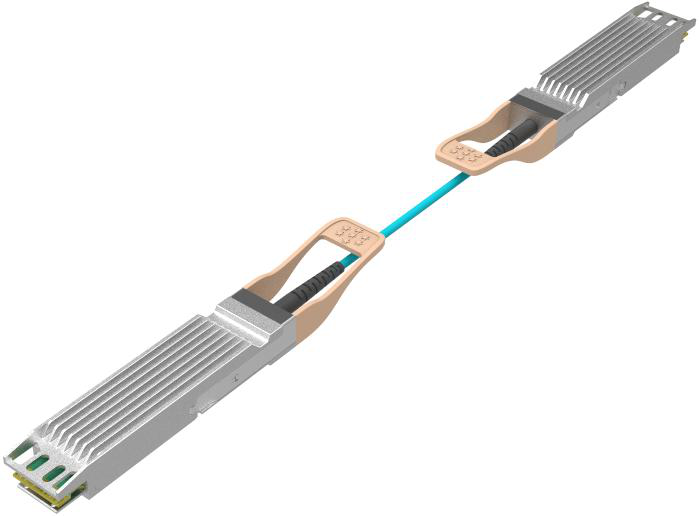

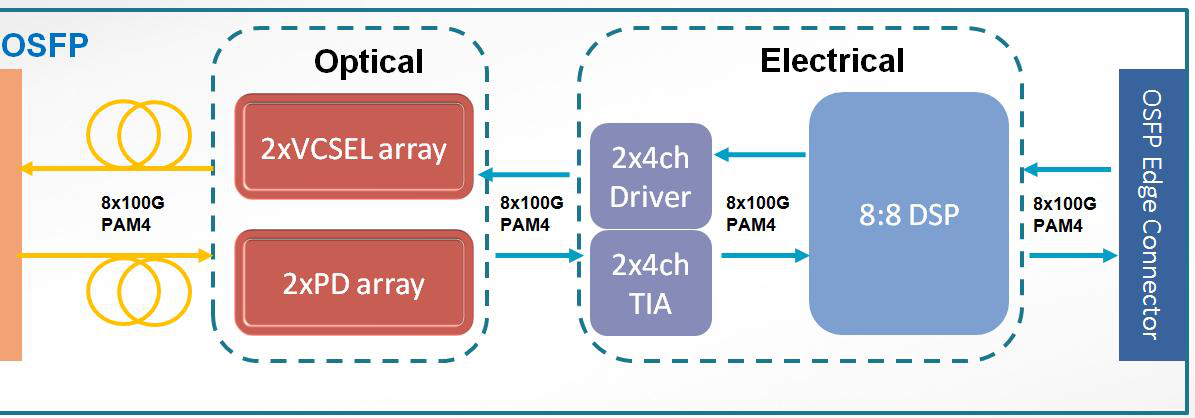

The Gigalight GOS-MD0801-XXXC is an eight-channel, pluggable, parallel, fiber-optic OSFP transceiver designed for 800 Gigabit Ethernet applications. It is a high-performance module for short-range multi-lane data communication and interconnection applications, integrating eight data lanes in each direction with 8x53.125GBd. Each lane can operate at 106.25Gbps up to 30m using OM3 fiber or 50m using OM4 fiber with FEC.
Save to Favorites
Overview

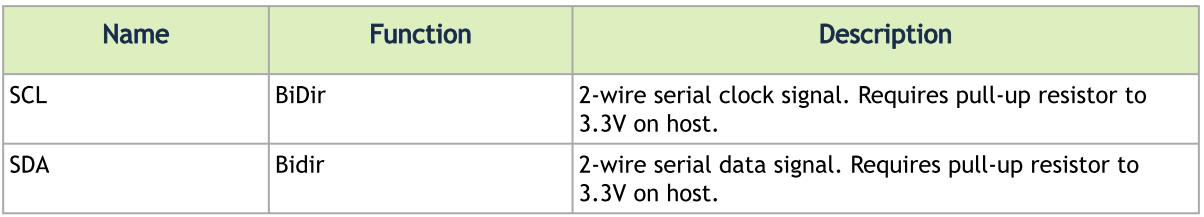

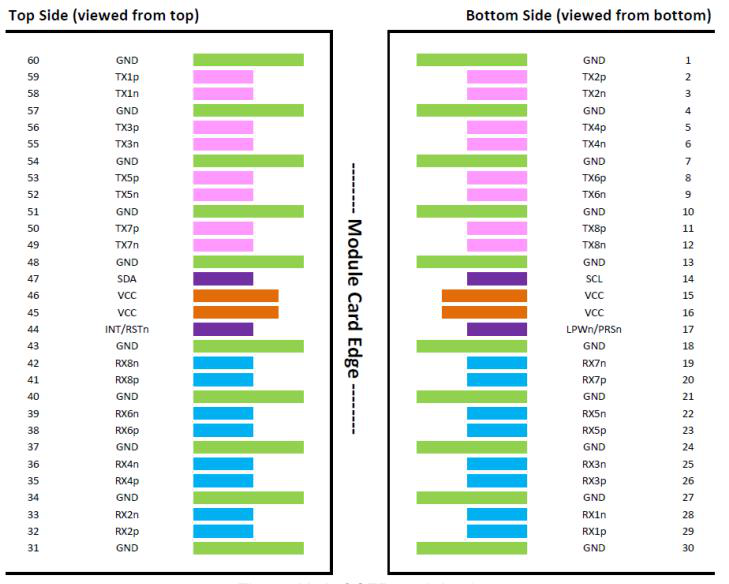

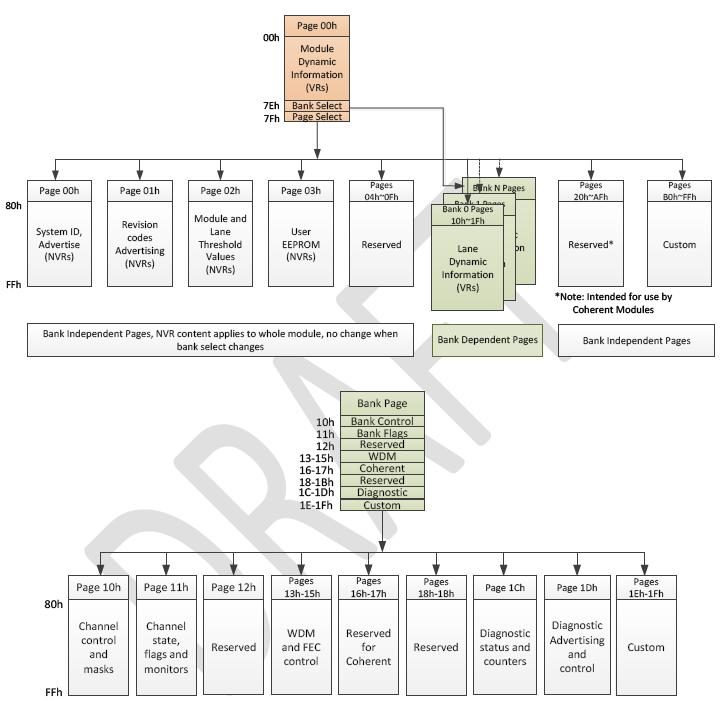

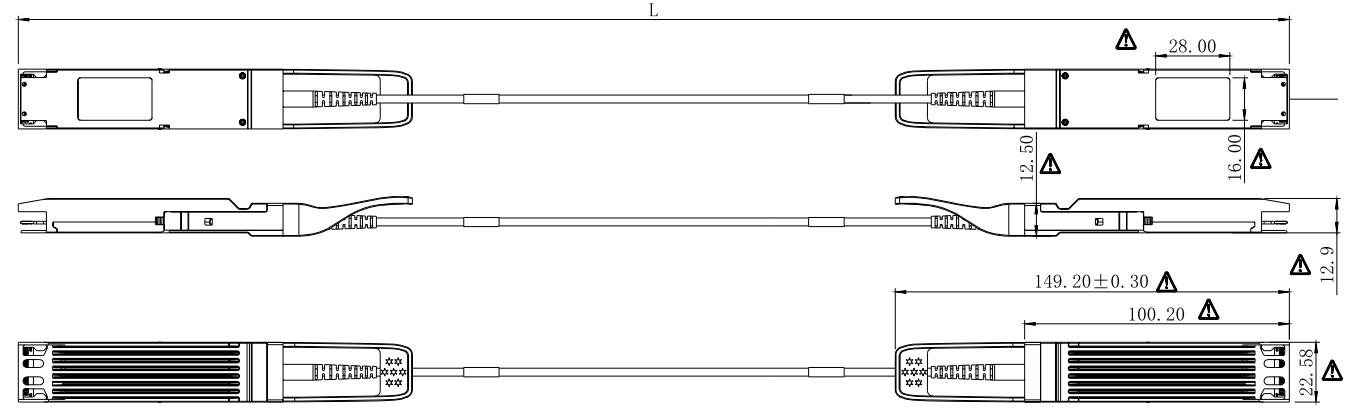

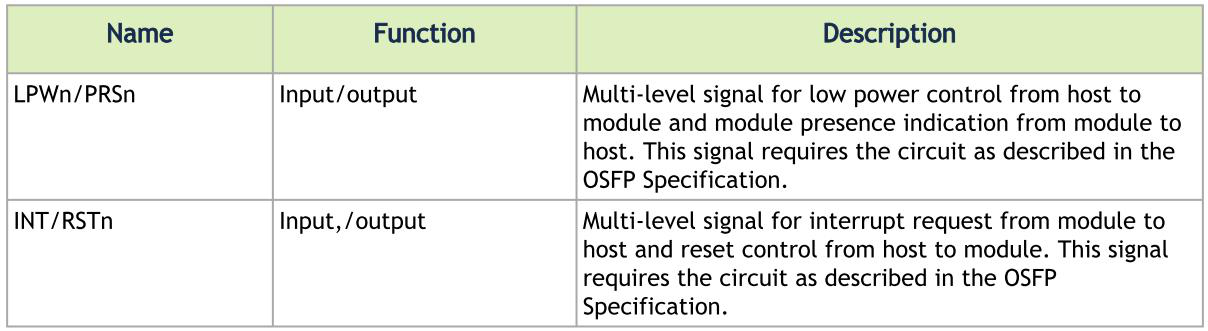

Specifications

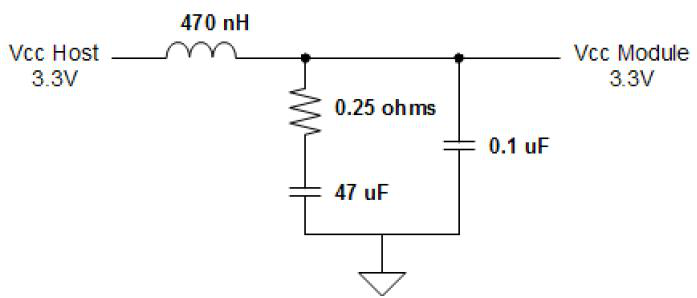

| Parameter | Value |
|---|---|
| Supply Voltage | 3.13-3.47V |
| Operating Case Temperature | 0-70°C |
| Data Rate Per Lane | 106.25Gbps |
| Humidity | 5-85% |
| Power Dissipation | 13.5-14W |
| Differential Input Impedance | 90-110ohm |
| Differential Output Impedance | 90-110ohm |
| Differential Input Voltage Amplitude | 400-900mVp-p |
| Differential Output Voltage Amplitude | 850mVp-p |
| Bit Error Rate | 2.4E-4 |
| Input Logic Level High | 2.0V |
| Input Logic Level Low | 0-0.8V |
| Output Logic Level High | Vcc-0.5V |
| Output Logic Level Low | 0-0.4V |
| Centre Wavelength (Transmitter) | 842-850-948nm |
| RMS Spectral Width | 0.65nm |
| Average Launch Power Each Lane | -4.6-5.5dBm |
| Optical Modulation Amplitude (OMAouter) | -2.6-4dBm |
| Transmitter and Dispersion Eye Closure for PAM4 (TDECQ) | 4.4dB |
| Extinction Ratio | 2.5dB |
| Average Launch Power of OFF Transmitter | -30dBm |
| Centre Wavelength (Receiver) | 842-850-948nm |
| Receiver Sensitivity in OMAout | max(-4.4,TDECQ-6.2)dBm |
| Stressed Receiver Sensitivity in OMAout | -1.8dBm |
| Maximum Average Power at Receiver Each Lane | 5.5dBm |
| Minimum Average Power at Receiver Each Lane | -6.3dBm |
| Receiver Reflectance | -15dB |
| LOS Assert | -15dB |
| LOS De-Assert | -6.5dB |
| Los Hysteresis | 0.5dB |
| DMI_Temp | -3-3°C |
| Supply Voltage Monitor Absolute Error | -0.1-0.1V |
| Channel RX Power Monitor Absolute Error | -2-2dB |
| Channel Bias Current Monitor | -10%-10%mA |
| Channel TX Power Monitor Absolute Error | -2-2dB |
