GQS-MPO560-SR4C

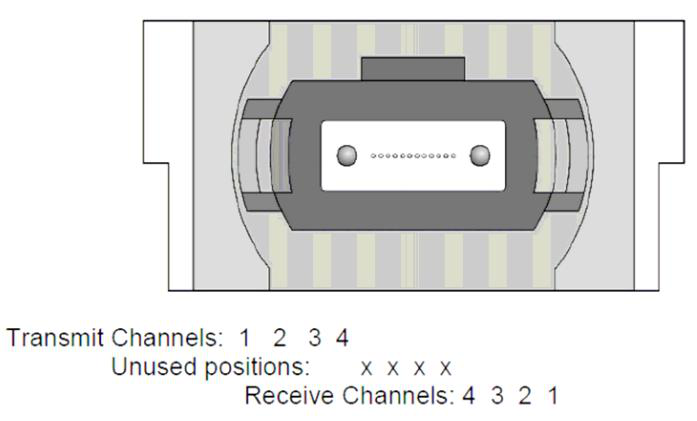

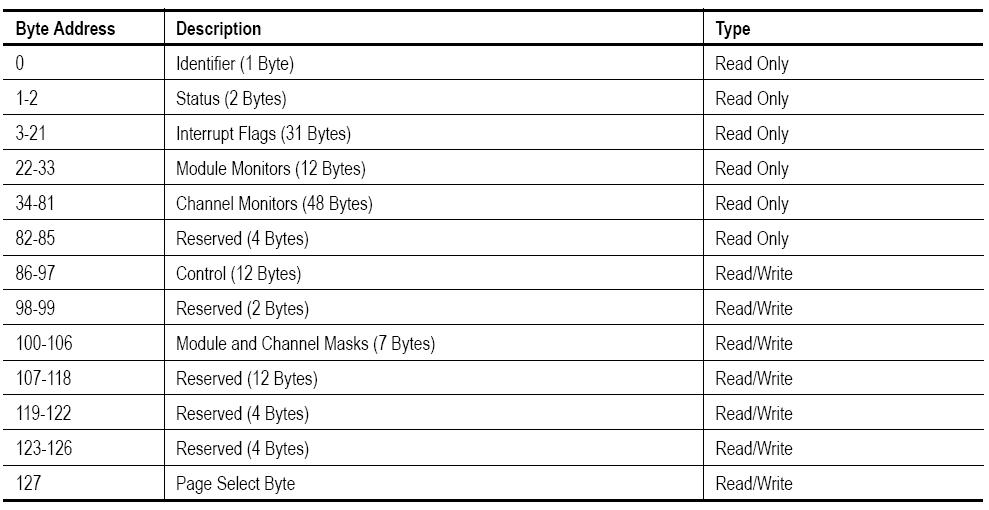

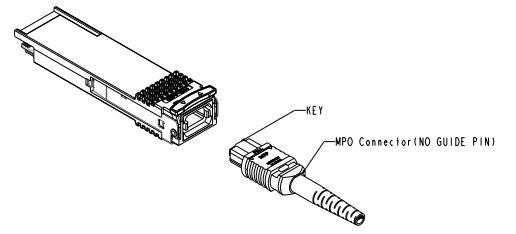

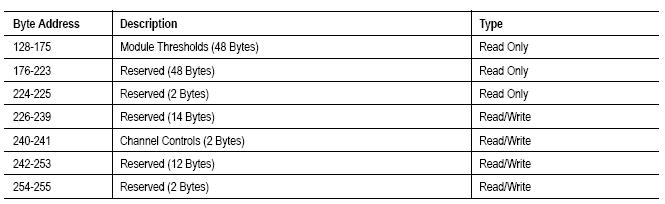

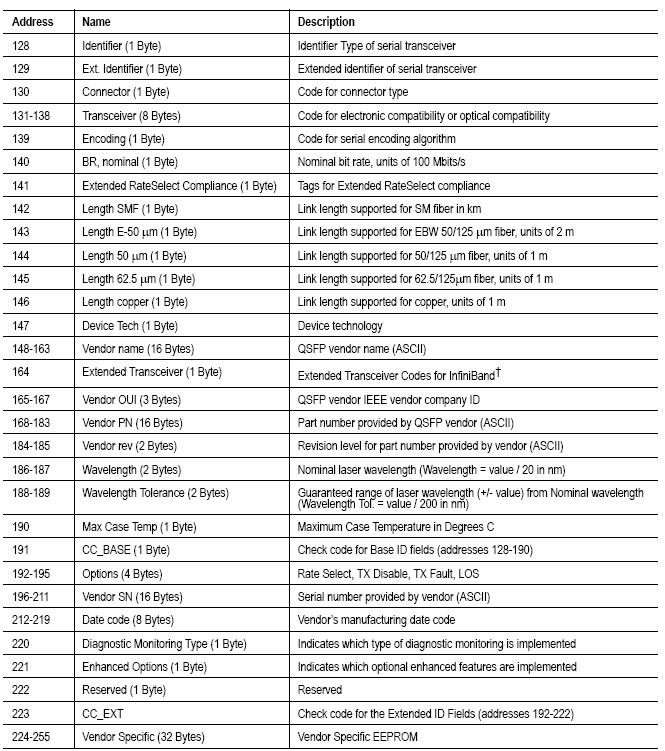

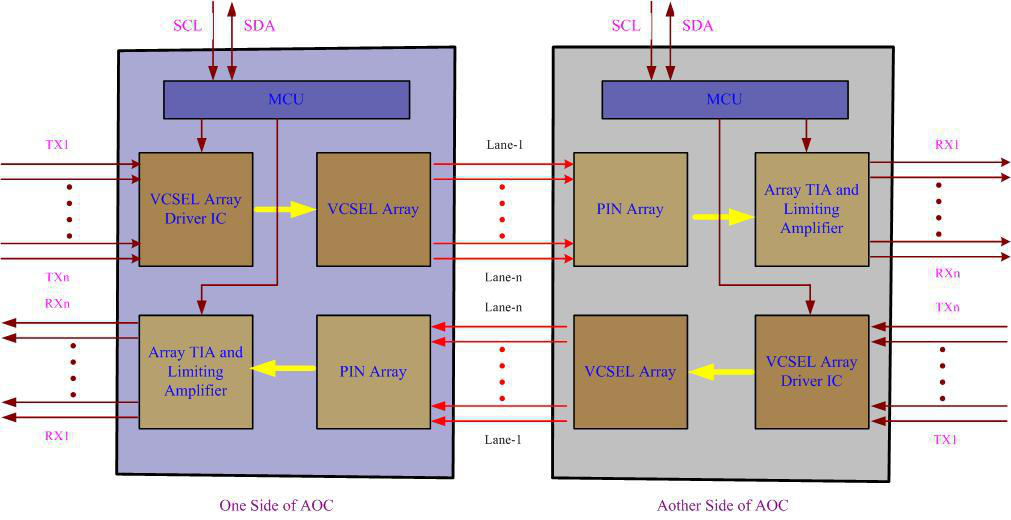

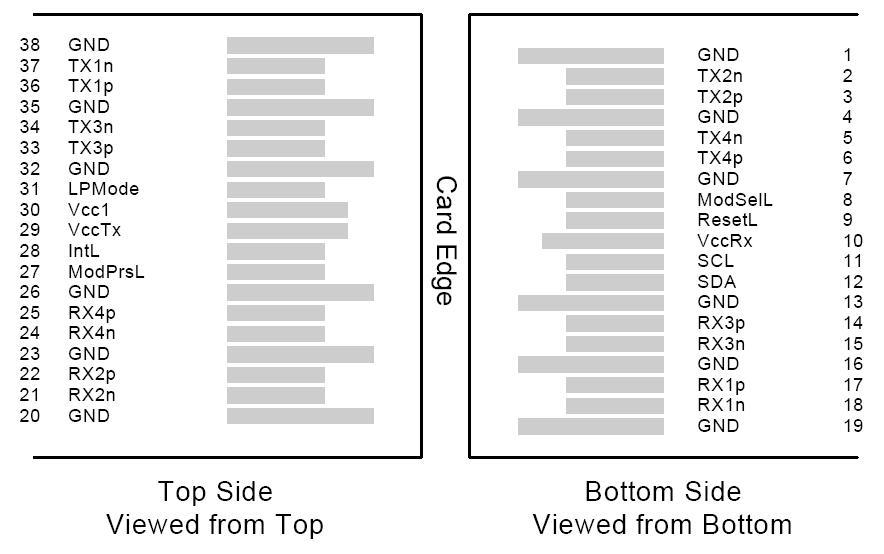

The Gigalight Technologies GQS-MP560-SR4C is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand FDR/QDR/DDR/SDR, 16G/10G/8G/4G/2G fiber channel, PCIe and SAS Applications. This transceiver is a high-performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 56Gbps bandwidth. Each lane can operate at 14.0625Gbps up to 100m using OM3 fiber or 150m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

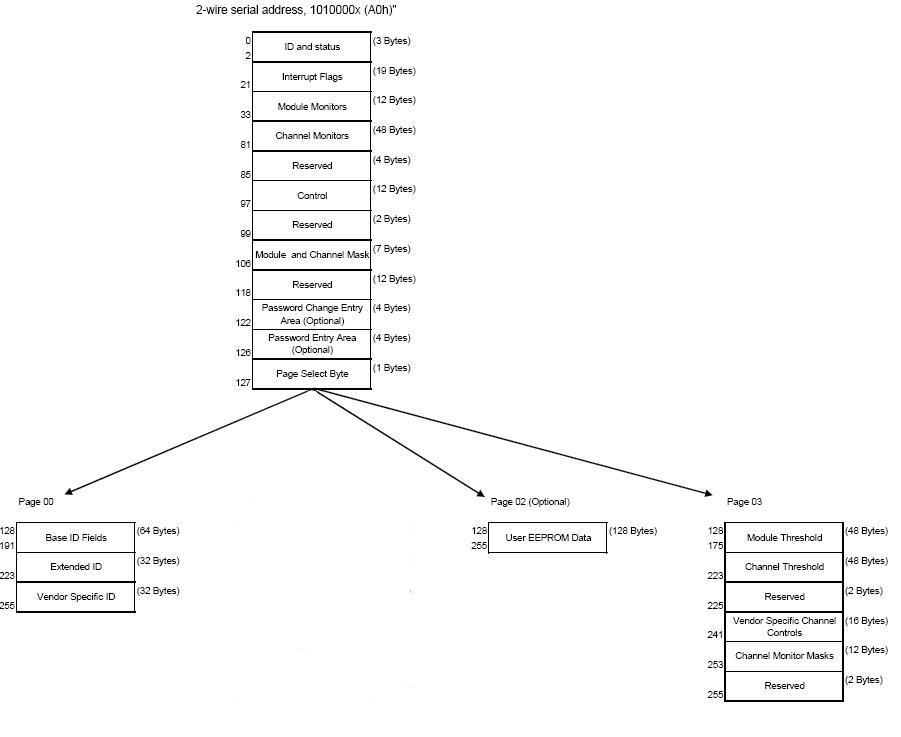

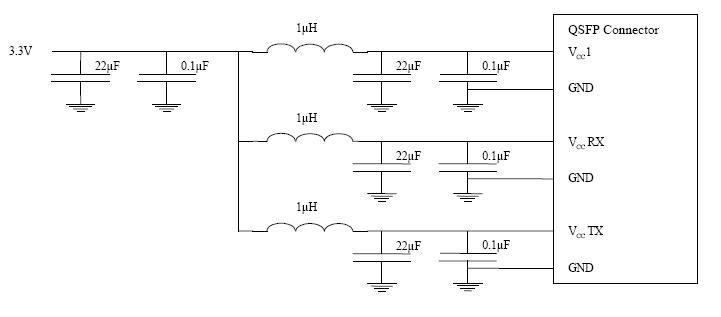

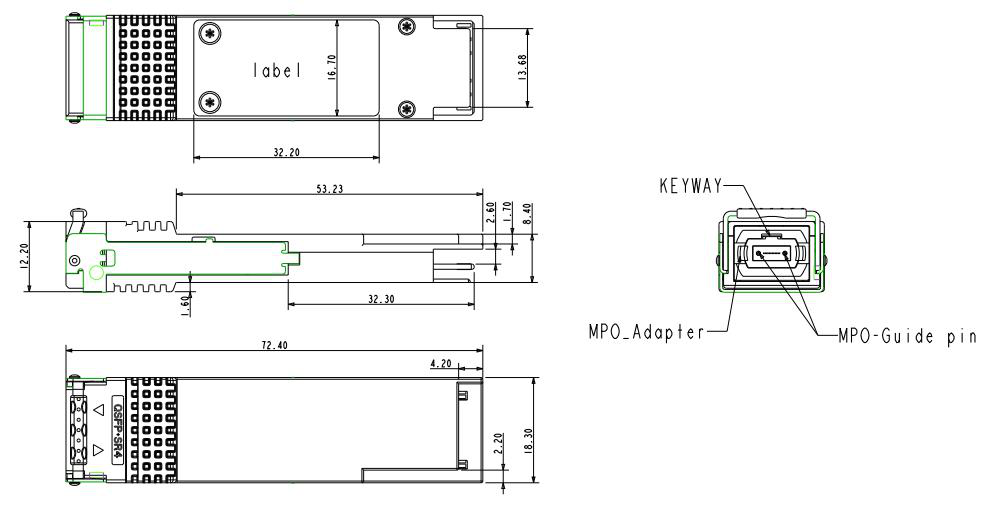

| Supply Voltage | 3.13-3.47V |
| Operating Case Temperature | 0-70°C |
| Data Rate Per Lane | 2.5-14.0625Gbps |
| Differential Input Impedance | 90-100-110ohm |
| Differential Output Impedance | 90-100-110ohm |
| Differential Input Voltage Amplitude | 300mVp-p |
| Differential Output Voltage Amplitude | 500-800mVp-p |
| Skew | 300ps |
| Bit Error Rate | E-12 |
| Input Logic Level High | 2.0V |
| Input Logic Level Low | 0-0.8V |
| Output Logic Level High | VCC-0.5V |
| Output Logic Level Low | 0-0.4V |
| Centre Wavelength | 840-850-860nm |
| RMS Spectral Width | 0.65nm |
| Average Launch Power Each Lane | -7.5 to -2.5dBm |
| Difference in Launch Power between any Two Lanes | 4dB |
| Extinction Ratio | 3-4dB |
| Peak Power Each Lane | 4dBm |
| Transmitter and Dispersion Penalty Each Lane | 3.5dB |
| Average Launch Power of OFF Transmitter Each Lane | -30dBm |
| Stressed Receiver Sensitivity in OMA Each Lane | -5.4dBm |
| Average Power at Receiver Input Each Lane | -9.5 to 2.4dBm |
| Receiver Reflectance | -12dB |
| LOS De-Assert OMA | -7.5dBm |
| Los Hysteresis | 0.5dB |
| Power Dissipation | 1.5W |
| Fiber Bend Radius | 3cm |
