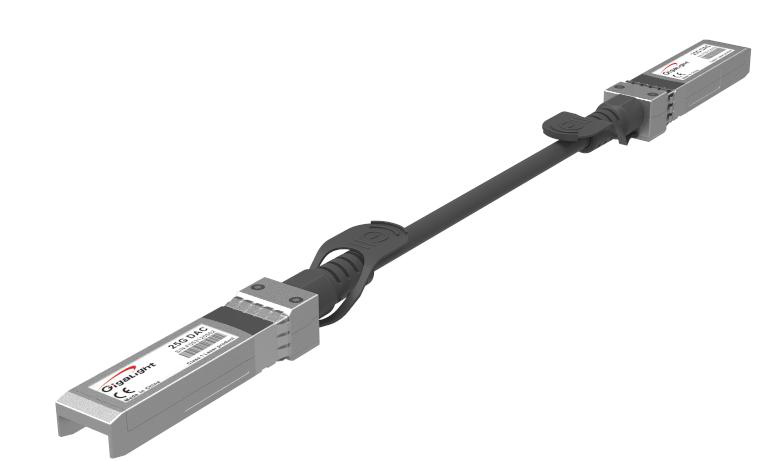

50GE SFP56 Direct Attach Passive Copper Cables
The SFP56 passive cable assemblies are high-performance, cost-effective I/O solutions for 50G Ethernet. SFP56 copper cables allow hardware manufacturers to achieve high port density, configurability, and utilization at a very low cost and reduced power budget.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Supported Data Rate | 56Gb/s |
| Transmission Distance | Up to 3m |

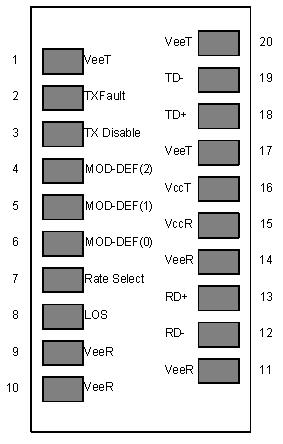

| Hot-Pluggable | SFP 20PIN footprint |
| Improved Pluggable Form Factor (IPF) | Compliant for enhanced EMI/EMC performance |
| Compatibility | SFP28 MSA and SFF-8432 |
| Standard Compatibility | IEEE802.3cd |
| Power Consumption | <0.1W |
| Operating Temperature Range | 0~70°C |
| Storage Ambient Temperature | -40~+85°C |
| Operating Case Temperature | 0~+70°C |
| Power Supply Voltage | 3.14~3.47V |
| Data Rate Per Lane | 28GBaud/s |
| Differential Impedance (bulk cable) | 100±10Ω |
| Differential Impedance (Mated connector) | 100±10Ω |
| Differential Impedance (cable termination) | 100±10Ω |
| Time Domain Parameters | L*15±20ps |
| Frequency Domain Parameters | SDD11/SDD21, SCC11/SCC21, SDC11/SDC21, MDNEXT |

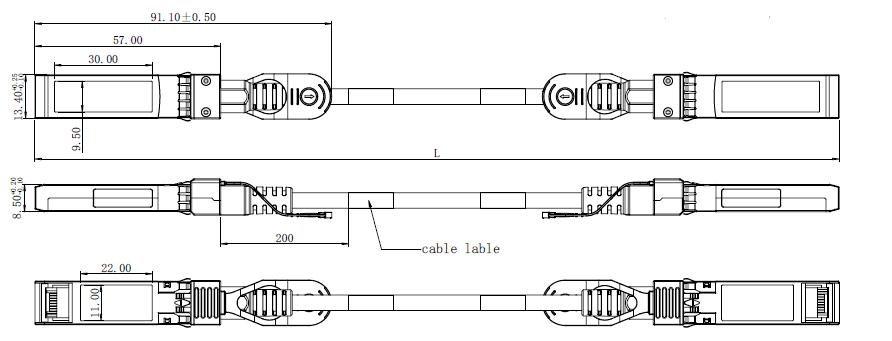

| Mechanical Dimensions | Length options: 1m, 2m, 3m; Wire gauge: 30AWG, 26AWG |
Applications
Key Features
Datasheet
Supplier Information
