GSS-MD0560-XXXC SFP56 Active Optical Cable

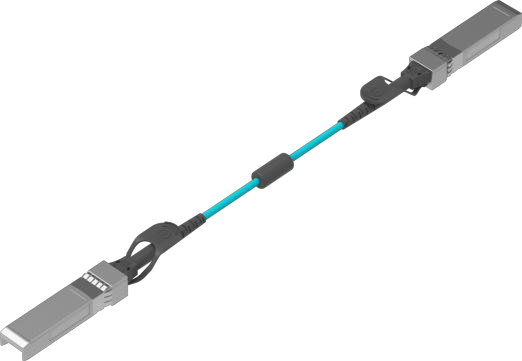

The Gigalight Technologies GSS-MD0560-XXXC is a single-channel active optical cable designed for 26.5625GBd PAM4 Ethernet applications. It is a high-performance module for short-range data communication and interconnect applications, operating at 53.125Gbps up to 70m using OM3 fiber or 100m using OM4 fiber. The module uses a nominal wavelength of 850nm and incorporates proven circuit and VCSEL technology for reliable performance.
Save to Favorites

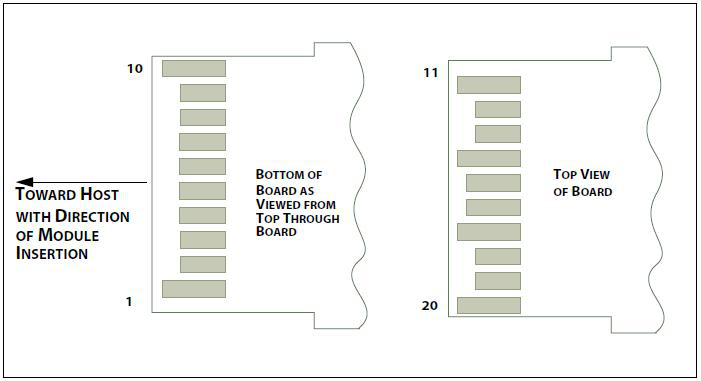

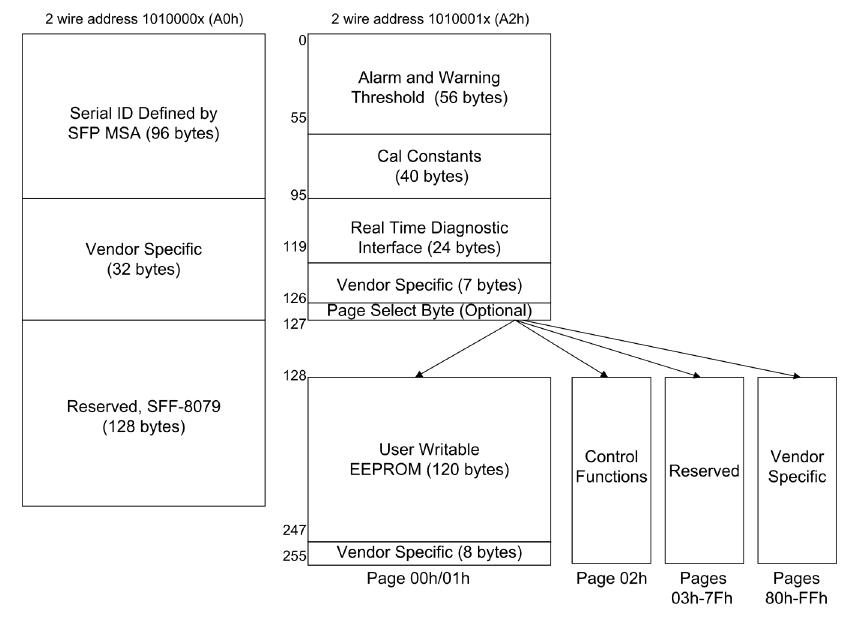

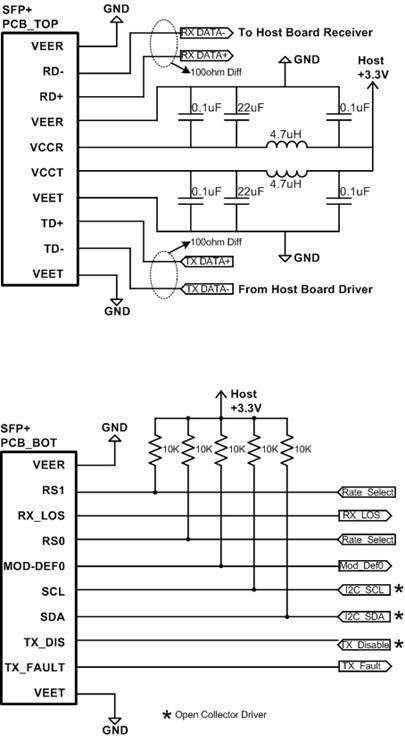

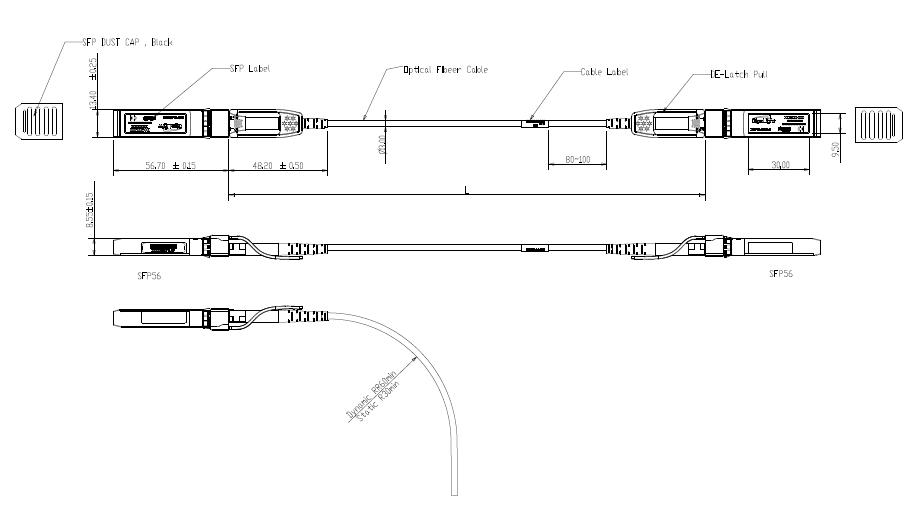

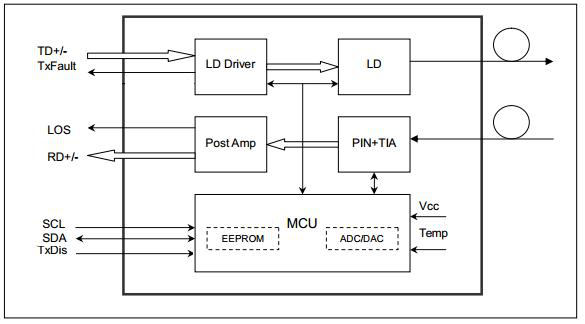

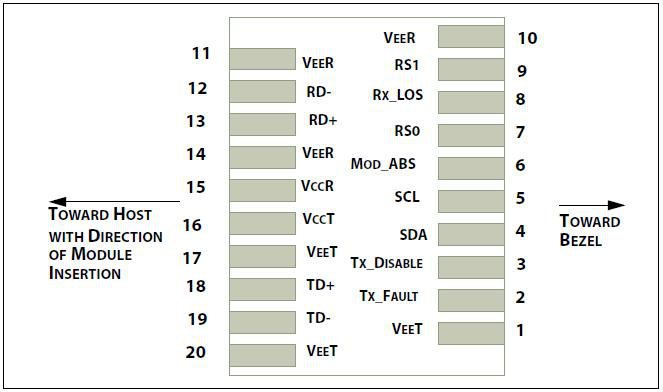

Overview

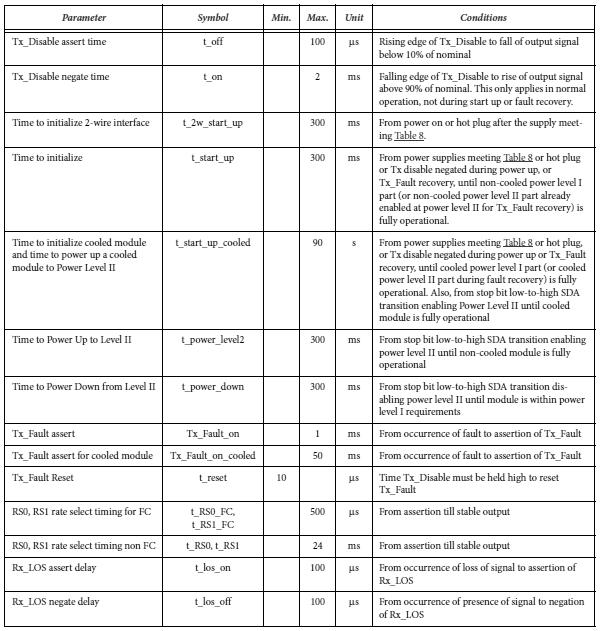

Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | -0.3~3.6V |
| Input Voltage | -0.3~Vcc+0.3V |
| Storage Temperature | -20~85°C |
| Case Operating Temperature | 0~70°C |
| Humidity(non-condensing) | 5~95% |
| Recommended Supply Voltage | 3.13~3.47V |
| Recommended Operating Case Temperature | 0~70°C |
| Data Rate Per Lane | 26.5625GBd |
| Recommended Humidity | 5~85% |
| Power Dissipation | <2W |
| Differential Input Impedance | 90~110Ω |
| Differential Output Impedance | 90~110Ω |
| Differential Input Voltage Amplitude | 900mVp-p |
| Differential Output Voltage Amplitude | 900mVp-p |
| Skew | 300ps |
| Bit Error Rate | 2.4E-4 |
| Near-end Eye Width | 0.265UI |
| Near-end Eye Height | 70mV |
| Far-end Eye Width | 0.20UI |
| Far-end Eye Height | 30mV |
| Near-end Eye Linearity | 0.85 |
| Centre Wavelength | 840~860nm |
| RMS Spectral Width | 0.6nm |
| Average Launch Power Each Lane | -6~4dBm |
| Optical Modulation Amplitude | -4~3dBm |
| Transmitter and Dispersion Eye Closure | 4.9dB |
| Extinction Ratio | 3dB |
| Average Launch Power of OFF Transmitter | -30dBm |
| Receiver Sensitivity | -6.5dBm |
| Stressed Receiver Sensitivity | -3.4dBm |
| Receiver Reflectance | -12dB |
| Los Assert | -10.5dBm |
| Los De-assert | -10dBm |
| Los Hysteresis | 0.5dB |
