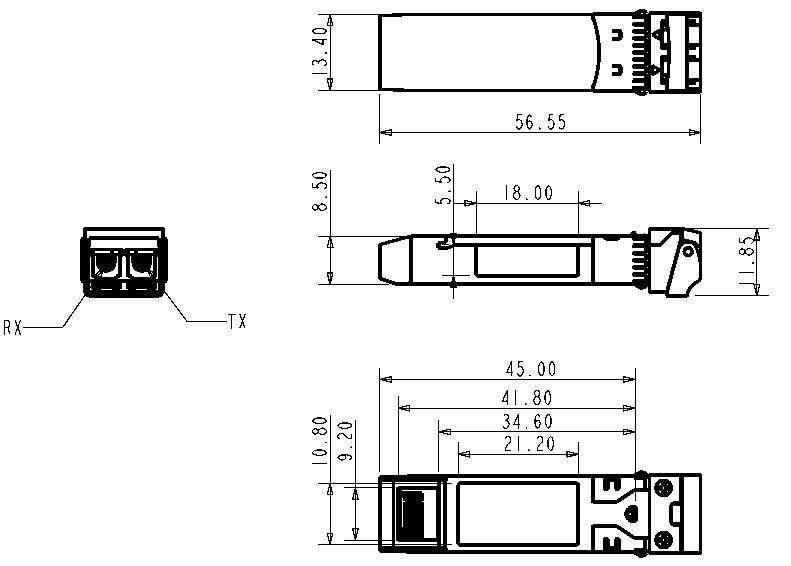

GSS-MPO560-SRC

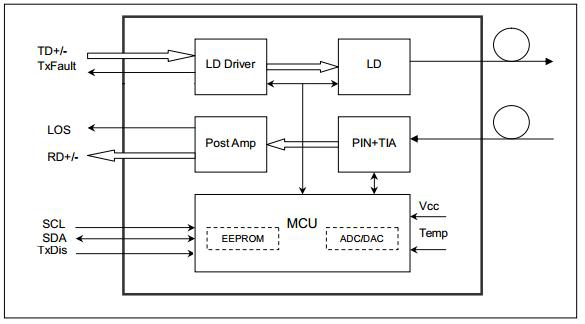

The GSS-MPO560-SRC is a high-performance, pluggable, fiber-optic SFP56 transceiver designed for 26.5625GBd PAM4 Ethernet applications. It operates at 53.125Gbps over OM3 multimode fiber for up to 70m or OM4 multimode fiber for up to 100m, using a nominal wavelength of 850nm.
Save to Favorites
Overview
Specifications

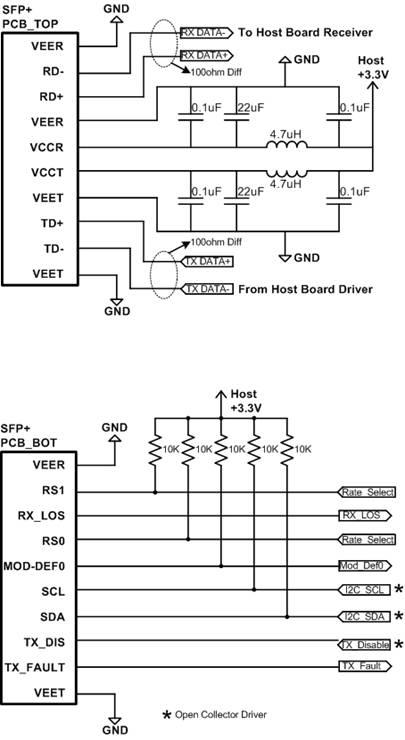

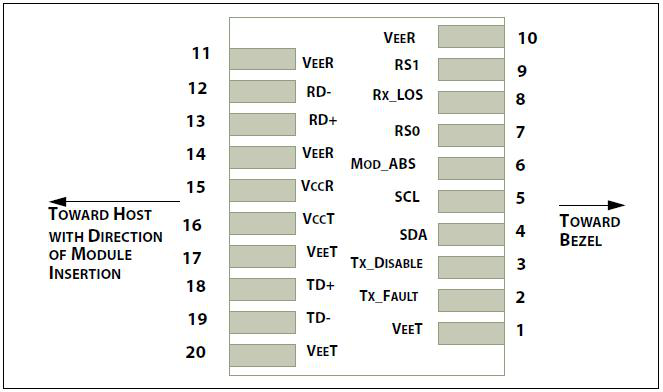

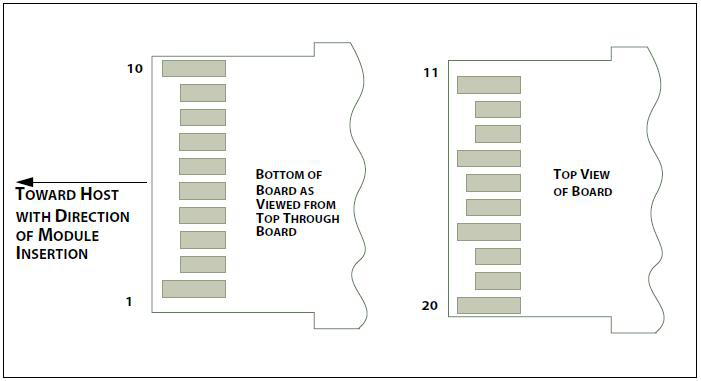

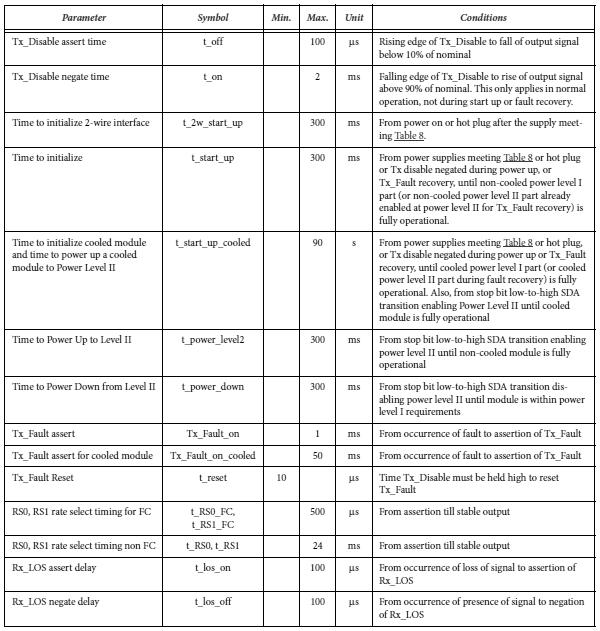

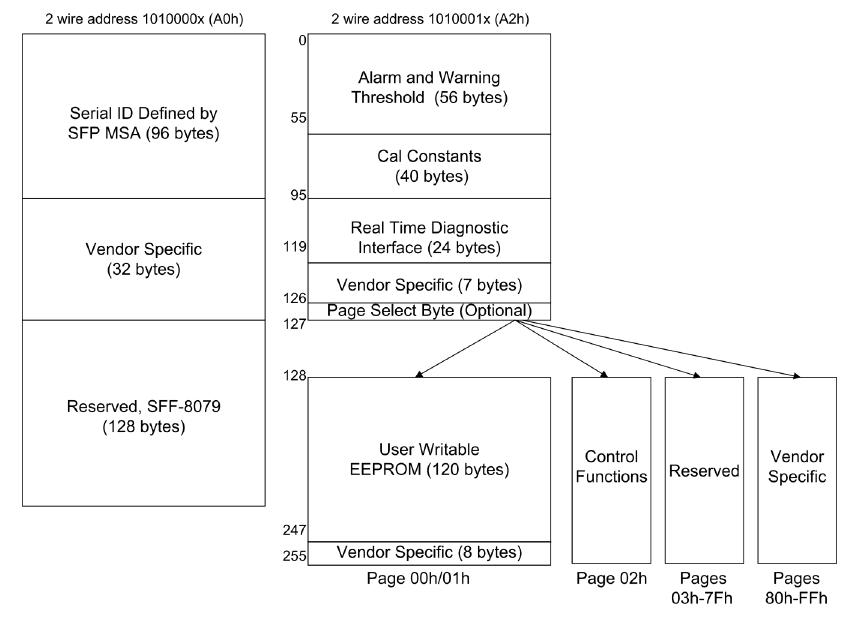

| Parameter | Value |
|---|---|
| Supply Voltage | 3.13-3.47V |
| Operating Case Temperature | 0-70°C |
| Data Rate Per Lane | 26.5625GBd |
| Power Dissipation | <2W |
| Differential Input Impedance | 90-110ohm |
| Differential Output Impedance | 90-110ohm |
| Differential Input Voltage Amplitude | 900mVp-p |
| Differential Output Voltage Amplitude | 900mVp-p |
| Skew | 300ps |
| Bit Error Rate | 2.4E-4 |
| Near-end Eye Width | 0.265UI |
| Near-end Eye Height | 70mV |
| Far-end Eye Width | 0.220UI |
| Far-end Eye Height | 30mV |
| Near-end Eye Linearity | 0.85 |
| Centre Wavelength | 840-850-860nm |
| RMS Spectral Width | 0.6nm |
| Average Launch Power | -6 to 4dBm |
| Optical Modulation Amplitude | -4 to 3dBm |
| Transmitter and Dispersion Eye Closure | 4.9dB |
| Extinction Ratio | 3dB |
| Average Launch Power of OFF Transmitter | -30dBm |
| Receiver Sensitivity | -6.5dBm |
| Stressed Receiver Sensitivity | -3.4dBm |
| Receiver Reflectance | -12dB |
| Los Assert | -10.5dBm |
| Los De-assert | -10dBm |
| Los Hysteresis | 0.5dB |
| Tx Disable Assert Time | 100μs |
| TX Disable Negate Time | 2ms |
| Time to Initialize 2-wire Interface | 300ms |
| Time to Initialize | 300ms |
| Time to Initialize Cooled Module | 900ms |
| Time to Power Up to Level II | 300ms |
| Time to Power Down from Level II | 300ms |
| Tx Fault Assert Time | 1ms |
| Tx Fault Assert Time for Cooled Module | 50ms |
| Tx Fault Reset Time | 10μs |
| RS0 Rate Select Timing | 500μs |
| RS1 Rate Select Timing | 24ms |
| Rx LOS Assert Delay | 100μs |
| Rx LOS Negate Delay | 100μs |
| Bias Current | 0-15mA |
| TX Power | -6 to 4dBm |
| RX Power | -14 to 4dBm |
