40G/100G QSFP AOC Checker

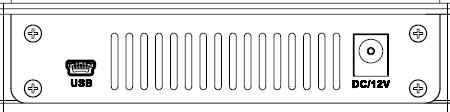

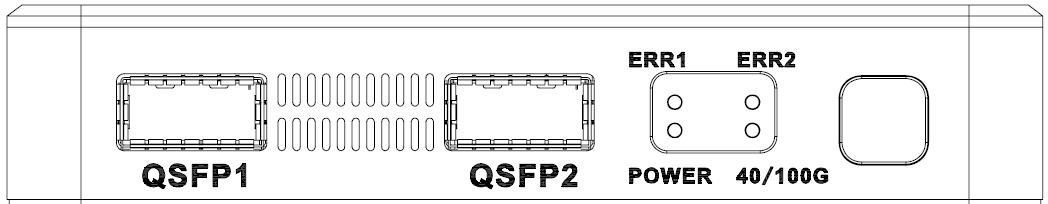

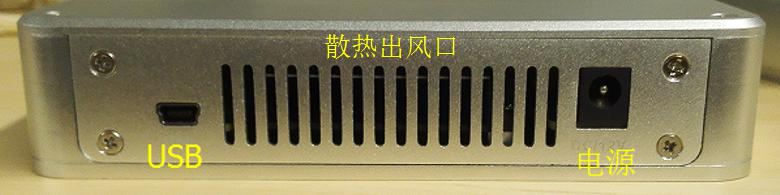

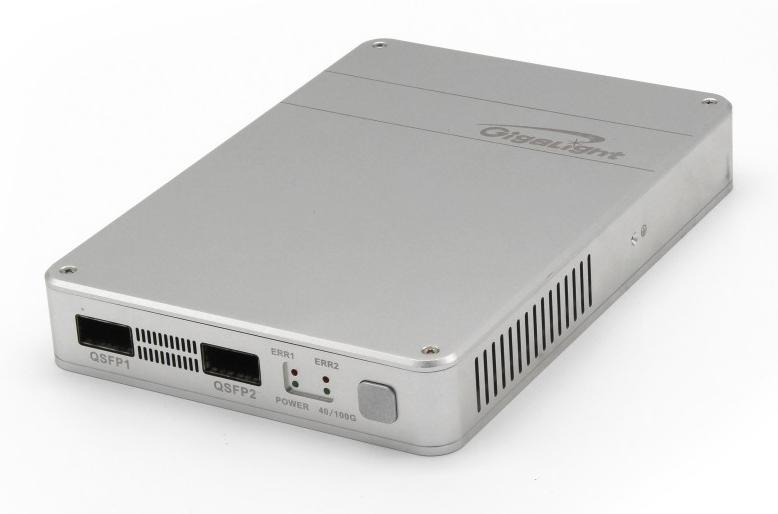

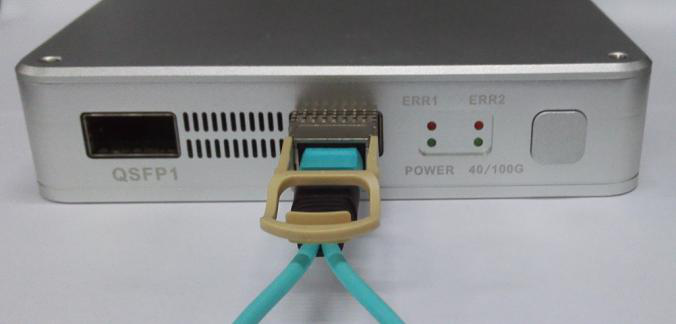

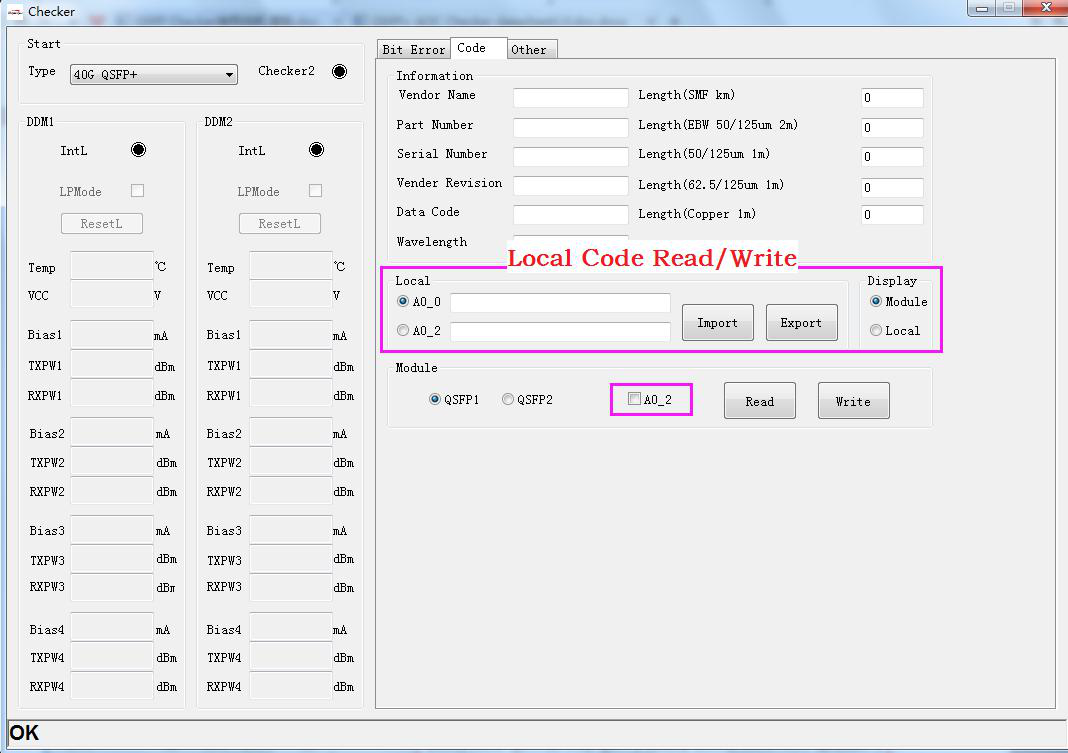

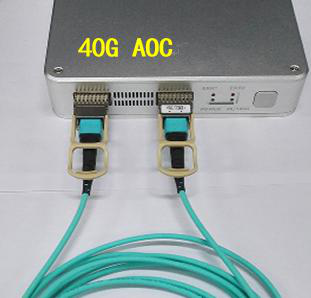

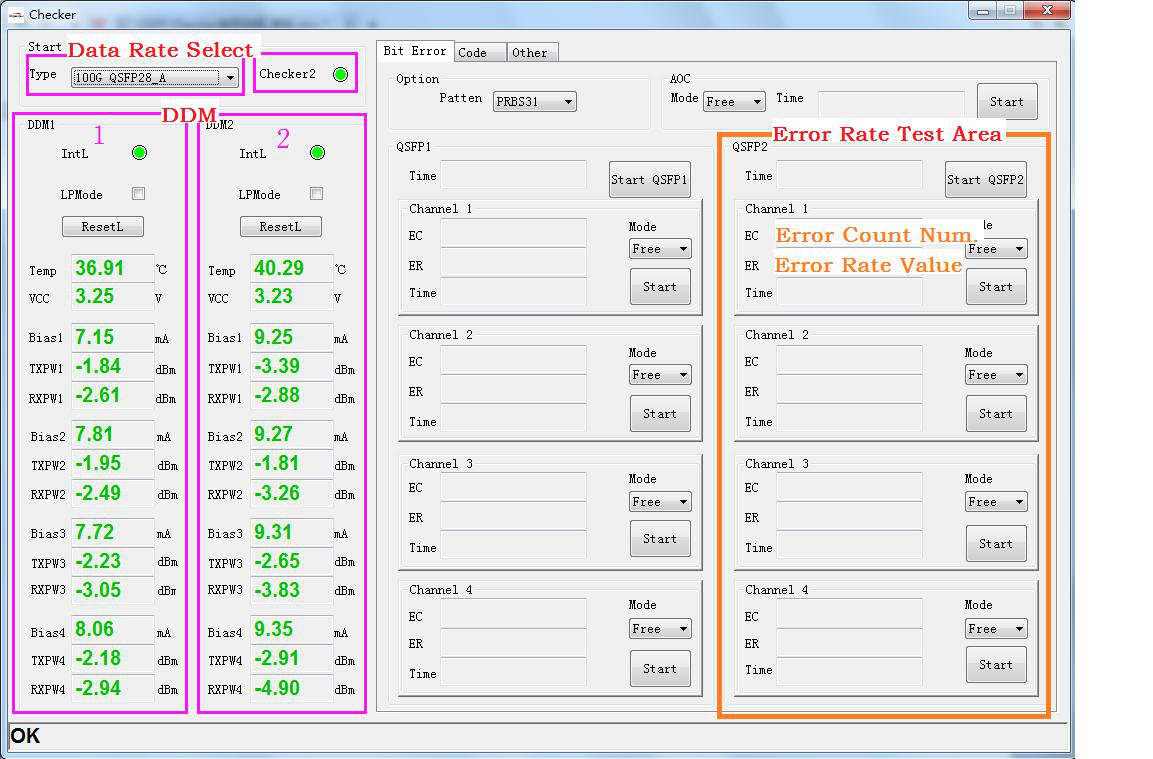

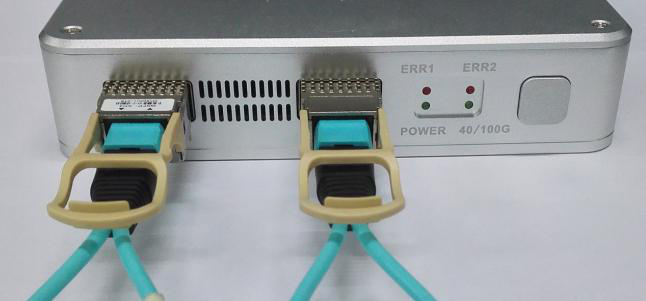

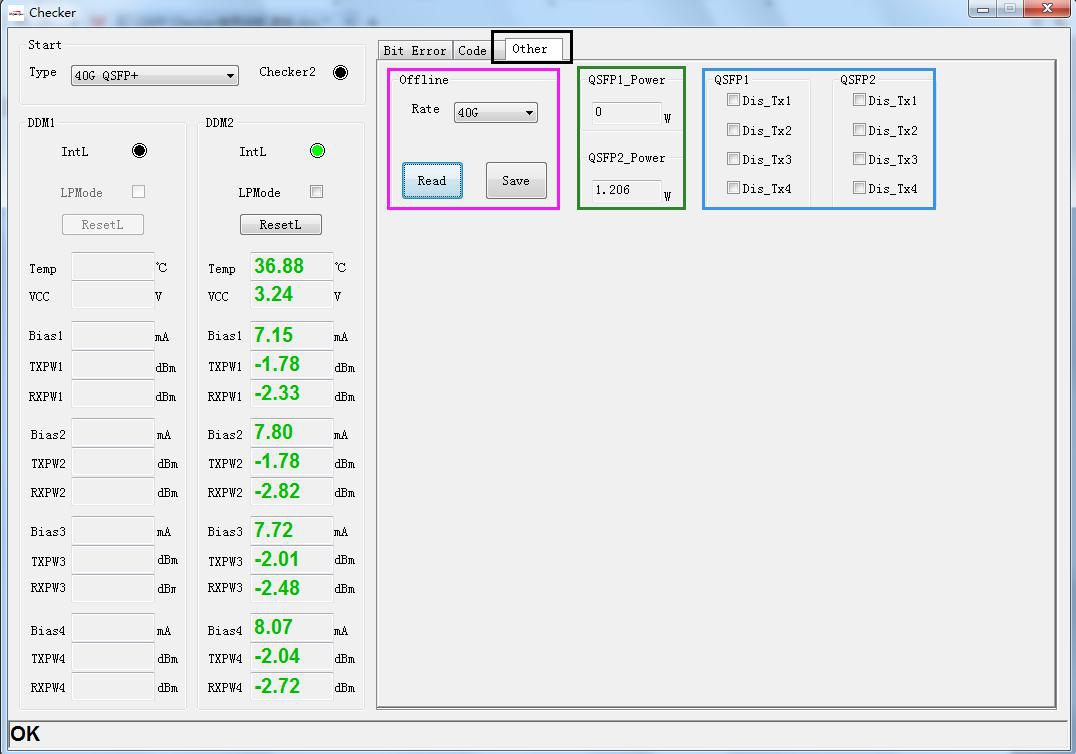

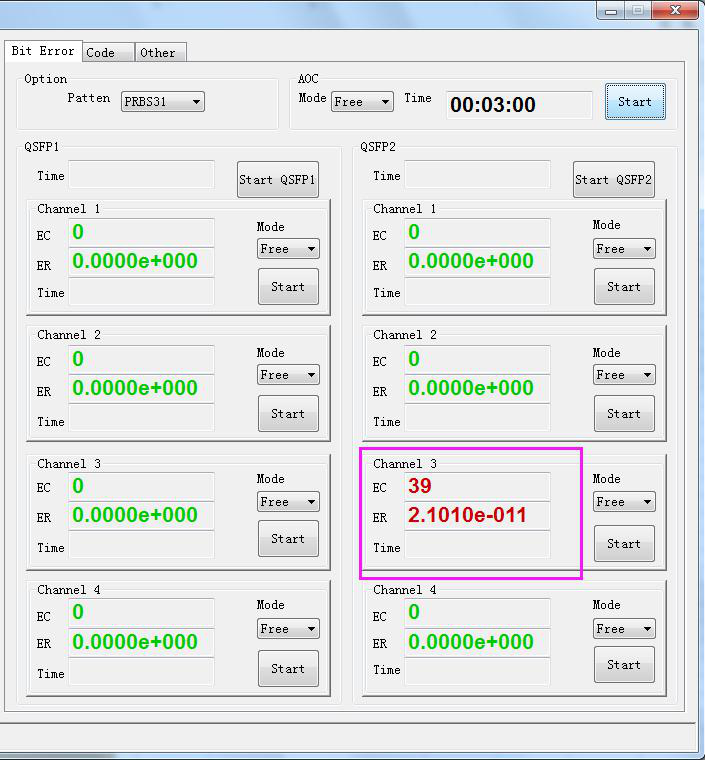

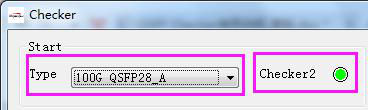

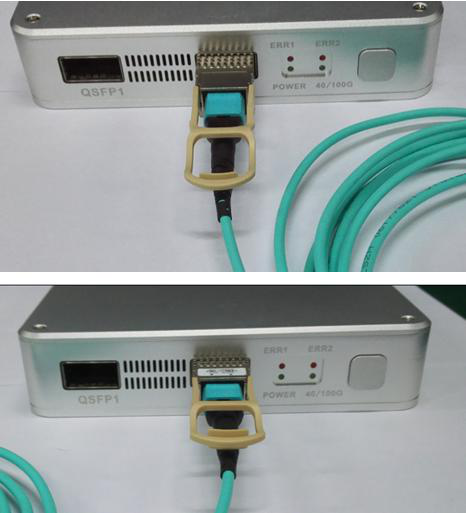

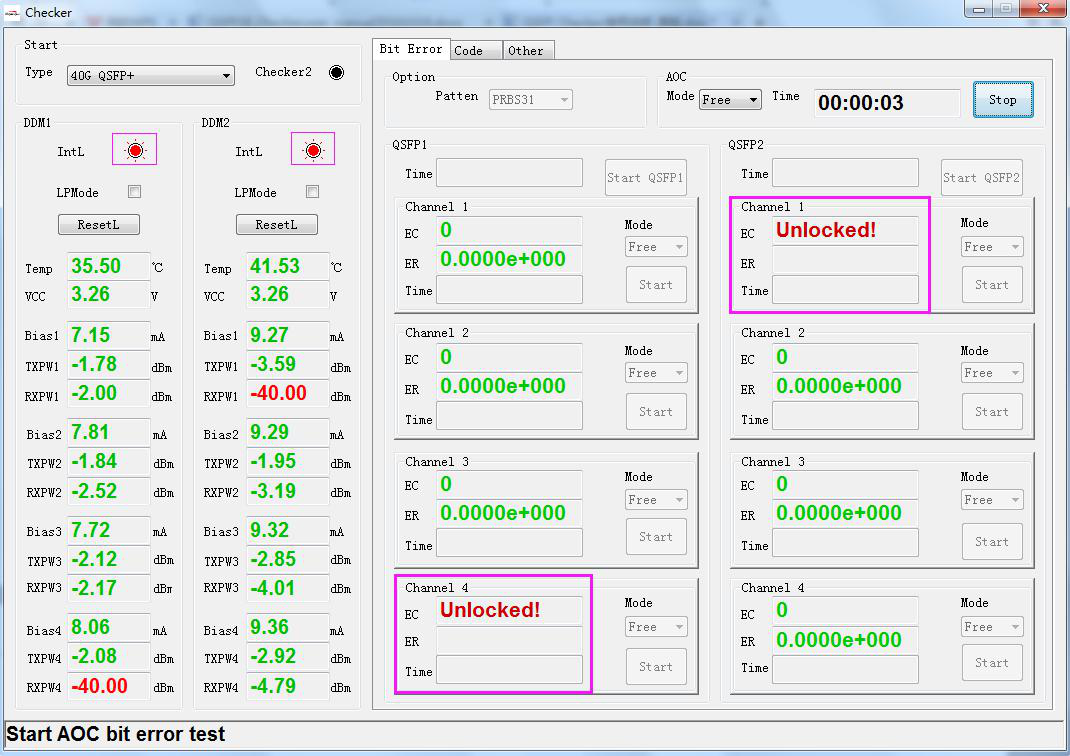

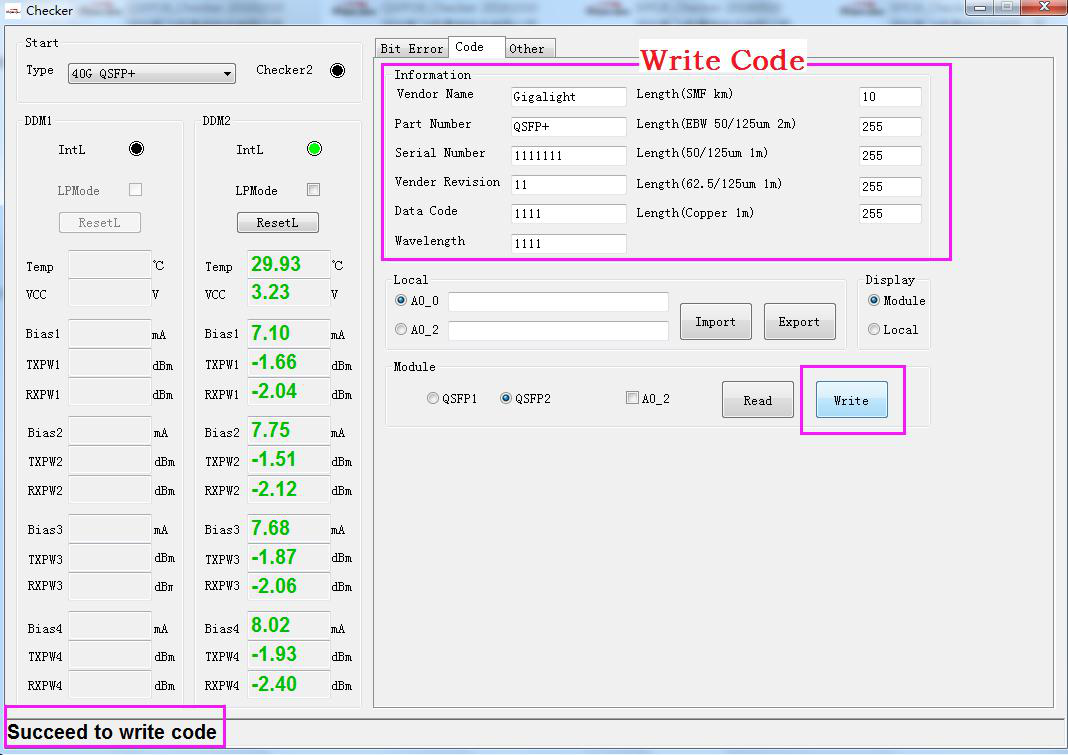

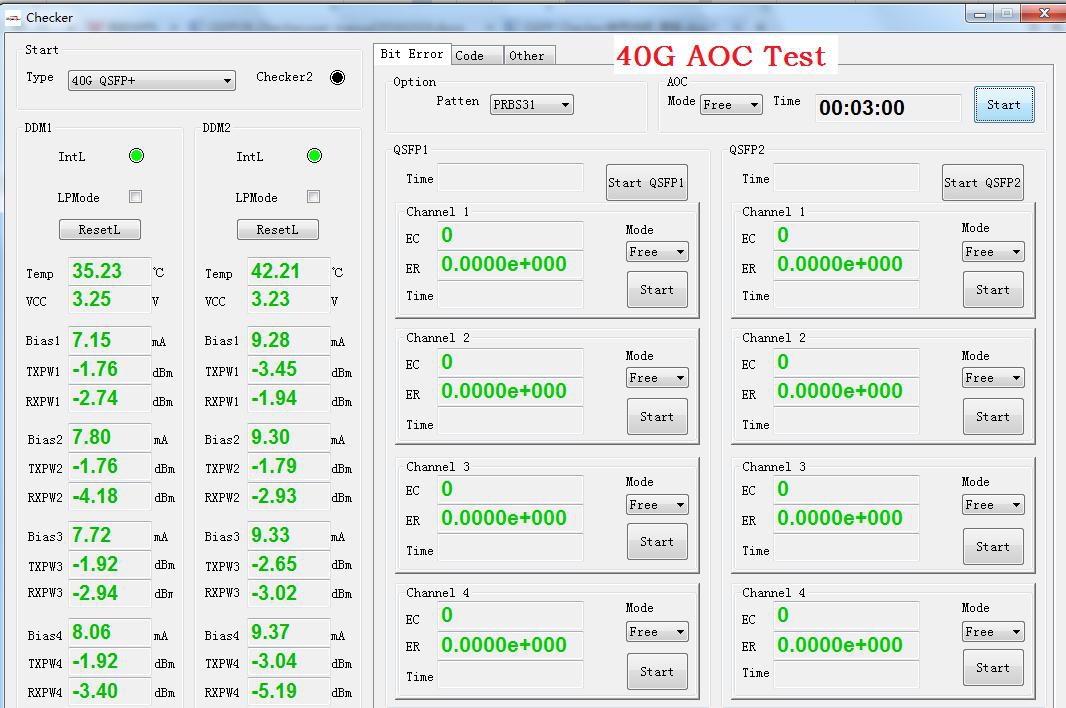

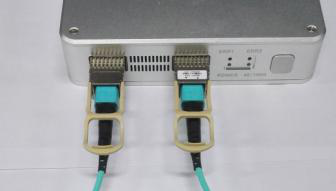

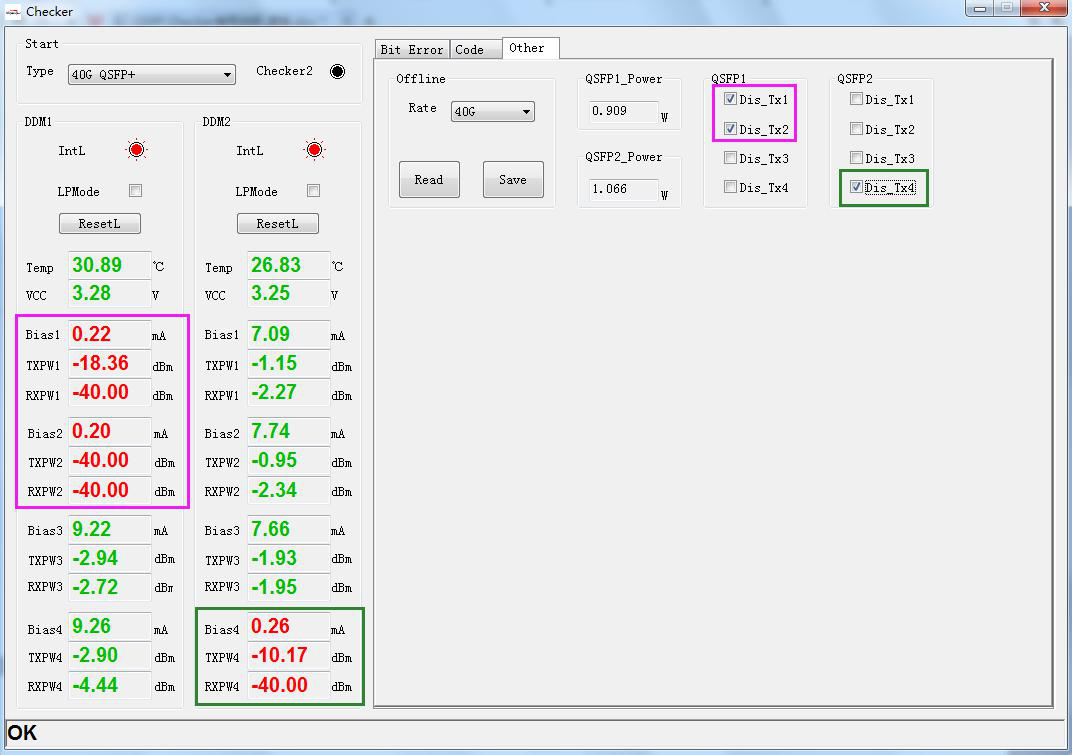

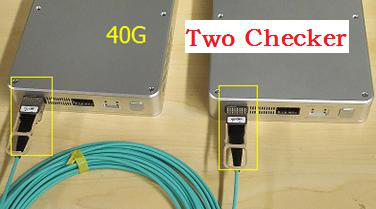

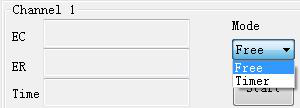

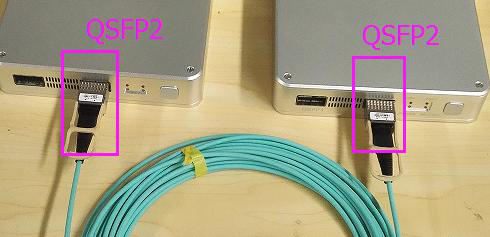

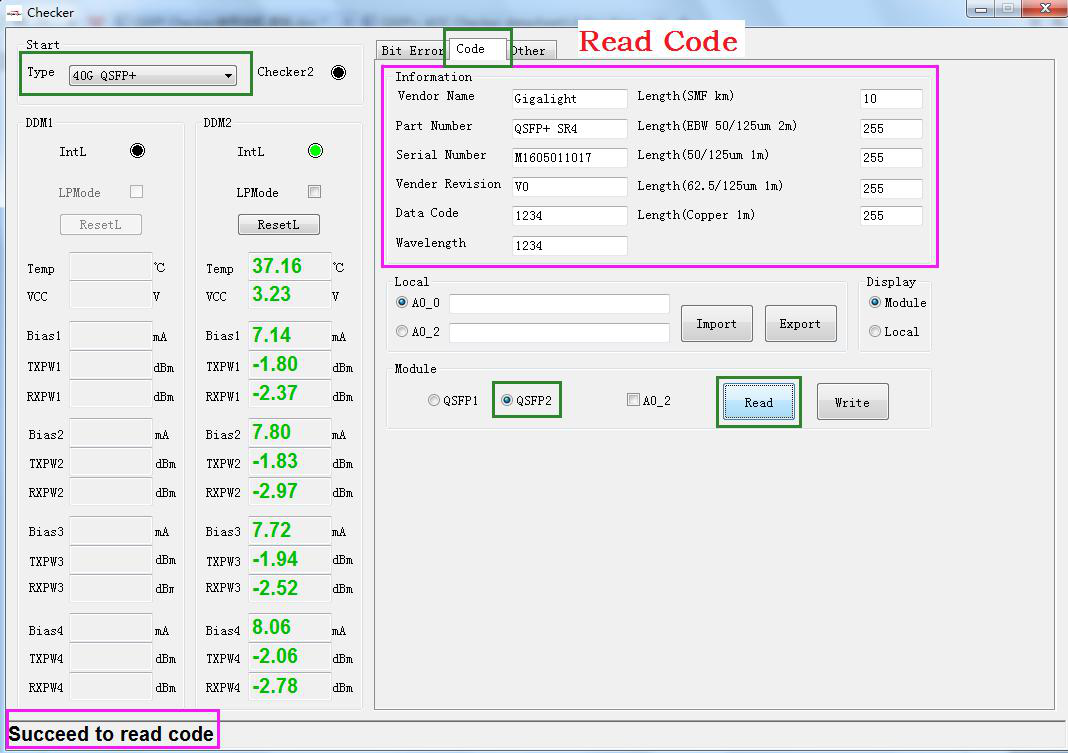

The 40G/100G QSFP AOC Checker is an advanced testing instrument designed for QSFP modules, QSFP+ AOC, QSFP+ DAC, and QSFP28 modules. It supports bit error rate testing, DDM checking, EEPROM coding, and module power measurement, providing reliable performance for optical module testing.
Save to Favorites
Overview
Specifications

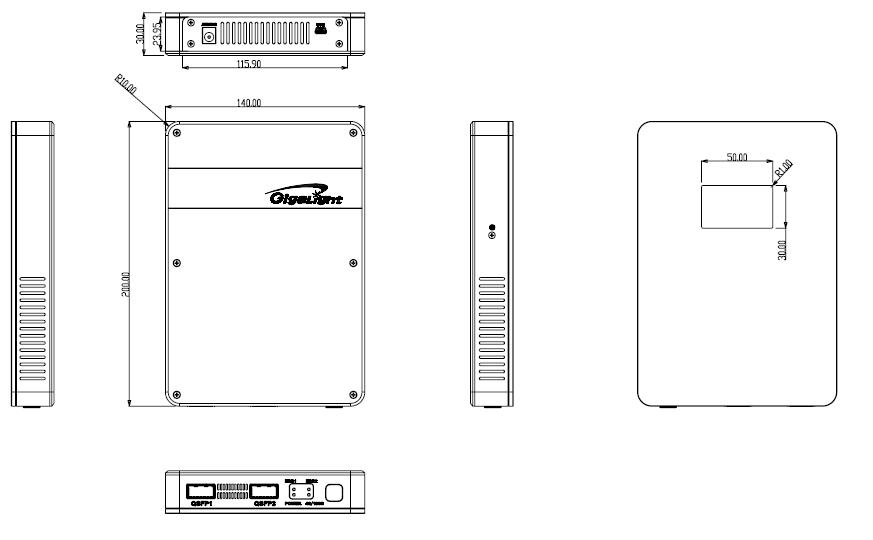

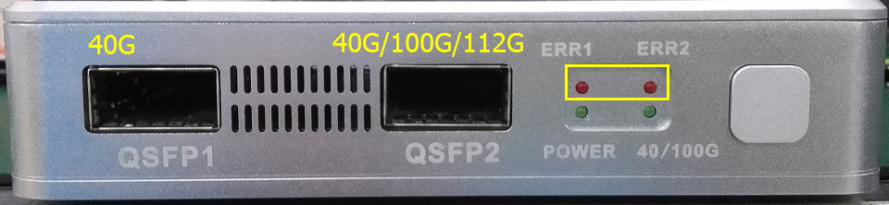

| Parameter | Value |
|---|---|
| Supply Voltage | 5-12V |
| Storage Temperature | -10°C to +70°C |
| Operating Case Temperature | -10°C to +50°C |
| Operating Humidity | 5%-85% (non-condensing) |
| Physical Dimensions | 2000(W)x1400(D)x24(H) mm |
| SFP Ports | Standard QSFP 20pin with Cage |
| Transmission Rate | 40Gbps, 100Gbps, 112Gbps |
| Pattern Generator | PRBS7, PRBS9, PRBS15, PRBS23, PRBS31 |
| Module Power Measured | 0-3000mA |
| Accuracy | ±15% |
