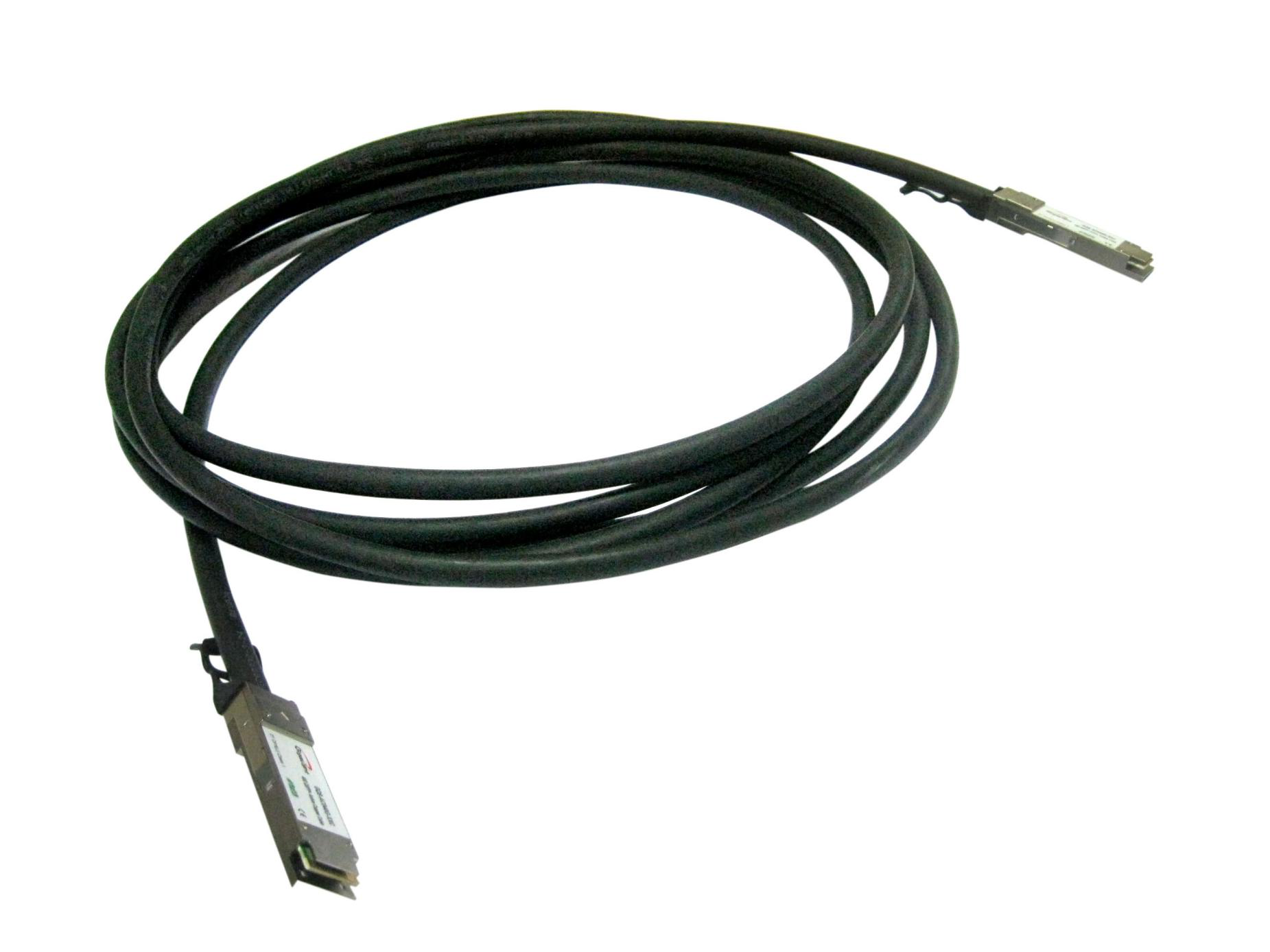

QSFP+ Direct Attach Passive Copper Cable
The QSFP+ passive cable assemblies are high-performance, cost-effective I/O solutions for 40G LAN, HPC, and SAN applications. These cables are compliant with SFF-8436, QSFP+ MSA, and IEEE P802.3ba 40GBASE-CR4 standards, offering low power consumption and short-reach interconnect capabilities.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| QSFP+ Standard | SFF-8436 |
| Channel Count | 4 |
| Supported Data Rates | 1Gb/s - 10Gb/s per channel |
| Maximum Aggregate Data Rate | 40Gb/s (4 x 10Gb/s) |
| Copper Cable Length | up to 5m |

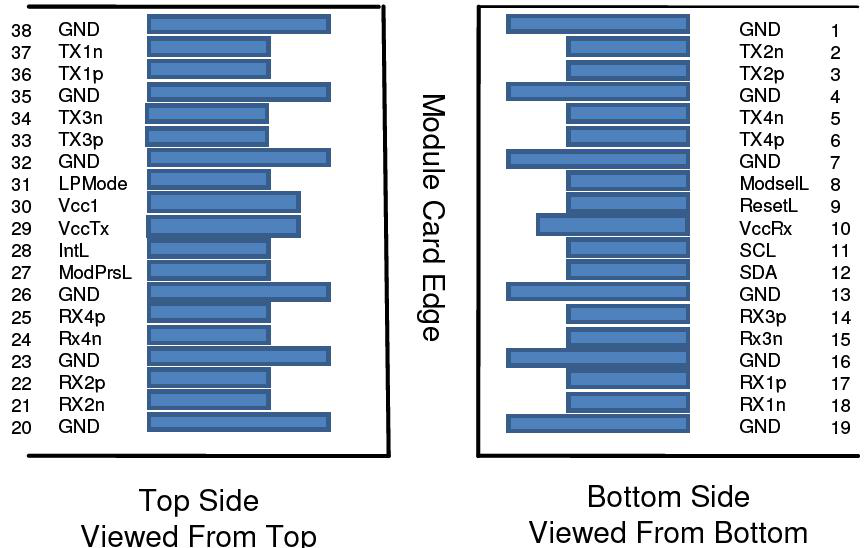

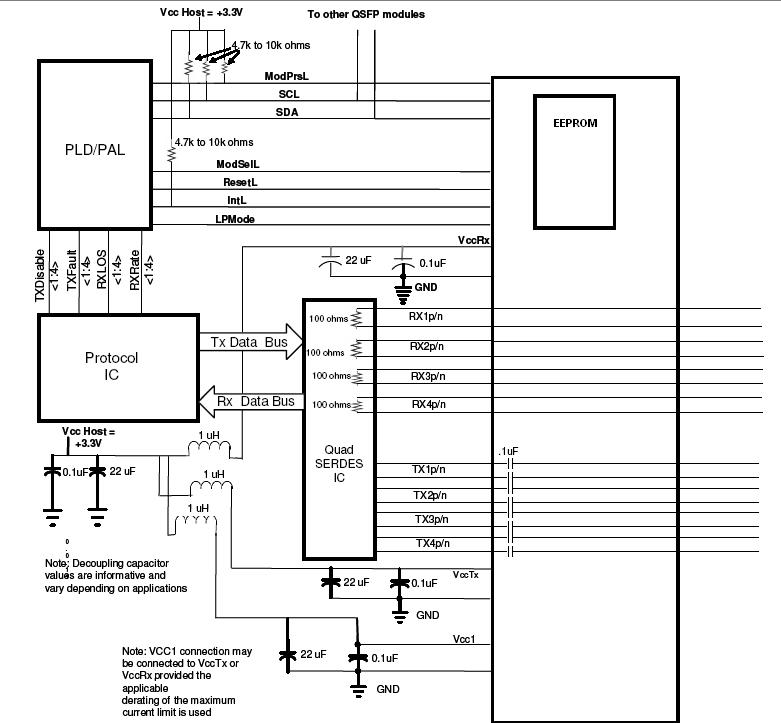

| Connector Type | High-Density QSFP 38-Pin Connector |
| Power Supply | +3.3V |
| Power Consumption | 0.02W (typ.) |
| Temperature Range | 0~70°C |
| Storage Ambient Temperature | -40~+85°C |
| Operating Case Temperature | 0~+70°C |
| Power Supply Voltage | 3.14~3.47V |

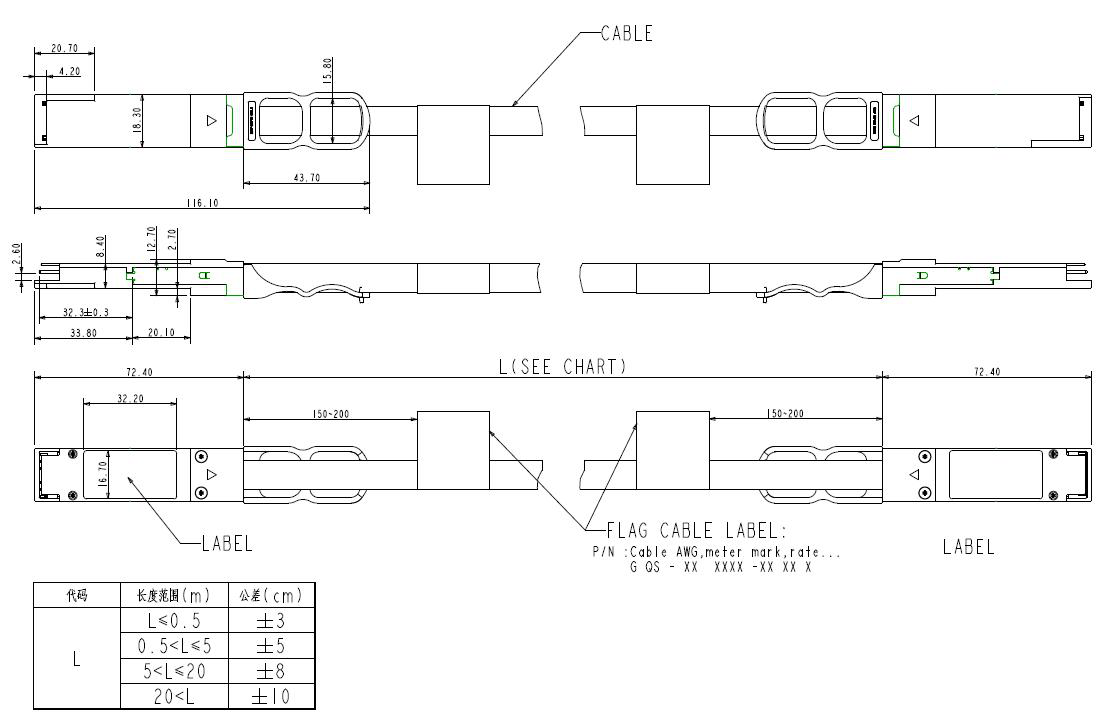

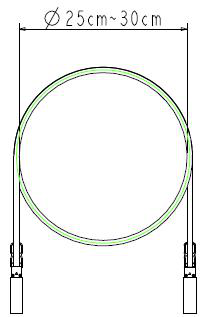

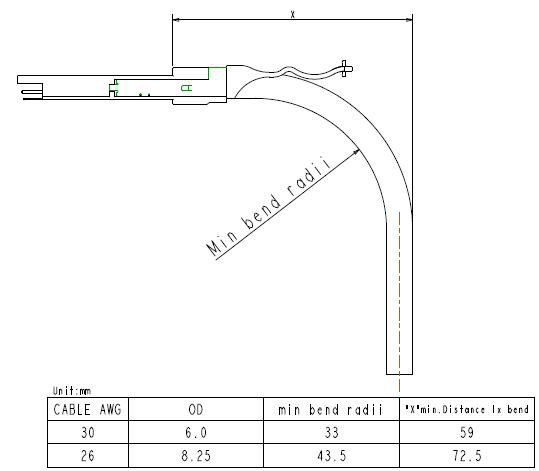

| Mechanical Dimensions | Refer to datasheet |
| Wire Gauge | 30AWG, 26AWG |
