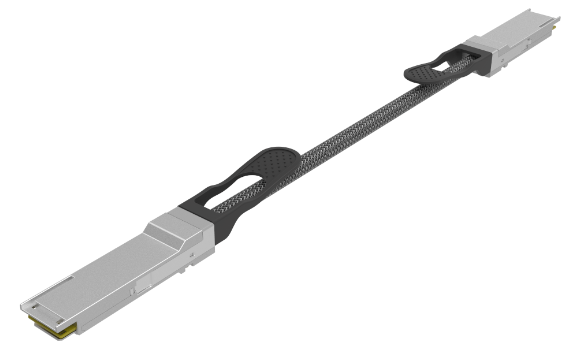

400GbE to 400GbE (QSFP112 to QSFP112) Direct Attach Cable
Gigalight's passive copper cable assembly series provides superior signal integrity performance and reliability. The QSFP112 passive copper cable assembly features 4 channels at 100Gbps with PAM4 modulation, maintaining backward plug compatibility to meet next-generation market needs.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Storage Temperature | -20~85°C |
| Case Operating Temperature | 0~70°C |
| Humidity (non-condensing) | 5~95% |
| Operating Case Temperature | 0~70°C |
| Baud Rate per Lane (PAM4) | 53.125GBaud/s |
| Humidity | 5~85% |
| Wire Gauge | 26AWG~30AWG |
| Length | 0.5m, 1m, 2m |

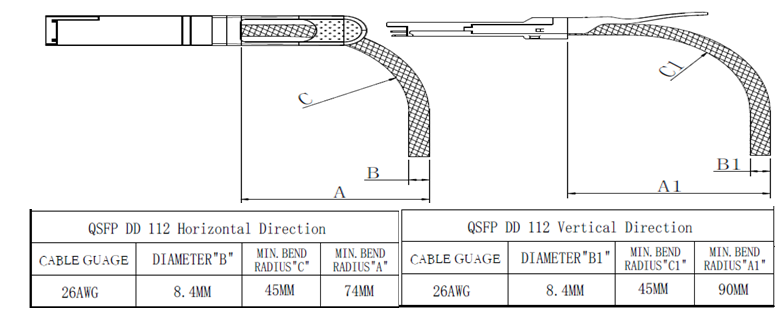

| Minimum Bend Radius B | 45mm |
| Minimum Bend Radius A | 74mm |
Applications
Key Features
Datasheet
