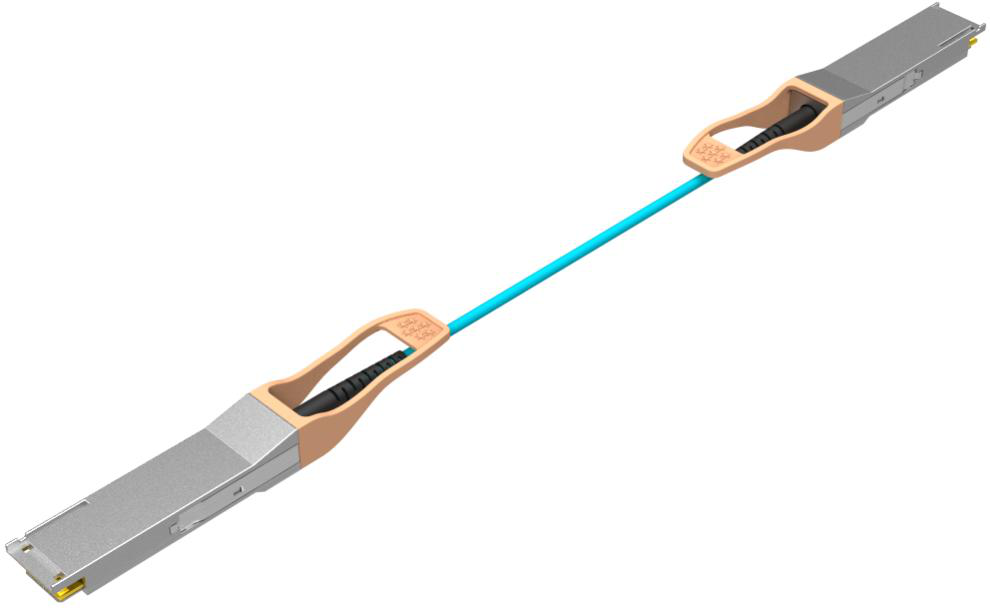

400G QSFP112 AOC Optical Transceiver Module

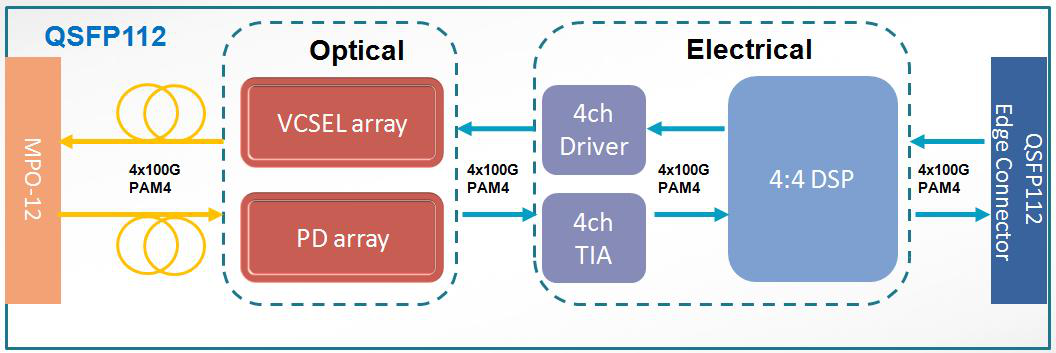

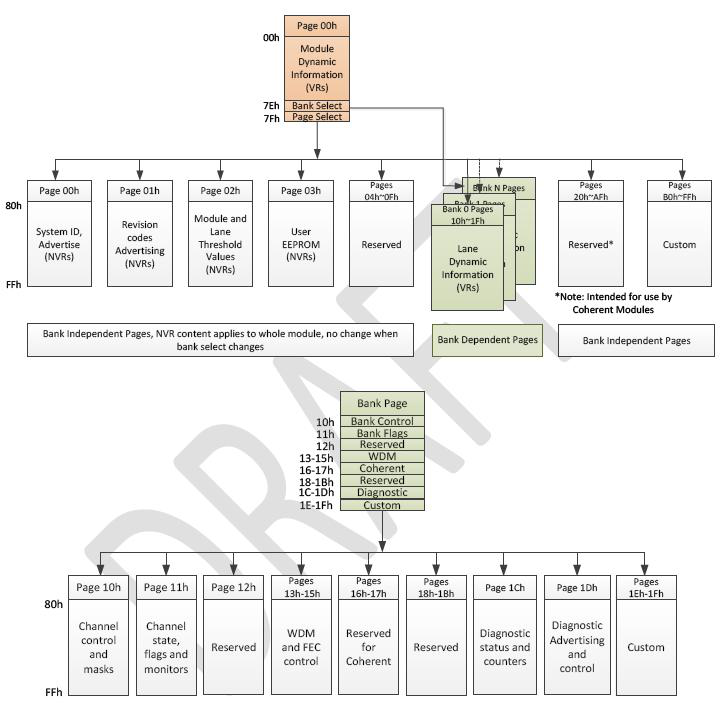

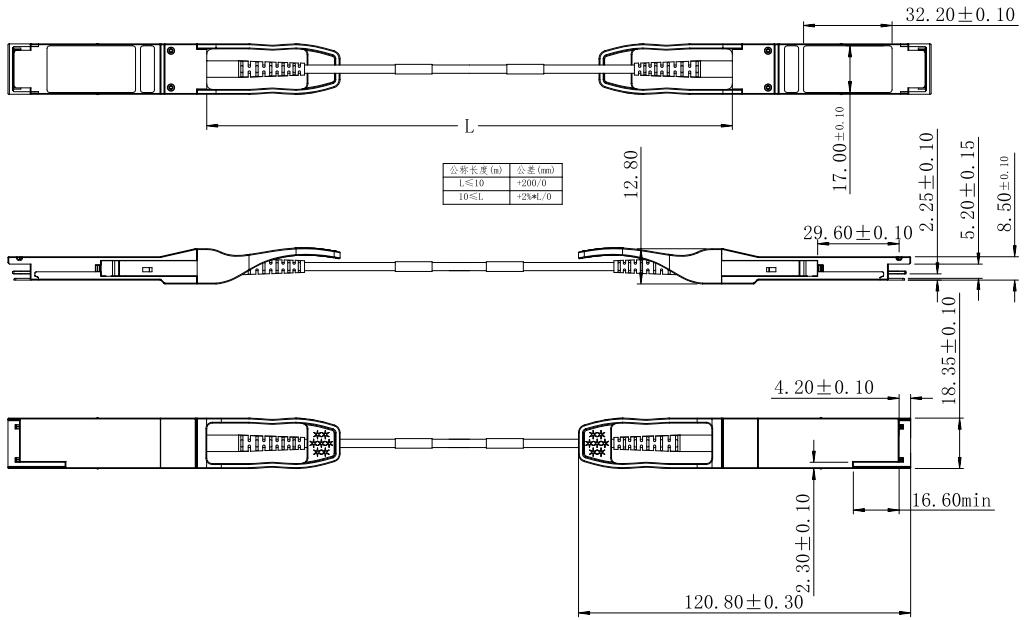

The Gigalight GQS-MDO401-XXXC is a high-performance four-channel pluggable transceiver designed for short-range multi-lane data communication and interconnection applications. It integrates four data lanes in each direction with 4x53.125GBd speed, operating at 106.25Gbps per lane over multimode fiber systems using a nominal wavelength of 850nm. The module is compliant with CMIS for QSFP112 modules and supports Ethernet, Telecom, and InfiniBand use cases.
Save to Favorites
Overview
Specifications

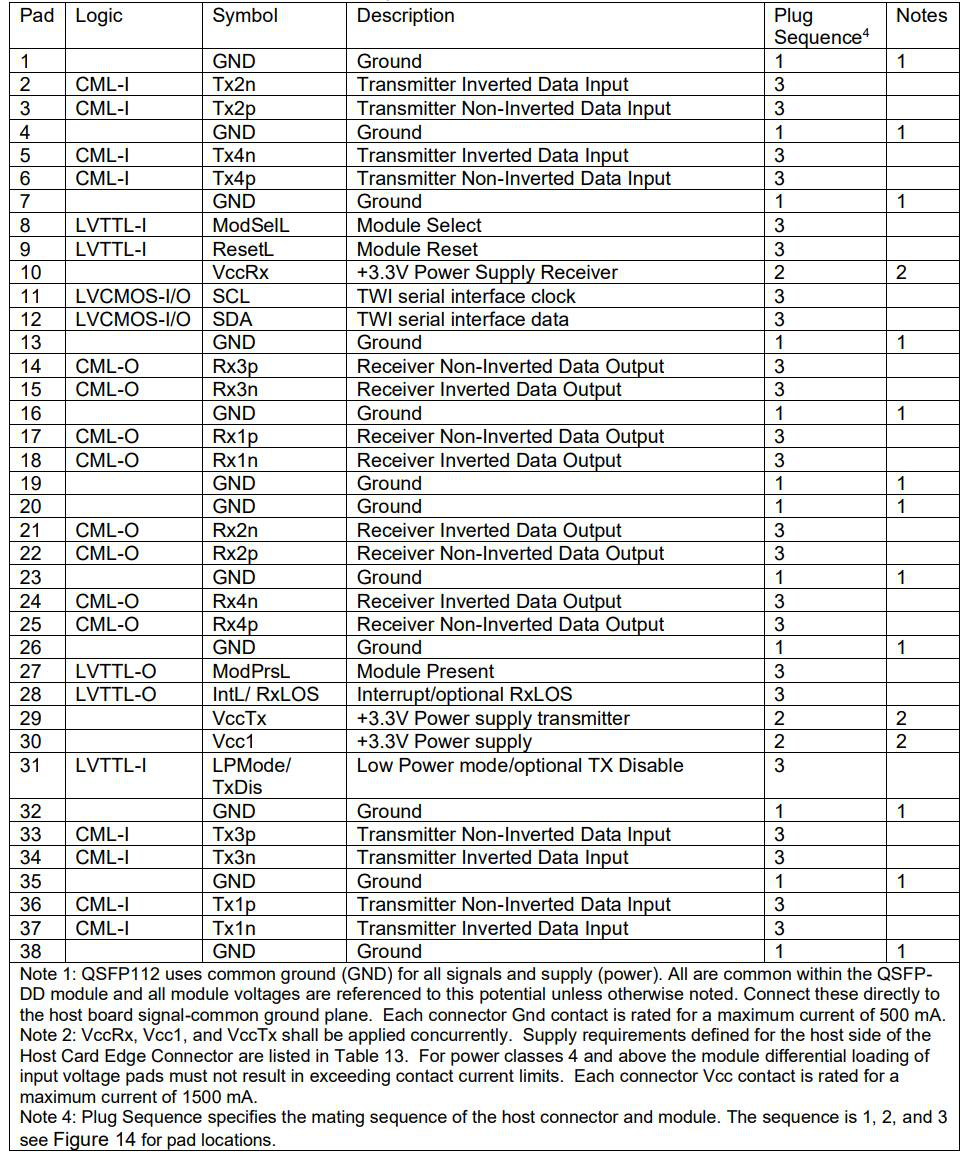

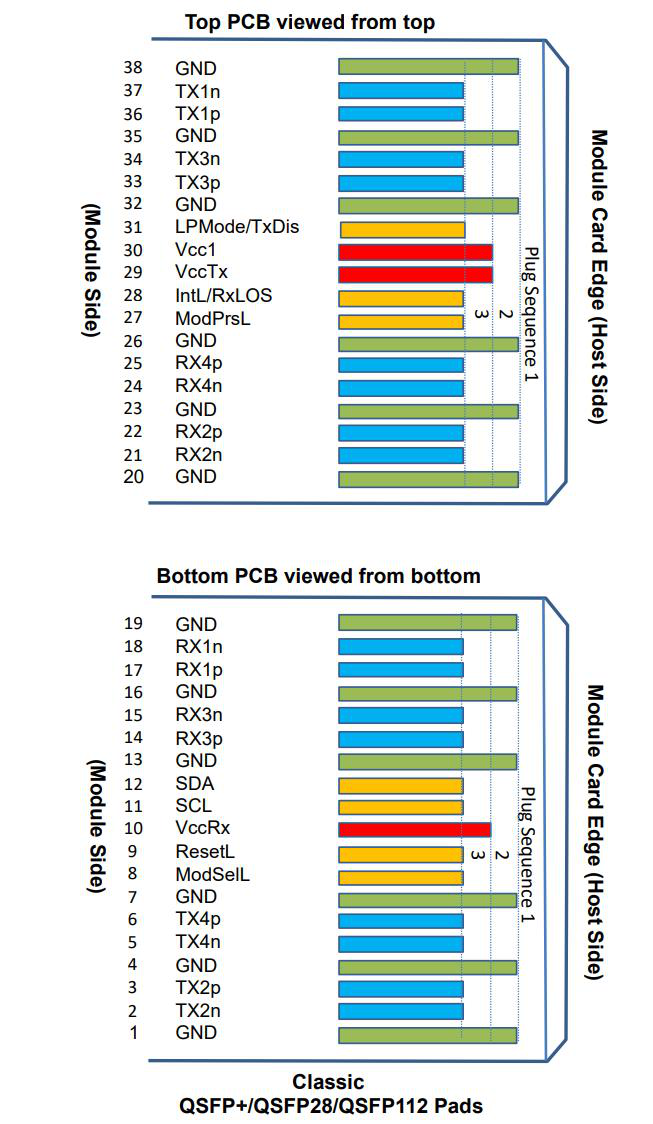

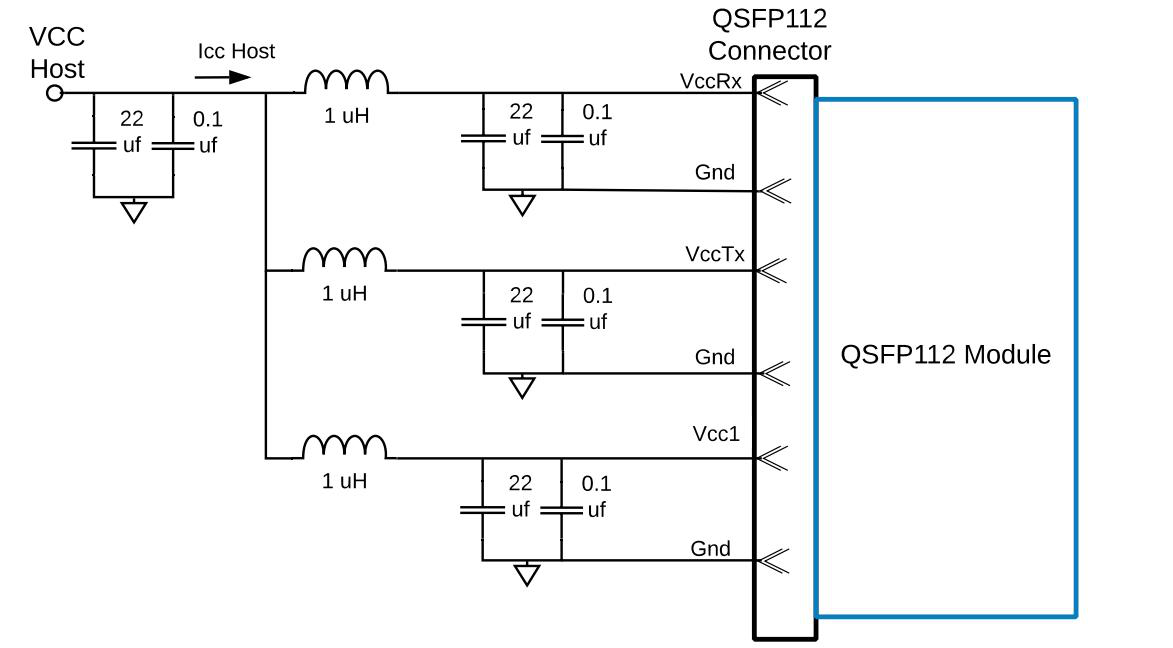

| Parameter | Value |
|---|---|
| Supply Voltage | -0.3~3.6V |
| Input Voltage | -0.3~Vcc+0.3V |
| Storage Temperature | -20~85°C |
| Operating Case Temperature | 0~70°C |
| Humidity(non-condensing) | 5~95% |
| Data Rate Per Lane | 106.25Gbps |
| Power Dissipation | 7.5~8W |
| Differential Input Impedance | 90~110ohm |
| Differential Output Impedance | 90~110ohm |
| Differential Input Voltage Amplitude | 400~900mVp-p |
| Differential Output Voltage | 850mVp-p |
| Bit Error Rate | 2.4E-4 |
| Input Logic Level High | 2.0~VccV |
| Input Logic Level Low | 0~0.8V |
| Output Logic Level High | Vcc-0.5~VccV |
| Output Logic Level Low | 0~0.4V |
| Centre Wavelength (Transmitter) | 842~850~948nm |
| RMS Spectral Width | 0.65nm |
| Average Launch Power Each Lane | -4.6~5.5dBm |
| Optical Modulation Amplitude (OMAouter) | -2.6~4dBm |
| Average Launch Power of OFF Transmitter Each Lane | -30dBm |
| Transmitter and Dispersion Eye Closure for PAM4 (TDECQ) | 4.4dB |
| Extinction Ratio | 2.5dB |
| Centre Wavelength (Receiver) | 842~850~948nm |
| Receiver Sensitivity in OMAout | max(-4.4,TDECQ-6.2)dBm |
| Stressed Receiver Sensitivity in OMAout | -1.8dBm |
| Receiver Reflectance | -15~-8.5dB |
| Los Assert | -15~-8.5dBm |
| Los De-assert | -6.5dBm |
| Los Hysteresis | 0.5dB |
| Transceiver Case Temperature | -3~85°C |
| Supply Voltage Monitor Absolute Error | -0.1~0.1V |
| Channel RX Power Monitor Absolute Error | -2~2dB |
| Channel Bias Current Monitor | -10%~+10%mA |
| Channel TX Power Monitor Absolute Error | -2~2dB |
