400G QSFP112 VR4 50m Optical Transceiver Module

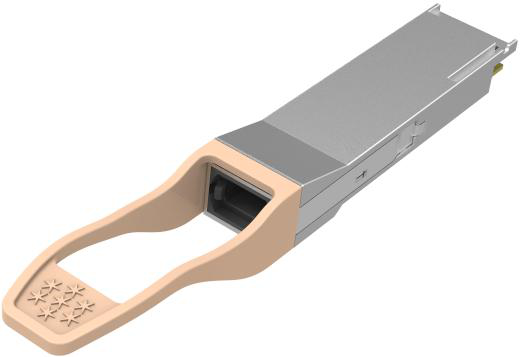

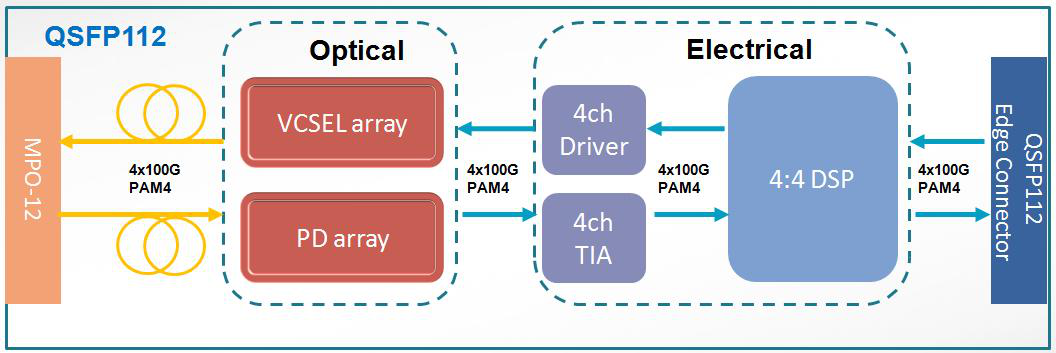

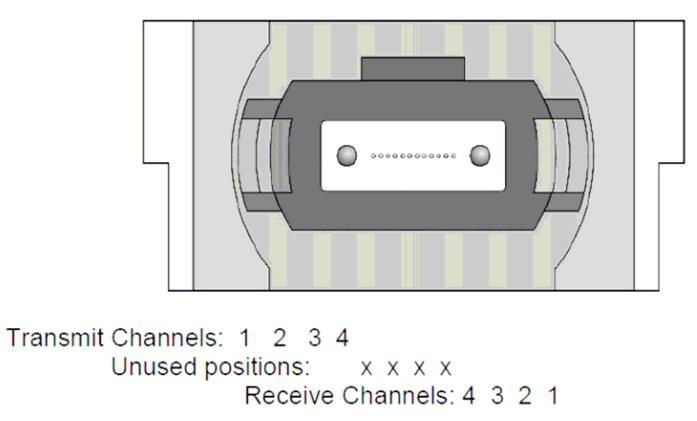

The GIGALIGHT GQS-MPO401-VR4C is a Four-Channel, Pluggable, Parallel module for 400 Gigabit Ethernet Applications. This transceiver is a high-performance module for short-range multi-lane data communication and interconnection applications. It integrates Four data lanes in each direction with 4x53.125GBd. Each lane can operate at 106.25Gbps up to 30m using OM3 fiber or 50m using OM4 fiber with FEC. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The optical interface uses 12 fiber MTP (MPO) connector.
Save to Favorites
Overview
Specifications

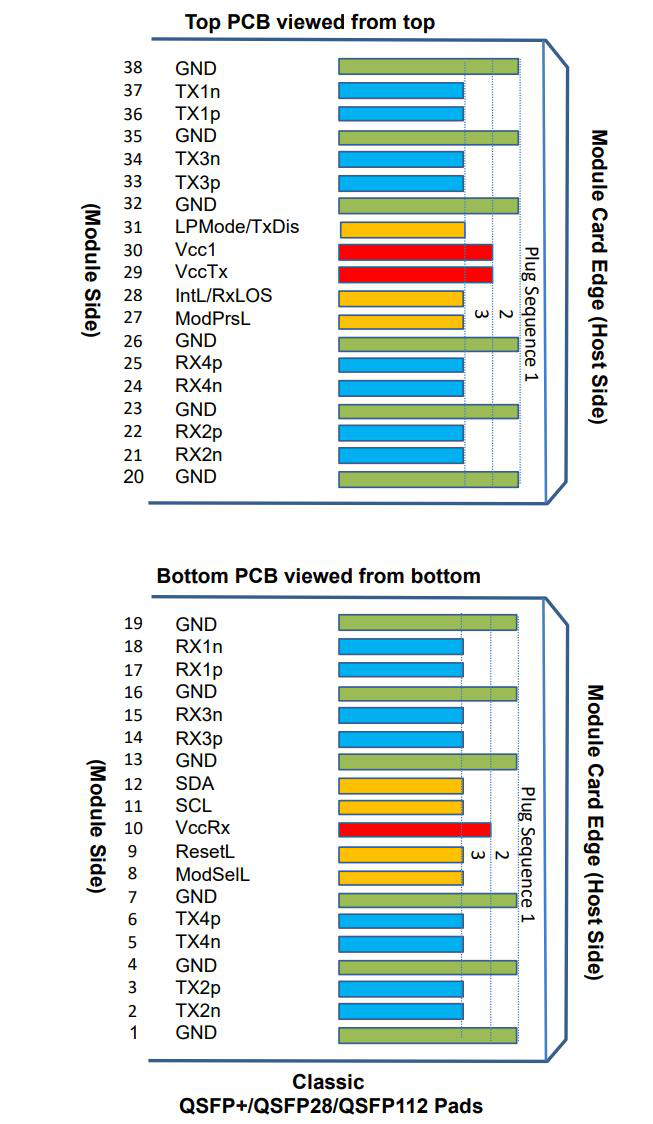

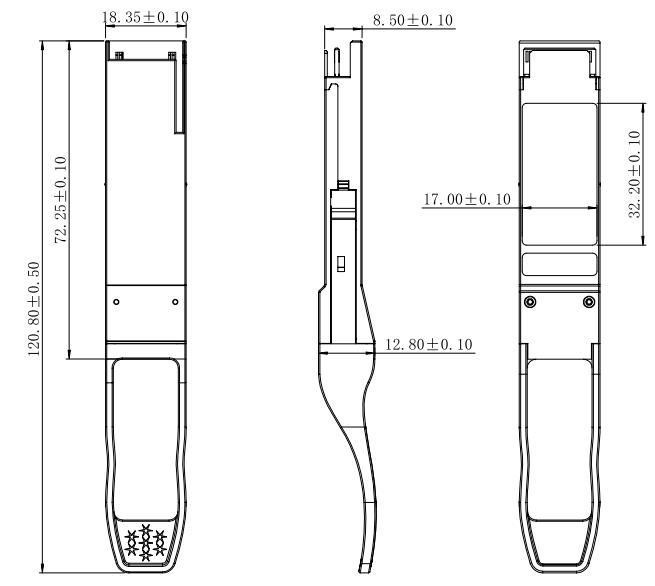

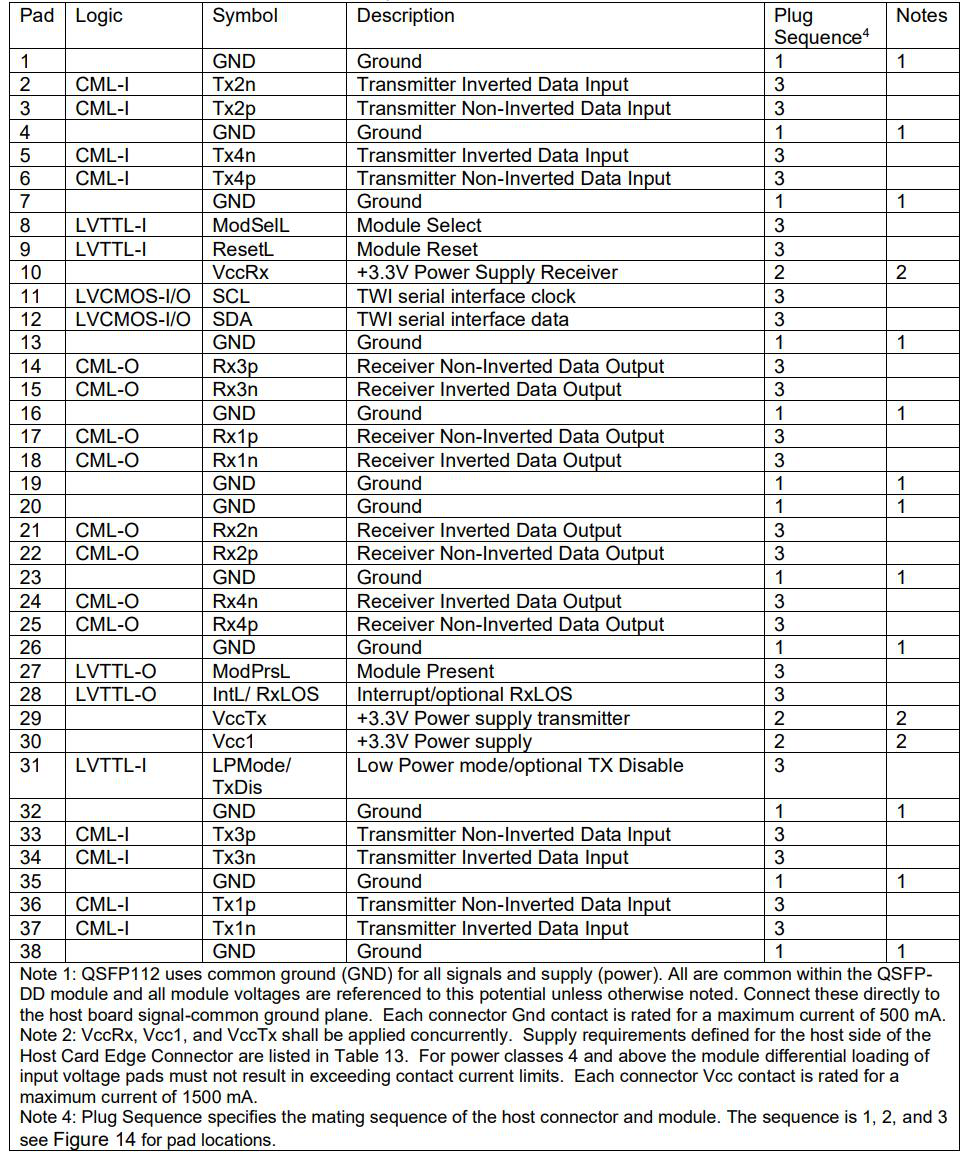

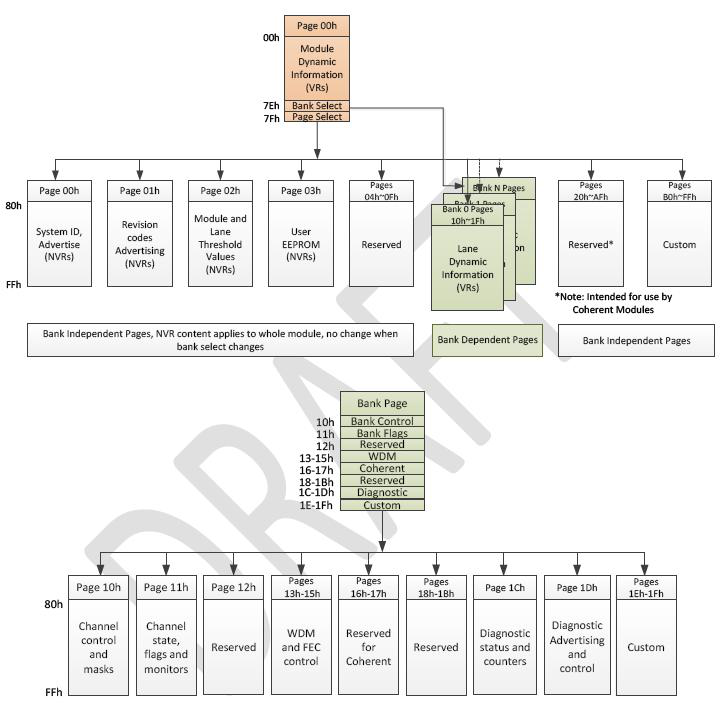

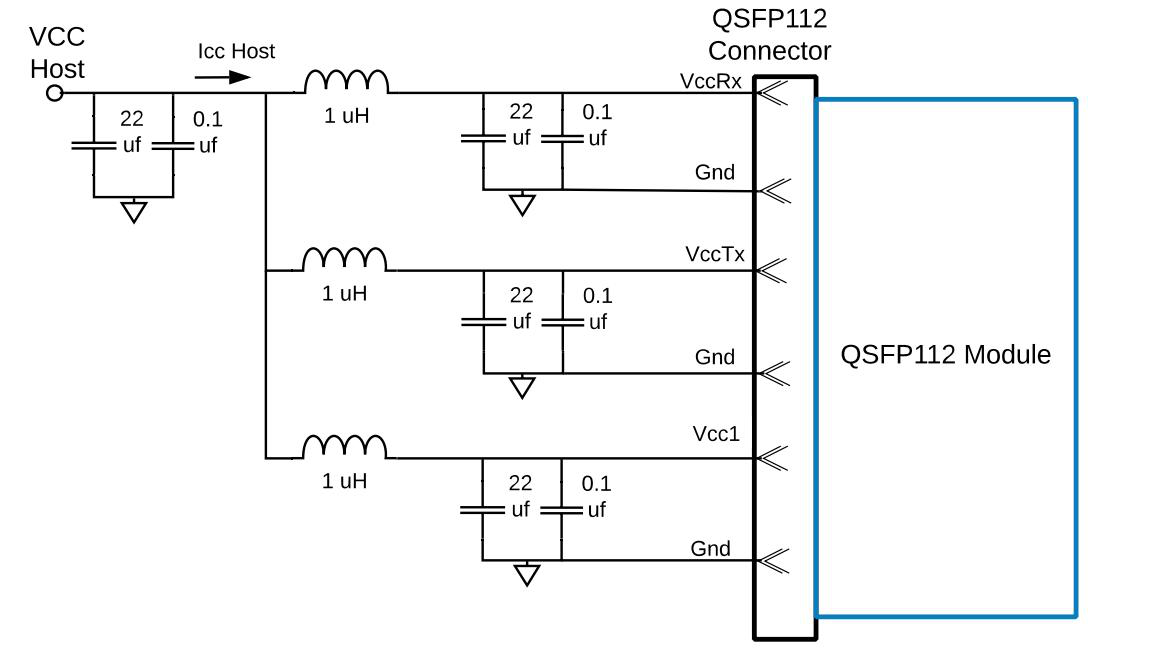

| Parameter | Value |
|---|---|
| Differential Input Impedance | 90-110ohm |
| Differential Output Impedance | 90-110ohm |
| Differential Input Voltage Amplitude | 400mVp-p |
| Differential Output Voltage Amplitude | 850mVp-p |
| Bit Error Rate | 2.4E-4 |
| Input Logic Level High | 2.0V |
| Output Logic Level High | Vcc-0.5V |
| Output Logic Level Low | 0.4V |
| Centre Wavelength | 842-850-948nm |
| RMS Spectral Width | 0.65nm |
| Average Launch Power | -4.6-4dBm |
| Optical Modulation Amplitude | -2.6-3.5dBm |
| Transmitter Dispersion Eye Closure | 4.4dB |
| Extinction Ratio | 2.5dB |
| Receiver Sensitivity | max(-4.4,TDECQ6.2)dBm |
| Stressed Receiver Sensitivity | -1.8dBm |
| Receiver Reflectance | -15dB |
| Maximum Average Power | 4dBm |
| Minimum Average Power | -6.3dBm |
| Average Launch Power of OFF Transmitter | -30dB |
| Supply Voltage | 3.13-3.3-3.47V |
| Operating Case Temperature | 0-70°C |
| Data Rate Per Lane | 106.25Gbps |
| Humidity | 5-85% |
| Power Dissipation | 7.3-8W |
