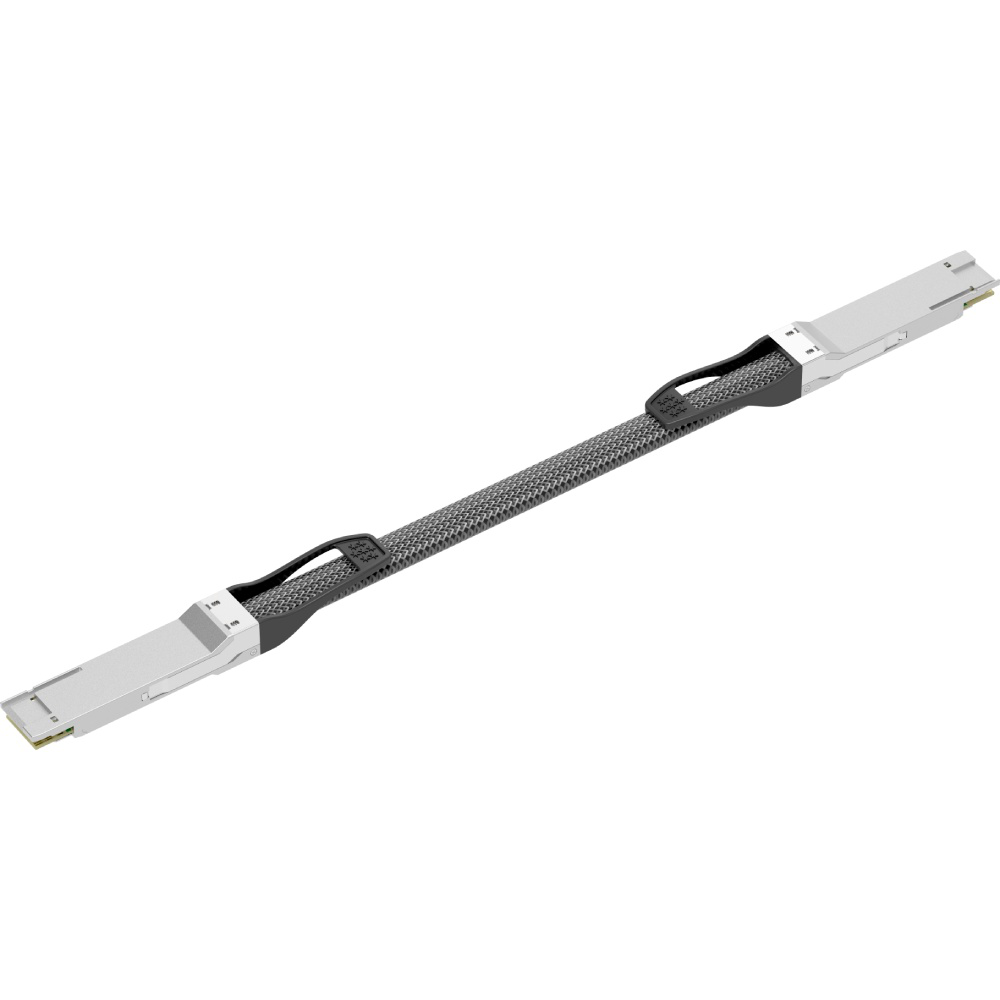

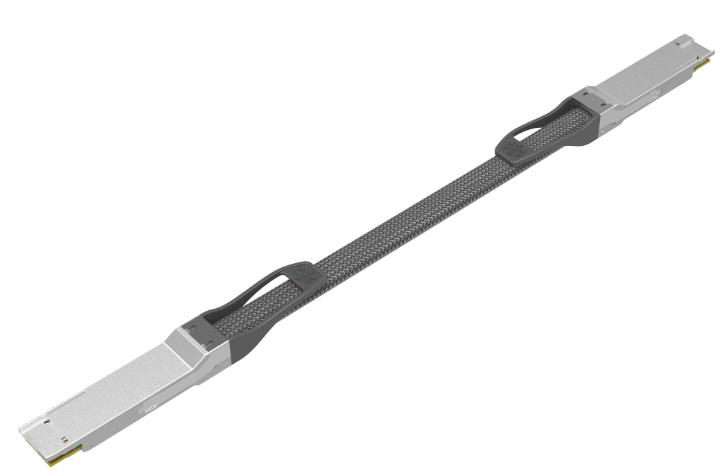

400GbE to 400GbE (QSFP-DD to QSFP-DD) Direct Attach Cable
Gigalight's GQD-PC401-XXC cable assemblies are effective alternatives to fiber optics, connecting data signals from each of the 16 pairs on the single QSFP-DD end to the other QSFP-DD end. Each pair operates at data rates of up to 50Gb/s, and each QSFP-DD port can be addressed by EEPROM to provide product information, which can be read or written by I2C interface.
Save to Favorites
Overview

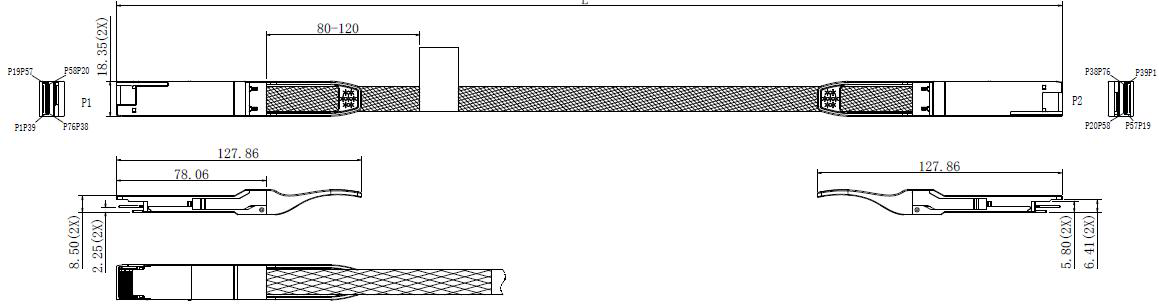

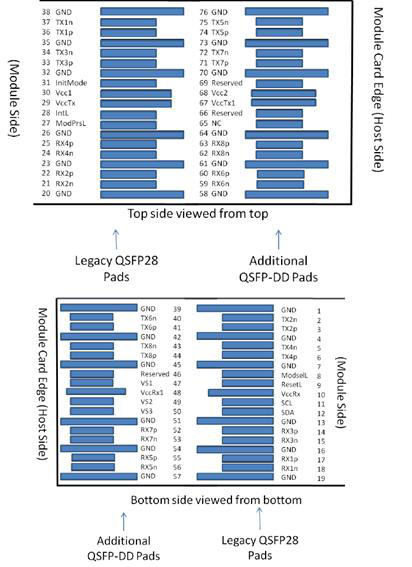

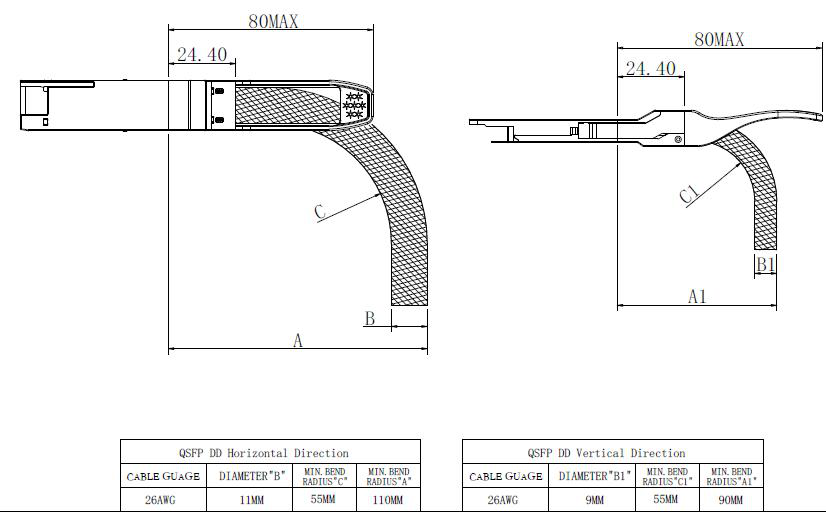

Specifications
| Parameter | Value |
|---|---|
| Storage Temperature | -20°C to 85°C |
| Case Operating Temperature | 0°C to 70°C |
| Humidity (non-condensing) | 5% to 95% |
| Operating Case Temperature | 0°C to 70°C |
| Baud Rate per Lane (PAM4) | 26.5625GBaud/s |
| Humidity | 5% to 85% |
| Differential Impedance (bulk cable) | 100±10/-5 ohms |
| Differential Impedance (Mated connector) | 100±10 ohms |
| Differential Impedance (cable termination) | 100±10/-15 ohms |
| Intra-skew | L*15+20 |
| SDD11/SDD22 | ≤-22+20/25.78*f*(10^-3) |
| SCC11/SCC22 | ≤-2dB |
| SDC11/SDC22 | ≤-16+2*f/3 |
| SCD21-SDD21 | ≤6.3 as 15.7≤f≤19 |
| MDNEXT | ≤-26dB@12.89GHz |
| SDD21 | <17.16dB@13.26GHz |
| COM | ≥3dB |
