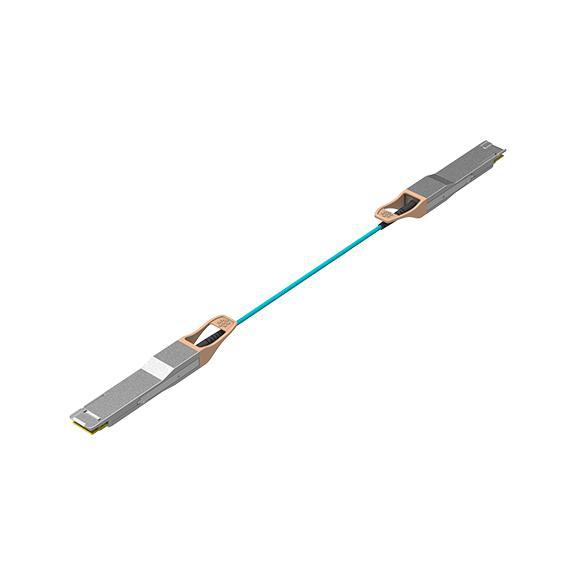

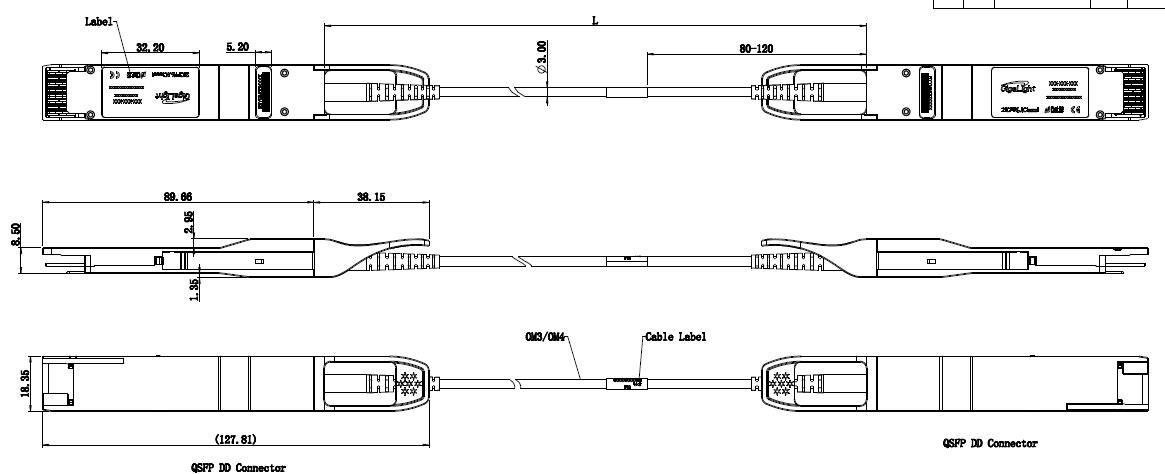

GIGALIGHT 400G QSFP56 DD SR8 Active Optical Cable

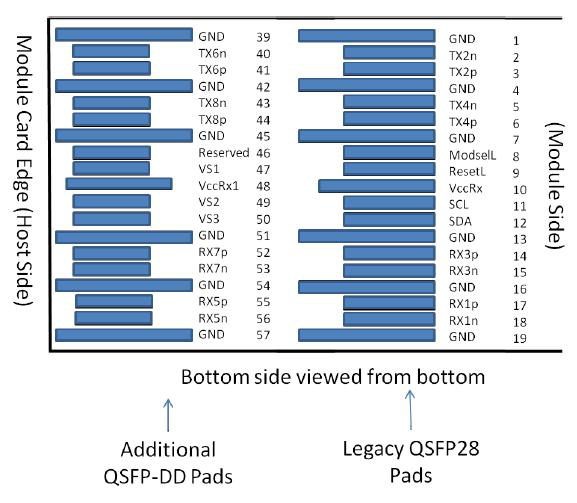

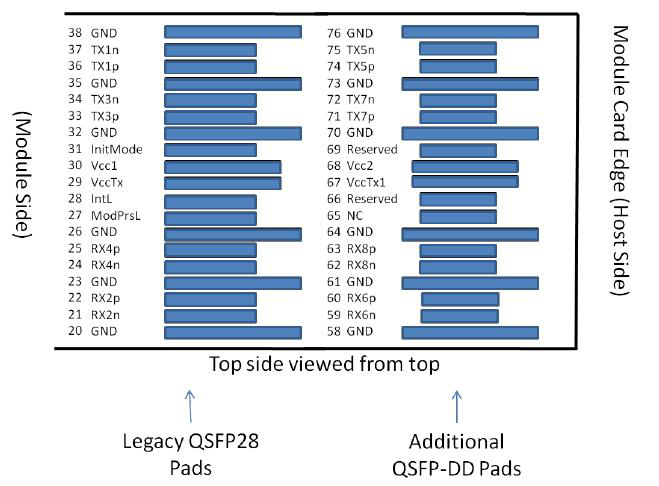

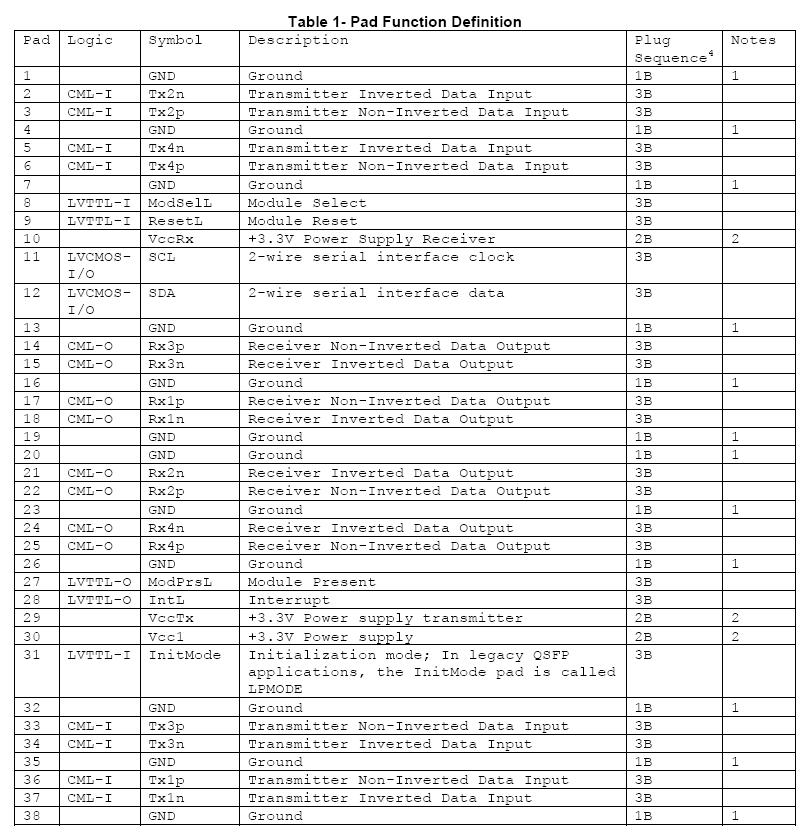

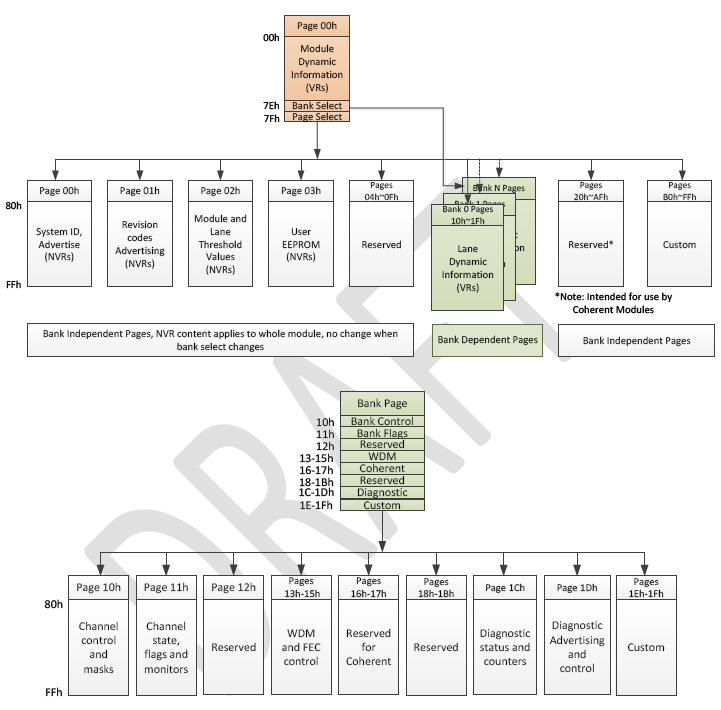

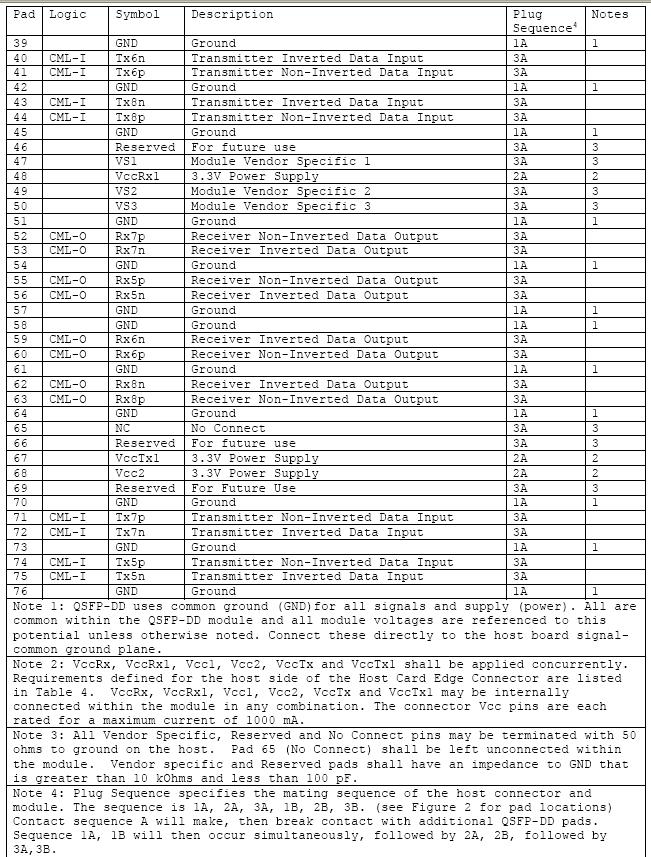

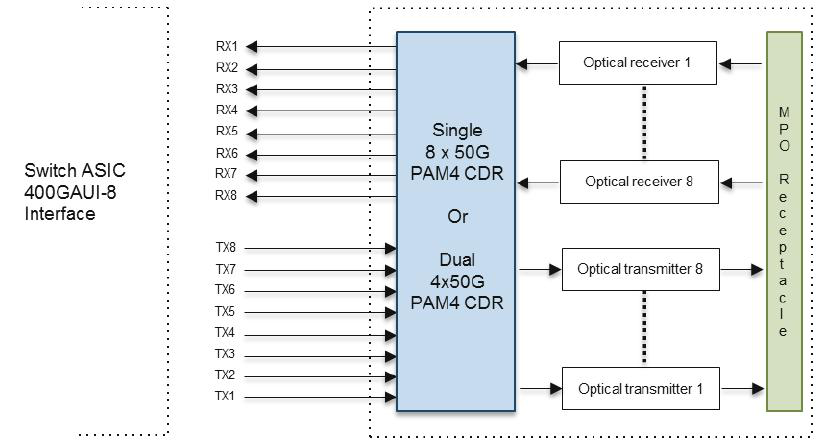

The GIGALIGHT Technologies GQD-MDO401-xxxC is an eight-channel, pluggable, parallel, fiber-optic QSFP Double Density for 2x200 Gigabit Ethernet applications. This AOC is a high-performance module for short-range multi-lane data communication and interconnect applications. It integrates eight data lanes in each direction with 8x26.5625GBd. Each lane can operate at 53.125Gbps up to 70m using OM3 fiber or 100m using OM4 fiber with FEC. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 76-contact edge type connector. The Common Management Interface Specification (CMIS) for QSFP DD modules, combined with GIGALIGHT Technologies' proven circuit and VCSEL technology, provides reliable long life, high performance, and consistent service.
Save to Favorites
Overview
Specifications

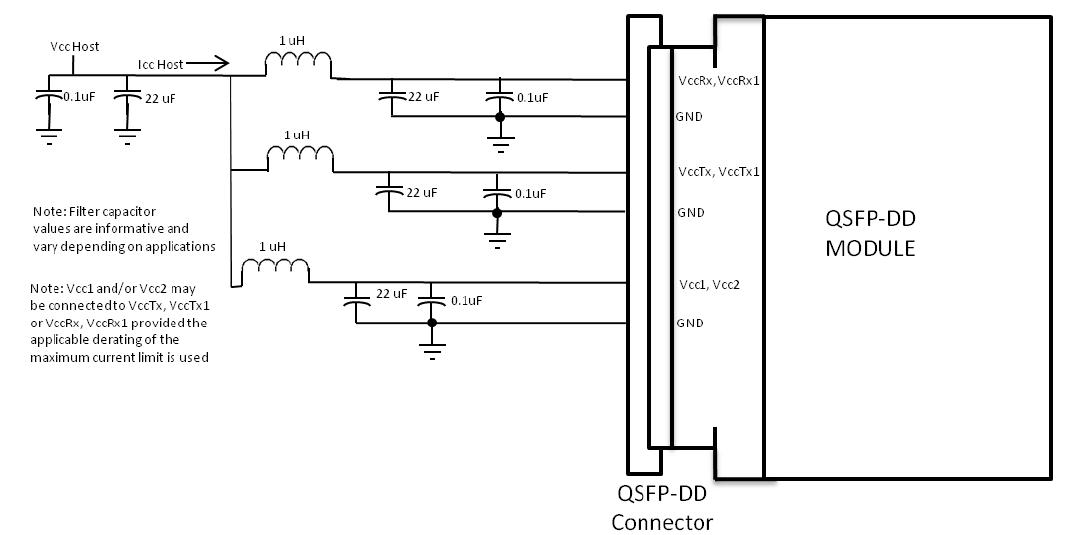

| Parameter | Value |
|---|---|
| Differential Input Impedance | 90-110ohm |
| Differential Output Impedance | 90-110ohm |
| Differential Input Voltage Amplitude | 900mVp-p |
| Differential Output Voltage Amplitude | 900mVp-p |
| Skew | 300ps |
| Bit Error Rate | 2.4E-4 |
| Near-end Eye Width at 10^-6 probability | 0.265UI |
| Near-end Eye Height at 10^-6 probability | 70mV |
| Far-end Eye Width at 10^-6 probability | 0.20UI |
| Far-end Eye Height at 10^-6 probability | 30mV |
| Near-end Eye Linearity | 0.85 |
| Centre Wavelength | 840-860nm |
| RMS Spectral Width | 0.6nm |
| Average launch power, each lane | -6.5 to 4dBm |
| Optical Modulation Amplitude | -4.5 to 3dBm |
| Transmitter and dispersion eye closure (TDEC), each lane | 4.5dB |
| Extinction Ratio | 3dB |
| Average Launch Power of OFF Transmitter, Each Lane | -30dB |
| Receiver Sensitivity in OMAout | -6.5 to -3.4dBm |
| Stressed Receiver Sensitivity in OMAout | -3dBm |
| Maximum Average power at receiver, each lane | 4dBm |
| Minimum Average power at receiver, each lane | -7.9dBm |
| Receiver Reflectance | -12dB |
| LOS Assert - OMA | -10dBm |
| LOS De-Assert - OMA | -7.5dBm |
| Los Hysteresis | 0.5dB |
| Supply Voltage | 3.13-3.47V |
| Input Voltage | -0.3 to Vcc+0.3V |
| Storage Temperature | -20 to 85°C |
| Case Operating Temperature | 0 to 70°C |
| Humidity (non-condensing) | 5-95% |
| Data Rate Per Lane | 26.5625GBd |
| Power Dissipation | <10W |
