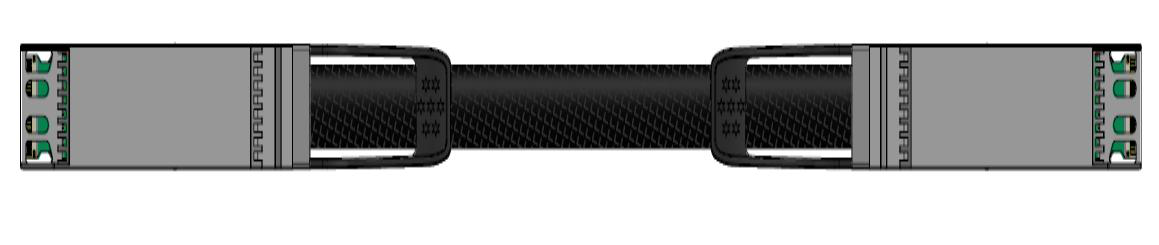

400GbE to 400GbE (OSFP to OSFP) Direct Attach Cable
Gigalight's GOS-PC401-xxC cable assemblies are effective alternatives to fiber optics. The cable connects data signals from each of the 16 pairs on the single OSFP end to the other OSFP end, each pair operates at data rates of up to 50Gb/s. Each OSFP port can be addressed by EEPROM to provide product information, which can be read or write by I2C interface. Gigalight's GOS-PC401-xxC cable assemblies are compliant with the OSFP-MSA and IEEE 802.3cd, offering high performance and cost-effective I/O solutions for LAN, HPC, and SAN. The high-speed cable assemblies meet and exceed 800Gigabit Ethernet, InfiniBand EDR/HDR, and temperature requirements for performance and reliability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Storage Temperature | -20°C to 85°C |
| Case Operating Temperature | 0°C to 70°C |
| Humidity (non-condensing) | 5% to 95% |
| Operating Case Temperature | 0°C to 70°C |
| Baud Rate per Lane (PAM4) | 26.5625GBaud/s |
| Cable Gauge | 26AWG |

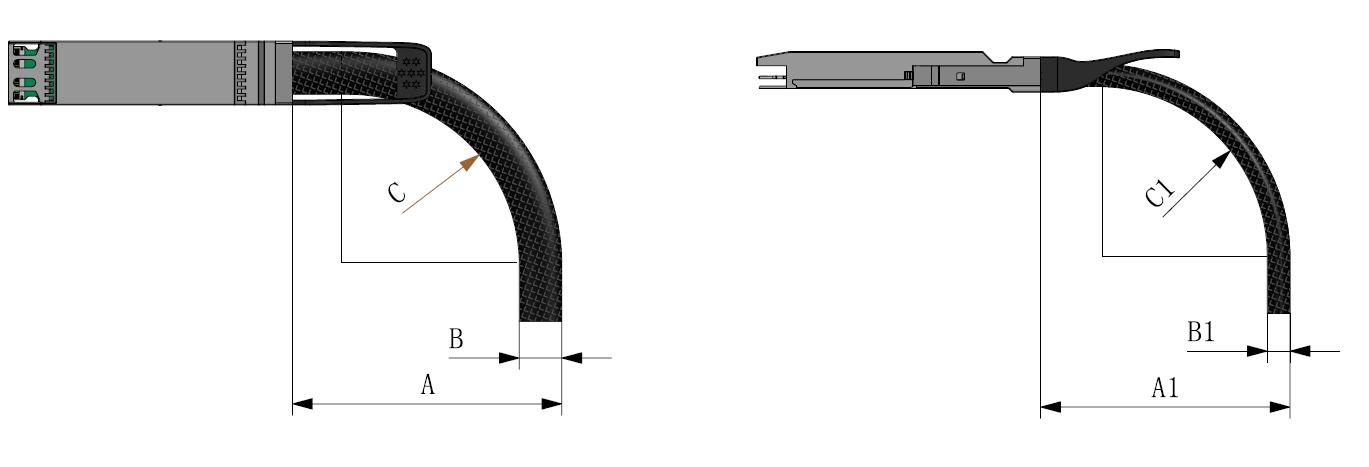

| Horizontal Direction Minimum Bend Radius | 55mm |
| Vertical Direction Minimum Bend Radius | 40mm |

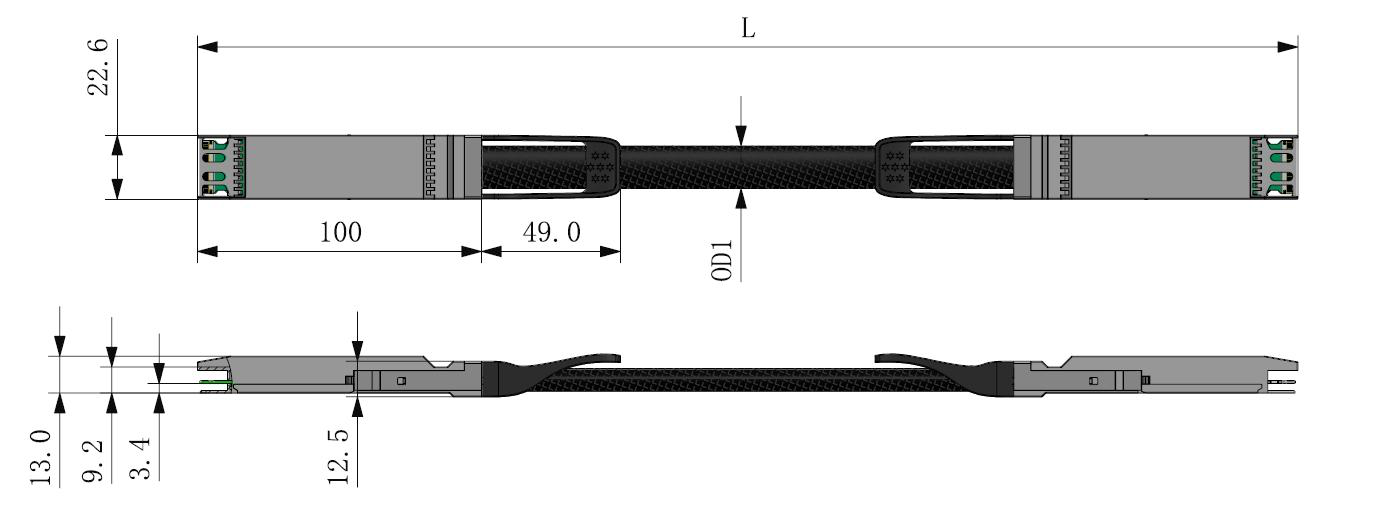

| Horizontal Direction Diameter | 11mm |
| Vertical Direction Diameter | 8mm |
Applications
Key Features
Datasheet
