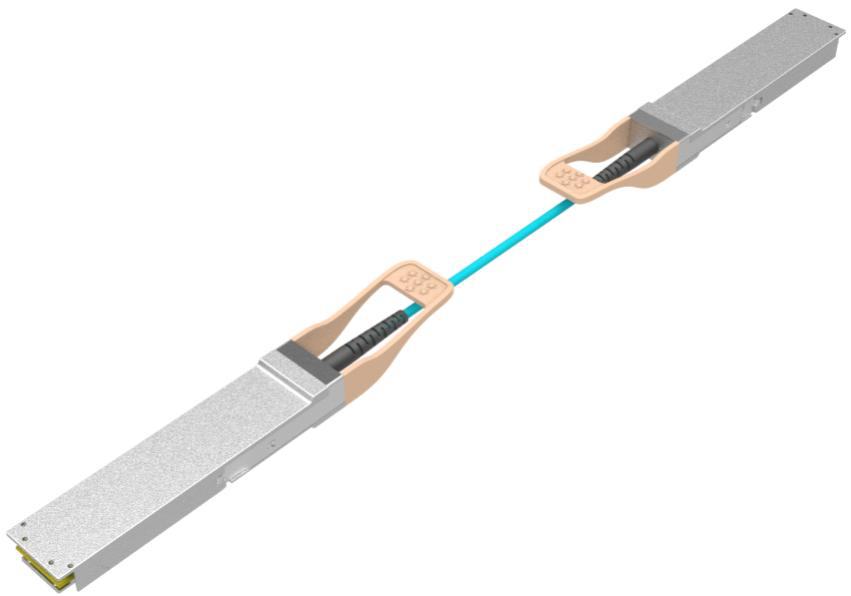

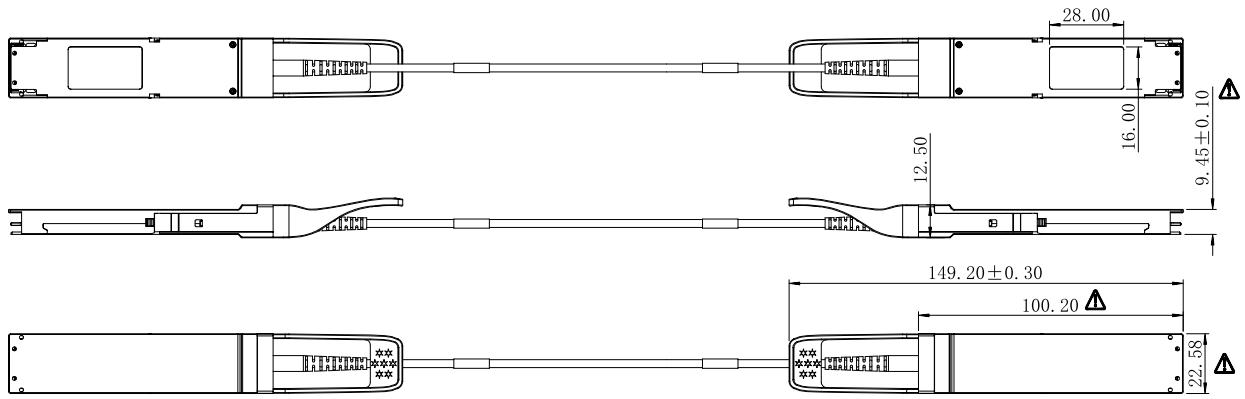

400G OSFP112-RHS AOC Optical Transceiver Module

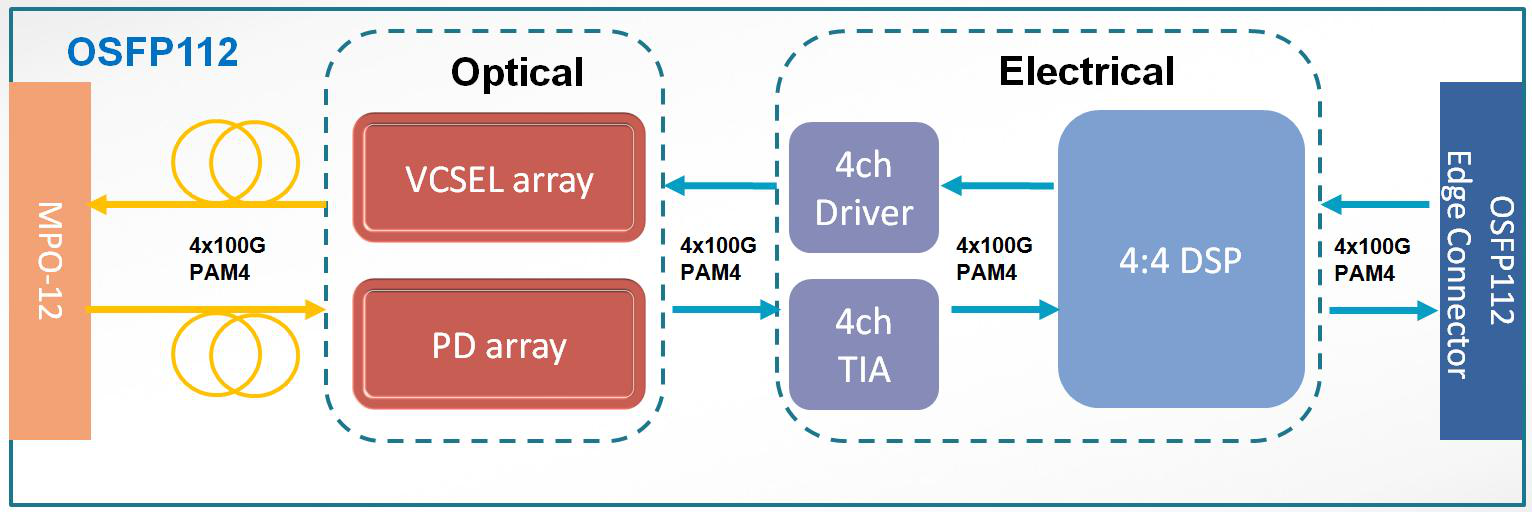

The Gigalight GOP-MD0401-XXXC is an eight-channel, pluggable, parallel optical transceiver designed for 400 Gigabit Ethernet applications. It supports short-range multi-lane data communication and interconnection applications, integrating eight data lanes in each direction with 4x53.125GBd. Each lane operates at 106.25Gbps up to 30m using OM3 fiber or 50m using OM4 fiber with FEC.
Save to Favorites
Overview
Specifications

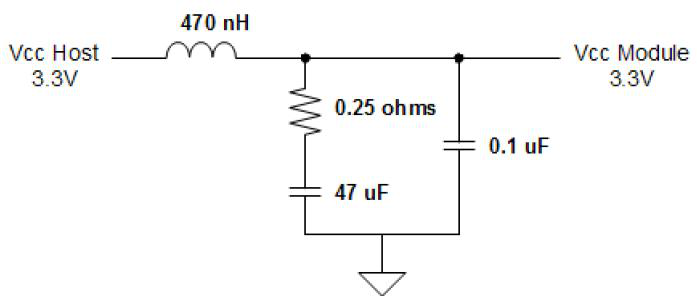

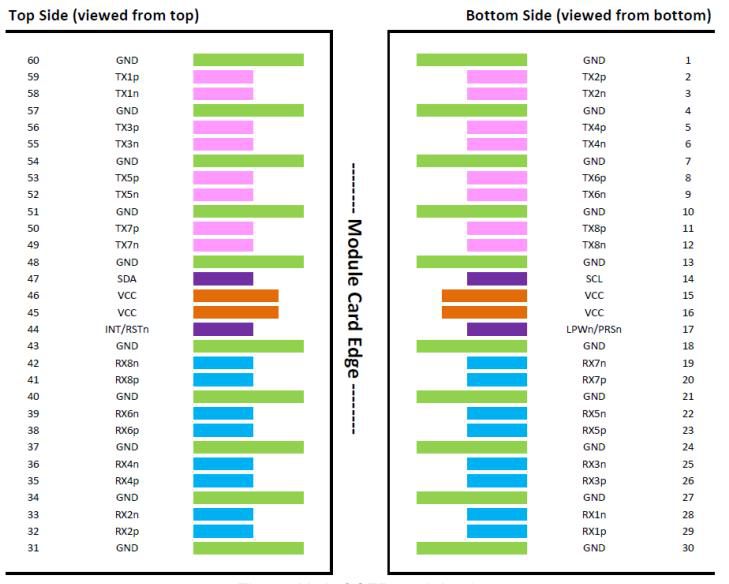

| Parameter | Value |
|---|---|
| Supply Voltage | -0.3~3.6V |
| Input Voltage | Vin-0.3~Vcc+0.3V |
| Storage Temperature | -20~85°C |
| Case Operating Temperature | 0~70°C |
| Humidity(non-condensing) | 5~95% |
| Recommended Supply Voltage | 3.13~3.47V |
| Recommended Operating Case Temperature | 0~70°C |
| Data Rate Per Lane | 106.25Gbps |
| Recommended Humidity | 5~85% |
| Power Dissipation | 7.5~8W |
| Differential Input Impedance | 90~100~110ohm |
| Differential Output Impedance | 90~100~110ohm |
| Differential Input Voltage Amplitude | 400~900mVp-p |
| Differential Output Voltage | 850mVp-p |
| Bit Error Rate | 2.4E-4 |
| Centre Wavelength | 842~850~948nm |
| RMS Spectral Width | 0.65nm |
| Average launch power, each lane | -4.6~5.5dBm |
| Optical Modulation Amplitude (OMA), each Lane | -2.6~4dBm |
| Transmitter and Dispersion Eye Closure for PAM4 (TDECQ), Each Lane | 4.4dB |
| Extinction Ratio | 2.5dB |
| Average launch power of OFF transmitter, each lane | -30dBm |
| Receiver Sensitivity in OMAout | max(-4.4,TDECQ-6.2)dBm |
| Stressed Receiver Sensitivity in OMAout | -1.8dBm |
| Receiver Reflectance | -15dB |
| Maximum Average Power at Receiver, Each Lane Input | 5.5dBm |
| Minimum Average Power at Receiver, Each Lane Input | -6.3dBm |
| LOS Assert | -15dB |
| Los De-assert | -8.5~-6.5dBm |
| Los Hysteresis | 0.5dB |
| Transmitter Data Non-Inverted | CML-I |
| Transmitter Data Inverted | CML-I |
| Receiver Data Non-Inverted | CML-O |
| Receiver Data Inverted | CML-O |

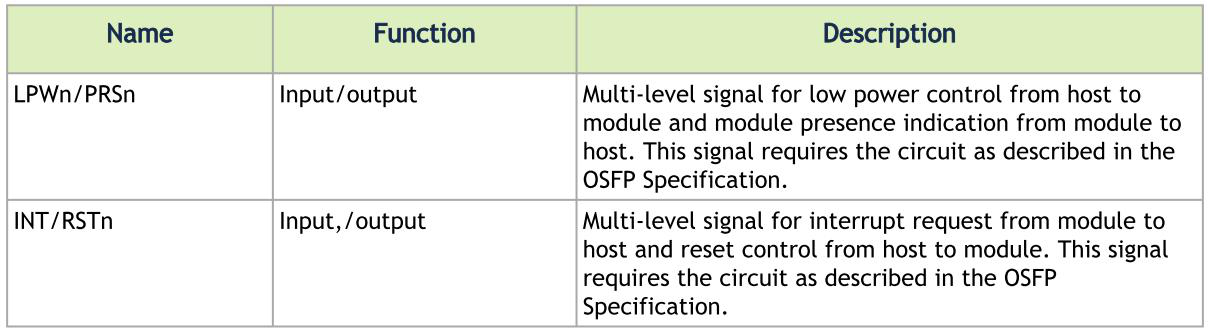

| Low-Power Mode/Module Present | Multi-Level |
| Module Interrupt/Module Reset | Multi-Level |

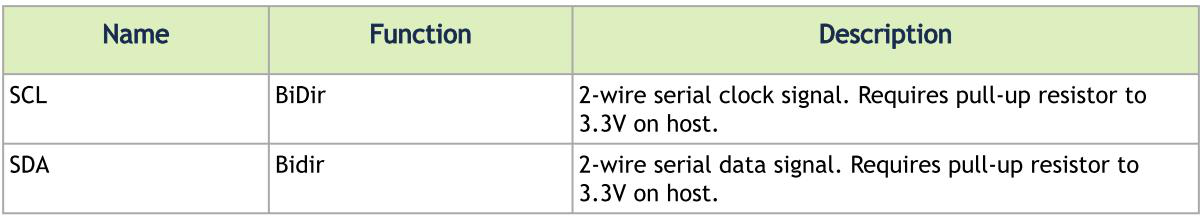

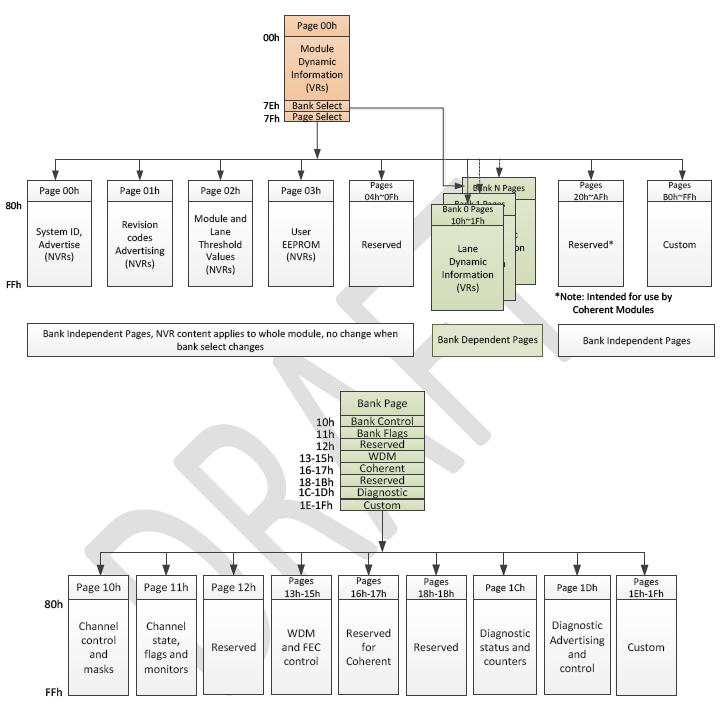

| 2-Wire Serial Interface Clock | LVCMOS-I/O |
| 2-Wire Serial Interface Data | LVCMOS-I/O |
| Supply Voltage Monitor Absolute Error | -0.1~0.1V |
| Channel RX Power Monitor Absolute Error | -2~2dB |
| Channel Bias Current Monitor | -10%~+10%mA |
| Channel TX Power Monitor Absolute Error | -2~2dB |
