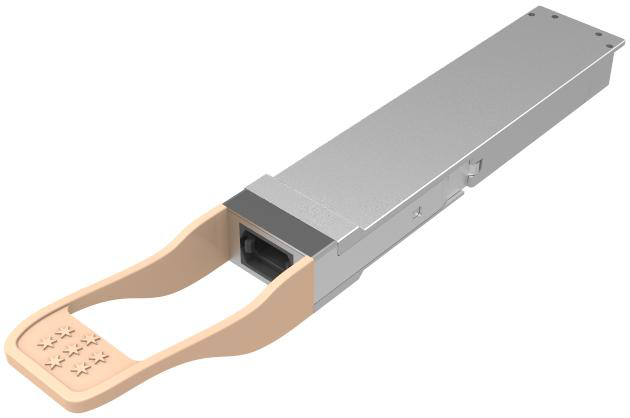

400G OSFP112-R VR4 50m Optical Transceiver Module

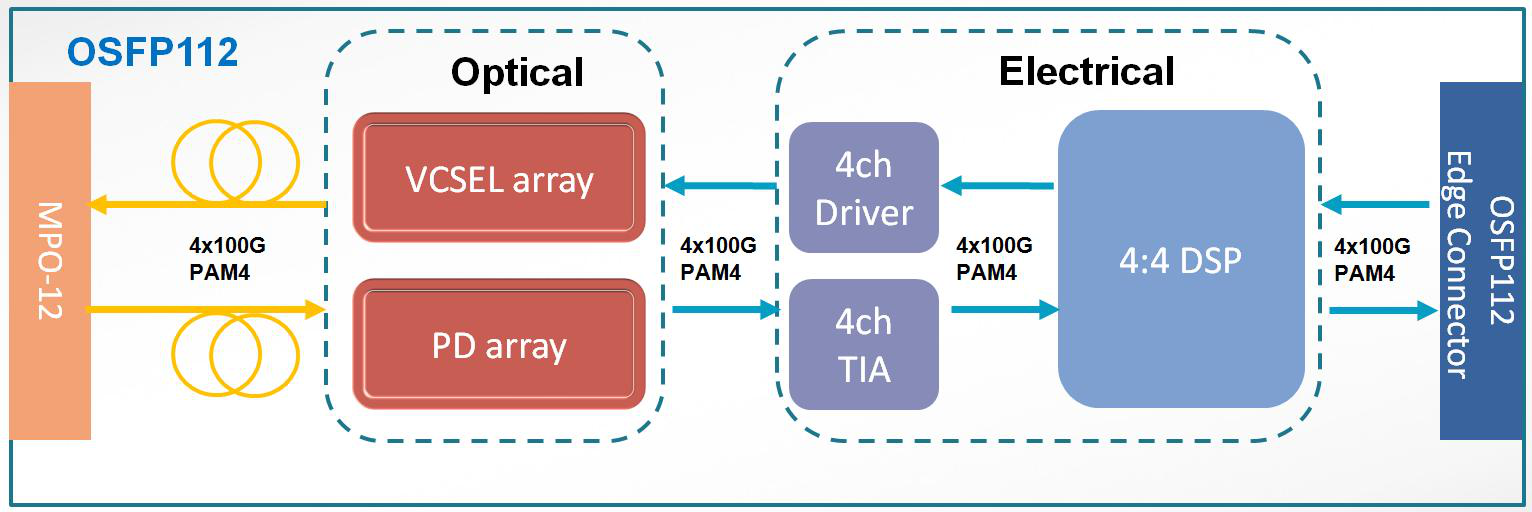

The Gigalight GOP-MPO401-SR4C is an eight-channel, pluggable, parallel optical transceiver designed for 400 Gigabit Ethernet applications. It integrates eight data lanes in each direction with 4x53.125GBd, supporting a data rate of 106.25Gbps per lane over multimode fiber systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage (Vcc) | 3.13-3.47 |
| Operating Case Temperature (°C) | 0-70 |
| Data Rate Per Lane (Gbps) | 106.25 |
| Humidity (%) | 5-85 |
| Power Dissipation (W) | 7.5-8 |
| Differential Input Impedance (ohm) | 90-110 |
| Differential Output Impedance (ohm) | 90-110 |
| Differential Input Voltage Amplitude (mVp-p) | 400 |
| Differential Output Voltage Amplitude (mVp-p) | 850 |
| Bit Error Rate | 2.4E-4 |
| Input Logic Level High (V) | 2.0 |
| Input Logic Level Low (V) | 0.8 |
| Output Logic Level High (V) | Vcc-0.5 |
| Output Logic Level Low (V) | 0.4 |
| Centre Wavelength (nm) | 842-850-948 |
| RMS Spectral Width (nm) | 0.65 |
| Average Launch Power Each Lane (dBm) | -4.6-4 |
| Optical Modulation Amplitude (OMAouter) Each Lane (dBm) | -2.6-3.5 |
| Transmitter and Dispersion Eye Closure for PAM4 (TDECQ) Each Lane (dB) | 4.4 |
| Extinction Ratio (dB) | 2.5 |
| Average Launch Power of OFF Transmitter Each Lane (dBm) | -30 |
| Receiver Sensitivity in OMAouter (dBm) | max(-4.4,TDECQ6.2) |
| Stressed Receiver Sensitivity in OMAouter (dBm) | -1.8 |
| Maximum Average Power at Receiver Each Lane Input Each Lane (dBm) | 4 |
| Minimum Average Power at Receiver Each Lane Input Each Lane (dBm) | -6.3 |
| Receiver Reflectance (dB) | -15 |
| LOS Assert (dBm) | -15--8.5 |
| LOS De-Assert (dBm) | -12--6 |
| LOS Hysteresis (dB) | 0.5 |
| Digital Diagnostic - Transceiver Case Temperature (°C) | -3-+3 |
| Digital Diagnostic - Supply Voltage Monitor Absolute Error (V) | -0.1-+0.1 |
| Digital Diagnostic - Channel RX Power Monitor Absolute Error (dB) | -2-+2 |
| Digital Diagnostic - Channel Bias Current Monitor (mA) | -10%-+10% |
| Digital Diagnostic - Channel TX Power Monitor Absolute Error (dB) | -2-+2 |
