32GFC 850nm SFP28 100m Optical Transceiver

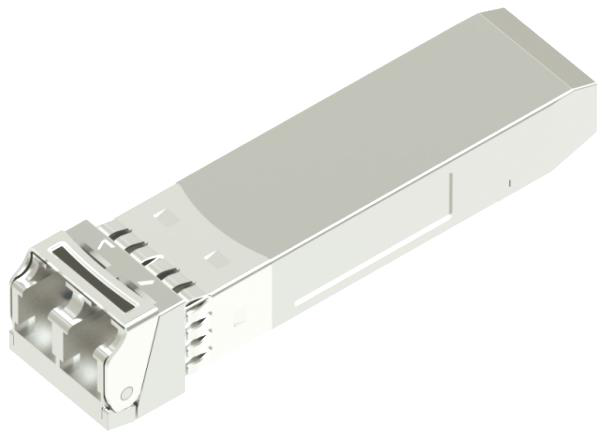

The Gigalight Technologies GSS-MPO280-SRC is a single-channel, pluggable, fiber-optic SFP28 module designed for 32GFC SR applications. It supports short-range data communication and interconnect applications operating at 28.05Gbps over OM3 fiber up to 70m and OM4 fiber up to 100m with KR-FEC. The module uses a nominal wavelength of 850nm and incorporates Gigalight's VCSEL technology for reliable long life, high performance, and consistent service.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 28.05Gbps |
| Centre Wavelength | 840-860nm |
| Spectral Width (-20dB) | ≤0.6nm |
| Average Output Power | -8.4 to 2.4dBm |
| Optical Power OMA | -6.4 to 3dBm |
| Extinction Ratio | ≥2dB |
| Differential data input swing | 40-1000mV |
| Input differential impedance | 90-110Ω |
| TX Disable | 2.0V |
| TX Fault | 2.0V |
| Receiver Sensitivity in OMA (32GFC,28.05Gbps) | ≤-5.2dBm |
| Receiver Sensitivity in OMA (OTU4,27.95Gbps) | ≤-5.2dBm |
| Receiver Power (OMA) | ≤3dBm |
| Los De-assert | -13dBm |
| Los Assert | -30dBm |
| Los Hysteresis | 0.5dB |
| Differential data output swing | 300-850mV |
| LOS High | 2.0V |
| LOS Low | 0.8V |
| Operating Case Temperature | 0 to 70°C |
| Power Supply Voltage | 3.13-3.47V |
| Power Supply Current | ≤300mA |
| Fiber Length on 50/125μm high-bandwidth (OM4) MMF | 100m |
| Supply Voltage | 0-3.6V |
| Storage Temperature | -40 to 85°C |
| Operating Humidity | 5-85% |
| Temperature | 0 to 70°C |
| Voltage | 3.0 to 3.6V |
| Bias Current | 0 to 20mA |
| TX Power | -8 to 3dBm |
| RX Power | -14 to 0dBm |
