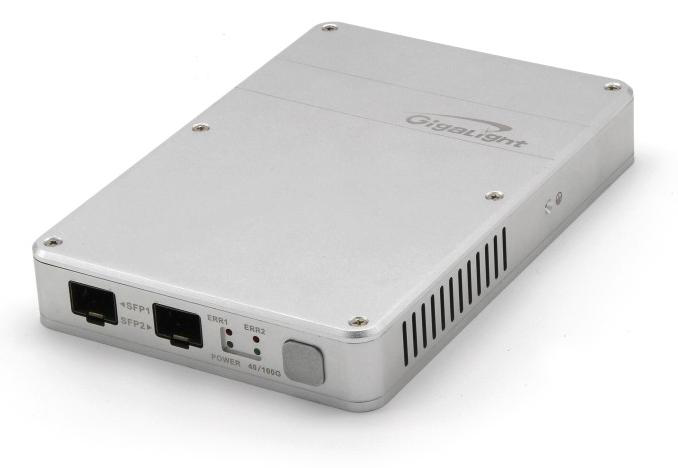

25G SFP28 AOC Checker

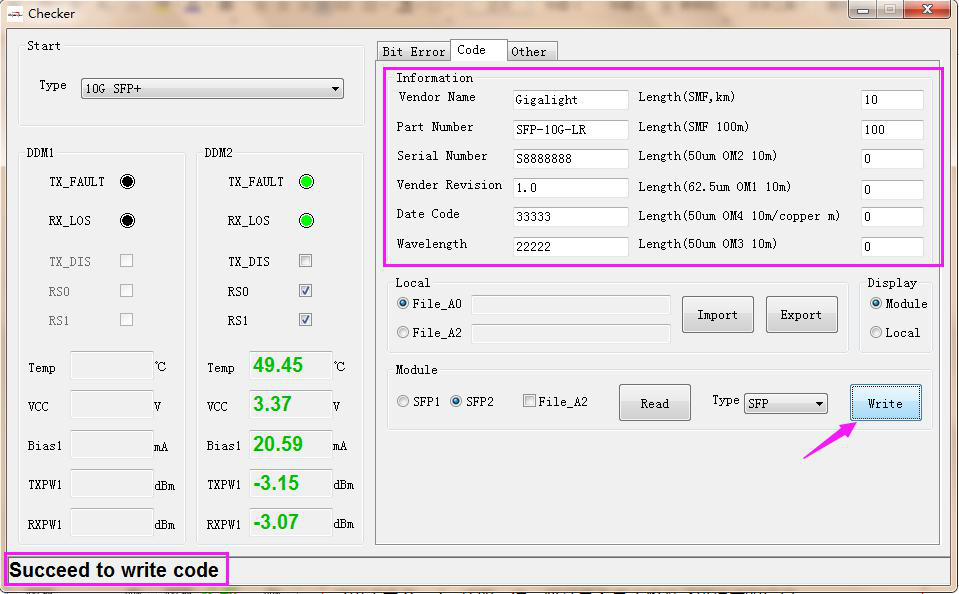

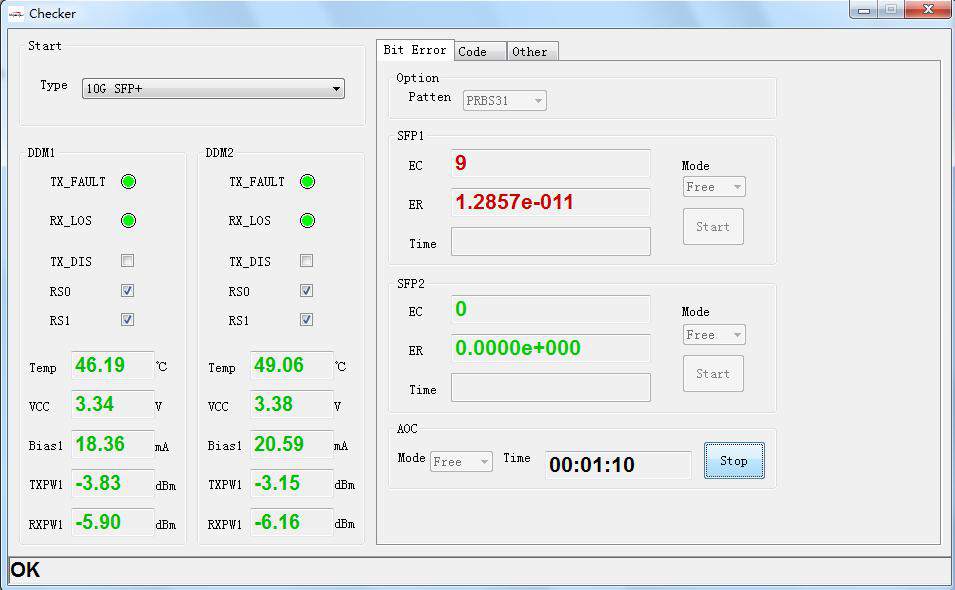

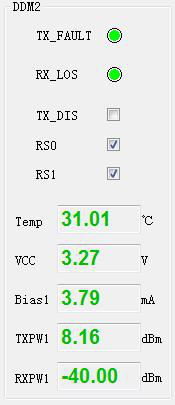

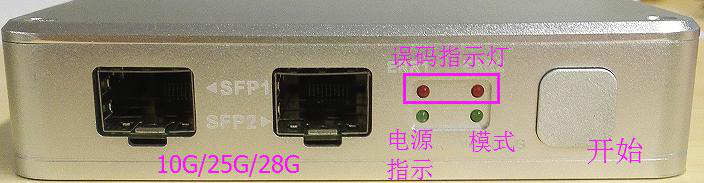

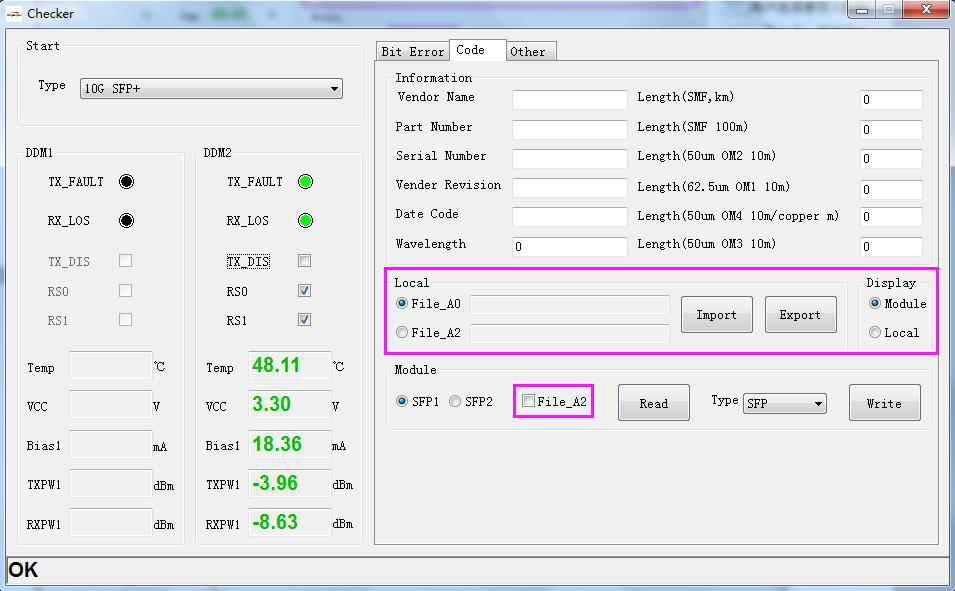

The 25G SFP28 AOC Checker is a test instrument designed for testing SFP+, SFP28 modules, SFP+ AOC/DAC, and SFP28 AOC/DAC. It combines functions such as bit error rate testing, DDM checking, and EEPROM coding.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 5-12V |
| Storage Temperature | -10°C to +70°C |
| Operating Case Temperature | -10°C to +50°C |
| Operating Humidity | 5%-85% non-condensing |

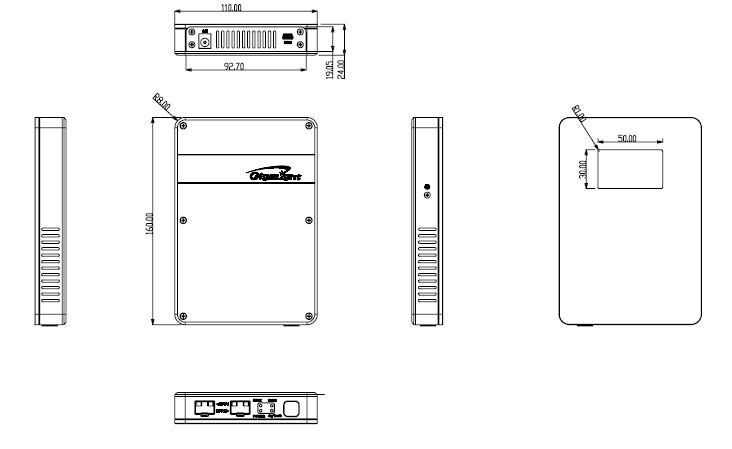

| Physical Dimensions | 160(W)x110(D)x24(H)mm |

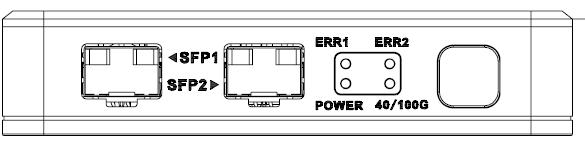

| SFP Ports | Standard SFP 20pin with Cage |
| Transmission Rate | 10.3Gbps, 25.78125Gbps, 27.9525Gbps |
| Pattern Generator | PRBS7, PRBS9, PRBS21, PRBS23, PRBS31 |
| Module Power Measured | 0-3000mA |
| Accuracy | ±15% |
