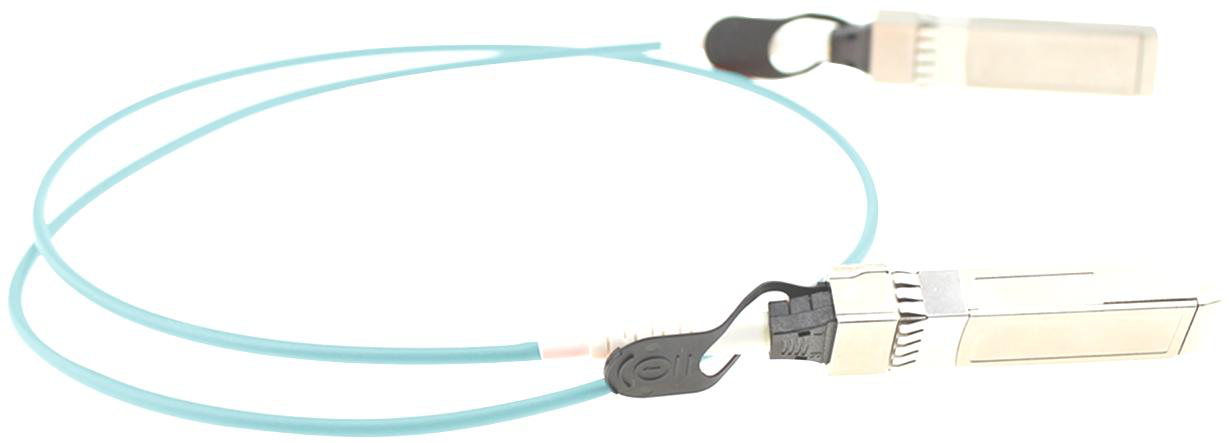

25GE SFP28 Active Optical Cable (GSS-MD0250-XXXC)
The Gigalight SFP28 Active Optical Cable is a high-performance module designed for short-range data communication and interconnect applications. It operates at 25.78125Gbps and supports multimode fiber systems with a nominal wavelength of 850nm.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 25.78Gbps |
| Centre Wavelength | 840-850-860nm |
| Spectral Width (-20dB) | nm |
| Average Output Power | -8.4-2.4dBm |
| Optical Power OMA | -6.4-3dBm |
| Extinction Ratio | 2dB |
| Differential data input swing | 40mV |
| Input differential impedance | 90-100Ω |
| TX Disable Voltage | 2.0V |
| TX Fault Voltage | 2.0V |
| Receiver Sensitivity (OMA) | -10dBm |
| Receiver Power (OMA) | -5.2-3dBm |
| Los De-assert | -13dBm |
| Los Assert | -30dBm |
| Los Hysteresis | 0.5dB |
| Differential data output swing | 300-850mV |
| LOS High Voltage | 2.0V |
| LOS Low Voltage | 0.8V |
| Operating Case Temperature | 0°C to +70°C |
| Power Supply Voltage | 3.13-3.47V |
| Power Supply Current | 300mA |
| Fiber Length on OM3 MMF | 70m |
| Fiber Length on OM4 MMF | 100m |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5%-85% |
| Digital Diagnostic Temperature Range | 0°C to +70°C |
| Digital Diagnostic Voltage Range | 3.0-3.6V |
| Digital Diagnostic Bias Current Range | 0-20mA |
| Digital Diagnostic TX Power Range | -8-3dBm |
| Digital Diagnostic RX Power Range | -14-0dBm |
Applications
Key Features
Datasheet
