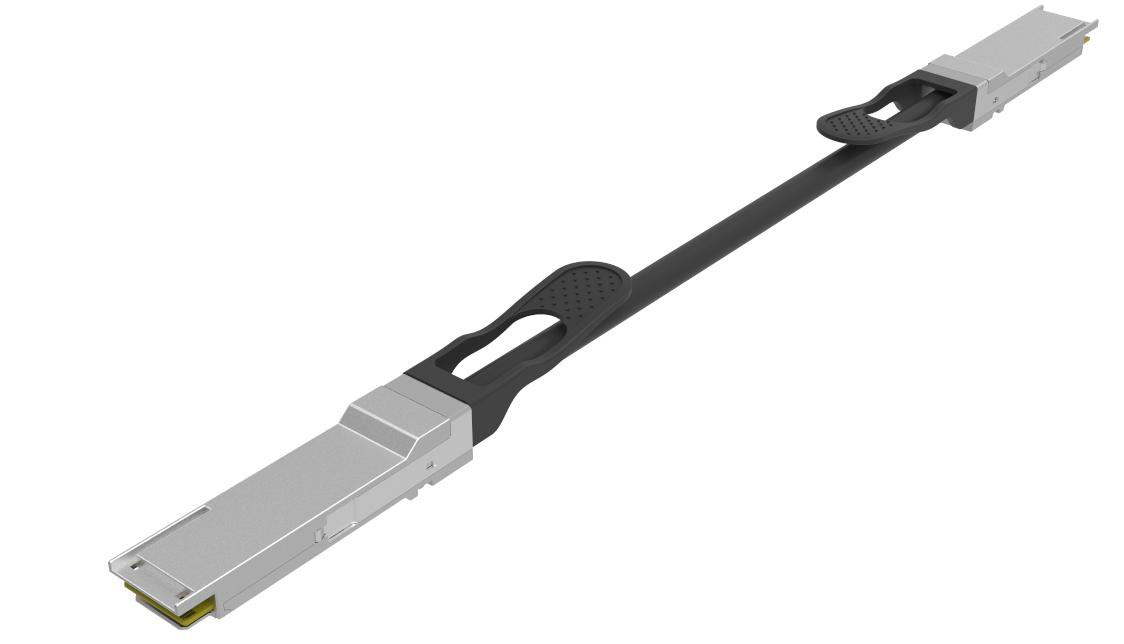

Gigalight 200GE QSFP56 Direct Attach Cable
The 200GE QSFP56 cable assemblies are high-performance, cost-effective I/O solutions for LAN, HPC, and SAN. These cables meet and exceed 200 Gigabit Ethernet, InfiniBand EDR/HDR, and temperature requirements for performance and reliability. They are compliant with SFF-8436 specifications and provide connectivity between devices using QSFP ports.
Save to Favorites
Overview

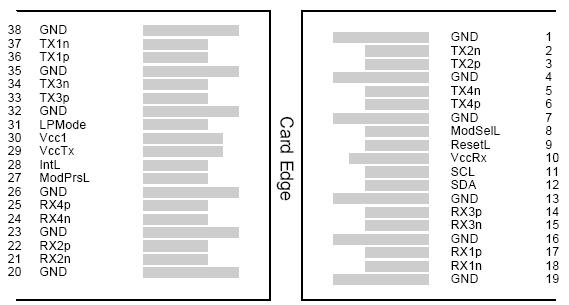

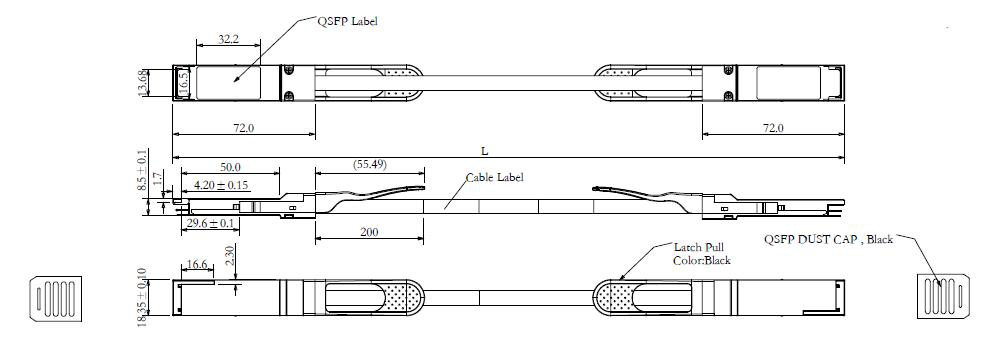

Specifications
| Parameter | Value |
|---|---|
| Storage Ambient Temperature | -40~85°C |
| Operating Case Temperature | 0~70°C |
| Power Supply Voltage | 3.14~3.47V |
| Data Rate Per Lane | 1~28GBaud/s |
| Differential Impedance (bulk cable) | 95~100~110Ω |
| Differential Impedance (Mated connector) | 90~100~110Ω |
| Differential Impedance (cable termination) | 85~100~110Ω |
| Low Level Contact Resistance | Initial: Baseline, with 75mm cable from the backshell edge. Change: ≤20mΩ |
| Insulation Resistance (Raw cable) | 100VDC, 1000MΩ (Min.) |
| Dielectric Withstanding Voltage | AC300V 1min, no breakdown or flash |
| Insertion Loss | ≤5.3dB@13.26GHz |
| Return Loss | ≥17.16dB@13.26GHz |
| Durability | 250 cycles |
| Mating Force | 40N Max. With retention latch disengaged |
| Un-mating Force | 30N Max. With retention latch disengaged |
| Latch Retention Force | 90N Min. |
| Physical Shock | Subject mated specimens to 30G’s half-sine shock pulses of 11 milliseconds duration. 3 shocks in each direction applied along 3 mutually perpendicular planes, 18 total shocks |
| Vibration (random) | Subject mated specimens to 3.10G’s rms between 20-500Hz for 15 minutes in each of 3 mutually perpendicular planes |
| Thermal shock | 100 cycles of: a) -55°C for 30 minutes b) +85°C for 30 minutes |
| Temperature Life | Subject mated specimens to +105°C for 500 hours |
| Humidity and Temperature Cycling | Subject unmated specimens to 10 cycles (10 days) between 25 and 65°C at 80% to 100% RH |
| Visual Examination | Connectors and contacts shall have no evidence of physical defects or otherwise unfit for testing |
