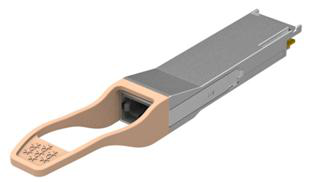

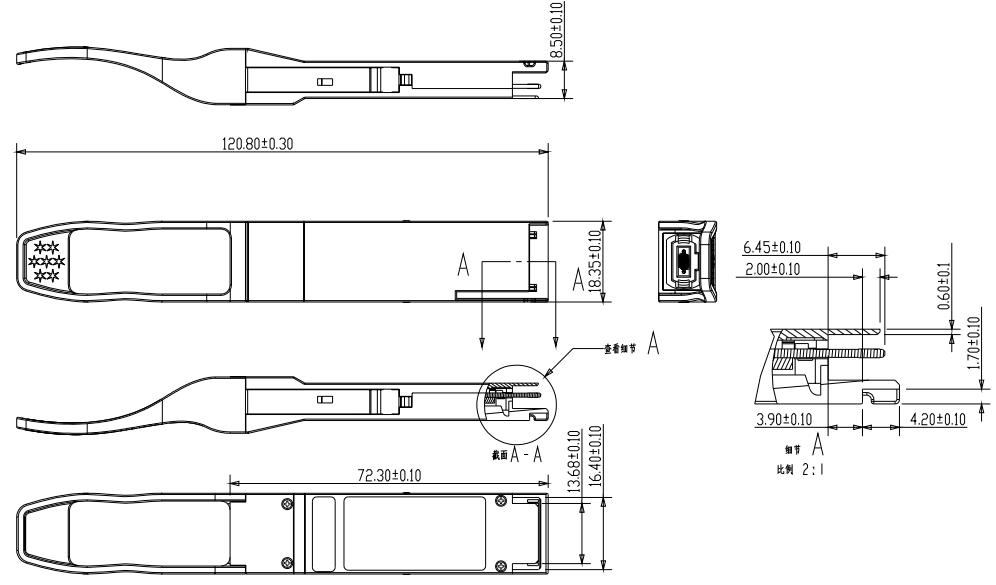

200GBASE-SR4 QSFP56 Optical Transceiver Module GQS-MPO201-SR4CZC DSP Version

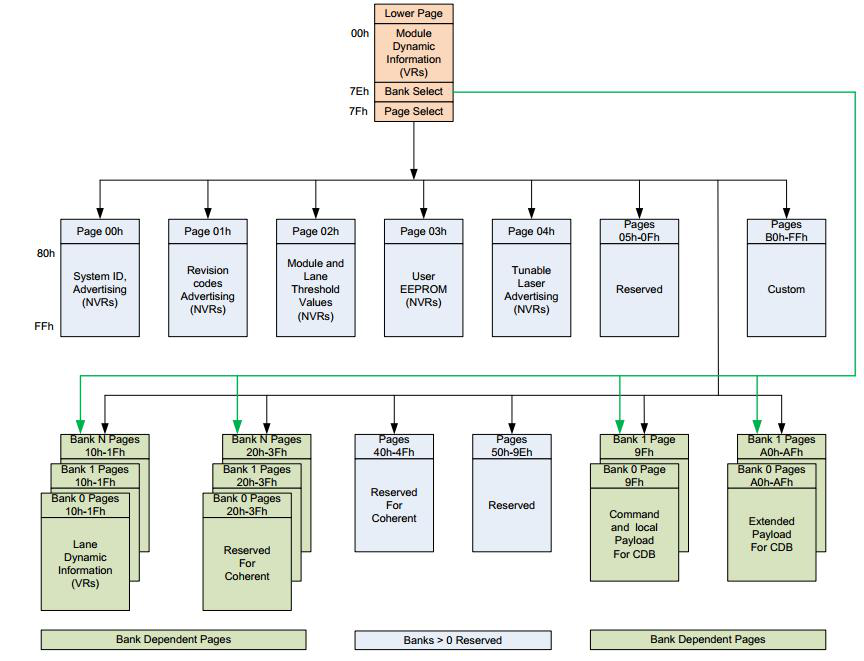

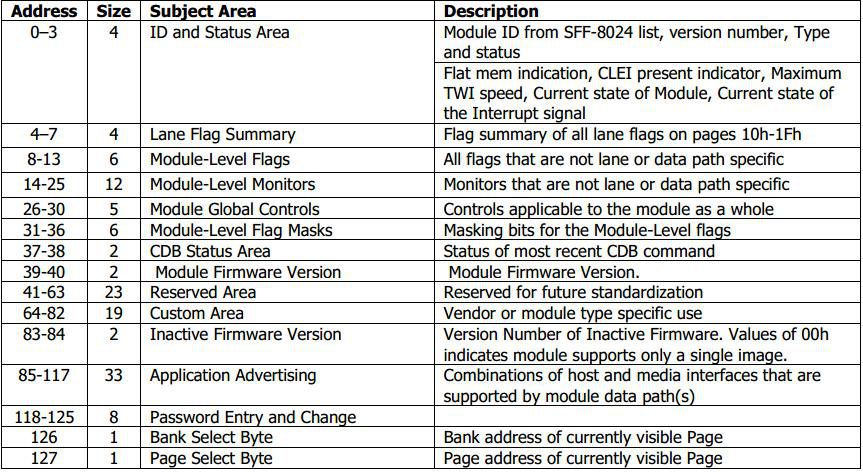

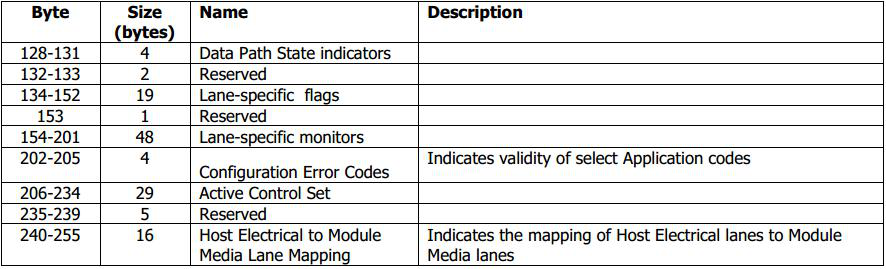

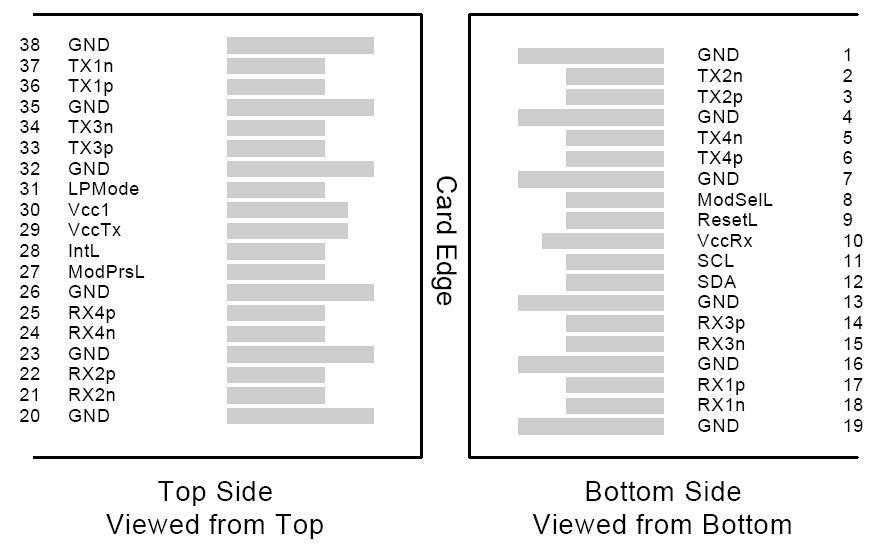

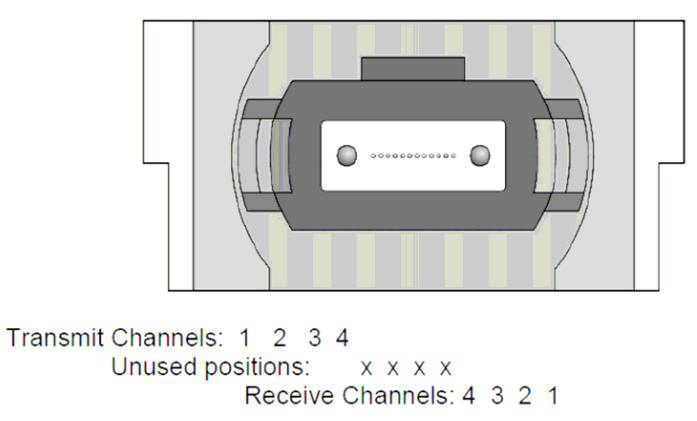

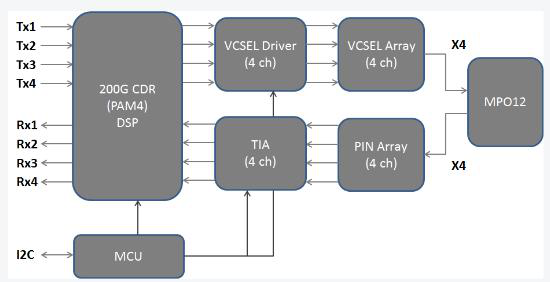

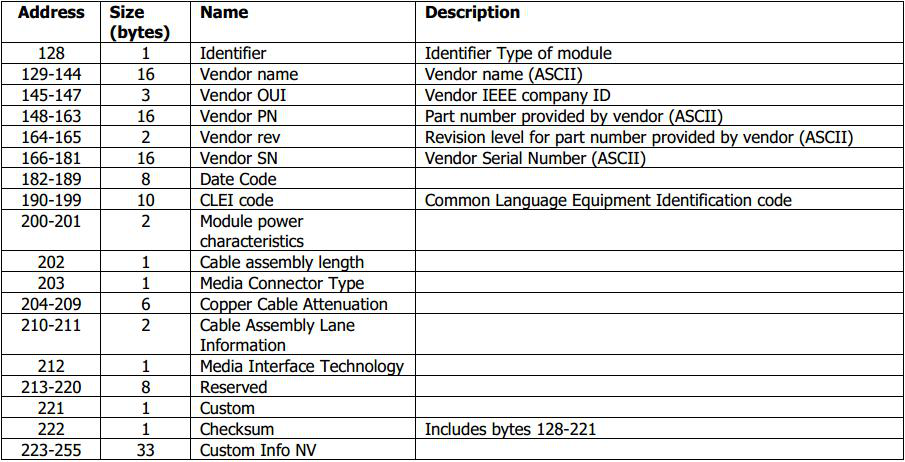

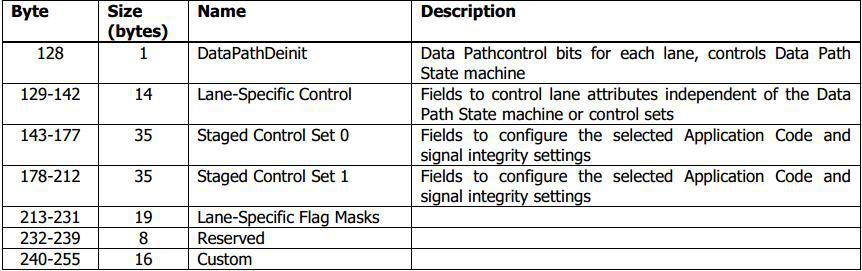

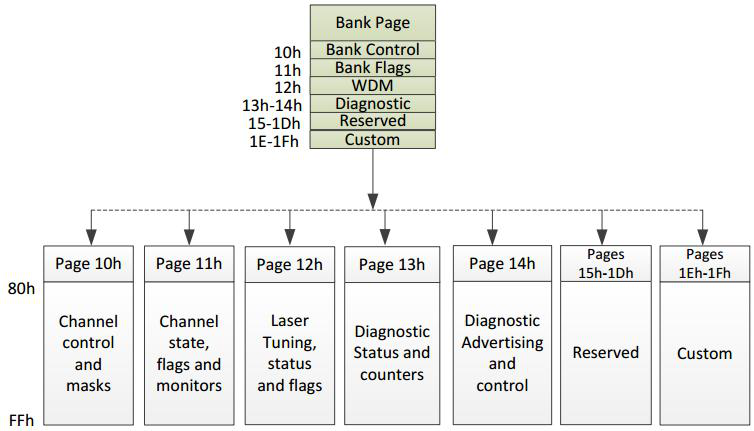

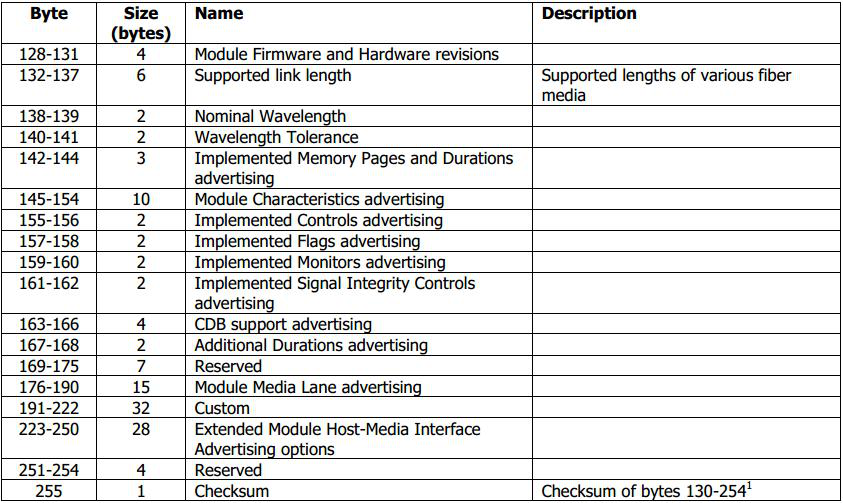

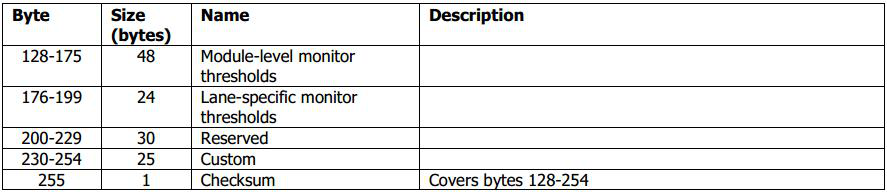

The GQS-MPO201-SR4CZC QSFP56 optical transceiver module is designed for 200 Gigabit Ethernet links over OM3/OM4/OM5 multimode fiber. It complies with the QSFP MSA and IEEE 802.3cd 200GBASE-SR4 specifications. Digital diagnostics functions are available via the I2C interface as specified by CMIS V4.0. The transceiver is RoHS 2.0 compliant and lead-free per Directive 2011/65/EU.
Save to Favorites
Overview
Specifications

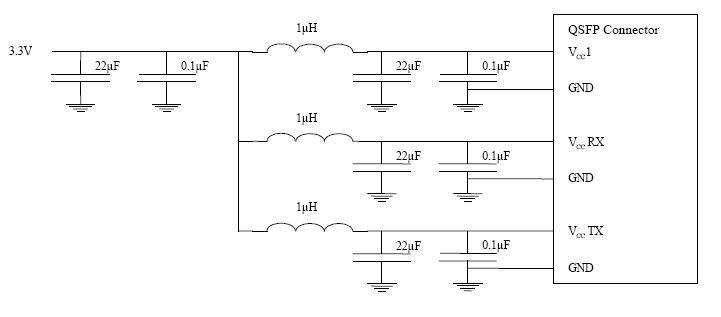

| Parameter | Value |
|---|---|
| Supply Voltage | 3.13-3.47V |
| Operating Case Temperature | 0-70°C |
| Baud Rate per Lane (PAM4) | 26.5625GBaud/s |
| Humidity | 5-85% |
| Power Dissipation | 4.1-4.5W |
| Fiber Bend Radius | 3cm |
| Differential Input Impedance | 90-100-110ohm |
| Differential Output Impedance | 90-110ohm |
| Differential Input Voltage Amplitude | 300-1000mVpp |
| Differential Output Voltage Amplitude | 300-900mVpp |
| Bit Error Rate | 2.4E-4 |
| Input Logic Level High | 2.0-VccV |
| Input Logic Level Low | 0-0.8V |
| Output Logic Level High | Vcc-0.5V |
| Output Logic Level Low | 0-0.4V |
| Center Wavelength | 840-850-860nm |
| RMS spectral width | N/A |
| Average Launch Power (each lane) | -6.5-4dBm |
| Outer Optical Modulation Amplitude (each lane) | -4.5dBm |
| Launch Power in OMAouter minus TDECQ | -5.9dBm |
| Transmitter and Dispersion Eye Closure (each lane) | 4.5dB |
| Average launch power off (each lane) | -30dBm |
| Extinction Ratio | 3dB |
| Optical Return Loss Tolerance | 12dB |
| Receiver Center Wavelength | 840-860nm |
| Damage Threshold | 4dBm |
| Average Receive Power (Each Lane) | -7.9-4dBm |
| Receiver Power (OMAouter) | 3dBm |
| Receiver Reflectance | -12dB |
| Stressed Receiver Sensitivity (OMAouter) | -3dBm |
| Receiver Sensitivity (OMAouter) | -10--8.5dBm |
| Los Assert | -7dBm |
| Los De-assert | -10dBm |
| Los Hysteresis | 0.5dB |
