200G QSFP-DD Checker

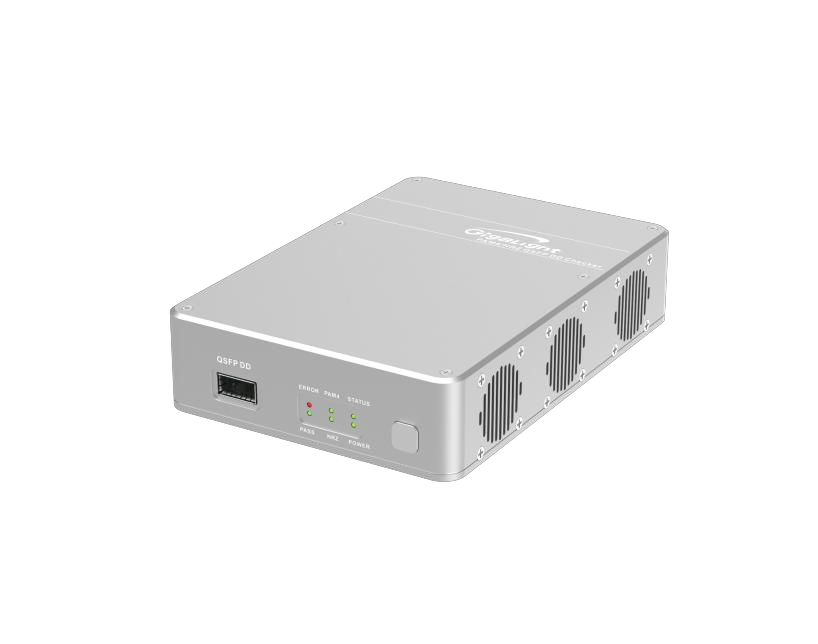

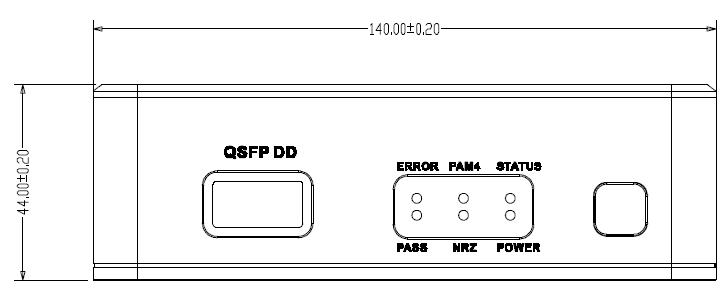

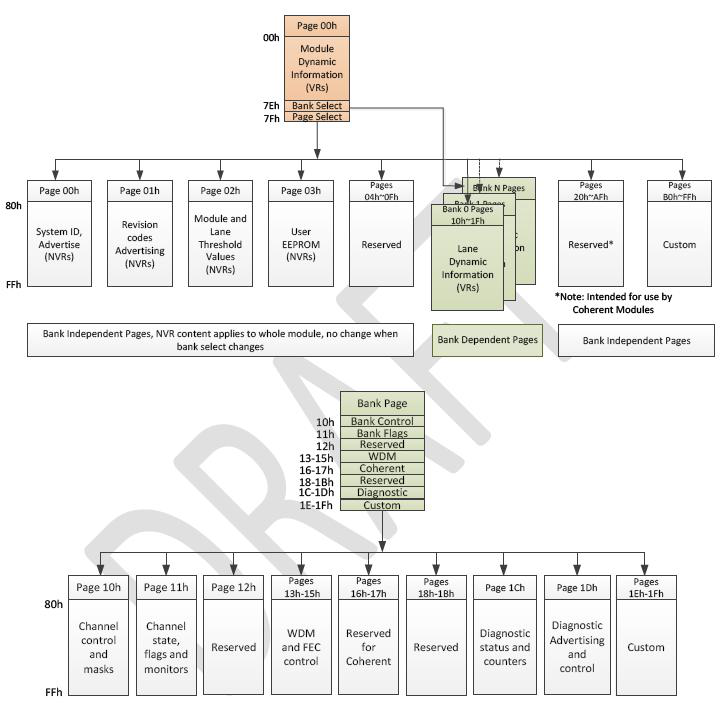

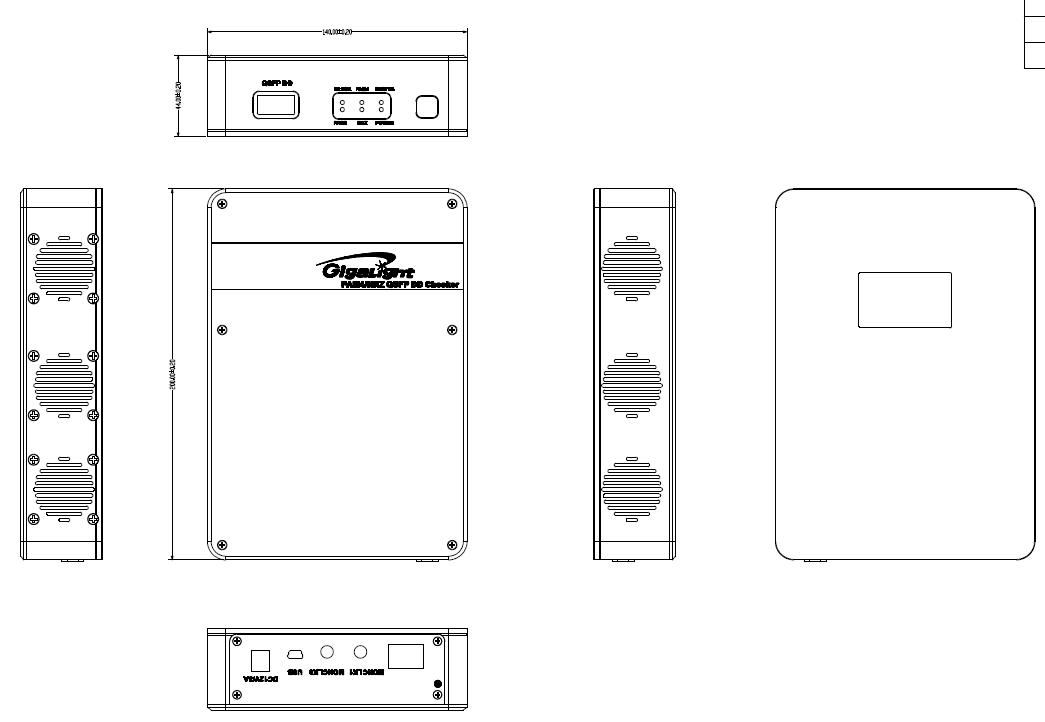

The 200G QSFP-DD Checker is an advanced instrument designed to test QSFP28/QSFP-DD modules. It enables users to read internal memory EEPROM, monitor DDM information, and measure module power consumption. The device supports QSFP/QSFP-DD modules with a maximum power consumption of 14W and provides a user-friendly graphical interface for monitoring bit error rate, data rate, and PRBS patterns.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 9~19V |
| Storage Temperature | -20~85°C |
| Case Operating Temperature | 0~70°C |
| Humidity (non-condensing) | 5~95% |
| Operating Case Temperature | 0~70°C |
| Data Rate Per Lane | 25.78125~26.5625Gbps |
| Humidity | 5~95% |
| Power Dissipation | ≤25W |
| Differential Input Impedance | 90~110ohm |
| Differential Output Impedance | 90~110ohm |
| Differential Input Voltage Amplitude | 900mVp-p |
| Differential Output Voltage Amplitude | 900mVp-p |
| Skew | 300ps |
| Near-end Eye Width at 10^-6 probability (EW6) | 0.265UI |
| Near-end Eye Height at 10^-6 probability (EH6) | 70mV |
| Far-end Eye Width at 10^-6 probability (EW6) | 0.20UI |
| Far-end Eye Height at 10^-6 probability (EH6) | 30mV |
| Near-end Eye Linearity | 0.85 |
| QSFP-DD Ports | QSFP or QSFP-DD |
| Transmission Rate | 25.78125Gbps NRZ |
| Pattern Generator | NRZ (PRBS7, PRBS9, PRBS21, PRBS23, PRBS31) |
| Module Power Measured | 0~4000mA |
| Accuracy | ±15% |
Applications
Key Features
Datasheet
Supplier Information
