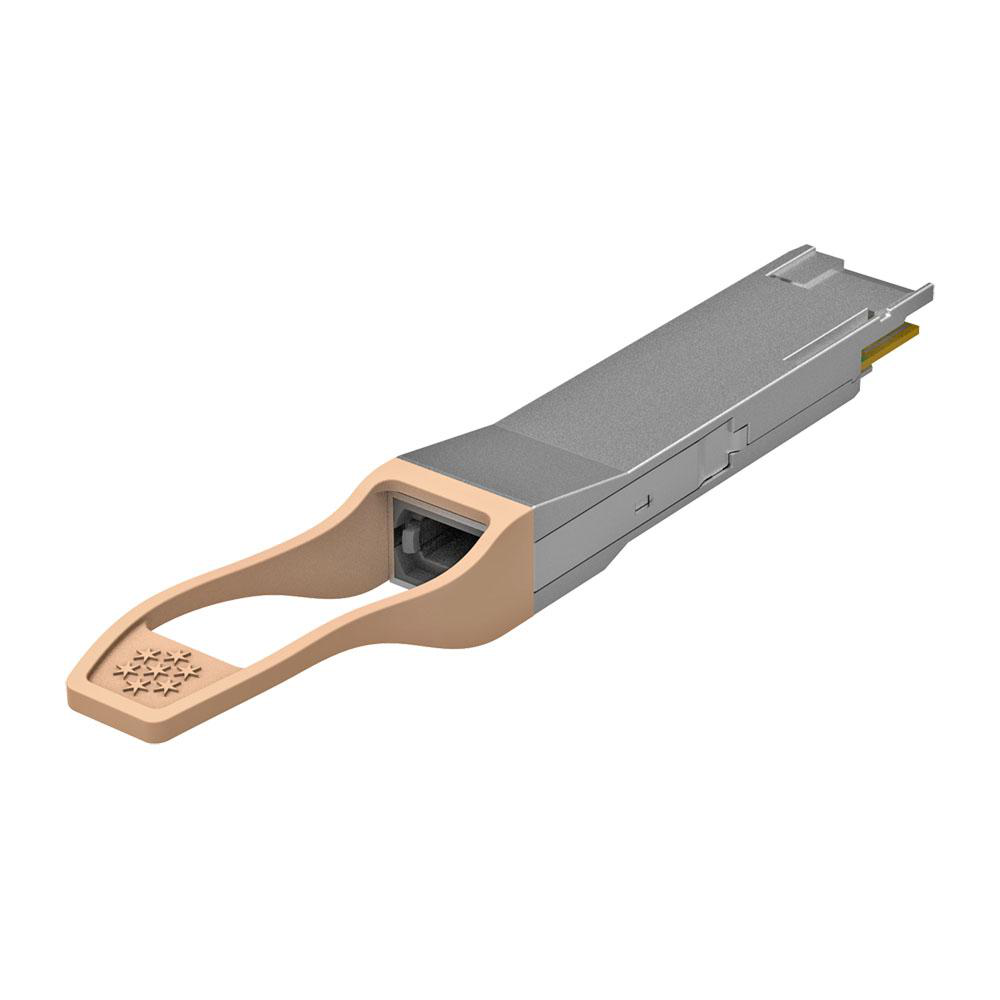

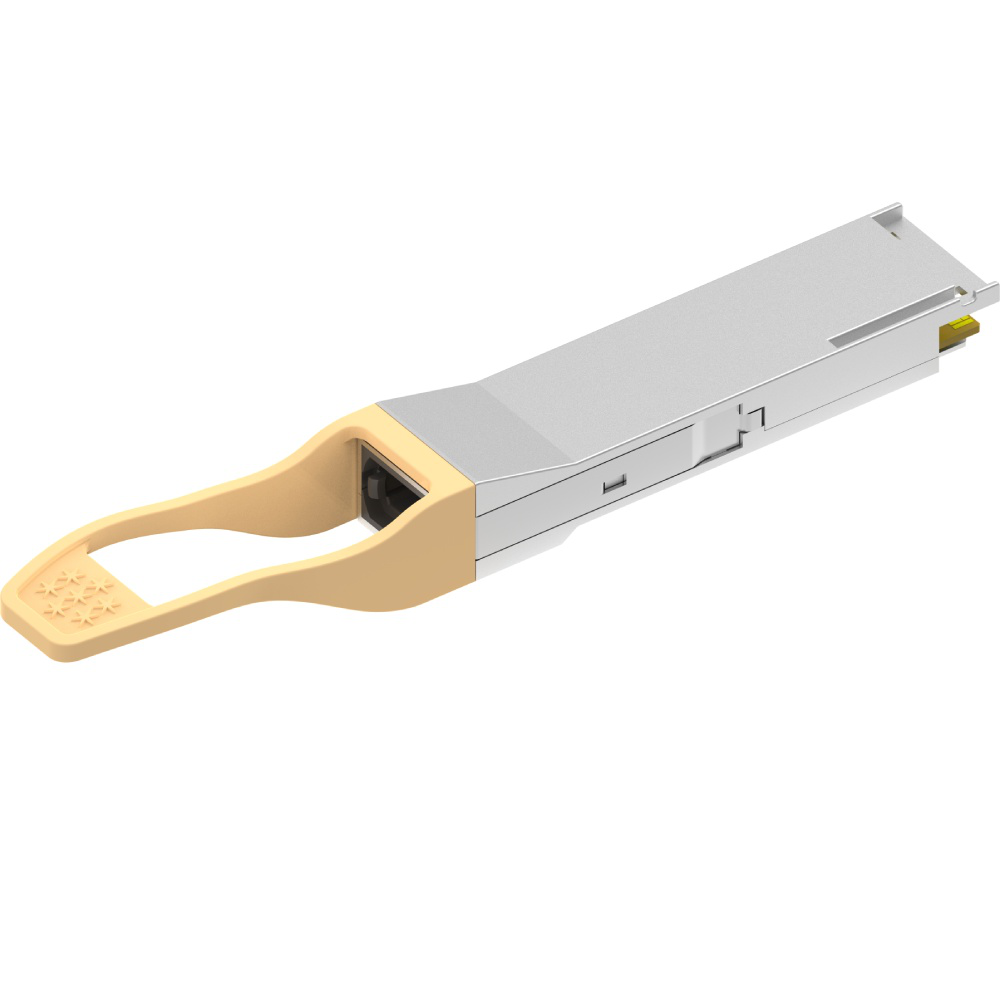

GIGALIGHT 2x100GBASE-SR4 QSFP DD Optical Transceiver Module

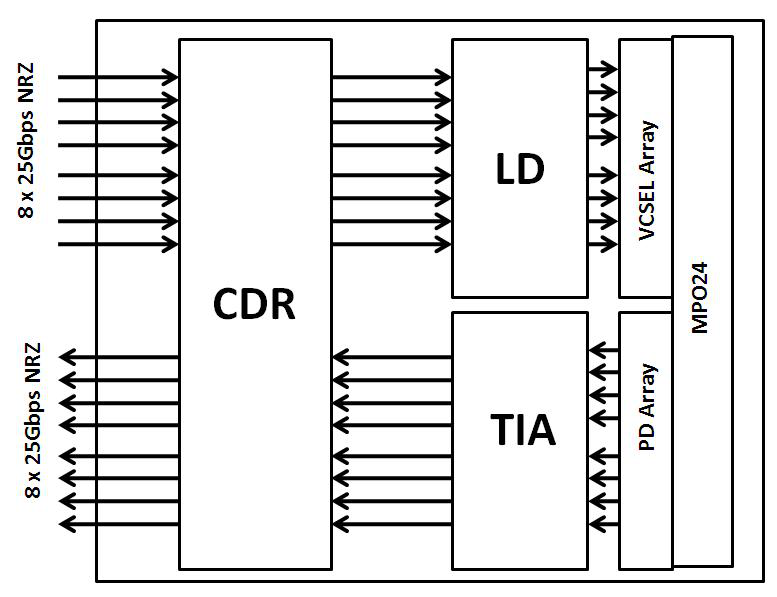

The GIGALIGHT 2x100GBASE-SR4 QSFP DD Optical Transceiver Module is an eight-channel, pluggable, parallel, fiber-optic module designed for 2x100 Gigabit Ethernet applications. It supports short-range multi-lane data communication and interconnect applications, integrating eight data lanes in each direction with 8x25.78125Gbps bandwidth. Each lane operates at 25.78125Gbps up to 70m using OM3 fiber or 100m using OM4 fiber. The module uses a nominal wavelength of 850nm and incorporates proven circuit and VCSEL technology for reliable, high-performance service.
Save to Favorites

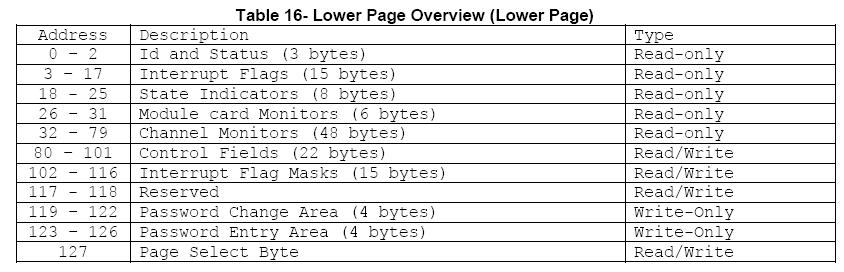

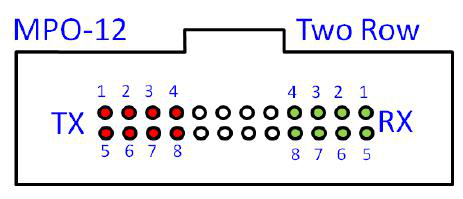

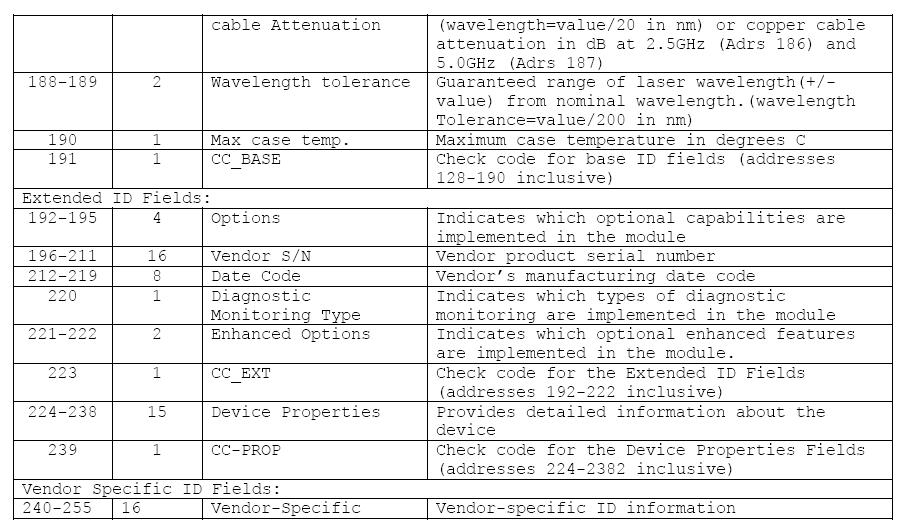

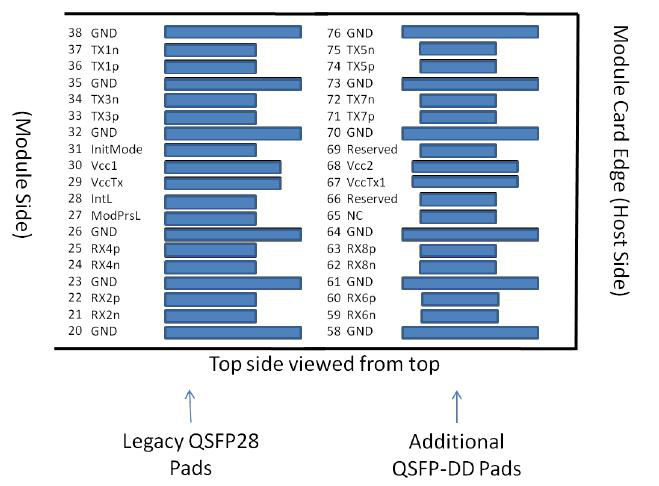

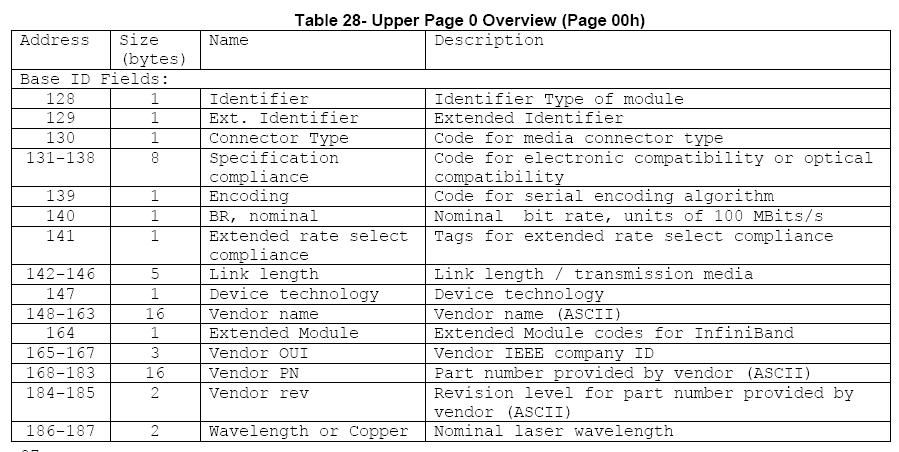

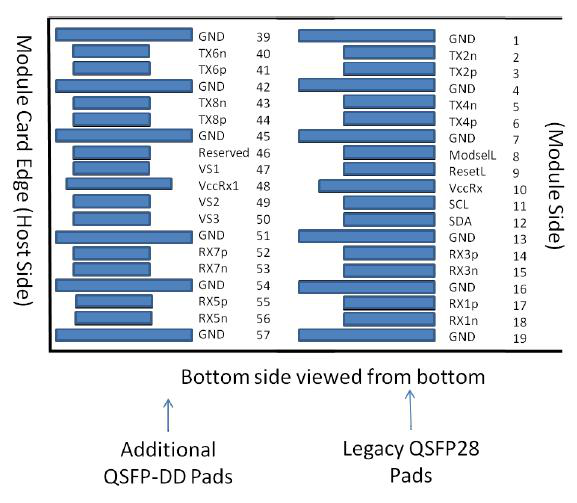

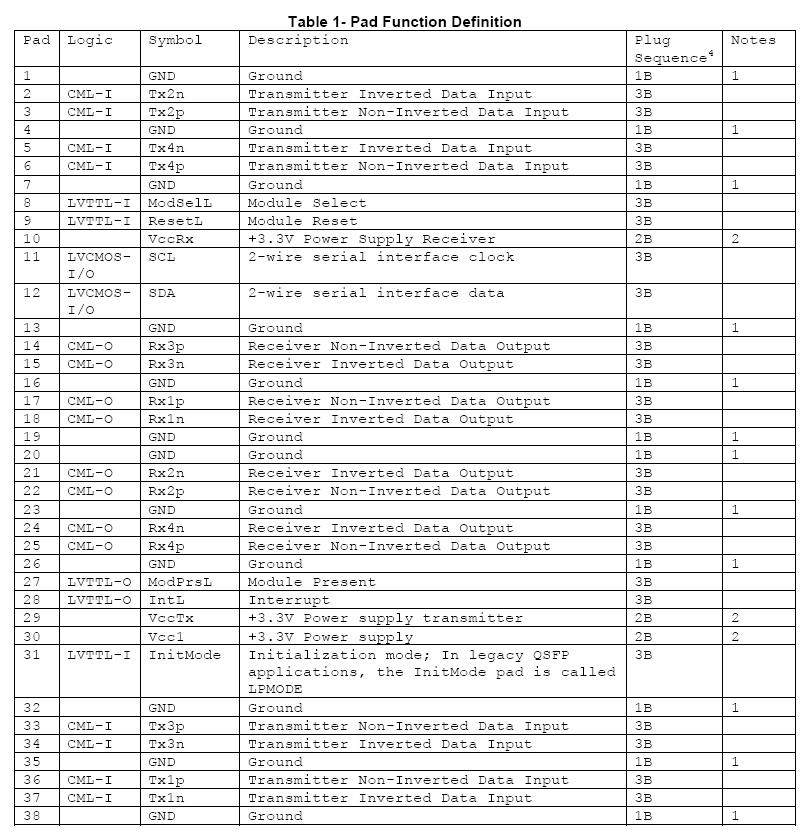

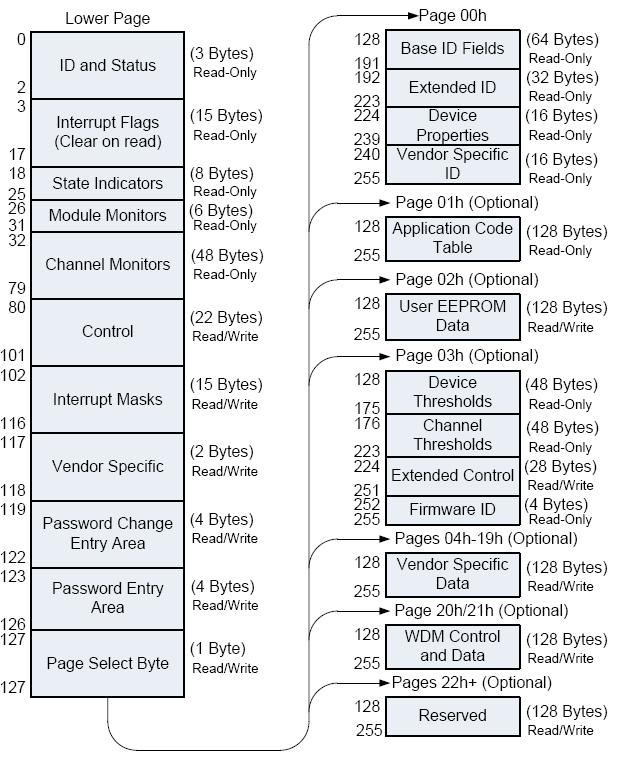

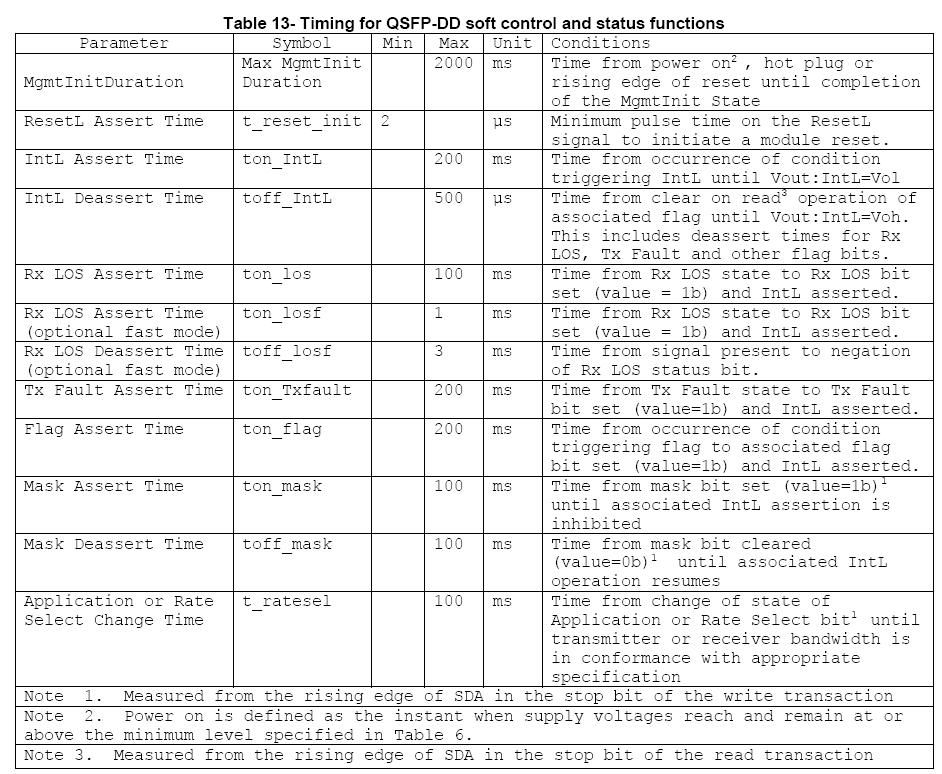

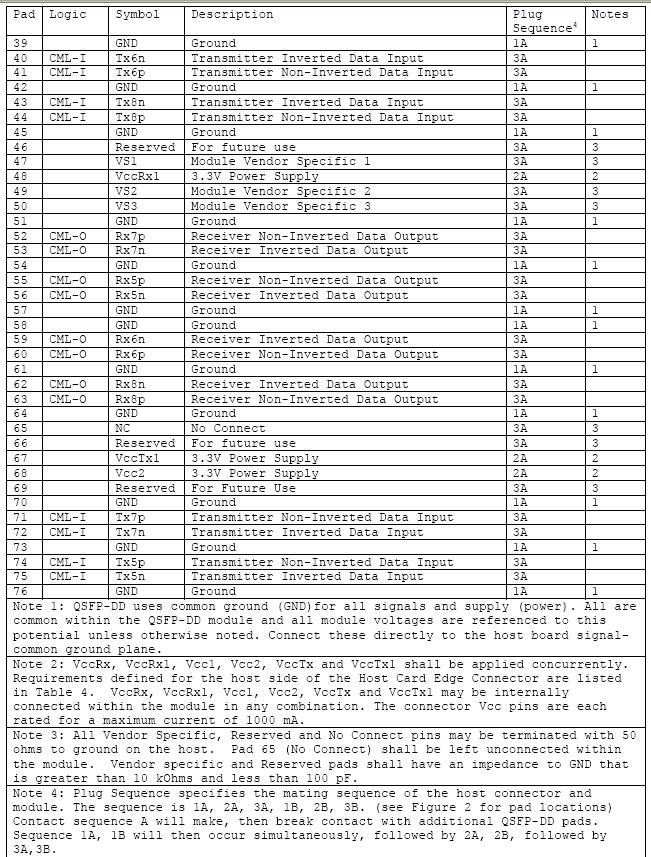

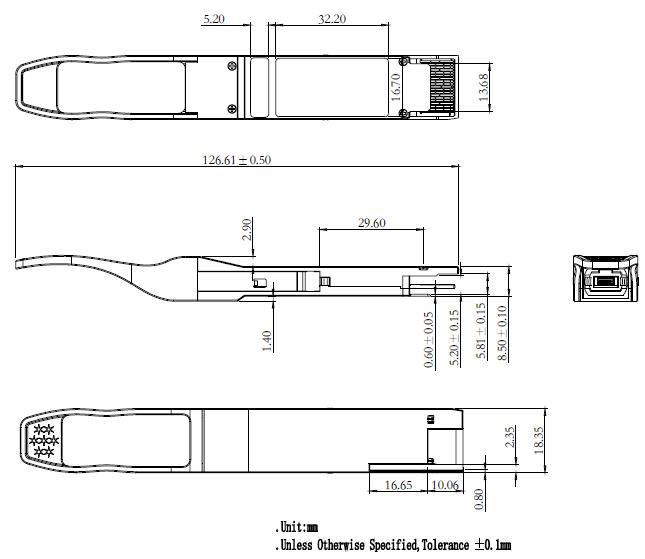

Overview
Specifications

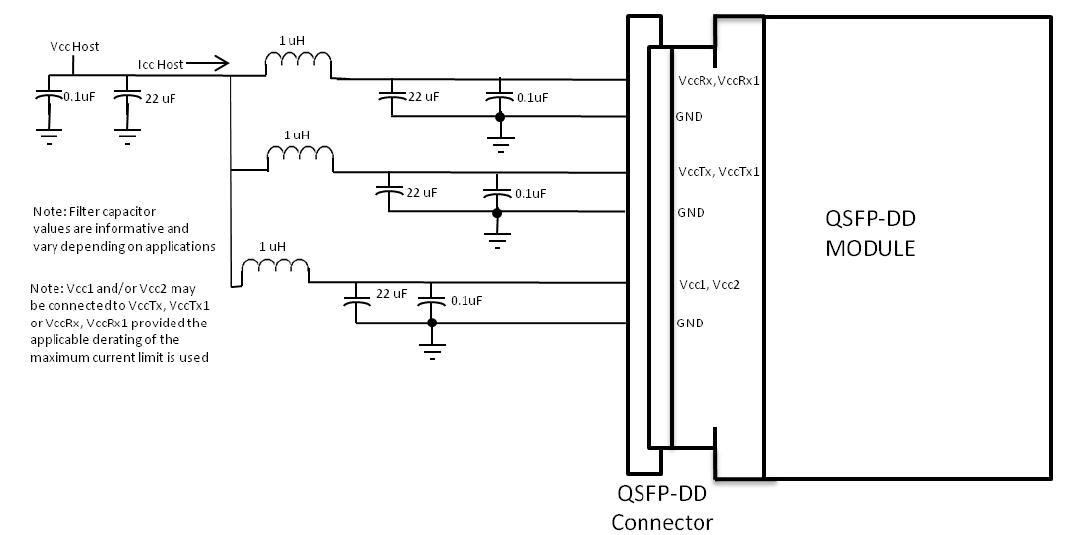

| Parameter | Value |
|---|---|
| Supply Voltage | 3.13-3.47V |
| Operating Case Temperature | 0-70°C |
| Data Rate Per Lane | 25.78125Gbps |
| Humidity | 5-85% |
| Power Dissipation | <4W |
| Differential Input Impedance | 90-110ohm |
| Differential Output Impedance | 90-110ohm |
| Differential Input Voltage Amplitude | 300-1100mVp-p |
| Differential Output Voltage Amplitude | 500-800mVp-p |
| Skew | 300ps |
| Bit Error Rate | 5E-5 |
| Input Logic Level High | 2.0V-VCC |
| Input Logic Level Low | 0-0.8V |
| Output Logic Level High | VCC-0.5V-VCC |
| Output Logic Level Low | 0-0.4V |
| Centre Wavelength | 840-850-860nm |
| RMS Spectral Width | 0.6nm |
| Average Launch Power Each Lane | -8.4-2.4dBm |
| Optical Modulation Amplitude (OMA) | -6.4-3dBm |
| Transmitter and Dispersion Eye Closure (TDEC) | 4.3dB |
| Extinction Ratio | 3dB |
| Average Launch Power of OFF Transmitter Each Lane | <-30dBm |
| Stressed Receiver Sensitivity in OMA | -5.2dBm |
| Maximum Average Power at Receiver Each Lane Input | 2.4dBm |
| Minimum Average Power at Receiver Each Lane | -10.3dBm |
| Receiver Reflectance | <-12dB |
| Los Assert | <-30dBm |
| LOS De-Assert OMA | <-7.5dBm |
| Los Hysteresis | 0.5dB |
| Storage Temperature | -20-85°C |
| Humidity (non-condensing) | 5-95% |
