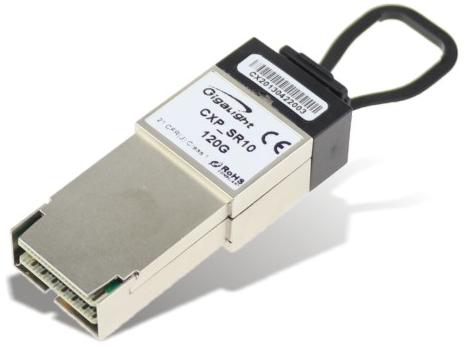

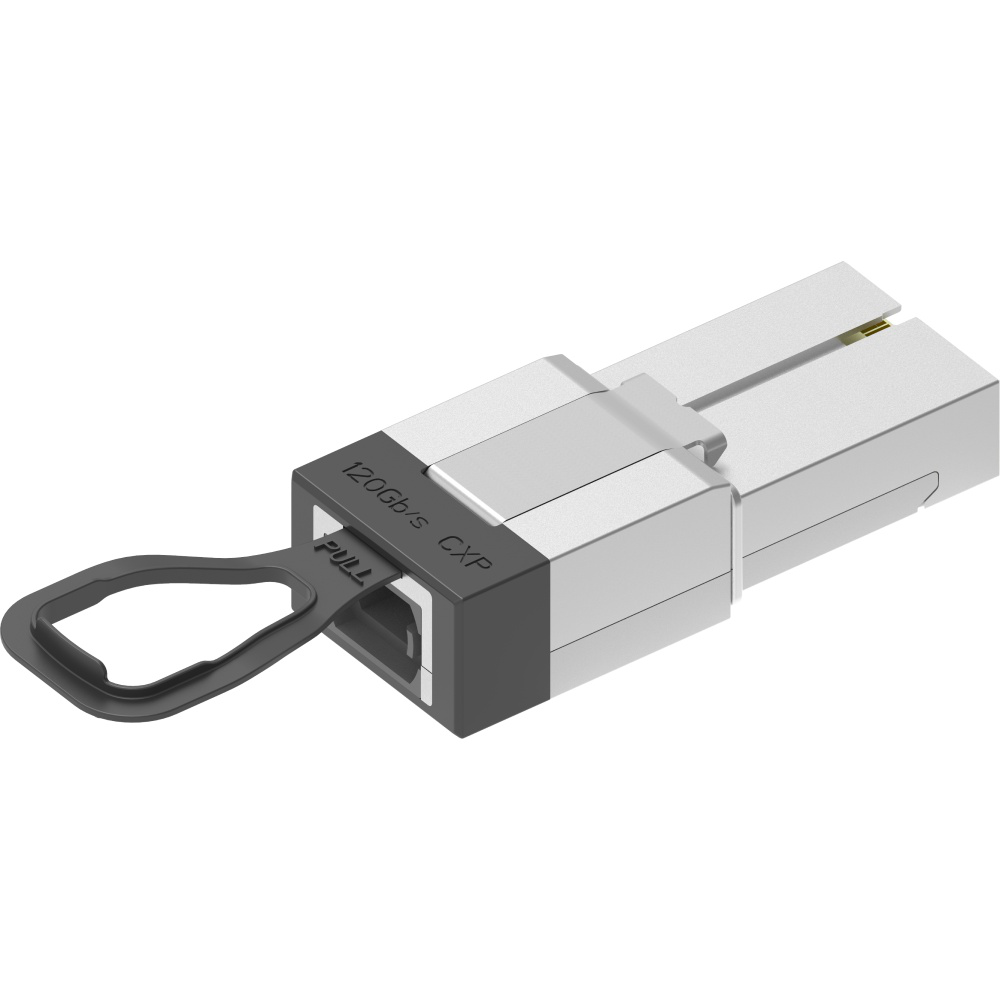

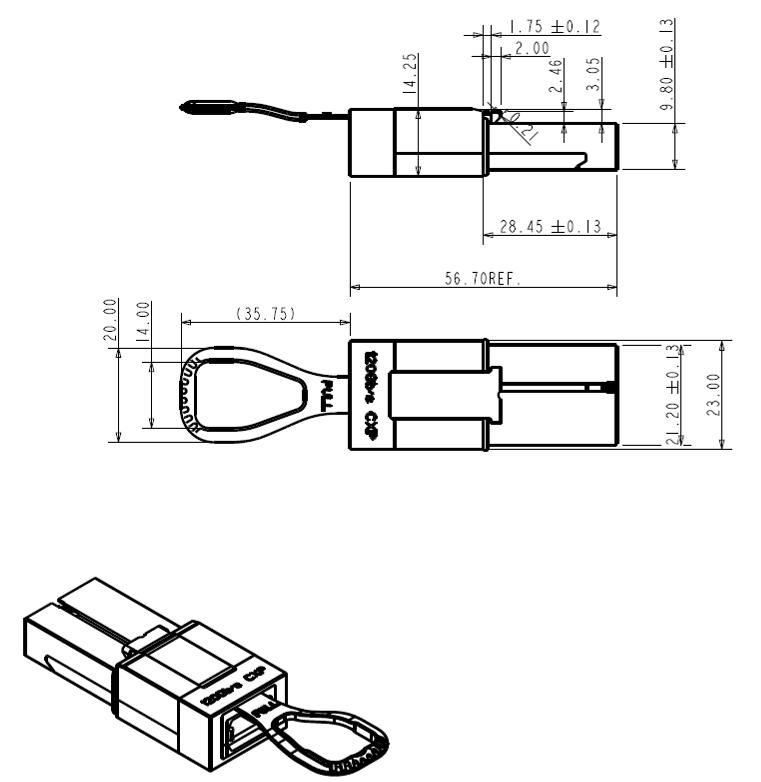

GCX-MPO121-SR10C CXP Optical Transceiver Module

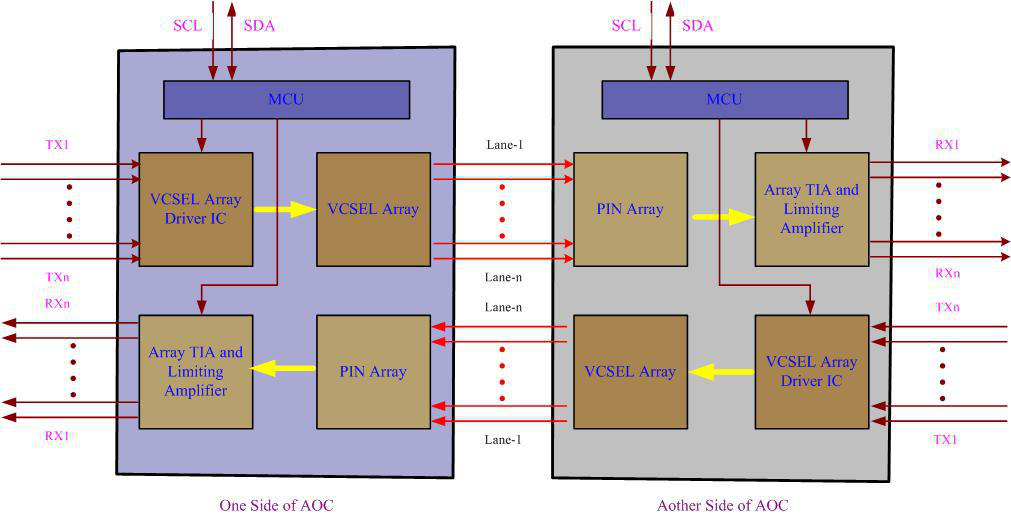

The GCX-MPO121-SR10C CXP optical transceiver module is a high-performance, low-power consumption solution designed for 100G Ethernet, InfiniBand, Fibre Channel, and PCIe applications. It supports 12 full-duplex lanes, each capable of transmitting data at rates up to 10.5Gb/s, providing an aggregated rate of 120Gb/s.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Module Form Factor | CXP |
| Number of Lanes | 12 Tx and 12 Rx |
| Maximum Aggregate Data Rate | 126Gb/s |
| Maximum Data Rate per Lane | 10.5Gb/s |
| Protocols Supported | 100G Ethernet, InfiniBand, Fibre Channel, SATA/SAS3 |

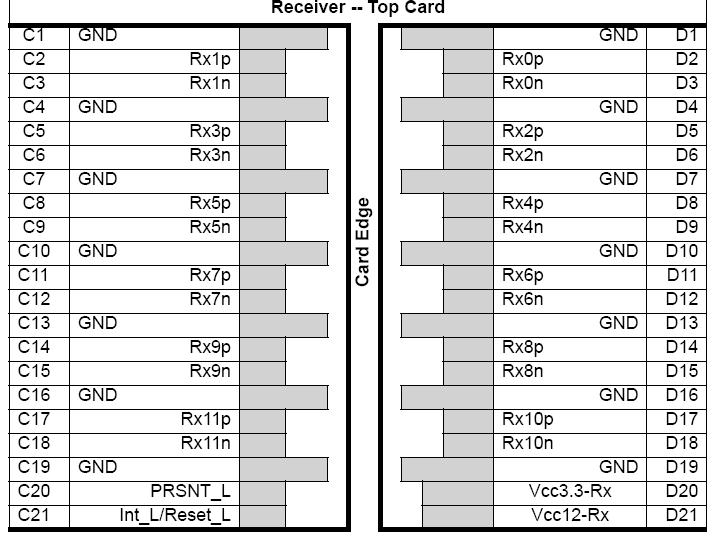

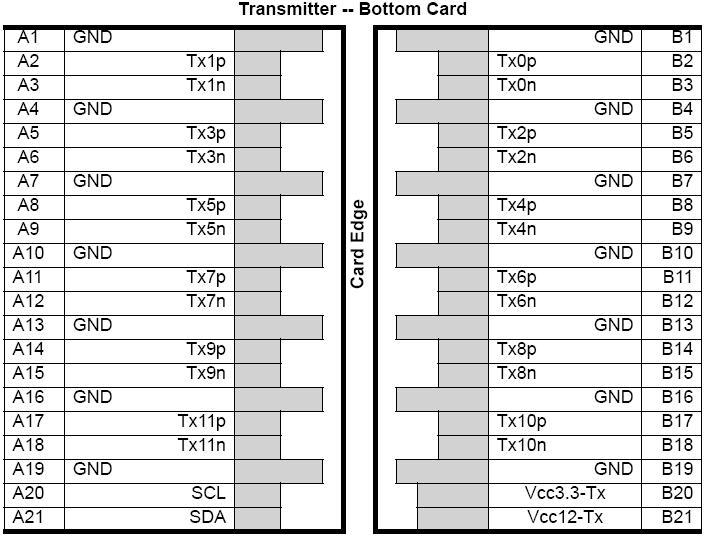

| Electrical Interface and Pin-out | 84-pin edge connector |

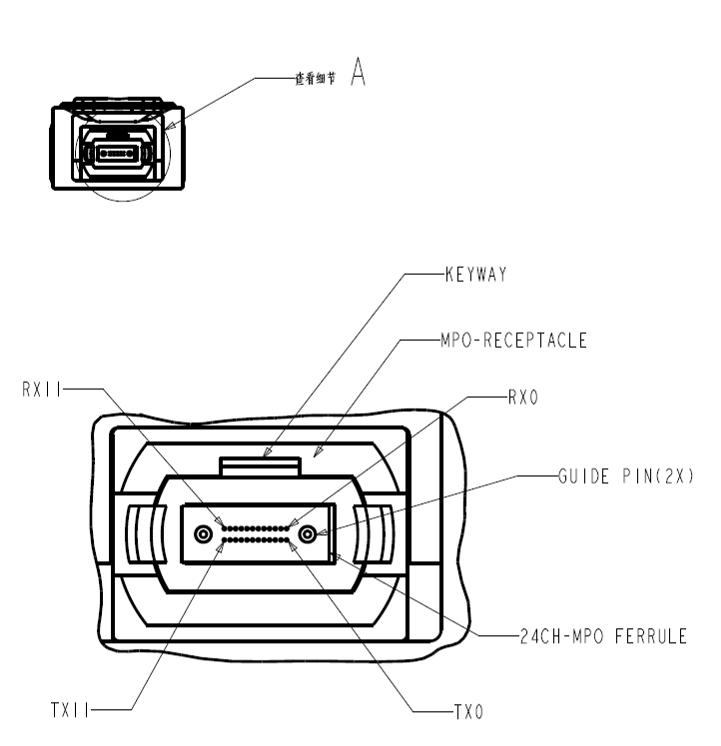

| Optical Cable Type Required | Multimode ribbon 24-fiber cable assembly, MPO connector |
| Maximum Power Consumption per End | 4.5W |
| Management Interface | Serial, I2C-based, 450kHz maximum frequency |

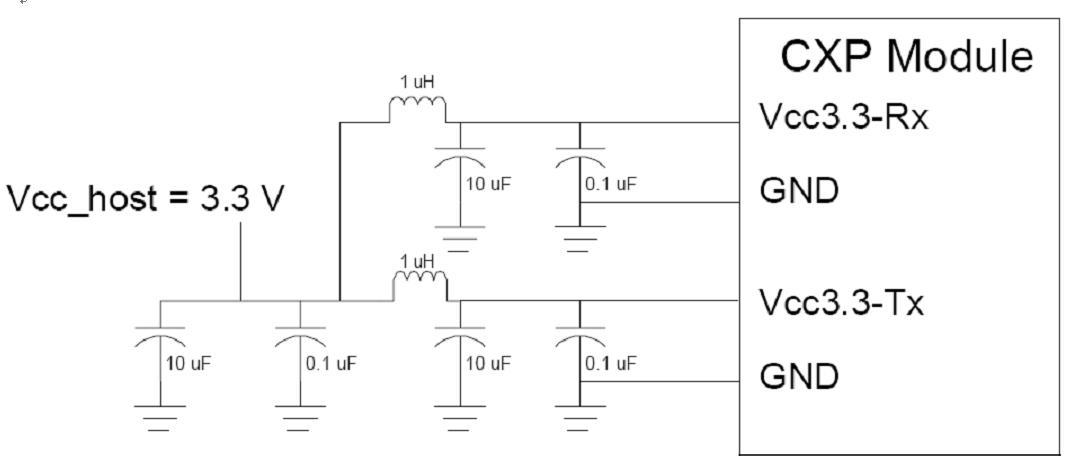

| Supply Voltage | 3.3V |
| Operating Case Temperature | 0°C to 70°C |
| Data Rate Per Lane | 1.06Gbps to 10.5Gbps |
| Humidity | 5%-85% |
| Power Dissipation | <4.5W |
| Differential Input Impedance | 90-110ohm |
| Differential Output Impedance | 90-110ohm |
| Differential Input Voltage Amplitude | 200-1200mVp-p |
| Differential Output Voltage Amplitude | 600-800mVp-p |
| Skew | ≤300ps |
| Bit Error Rate | E-12 |
| Input Logic Level High | 2.0V |
| Input Logic Level Low | 0.8V |
| Output Logic Level High | VCC-0.5V to VCC |
| Output Logic Level Low | 0.4V |
| Single-ended Input Voltage Tolerance | -0.3V to 3.6V |
| Differential Input Swing | 50mV |
| AC Common Mode Input Voltage Tolerance | 15mV |
| Differential Input Return Loss | ≥4dB |
| J2 Jitter Tolerance | 0.17UI |
| J9 Jitter Tolerance | 0.29UI |
| Data Dependent Pulse Width Shrinkage | 0.07UI |
| Eye Mask Coordinates | 0.11, 0.31, 95, 350UI mV |
| Single-ended Output Voltage | -0.3V to 4.0V |
| Differential Data Output Swing | 0-800mVp-p |
| AC Common Mode Output Voltage Tolerance | 7.5mV |
| Termination Mismatch at 1MHz | 5% |
| Differential Output Return Loss | ≥4dB |
| Common Mode Output Return Loss | ≥4dB |
| Output Transition Time, 20% to 80% | 28ps |
| J2 Jitter Output | 0.42UI |
| J9 Jitter Output | 0.65UI |
| Signaling Speed per Lane | 10.5GBd |
| Center Wavelength | 840-860nm |
| RMS Spectral Width | 0.65nm |
| Average Launch Power per Lane | -7.6 to -2.4dBm |
| Transmit OMA per Lane | -6.5 to 3.0dBm |
| Difference in Power between any two lanes (OMA) | 3.5dBm |
| Peak Power per Lane | 4.0dBm |
| Launch Power (OMA) minus TDP | -6.5dBm |
| TDP per Lane | 3.5dBm |
| Optical Extinction Ratio | 3.0dB |
| Optical Return Loss Tolerance | 12dB |
| Encircled Flux | ≥86% at 19um <30% at 4.5um |
| Average Launch Power of OFF transmitter, per lane | -30dBm |
| Relative Intensity Noise | -128dB/Hz |
| Damage Threshold | 3.4dBm |
| Average Receive Power per Lane | -9.5 to 2.4dBm |
| Receive Power (OMA) per Lane | 3.0dBm |
| Stressed Receiver Sensitivity (OMA) per Lane | -5.4dBm |
| Receiver Reflectance | -12dB |
| Vertical Eye Closure Penalty, per lane | 1.9dB |
| Stressed eye J2 jitter, per Lane | 0.3UI |
| Stressed eye J9 jitter, per Lane | 0.47UI |
| OMA of each aggressor lane | -0.47dBm |
| Receiver jitter tolerance (OMA), per Lane | -5.4dBm |
| Rx jitter tolerance: Jitter frequency | (75, 5)kHz, UI |
| Rx jitter tolerance: p-p amplitude | (375, 1)kHz, UI |
| Los De-assert | -11dBm |
| Los Assert | -14dBm |
| Los Hysteresis | 1dB |
