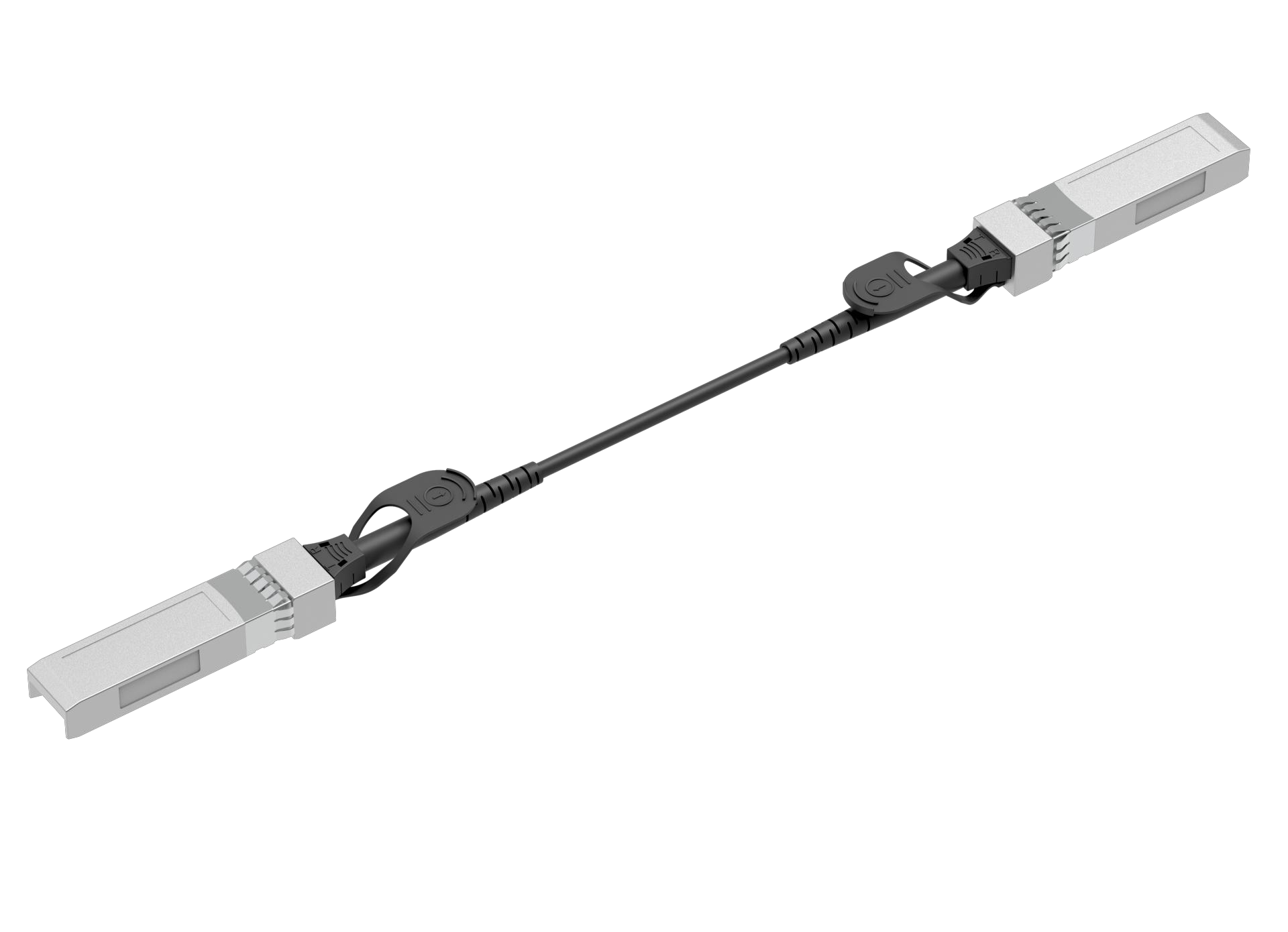

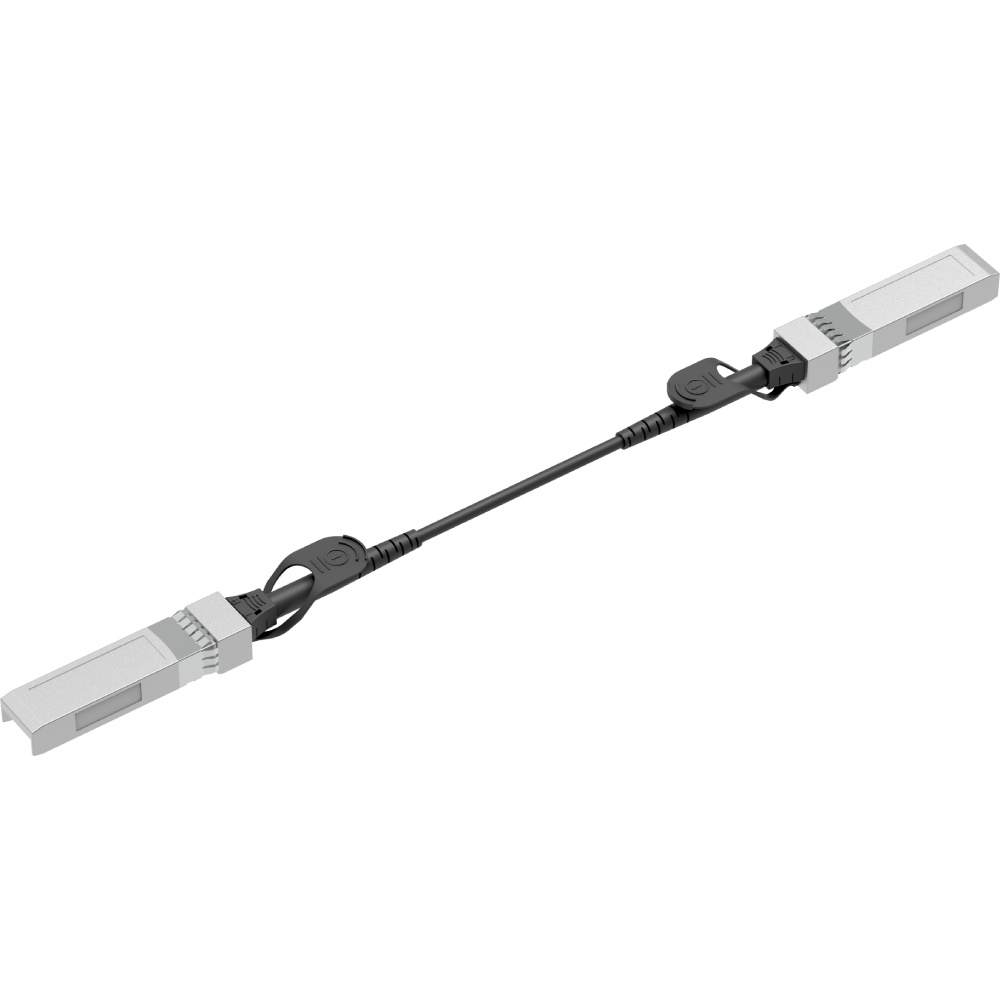

GIGALIGHT 10G SFP+ Hardened Active Optical Cables GSS-MD0100-xxxT
Gigalight GSS-MD0100-xxxT Hardened Active Optical Cables are direct-attach fiber assemblies with SFP+ connectors. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 0-3.6V |
| Storage Temperature | -20~85°C |
| Operating Case Temperature | -40~85°C |
| Operating Humidity | 5~85% |
| Dynamic Bending Radius | 20Dmm |
| Static Bending Radius | 10Dmm |
| Power Supply Voltage | 3.13-3.47V |
| Supply Current | 230mA |
| Channel Data Rate | 10.3125Gbps |
| BER | <10^-12 |

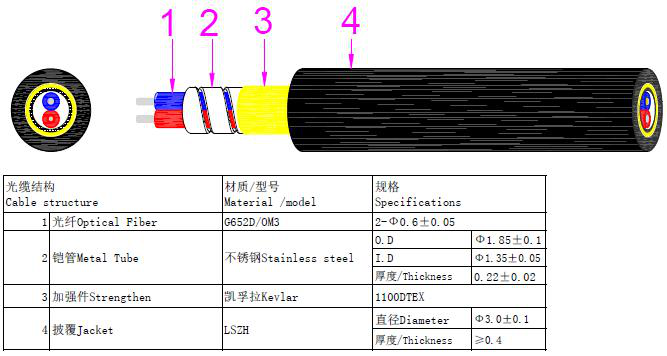

| Optical Cable Outer Diameter | 3.0mm |
| Optical Cable Loss | 3.5dB/km |
| Tensile Strength 1 | 300N |
| Tensile Strength 2 | 600N |
| Crush Resistance 1 | 2000N/100mm |
| Crush Resistance 2 | 3000N/100mm |
| Center Wavelength | 840-860nm |
| RMS spectral width | Note 1nm |
| Average Optical Power | -6.5~-1dBm |
| Extinction Ratio | 3.5dB |
| Transmitter Dispersion Penalty | 3.9dB |
| Relative Intensity Noise | -128dB/Hz |
| Optical Return Loss Tolerance | 12dB |
| Receiver Center Wavelength | 840-860nm |
| Receiver Sensitivity | -11.1dBm |
| Stressed Sensitivity in OMA | -7.5dBm |
| Loss Function | -30~-12dB |
| Overload | -1dBm |
| Receiver Reflectance | -12dB |
Applications
Key Features
Datasheet
