10G SFP+ AOC Checker

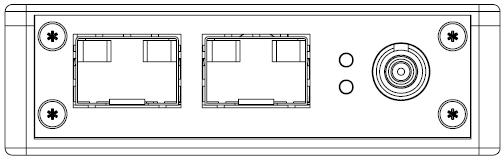

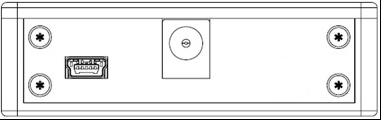

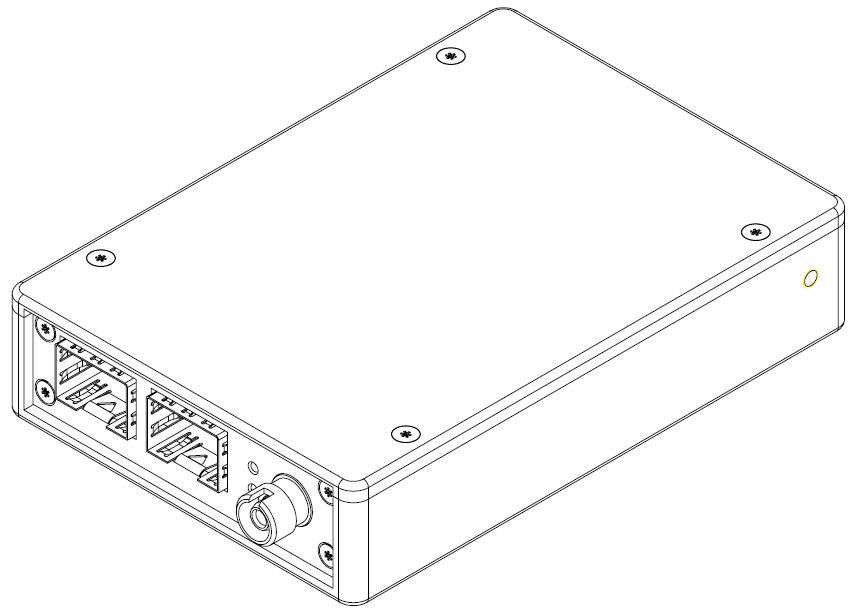

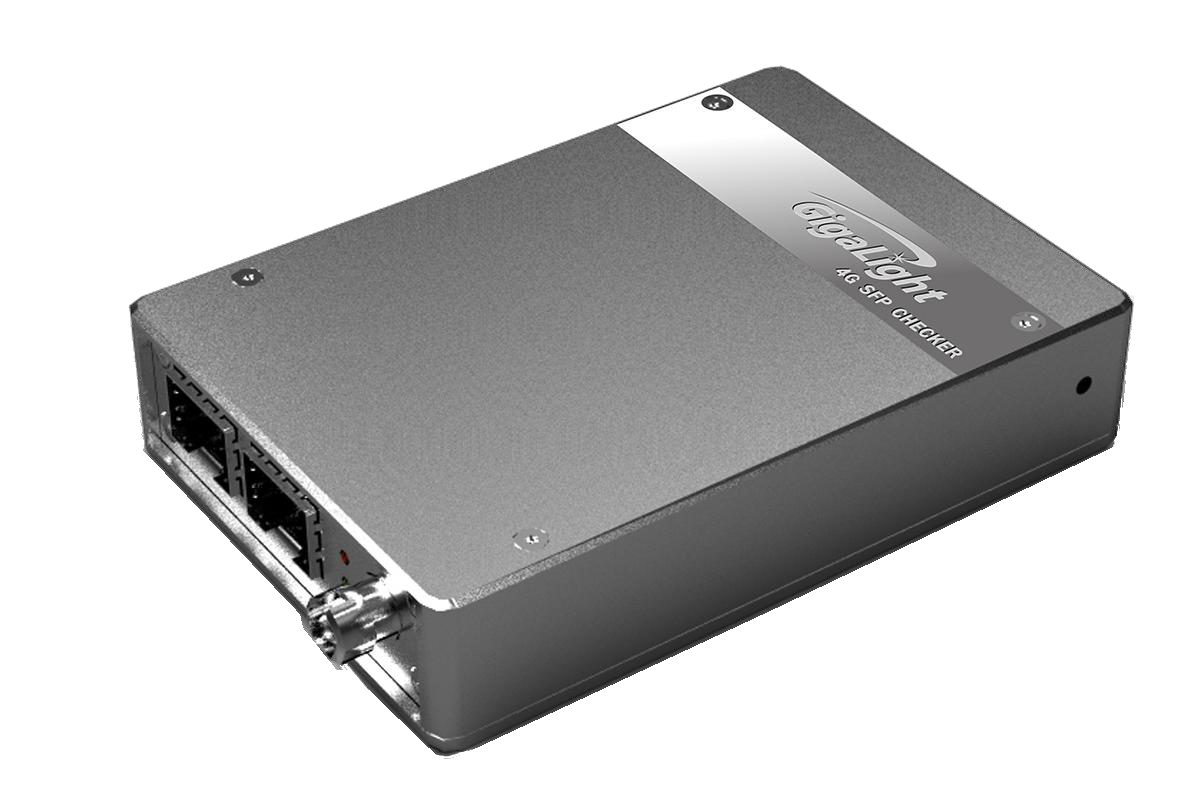

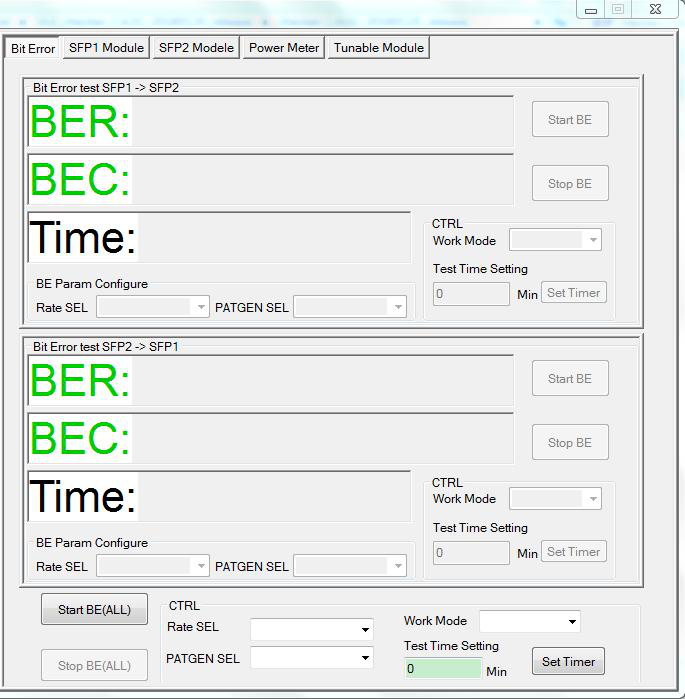

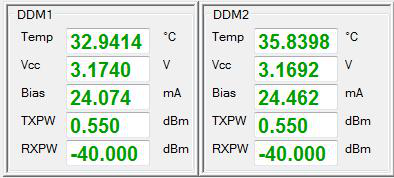

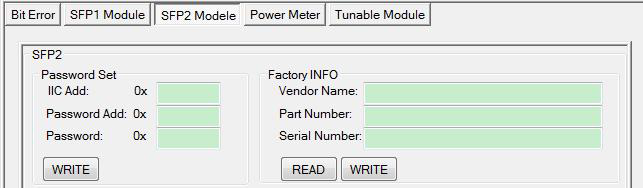

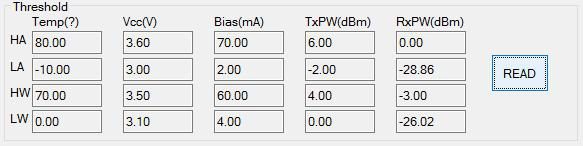

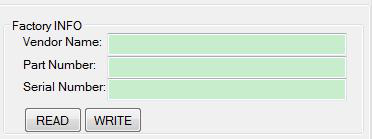

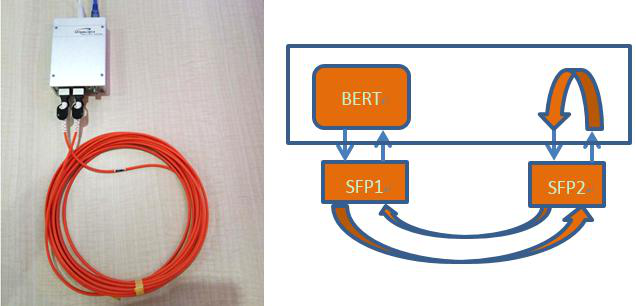

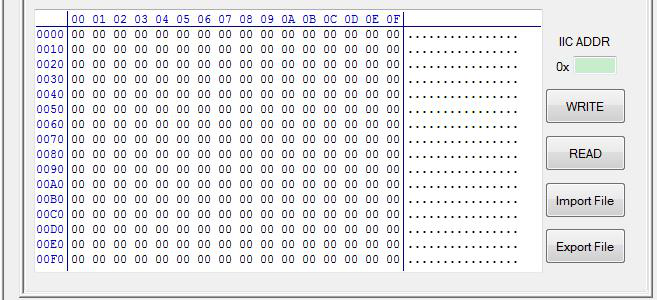

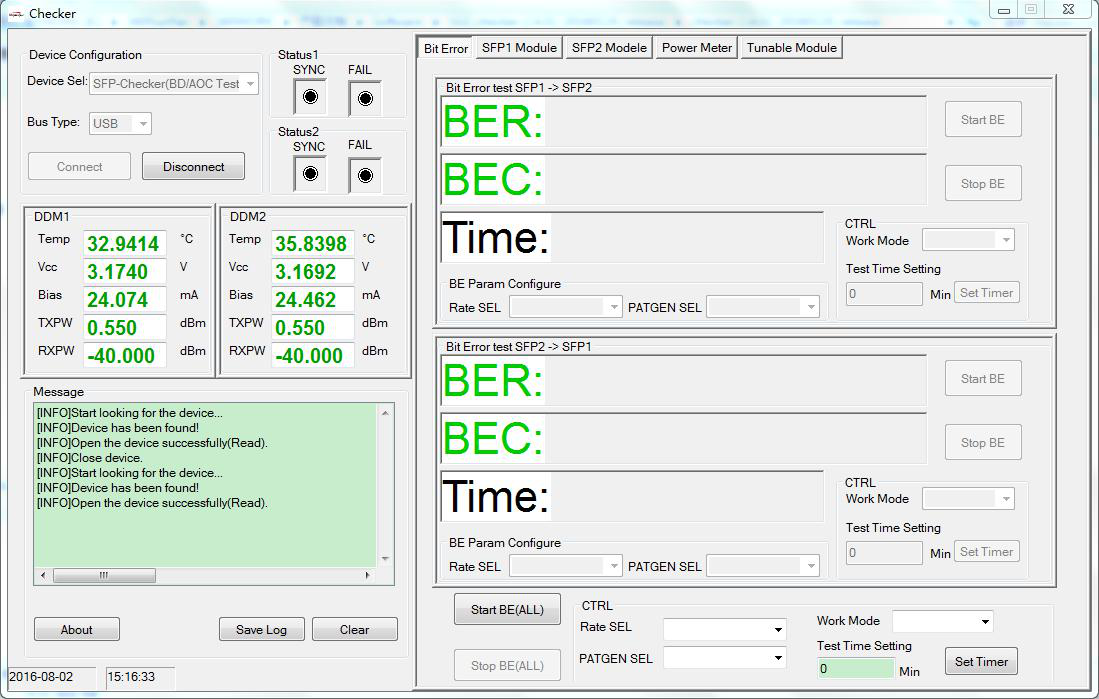

The 10G SFP+ AOC Checker is an advanced instrument designed for testing SFP+ modules and SFP+ AOCs. It enables users to read and modify EEPROM data, monitor DDM information, measure optical power, and perform bit error rate tests. The device supports various transmission rates and pattern generators, making it suitable for diverse optical network applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | -0.5~6V |
| Storage Temperature | -10~+70°C |
| Operating Case Temperature | 0~+50°C |
| Operating Humidity | 5~85% non-condensing |
| Power Supply Voltage | 4.5~5.5V |

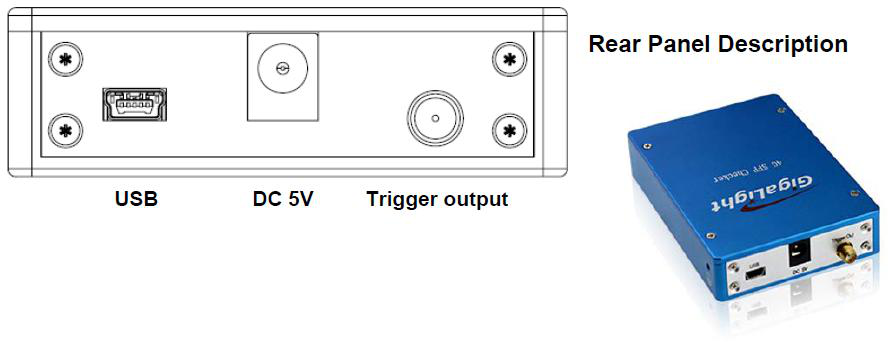

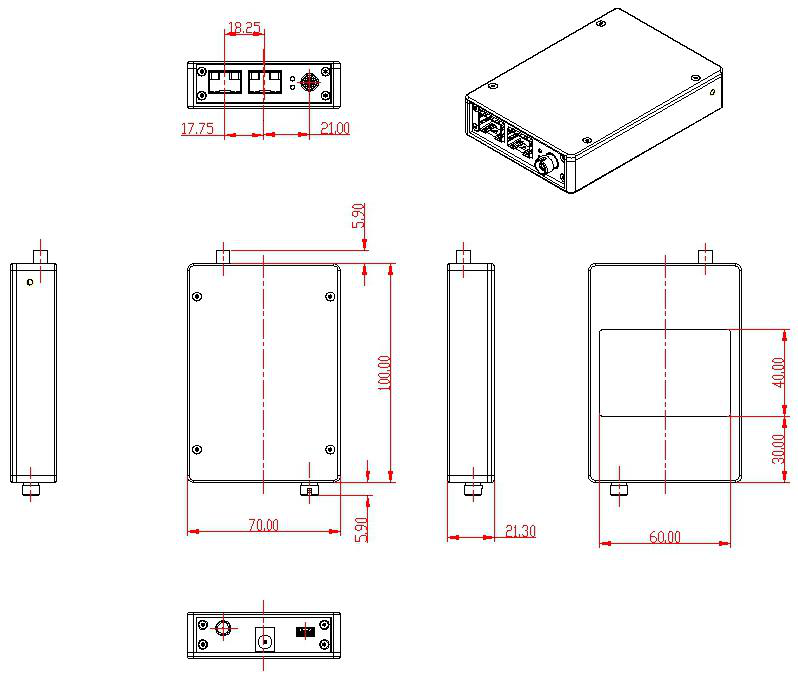

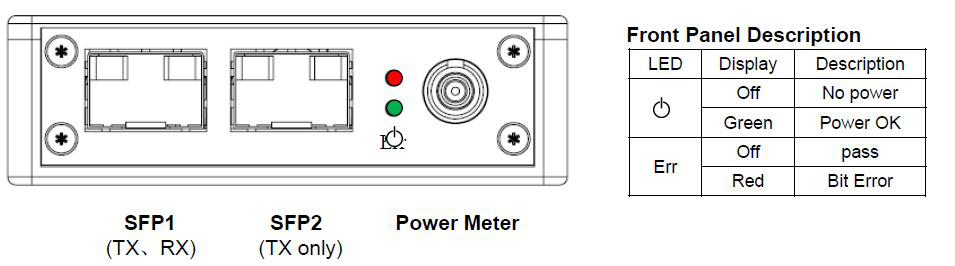

| Physical Dimensions | 100(W)x70(D)x21(H)mm |
| SFP Ports | Standard SFP 20pin with Cage |

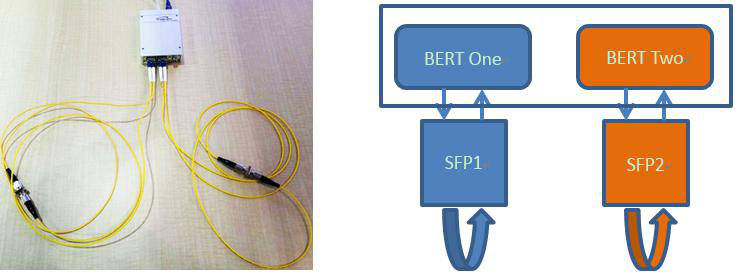

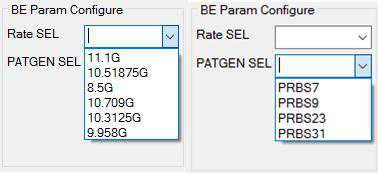

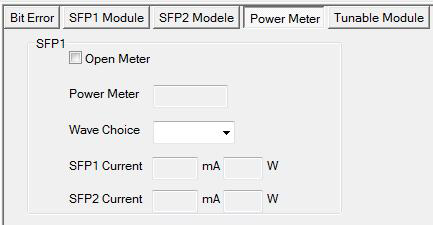

| Transmission Rate | 10.3125Gbps, 10.709Gbps, 8.5Gbps, 10.51875Gbps, 11.1Gbps, 9.95328Gbps |
| Pattern Generator | PRBS7, PRBS9, PRBS23, PRBS31 |
| Input Wavelength | 1270nm~1610nm (830~870nm Optional) |
| Input Optical Power Range | -40dBm~+8dBm |
| Accuracy | ±5% |
| SFP Supply Current Measured | 0~60mA |
Applications
Key Features
Datasheet
