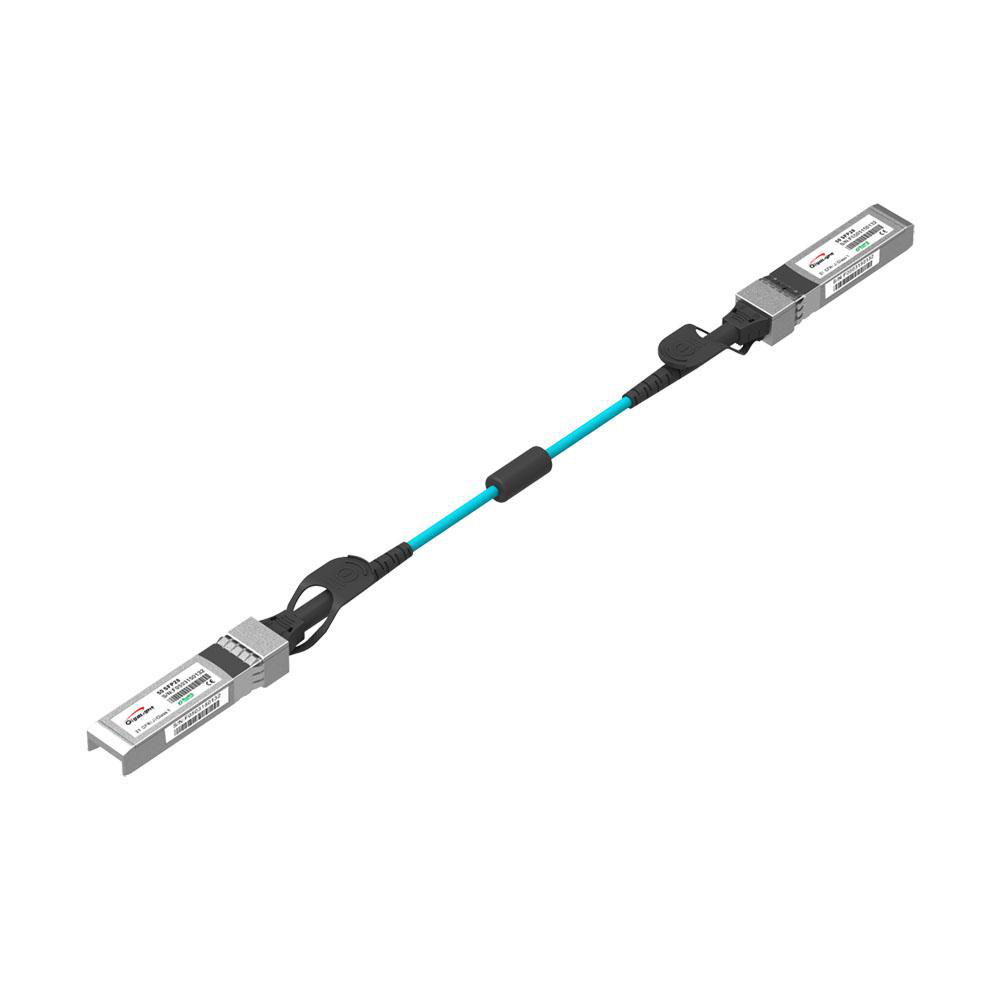

10G SFP+ Active Optical Cable

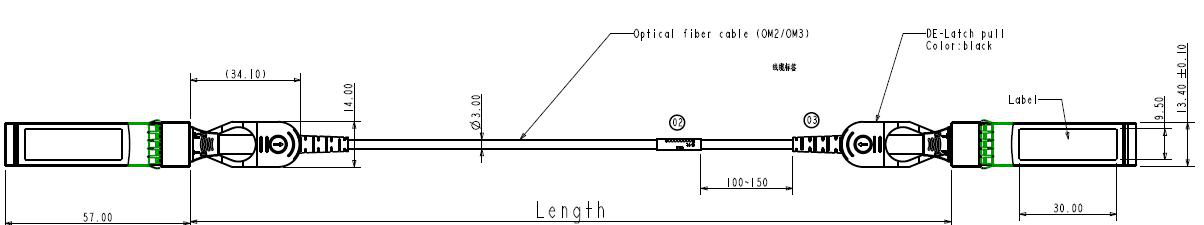

The Gigalight 10G SFP+ Active Optical Cable (AOC) is a direct-attach fiber assembly with SFP+ connectors, designed for short-distance connections within racks and across adjacent racks. It provides a cost-effective solution with a maximum length of 300 meters using OM3 multimode fiber.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

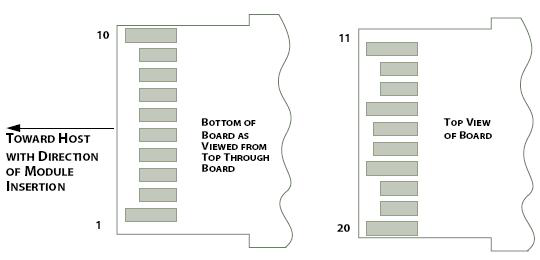

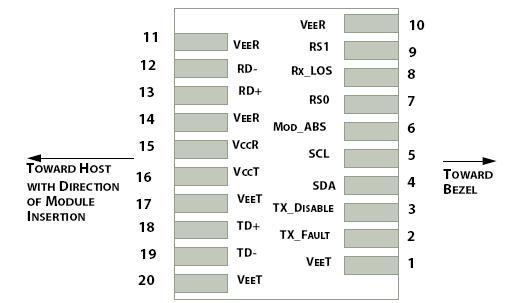

| Module Form Factor | SFP+ (Supports SFF8431/SFF8432/SFF8472) |
| Protocols Supported | InfiniBand |
| Protocols Supported | Ethernet |
| Protocols Supported | Fiber Channel |
| Channel Data Rate | Rate 1 to 10.3125Gbps |
| BER | <10^-12 |
| Operating Case Temperature | 0°C to +70°C |
| Storage Temperature | -20°C to +85°C |

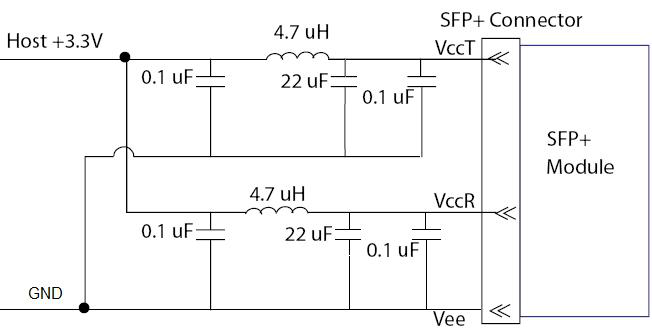

| Supply Voltage | 3.3V |
| Supply Current | 230mA per end typical |

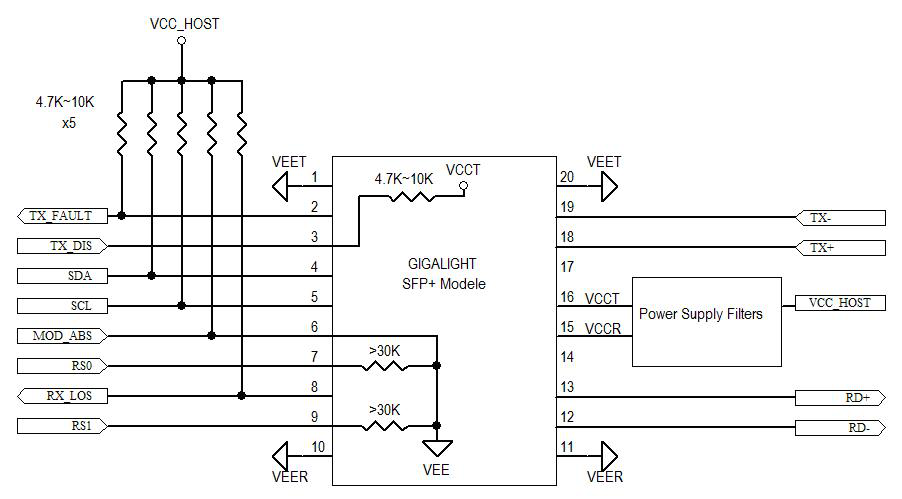

| Management Interface Serial | I²C (Supports SFF8472) |
| Center Wavelength (Transmitter) | 840-860nm |
| RMS spectral width | Note 1nm |
| Average Optical Power | -6.5 to -1dBm |
| Extinction Ratio | 3.5- |
| Transmitter Dispersion Penalty | ≤3.9dB |
| Relative Intensity Noise | ≤-128dB/Hz |
| Optical Return Loss Tolerance | ≤12dB |
| Center Wavelength (Receiver) | 840-860nm |
| Receiver Sensitivity | ≤-11.1dBm |
| Stressed Sensitivity in OMA | ≤-7.5dBm |
| Loss Function | -30 to -12dBm |
| Overload | ≤-1.0dBm |
| Receiver Reflectance | ≤-12dB |
