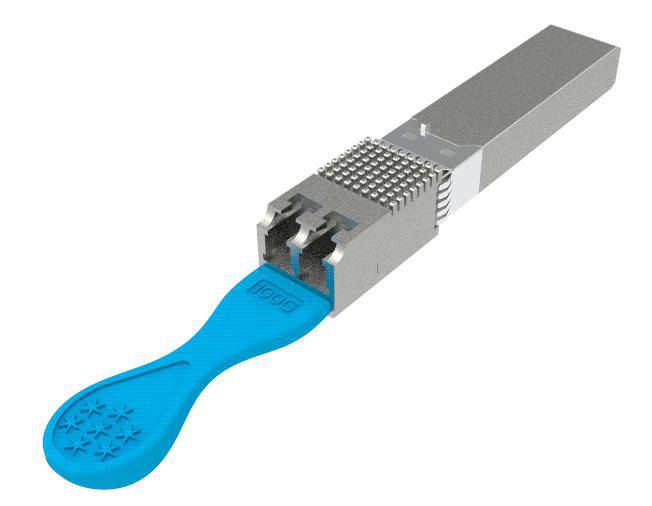

GIGALIGHT 100G LR1 -10km SFP-DD Optical Transceiver

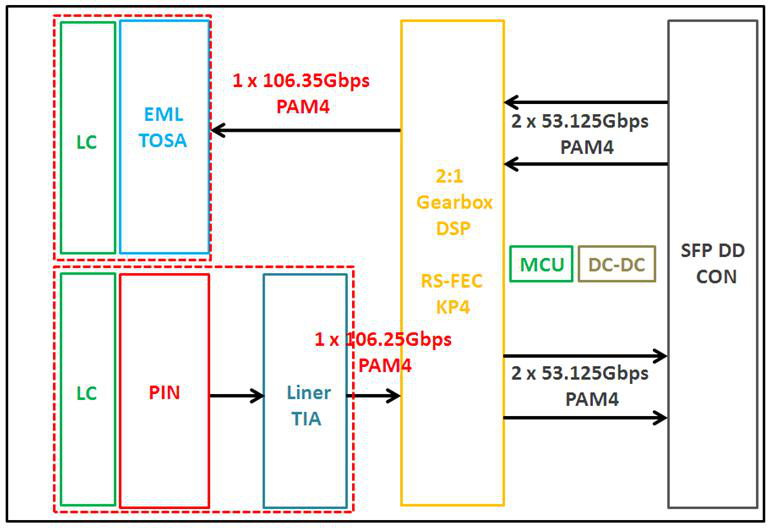

The GIGALIGHT 100G LR1 SFP-DD optical transceiver is designed for 100-Gigabit Ethernet links up to 10km over single-mode fiber (SMF). It supports 1x106.25Gbps PAM4 optical interface and 2x53.125Gbps PAM4 electrical interface, featuring a cooled EML TOSA transmitter and high-sensitivity PIN receiver.
Save to Favorites

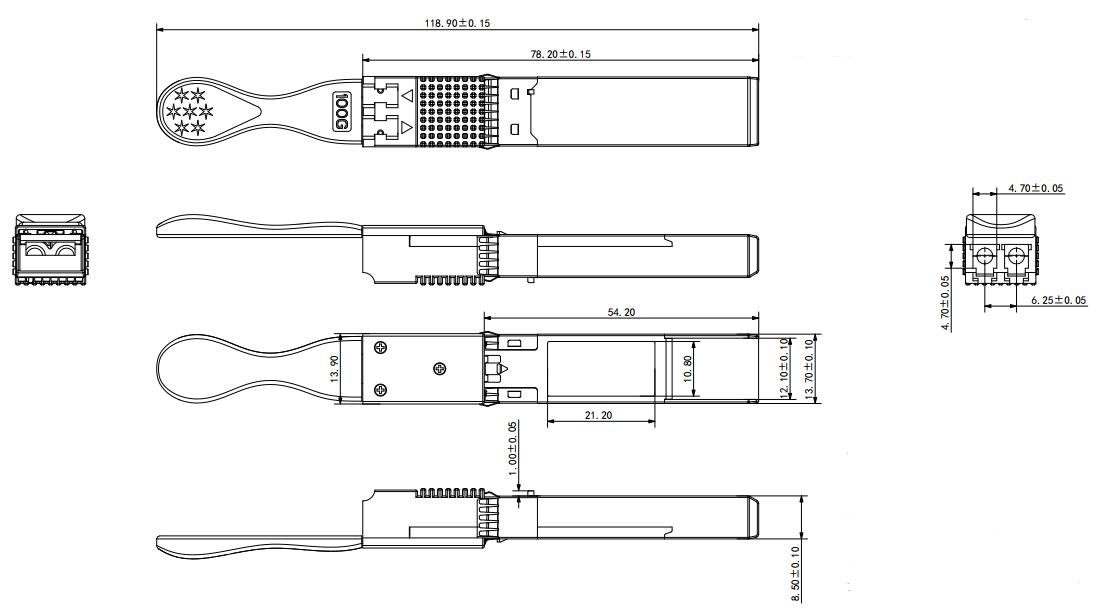

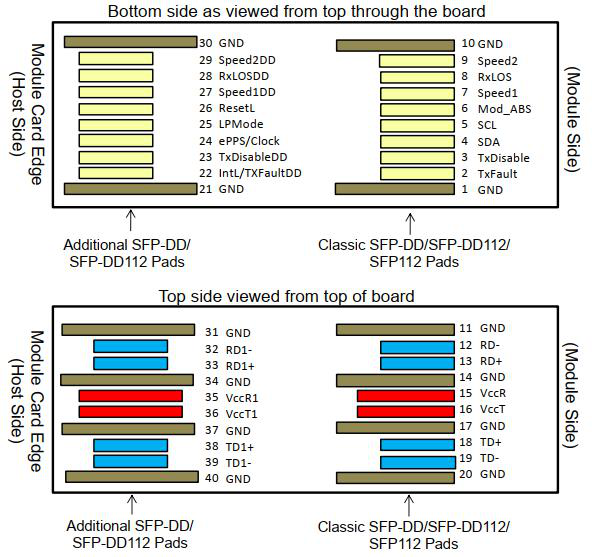

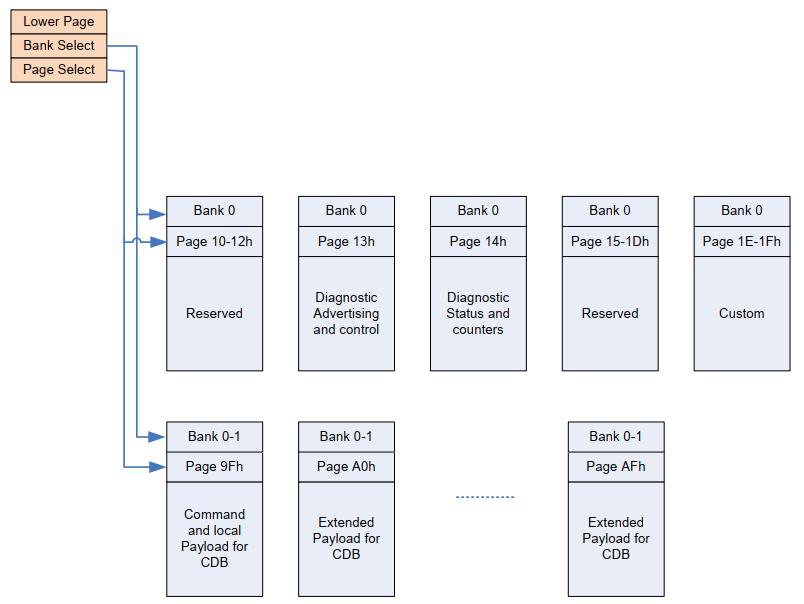

Overview

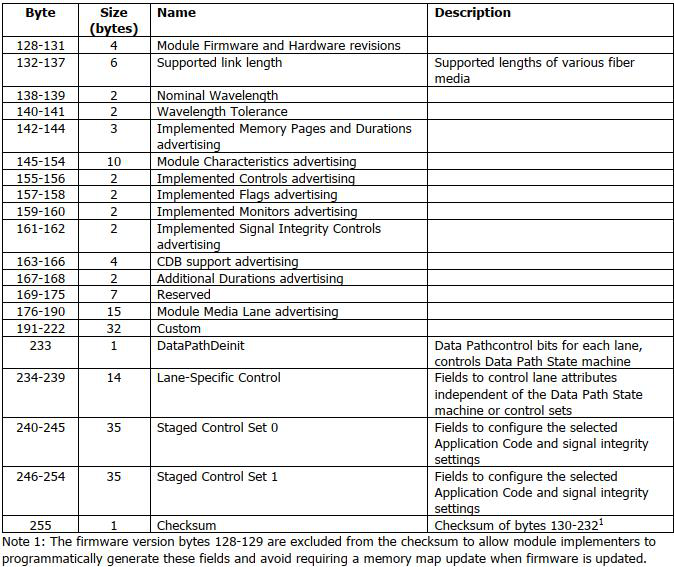

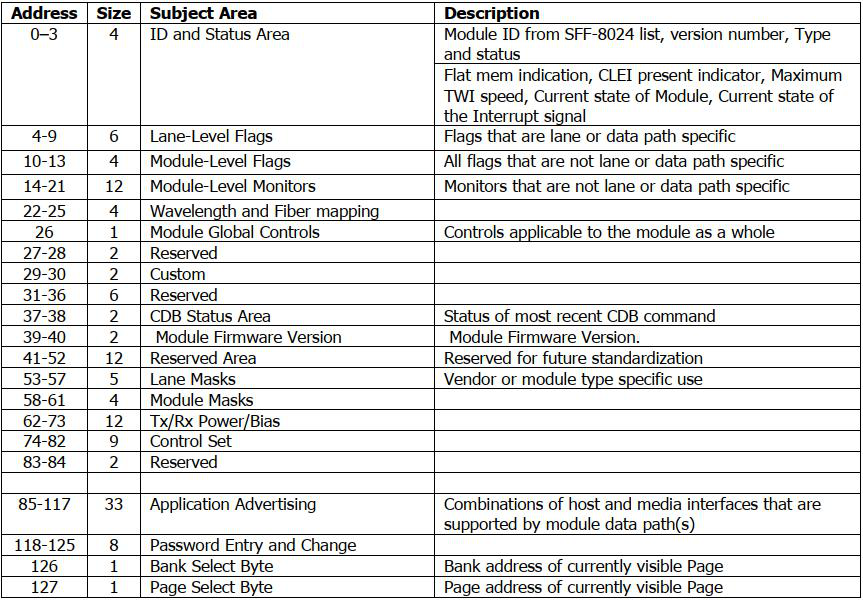

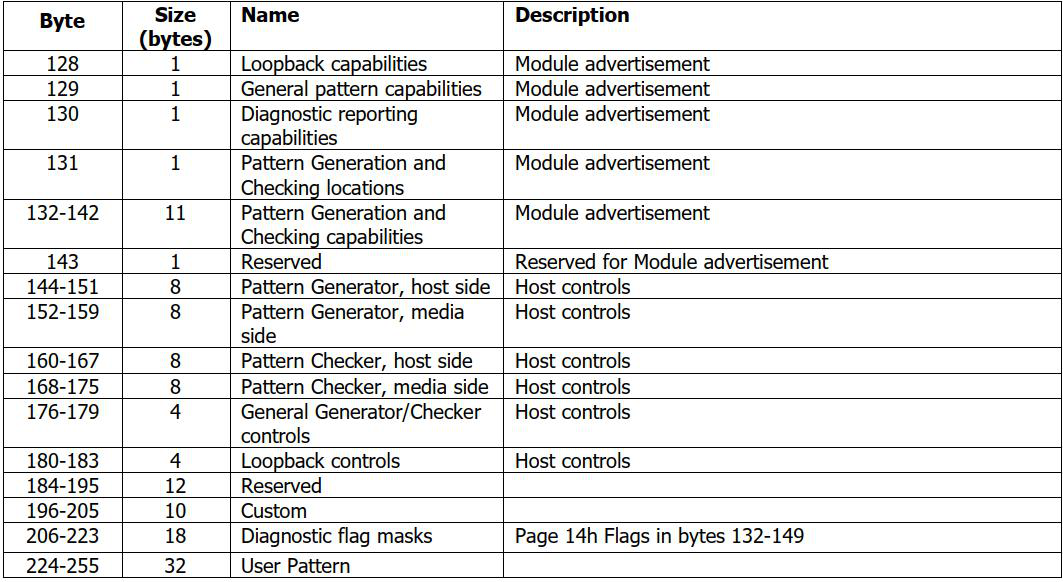

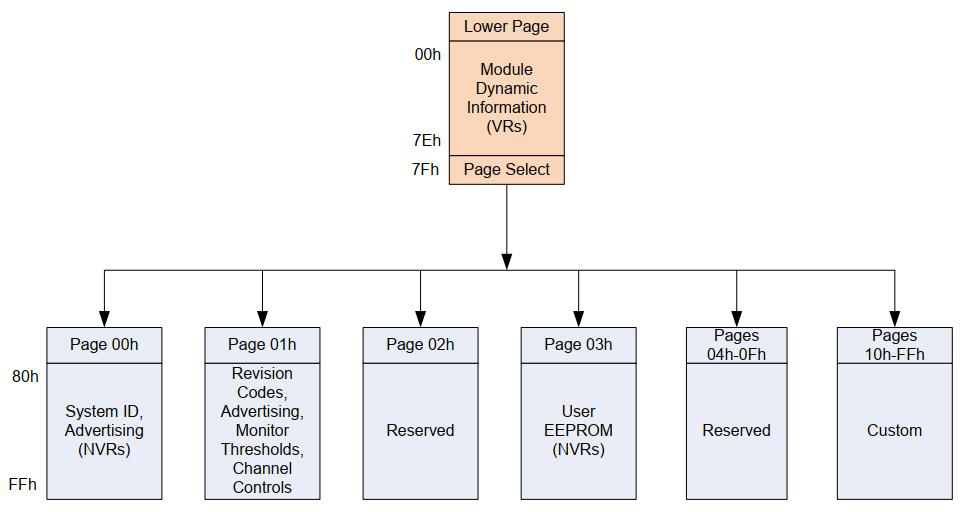

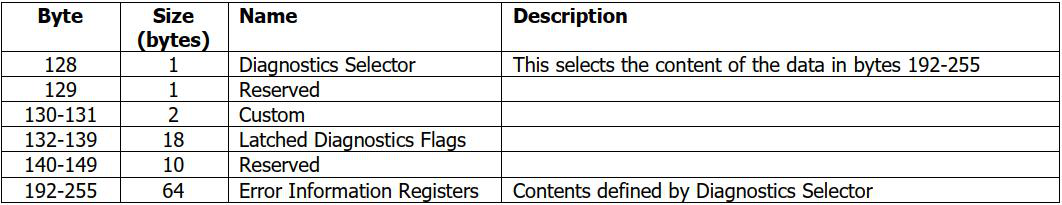

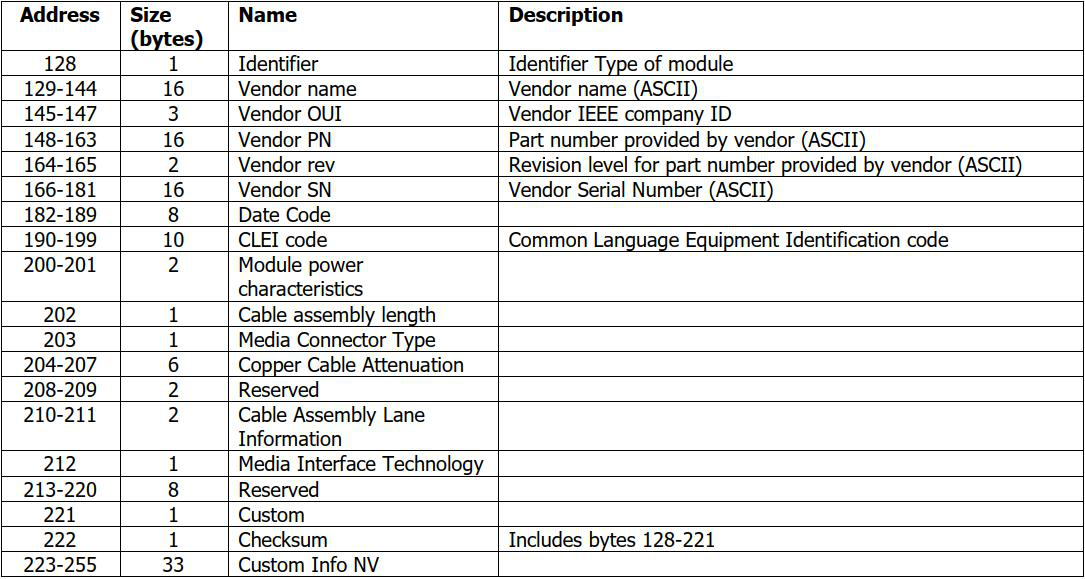

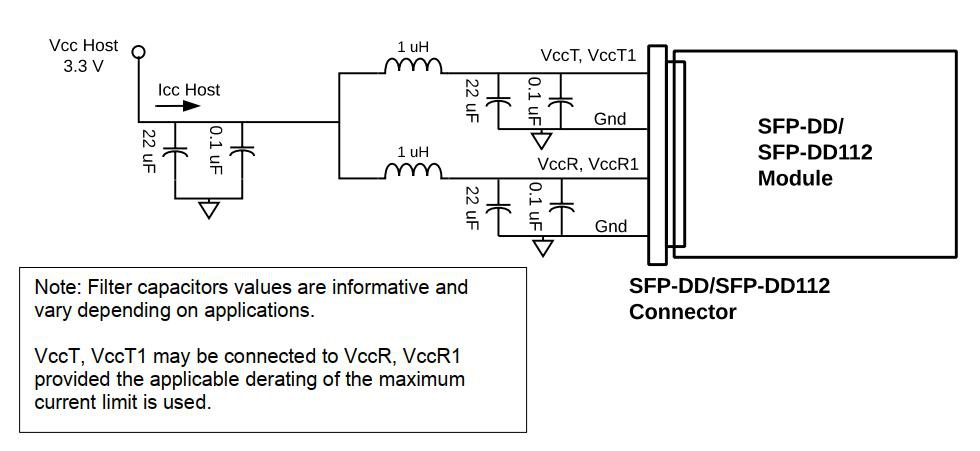

Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | -0.3~3.6V |
| Input Voltage | -0.3~Vcc+0.3V |
| Storage Temperature | -20~85°C |
| Case Operating Temperature | 0~70°C |
| Humidity (non-condensing) | 5~85% |
| Data Rate Per Lane | 106.25Gb/s |
| Power Dissipation | 3~3.5W |
| Link Distance with G.652 | 10km |
| Differential Input Impedance | 90~100~110ohm |
| Differential Output Impedance | 90~100~110ohm |
| Differential Input Voltage Amplitude | 1600mVp-p |
| Differential Output Voltage Amplitude | 900mVp-p |
| Centre Wavelength | 1304.5~1317.5nm |
| Side-Mode Suppression Ratio | 30dB |
| Average Launch Power | -1.4~4.5dBm |
| Transmitter and Dispersion Eye Closure (TDECQ) | 3.4dB |
| Extinction Ratio | 3.5dB |
| Average Launch Power of OFF Transmitter | -30dB |
| Receiver Sensitivity in OMA outer | -6.1dBm |
| Average Receive Power | -7.7~4.5dBm |
| Receiver Reflectance | -26dB |
| LOS Assert - OMA | -13dBm |
| LOS De-Assert - OMA | -11dBm |
| Los Hysteresis | 0.5dB |
| Temperature Monitor Absolute Error | -3~3degC |
| Supply Voltage Monitor Absolute Error | -0.1~0.1V |
| Channel RX Power Monitor Absolute Error | -2~2dB |
| Channel Bias Current Monitor | -10%~10%mA |
| Channel TX Power Monitor Absolute Error | -2~2dB |
