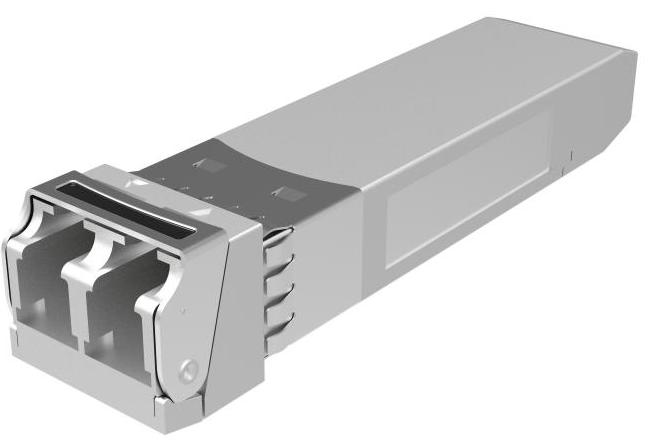

GSS-MPO101-SR1C
The Gigalight GSS-MPO101-SR1C is a high-performance, single-channel, pluggable fiber-optic transceiver designed for short-range data communication and interconnect applications. It operates at 106.25Gbps over OM4/OM5 multimode fiber systems with a nominal wavelength of 850nm, supporting up to 100m transmission distance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Differential Input Impedance | 90-110ohm |
| Differential Output Impedance | 90-110ohm |
| Differential Input Voltage Amplitude | 400-1600mVp-p |
| Differential Output Voltage Amplitude | -mVp-p |
| Skew | 300ps |
| Bit Error Rate | 2.4E-4 |
| Input Logic Level High | 2.0V |
| Input Logic Level Low | -0.3-0.8V |
| Output Logic Level High | -50-37.5μA |
| Output Logic Level Low | -0.3-0.4V |
| Near-end Eye Linearity | 0.85 |
| Centre Wavelength | 844-850-863nm |
| RMS Spectral Width | -0.6nm |
| Average Launch Power | -4.6-4dBm |
| Optical Modulation Amplitude | -2.6-3.5dBm |
| Transmitter and Dispersion Eye Closure for PAM4 (TDECQ) | 4.4dB |
| Extinction Ratio | 2.5-dB |
| Average Launch Power of OFF Transmitter | -30dBm |
| Receiver Centre Wavelength | 842-850-948nm |
| Receiver Sensitivity in OMAout for TDECQ≤1.8dB for 1.8<TDECQ≤4.4dB | -4.6-(-4+TDECQ)dBm |
| Stressed Receiver Sensitivity in OMAout | -3.4dBm |
| Maximum Average Power at Receiver | 4dBm |
| Minimum Average Power at Receiver | -6.4dBm |
| Receiver Reflectance | -15dBm |
| LOS Assert | -10.5-(-8.5)dBm |
| LOS De-Assert OMA | -6.5dBm |
| Los Hysteresis | 0.5dB |
| Temperature | 0-70°C |
| Voltage | 3.0-3.6V |
| Bias Current | 0-15mA |
| TX Power | -4.6-4dBm |
| RX Power | -6.4-4dBm |
| Supply Voltage | -0.3-3.6V |
| Input Voltage | -0.3-Vcc+0.3V |
| Storage Temperature | -20-85°C |
| Case Operating Temperature | 0-70°C |
| Humidity (non-condensing) | 5-95% |
| Data Rate Per Lane | 53.125GBd |
| Power Dissipation | <2.1W |
