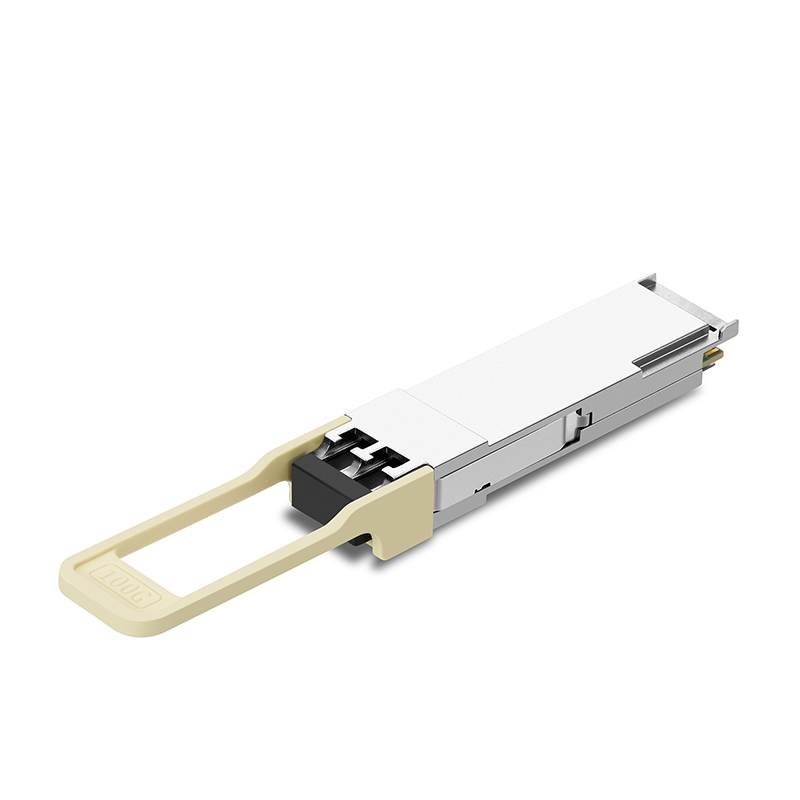

100G QSFP28 SR4
The TQS-HGM1-85DCR is a parallel 100Gbps Quad Small Form-factor Pluggable (QSFP) optical module. It provides increased port density and total system cost savings. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25.78125Gbps operation for an aggregate data rate of 100Gbps over 100 meters of OM4 multi-mode fiber.
Save to Favorites
Overview

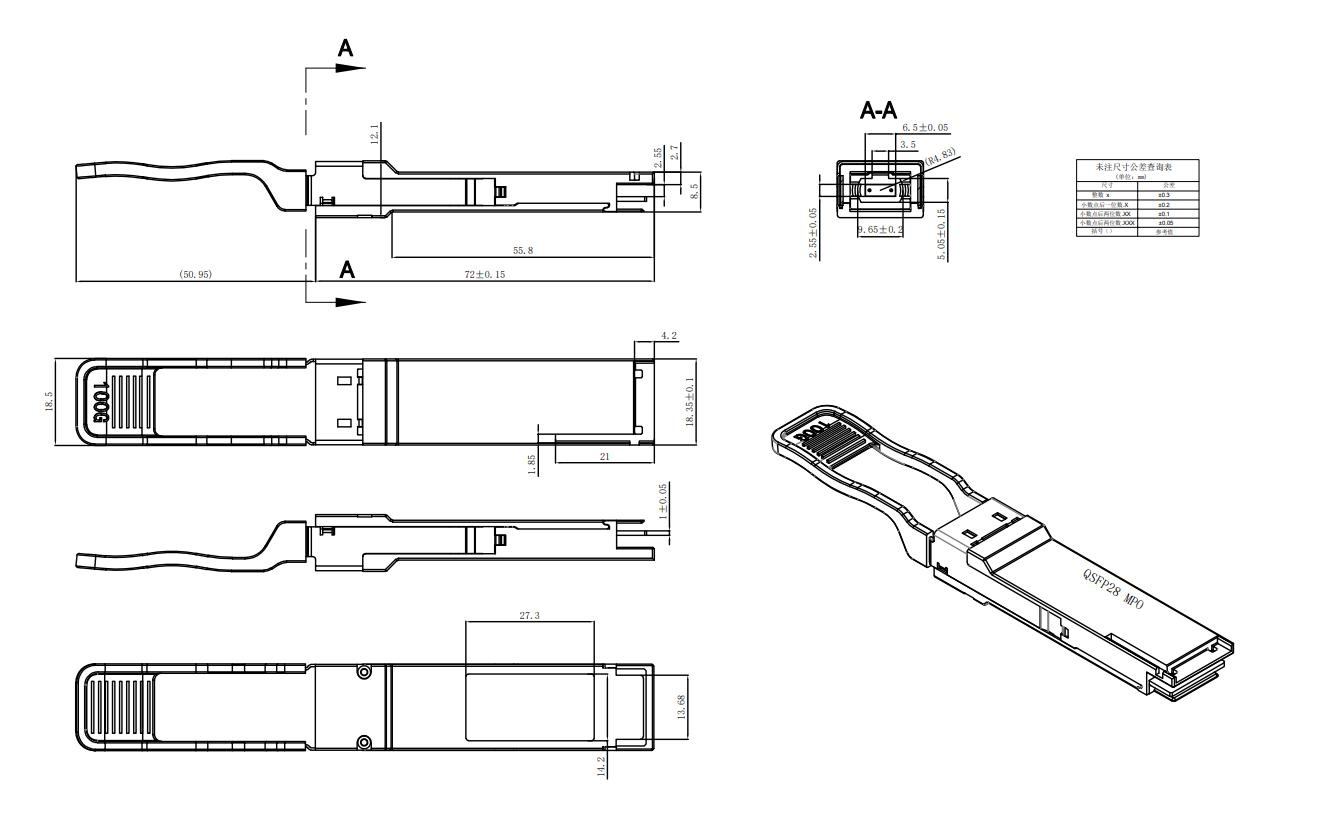

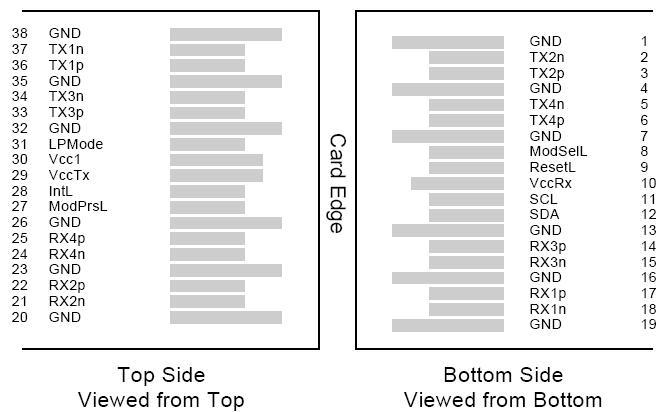

Specifications
| Parameter | Value |
|---|---|
| Data Rate | 100Gbps |
| Laser Type | 850nm-VCSEL |
| Fiber Type | MMF |
| Distance | 100m |
| Optical Interface | MPO |
| Operating Temperature | -5~70°C |
| DDMI Support | Y |
| Storage Temperature | -20~85°C |
| Relative Humidity | 0~85% |
| Supply Voltage | -0.5~3.6V |
| Voltage on LVTTL Input | -0.5~VCC+0.5V |
| LVTTL Output Current | 0~15mA |
| Voltage on Open Collector Output | 0~6V |
| Operating Case Temperature | -5~70°C |

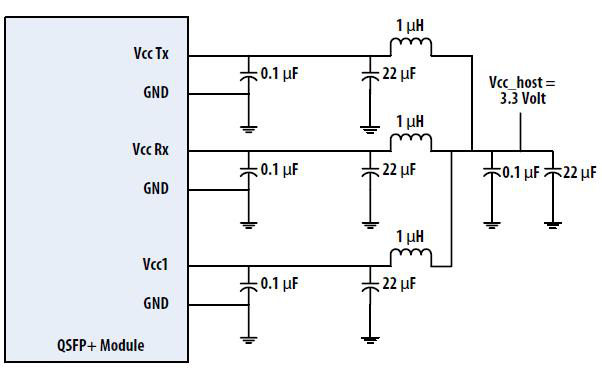

| Power Supply Voltage | 3.1~3.5V |
| Fiber Length OM3 | 0.5~70m |
| Fiber Length OM4 | 0.5~100m |
| Data Rate, each Lane | 25.78125Gbps |
| Power Consumption | <3.5W |
| Supply Current | 1.1A |
| Control I/O Voltage, High | 2.0~VCC |
| Control I/O Voltage, Low | 0~0.8V |
| Tx Input Diff Voltage | 300~1100mV |
| Tx Input Diff Impedance | 90~110Ω |
| Rx Output Diff Voltage | 300~800mV |
| Rx Output Diff Impedance | 90~110Ω |
| Center Wavelength | 840~860nm |
| RMS Spectral Width | 0~0.6nm |
| Average Optical Power | -8.4~+2.4dBm |
| Optical Modulation Amplitude | -6.4~+3dBm |
| TDEC, each Lane | 0~4.3dB |
| Extinction Ratio | ≥2dB |
| Transmitter Eye Mask Definition | Complied with IEEE802.3bm |
| Average Launch Power OFF Transmitter | <-30dBm |
| Receiver Center Wavelength | 840~860nm |
| Average Power at Receiver Input | -10.3~+2.4dBm |
| Receiver Reflectance | <-12dB |
| Los Assert | -30~0dBm |
| Los Dessert | -10~0dBm |
| Los Hysteresis | 0.5~4dB |
