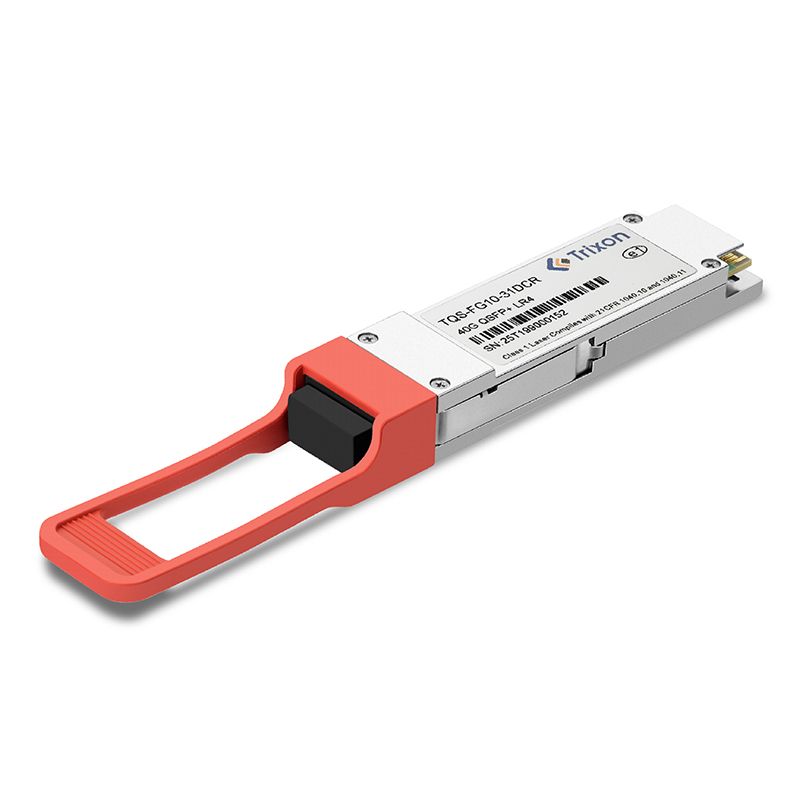

100G QSFP28 LR4
The TQS-HG10-31DCR is a parallel 100Gbps Quad Small Form-factor Pluggable (QSFP) optical module designed for high-density and cost-effective optical communication. It supports 4 independent LAN-WDM channels, each capable of 25.78125Gbps data rate over 10km of single-mode fiber.
Save to Favorites
Overview

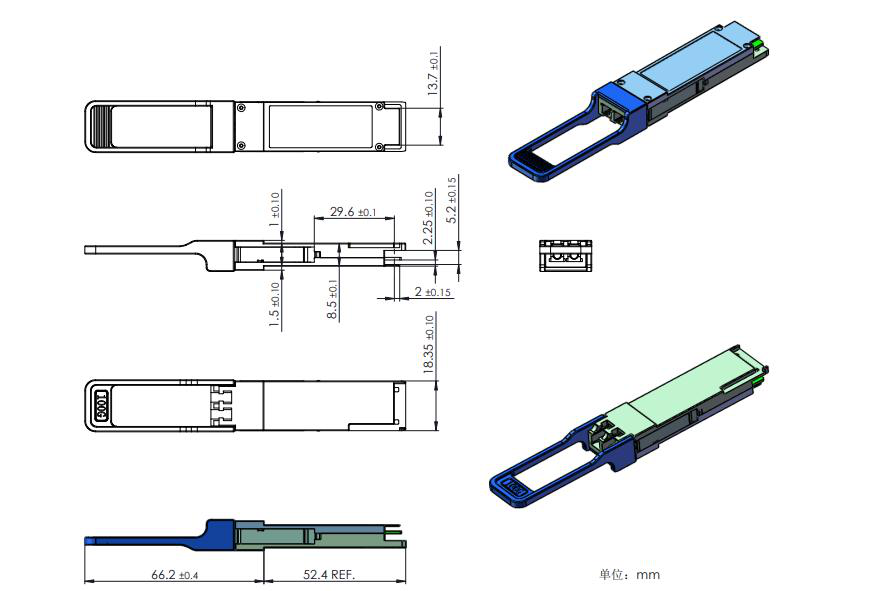

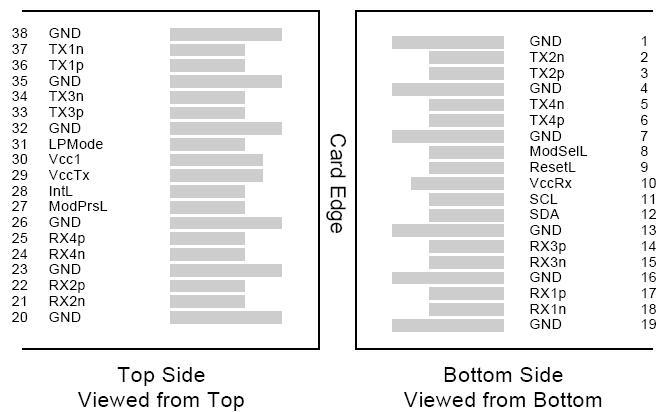

Specifications

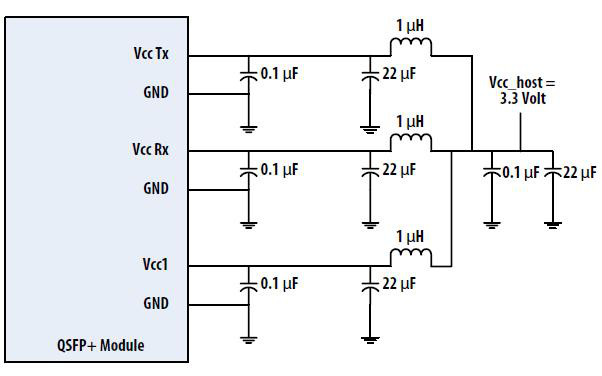

| Parameter | Value |
|---|---|
| Data Rate | 100Gbps |
| Laser Type | DFB-based LAN-WDM |
| Fiber Type | SMF |
| Distance | 10km |
| Optical Interface | LC |
| Operating Case Temperature | 0~70°C |
| DDMI | Y |
| Storage Temperature | -40~85°C |
| Relative Humidity | 15~85% |
| Supply Voltage | -0.5~3.6V |
| Voltage on LVTTL Input | -0.5~VCC+0.5V |
| LVTTL Output Current | ≤15mA |
| Power Supply Voltage | 3.135~3.465V |
| Fiber Length | 10km |
| Data Rate, each Lane | 25.78125Gbps |
| Power Consumption | <3.5W |
| Supply Current | 1.12A |
| Control I/O Voltage, High | 2.0~VCC |
| Control I/O Voltage, Low | 0~0.8V |
| Tx Input Diff Voltage | 150~1200mV |
| Tx Input Diff Impedance | 85~100~115Ω |
| Rx Output Diff Voltage | 200~1100mV |
| Rx Output Diff Impedance | 85~100~115Ω |
| Center Wavelength | 1294.53~1296.59nm, 1299.02~1301.09nm, 1303.54~1305.63nm, 1309.09~1310.19nm |
| Side-Mode Suppression Ratio | ≥30dB |
| Average Optical Power, each Lane | -4.3~+4.5dBm |
| Extinction Ratio | ≥4dB |
| Average Launch Power OFF Transmitter, each Lane | ≤-30dBm |
| Average Power at Receiver Input, each Lane | -10.6~+4.5dBm |
| Receiver Sensitivity each Lane | ≤-8.6dBm |
| Receiver Reflectance | ≤-12dB |
| Los Assert | ≤-25dBm |
| Los Dessert | ≤-13dBm |
| Los Hysteresis | 0.5dB |
