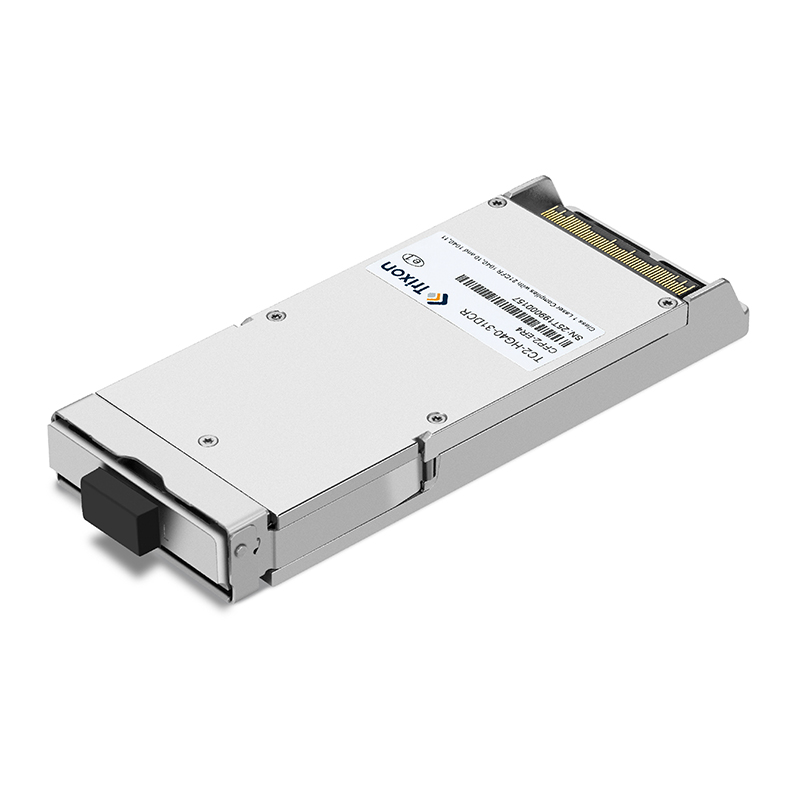

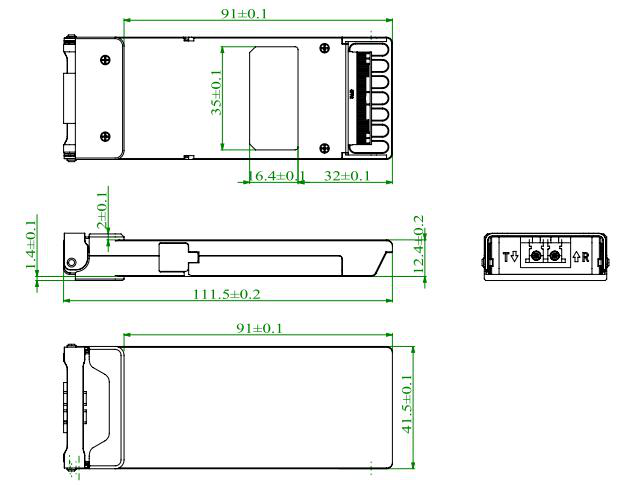

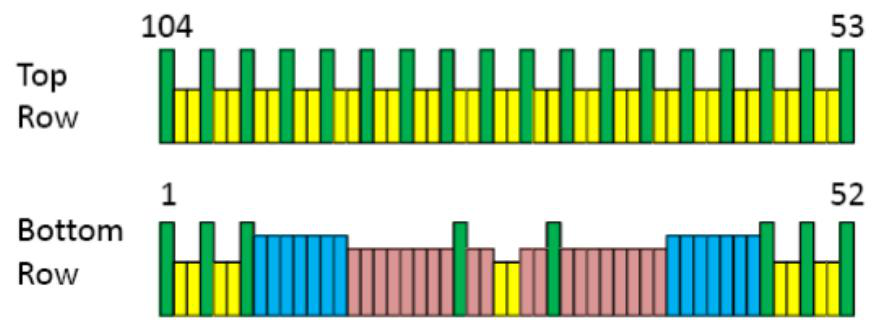

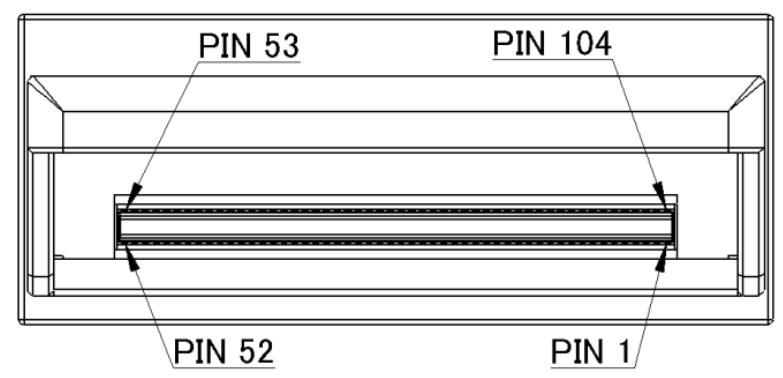

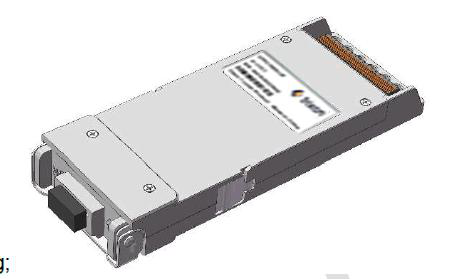

CFP2-ER4 Transceiver 100G-BASE 40km CFP2

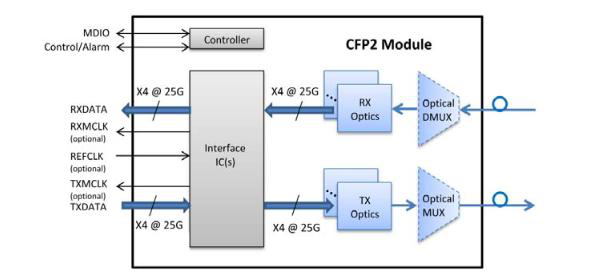

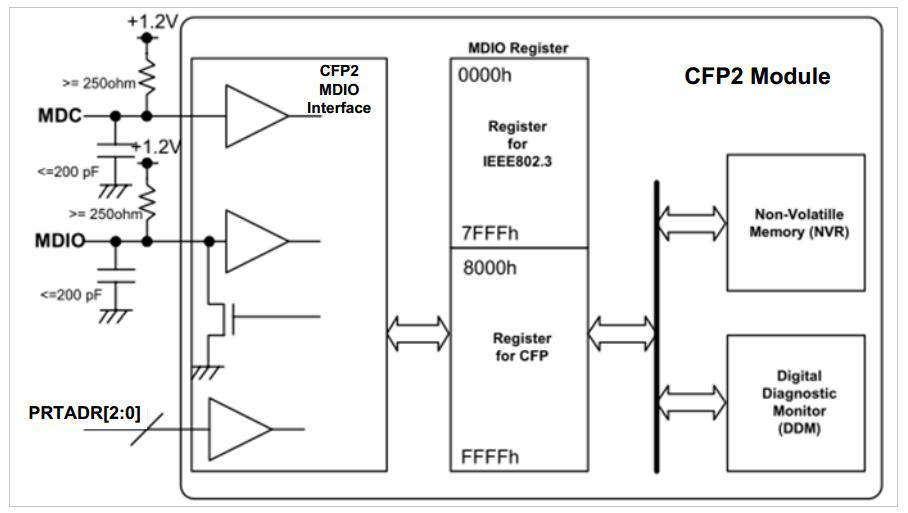

The TC2-HG40-31DCR CFP2 transceiver is designed for 100 Gigabit Ethernet links over 40km single-mode fiber. It complies with CFP2 MSA CFP2 HW and IEEE 802.3ba 100GBASE-ER4 standards. Digital diagnostics are available via MDIO for monitoring. The transceiver is optimized for high performance and cost efficiency, making it ideal for Datacom and Telecom applications. It is RoHS-6 compliant and lead-free per Directive 2002/95/EC.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 103.125G~111.8G |
| Laser Type | 4-LANE: 1295.56, 1300.05, 1304.58, 1309.14 |
| Fiber Type | SMF |
| Distance | 40km |
| Optical Interface | LC |
| Bail Color | Blue |
| Operating Temperature | 0~+70°C |
| DDMI | YES |
| Storage Temperature | -40~+85°C |
| Supply Voltage | -0.3~3.6V |
| Operating Humidity | 5~85% |
| Operating Case Temperature | 0~70°C |
| Power Dissipation | 9W |
| Input Amplitude (Differential) | 85~900mVpp |
| Input Impedance (Differential) | 80~120ohms |
| Output Amplitude (Differential) | 200~900mVpp |
| Output Impedance (Differential) | 80~120ohms |
| Output Rise/Fall Time | 12ps |
| Channel Data Rate | 25.7812Gbps |
| Data Rate Variation | -100~100ppm |
| Centre Wavelength | 1294.53~1296.59nm, 1299.02~1301.09nm, 1303.54~1305.63nm, 1308.09~1310.19nm |
| Total Average Launch Power | 8.9dBm |
| Average Launch Power per Lane | -2.9~2.9dBm |
| Difference in Launch Power between any two lanes (OMA) | 3.6dB |
| Launch Power in OMA minus TDP, per lane | -2.3dBm |
| Extinction Ratio | 8dB |
| Average Launch Power of TX_DIS Transmitter per lane | -30dBm |
| SMSR | 30dB |
| Optical Return Loss Tolerance | 20dB |
| Transmitter Reflectance | -12dB |
| Average Receiver Power per Lane | -20.9~4.5dBm |
| Receive Power OMA per Lane | 4.5dBm |
| Receiver Sensitivity (OMA) per Lane | -21.4dBm |
| Stressed Receiver Sensitivity per Lane | -17.9dBm |
| Receiver Reflectance | -26dB |
| Rx-Lane LOS Assert | -35~-26dB |
| Rx-Lane LOS De-assert | -25~-26dB |
| Rx-Lane LOS Hysteresis | 0.5dB |
