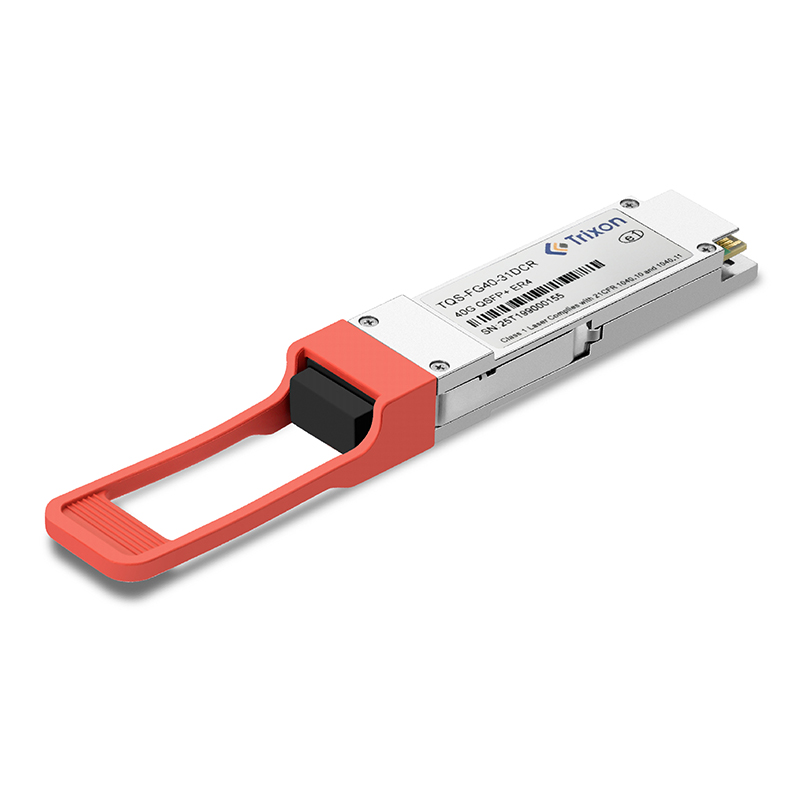

40G QSFP+ LR4 and ER4 Transceiver
The Trixon 40G QSFP+ LR4 and ER4 transceiver is a 4x10G hot-pluggable optical transceiver designed for high-speed optical connectivity. It supports up to 40km reach and complies with IEEE802.3ba standards.
Save to Favorites

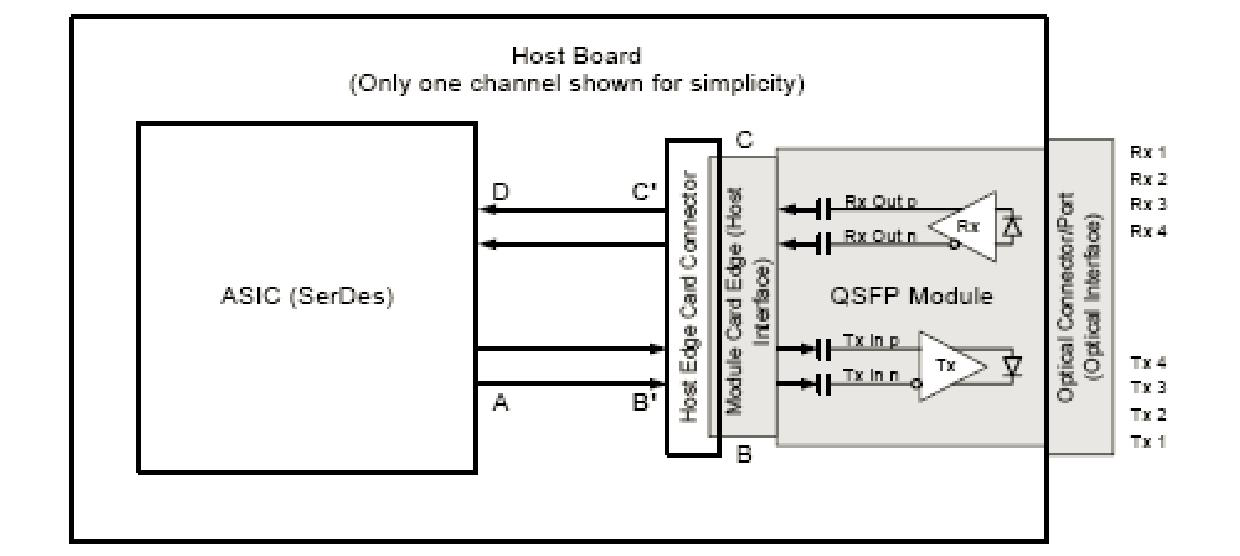

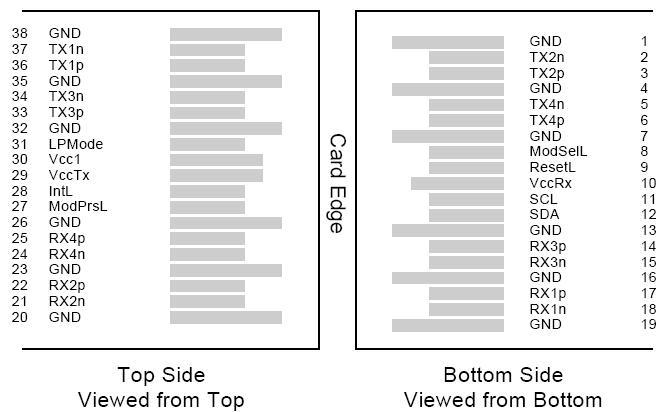

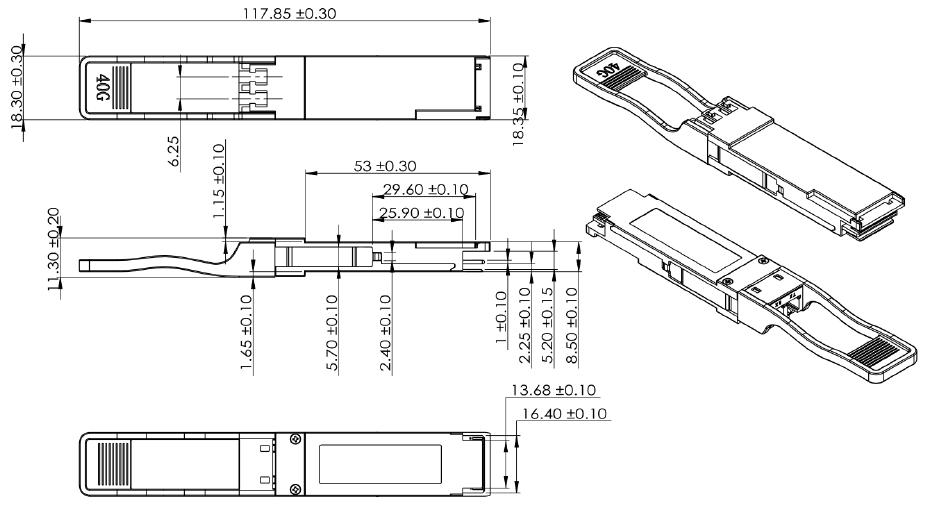

Overview
Specifications

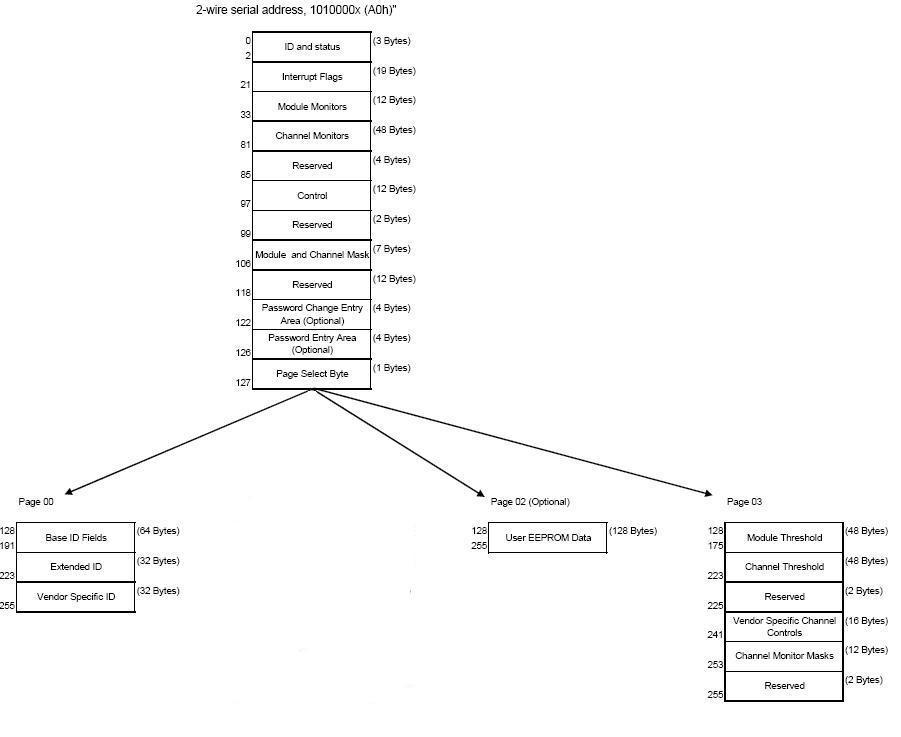

| Parameter | Value |
|---|---|
| Data Rate | 40Gbps |
| Laser | 1271nm DFB, 1291nm DFB, 1311nm DFB, 1331nm DFB |
| Fiber Type | SMF |
| Distance | 10km, 40km |
| Optical Interface | LC |
| Latch Color | Blue |
| Latch Color | Red |
| Operating Temperature | -5~70°C |
| DDMI | Y |
| Storage Temperature | -40~85°C |
| Supply Voltage | 0~+3.6V |
| Operating Humidity | 0~85% |
| Power Supply Voltage | 3.135~3.465V |
| Power Supply Current | ≤1100mA |
| I2C Clock Frequency | 100kHz |
| Centre Wavelength | 1264.5~1277.5nm, 1284.5~1297.5nm, 1304.5~1317.5nm, 1324.5~1337.5nm |
| Spectral Width (-20dB) | ≤1nm |
| Transmitter Signal Rate | 10.3125Gbps, 11.2Gbps |
| SMSR | ≥30dB |
| Optical Return Loss Tolerance | ≥20dB |
| Average Output Power | -7~2.3dBm, -3.7~4.5dBm |
| Extinction Ratio | ≥3.5dB, ≥5.5dB, ≥6dB |
| Receiver Sensitivity | ≤-11.5dBm, ≤-18dBm |
| Receiver Overload | 2.3dBm, 3.8dBm |
| Los De-assert | ≤-11.5dBm, ≤-19dBm |
| Los Assert | ≤-20dBm, ≤-30dBm |
| Los Hysteresis | 0.5~5dB |
| Electrostatic Discharge (ESD) to the Electrical Pins | HBM class 1, 1000volts and above |
| Electrostatic Discharge to the Enclosure | Compliant with standards |
| Electromagnetic Interference (EMI) | Compliant with standards Noise frequency range: 30MHz to 18GHz |
| Immunity | Compliant with standards |
| Laser Eye Safety | CDRH compliant and Class 1 laser product |
| Component Recognition | Compliant with standards |
| RoHS | Compliant with standards |
