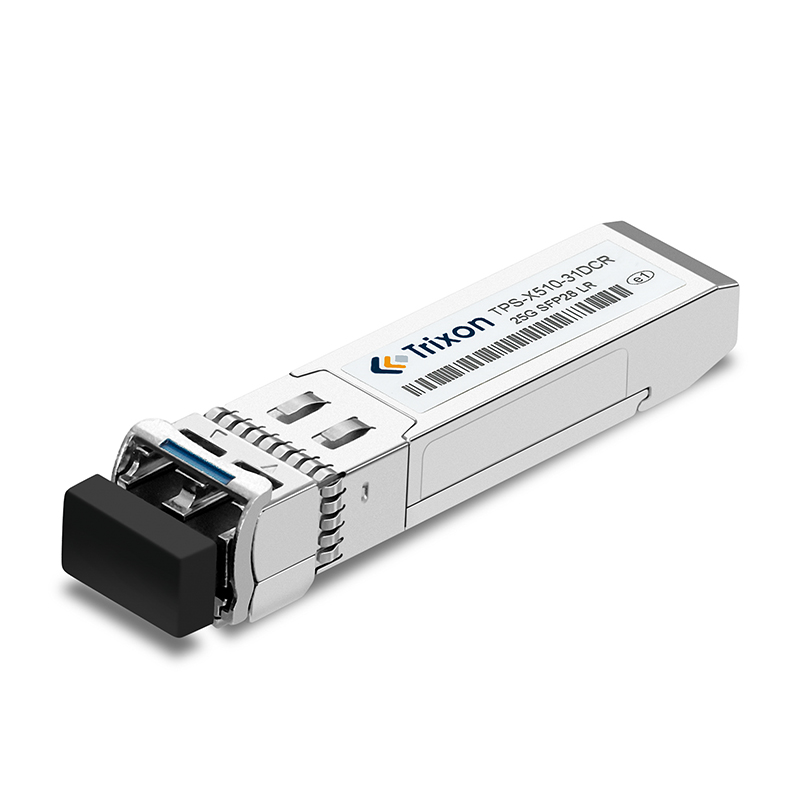

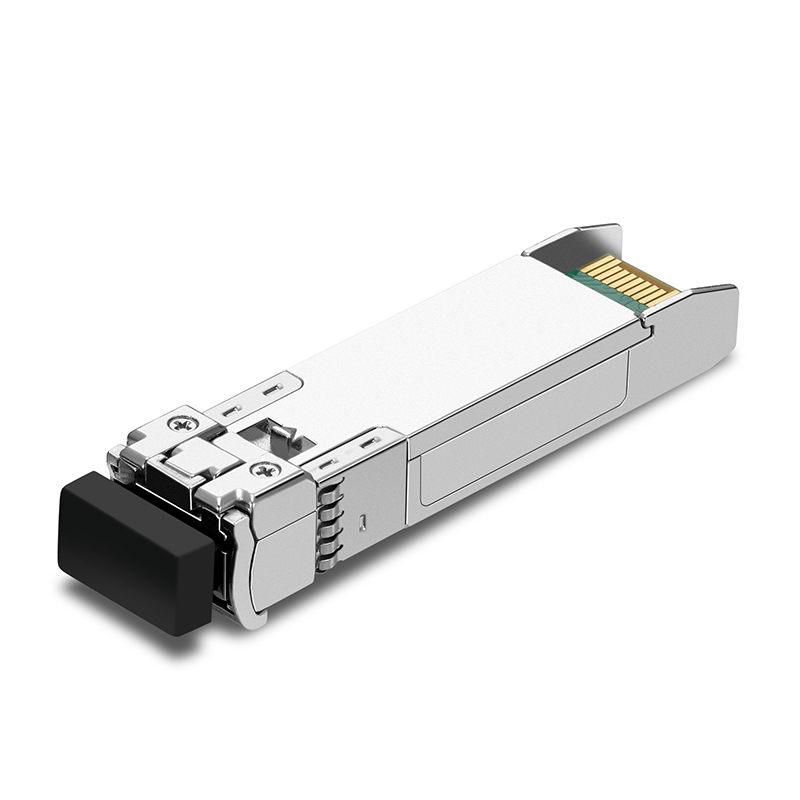

TPS-X510-31DCR
The TPS-X510-31DCR is a 1310nm DFB 25Gigabit SFP28 transceiver designed to transmit and receive optical data over 9/125μm single-mode optical fiber (SMF) and support up to 10km. The module has a duplex LC optical interface and complies with SFP+ specifications (SFF-8431 and SFF-8432).
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 28Gbps |
| Laser Type | 1310nm-DFB |
| Fiber Type | SMF |
| Distance | 10km |
| Optical Interface | LC |
| Operating Temperature | -5~70°C |
| DDMI | Y |
| Storage Temperature | -20~85°C |
| Relative Humidity | 0~85% |
| Supply Voltage | -0.5~3.6V |
| Voltage on LVTTL Input | -0.5~Vcc+0.5V |
| LVTTL Output Current | 0~15mA |
| Voltage on Open Collector Output | 0~6V |
| Operating Case Temperature | 0~70°C |
| Power Supply Voltage | 3.1~3.5V |
| Operating Relative Humidity | 5~95% |
| Supply Current | ≤300mA |
| Fiber Length | 10km |
| Data Rate, each Lane | 28Gbps |
| Control I/O Voltage, High | 2.0~VccV |
| Control I/O Voltage, Low | 0~0.8V |
| Tx Input Diff Voltage | 180~700mV |
| Tx Input Diff Impedance | 90~110Ω |
| Rx Output Diff Voltage | 300~900mV |
| Rx Output Diff Impedance | 90~110Ω |
| Center Wavelength | 1295~1310~1325nm |
| Spectral Width (-20dB) | ≤1nm |
| Average Optical Power, each Lane | -5~+3.5dBm |
| TDP, each Lane | ≤3.2dB |
| Extinction Ratio | ≥3.5dB |
| Center Wavelength | 1260~1310~1355nm |
| Average Power at Receiver Input, each Lane | ≤-10.4dBm |
| Receiver Overload | ≥3dBm |
| LOSS De-Assert | ≤-17dBm |
| LOSS Assert | ≤-30dBm |
| LOSS Hysteresis | ≥0.5dB |

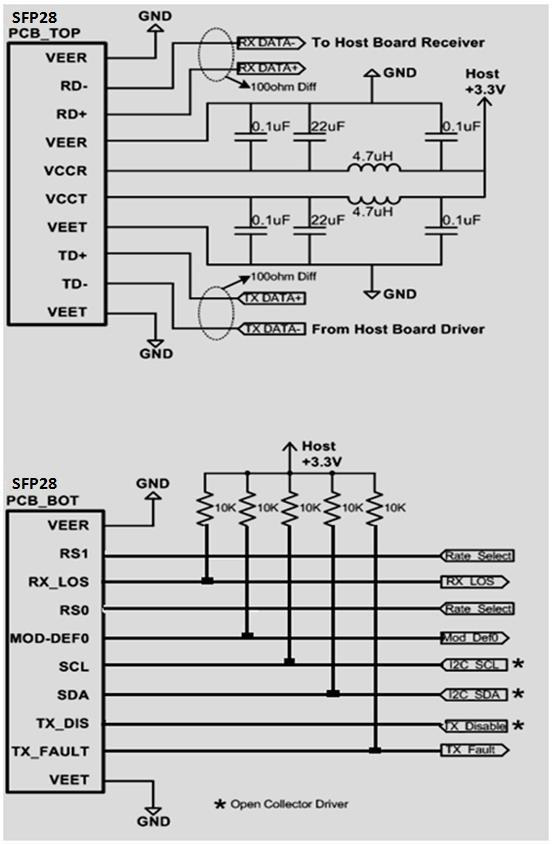

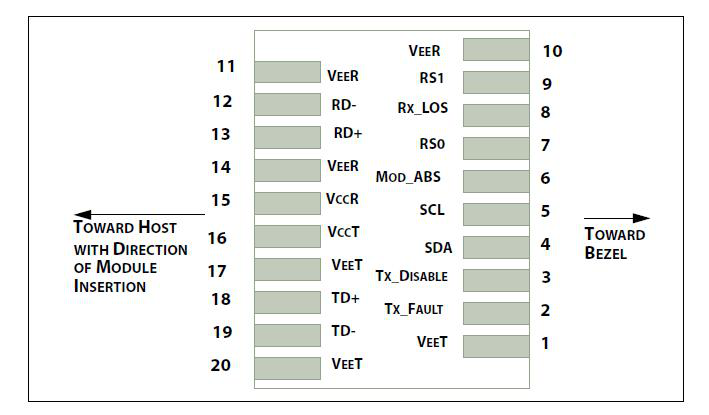

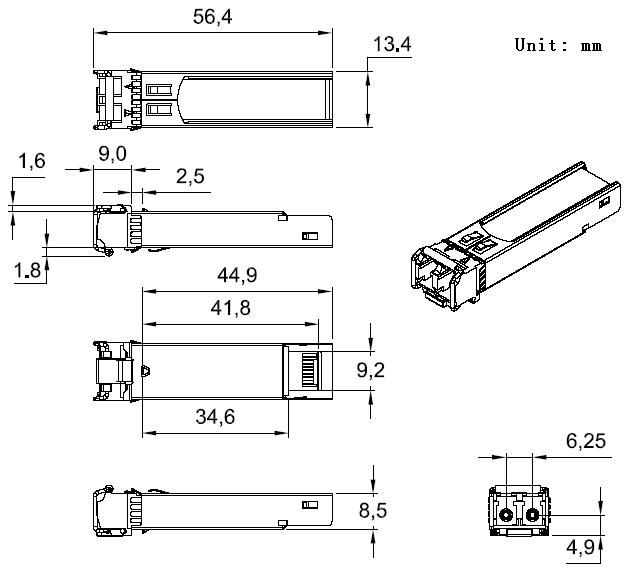

Applications
Key Features
Datasheet
Supplier Information
Related Products
-
1550 nm directly modulated optical transmitter
Transmitters and Receivers
Ytdq
: 1310 : FC∕APC : 45~860
-
optical receiver
Transmitters and Receivers
Ytdq
: -66dBc : -63dBc : 106dBuv (-3dB optical power reception)
-
optical receiver
Transmitters and Receivers
Ytdq
: -66dB : -63dB : 106dBuv (-3dB optical power reception)
-
externally modulated optical transmitter
Transmitters and Receivers
Ytdq
: 1550nm DFB LD : ≤-160dB/Hz
-
QSFP28 Host Board V1.30
Transmitters and Receivers
Steligent
Product Model: QSFP28 host board V1.30 PCB Marking: E206460 PCB Number: AL-85MA-0
QSFP28 Host Board V1.30 is a high-speed host-side evaluation/test PCB for 100G QSFP28 optical transceivers. The board routes the QSFP28 electrical interface to an arc array of gold SMA coaxial connectors around the top edge and to a QSFP28 cage/connector at the bottom center, enabling signal-integrity, compliance and interoperability testing of QSFP28 modules on the host side. PCB markings include E206460, AL-85MA-0 and the revision label "QSFP28 host board V1.30".
