TPD-X520-XXDCR
Transmitters and Receivers

TPD-X520-XXDCR

Supplier
Trixontech
Part Number
TPD-X520-XXDCR
Category
Transmitters and Receivers
Origin
China

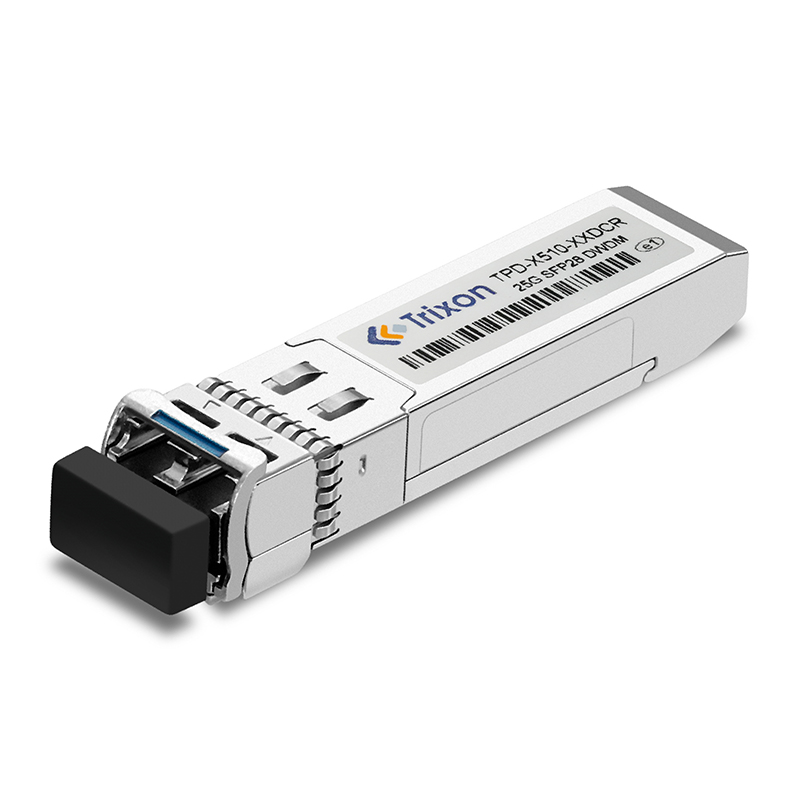

The TPD-X520-XXDCR is a DWDM EML 25Gigabit SFP28 transceiver designed for transmitting and receiving optical data over 9/125μm single-mode optical fiber (SMF) with a range of up to 20km. It features a duplex LC optical interface and complies with SFP28 specifications (SFF-8431 and SFF-8432).

Specification Snapshot
Data Rate (Gbps)
25Gbps
Supply Voltage
3.1~3.5V
Spectral Width (-20dB)
≤1nm
Average Optical Power (dBm)
0~+4.0dBm
Extinction Ratio (dB)
≥6dB
Receiver Center Wavelength (nm)
1260~1610nm
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

The TPD-X520-XXDCR is a DWDM EML 25Gigabit SFP28 transceiver designed for transmitting and receiving optical data over 9/125μm single-mode optical fiber (SMF) with a range of up to 20km. It features a duplex LC optical interface and complies with SFP28 specifications (SFF-8431 and SFF-8432).

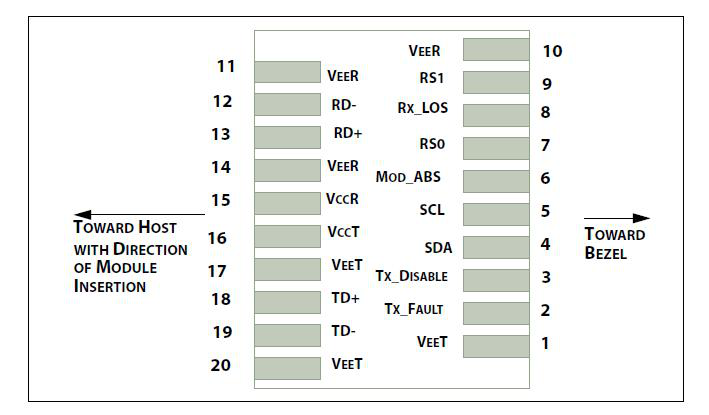

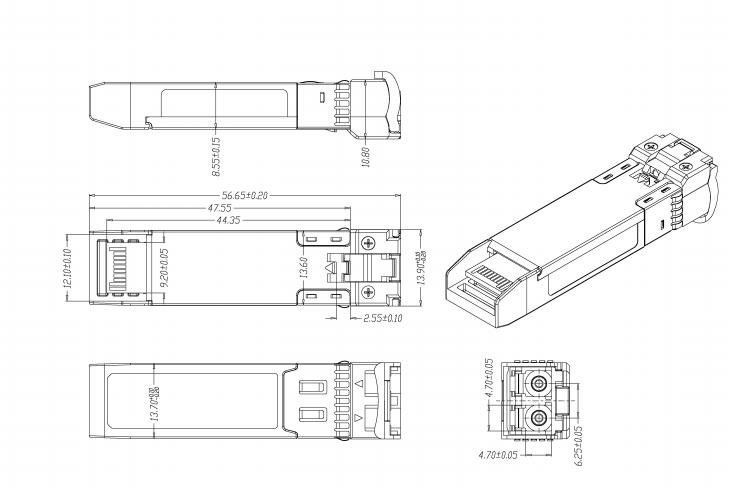

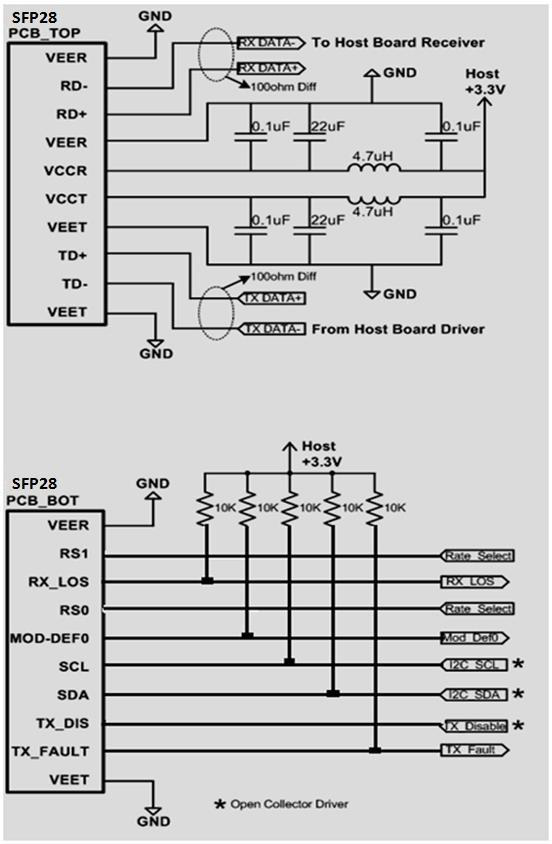

Specifications

ParameterValue
Data Rate (Gbps)25Gbps
Distance20km
Optical InterfaceLC
Supply Voltage3.1~3.5V
Spectral Width (-20dB)≤1nm
Average Optical Power (dBm)0~+4.0dBm
Extinction Ratio (dB)≥6dB
Receiver Center Wavelength (nm)1260~1610nm
Average Power at Receiver Input (BER=5E-5) (dBm)≤-19dBm
Receiver Overload (dBm)-8dBm
LOSS De-Assert (dBm)≤-20dBm
LOSS Assert (dBm)≤-30dBm
LOSS Hysteresis (dB)0.5dB
Voltage on Open Collector Output (V)0~6V
LVTTL Input Voltage (V)-0.5~VCC+0.5
LVTTL Output Current (mA)≤15mA
Control I/O Voltage High (V)2.0~VCC
Control I/O Voltage Low (V)0~0.8V
Tx Input Diff Voltage (mV)180~700mV
Tx Input Diff Impedance (Ω)90~110Ω
Rx Output Diff Voltage (mV)300~900mV
Rx Output Diff Impedance (Ω)90~110Ω

Applications

1. 25GbE DWDM

Key Features

1. Duplex LC optical connector 2. SFP28 MSA compliant 3. SFF-8431 compliant 4. DWDM 40 wavelength 5. Hot-pluggable SFP footprint 6. Built-in digital diagnostic functions 7. Capable of over 20km transmission on single-mode fiber 8. Single +3.3V power supply 9. Operating case temperature: 0~70°C 10. RoHS-6 compliant

Datasheet

Product Datasheet
PDF
Download
