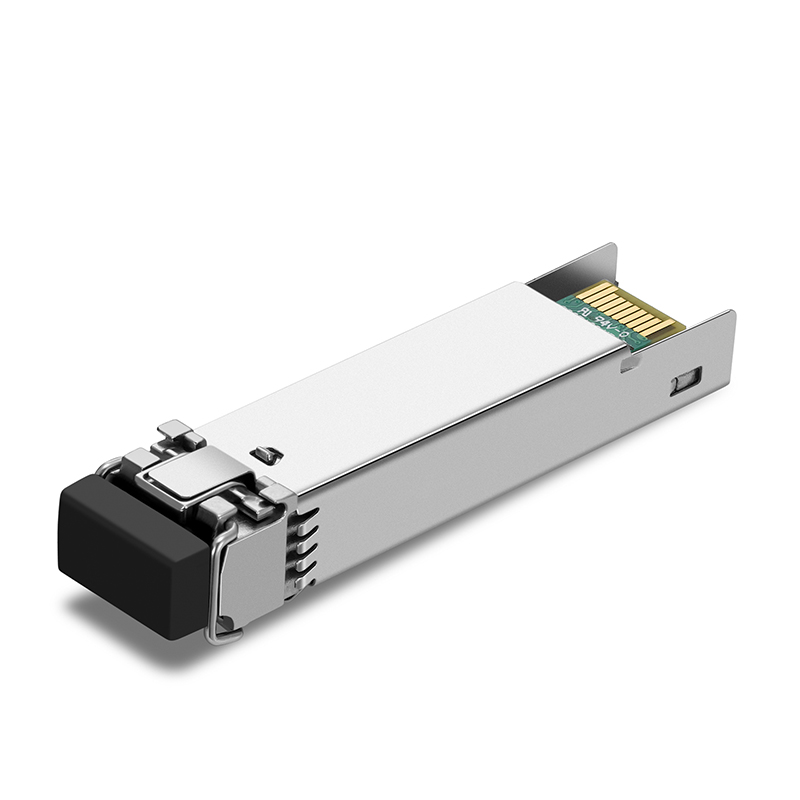

TPB-TG10-QDACR
The TPB-TG10-QDACR is a high-performance optical transceiver module designed for 100Gbps bidirectional data transmission. It is compact, reliable, and suitable for various networking applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Transmission Rate | 100Gbps |
| Interface Type | LC |
| Wavelength | 850nm |
| Transmission Distance | 100m |
| Power Consumption | ≤3.5W |
| Operating Temperature | 0°C to 70°C |
| Compatibility | IEEE 802.3bm |
| Package Type | QSFP28 |
| Digital Diagnostic Functions | Supported |
| Fiber Type | Multimode Fiber (MMF) |
| Signal Modulation | PAM4 |
| Power Supply Voltage | 3.3V |
Applications
Key Features
Datasheet
