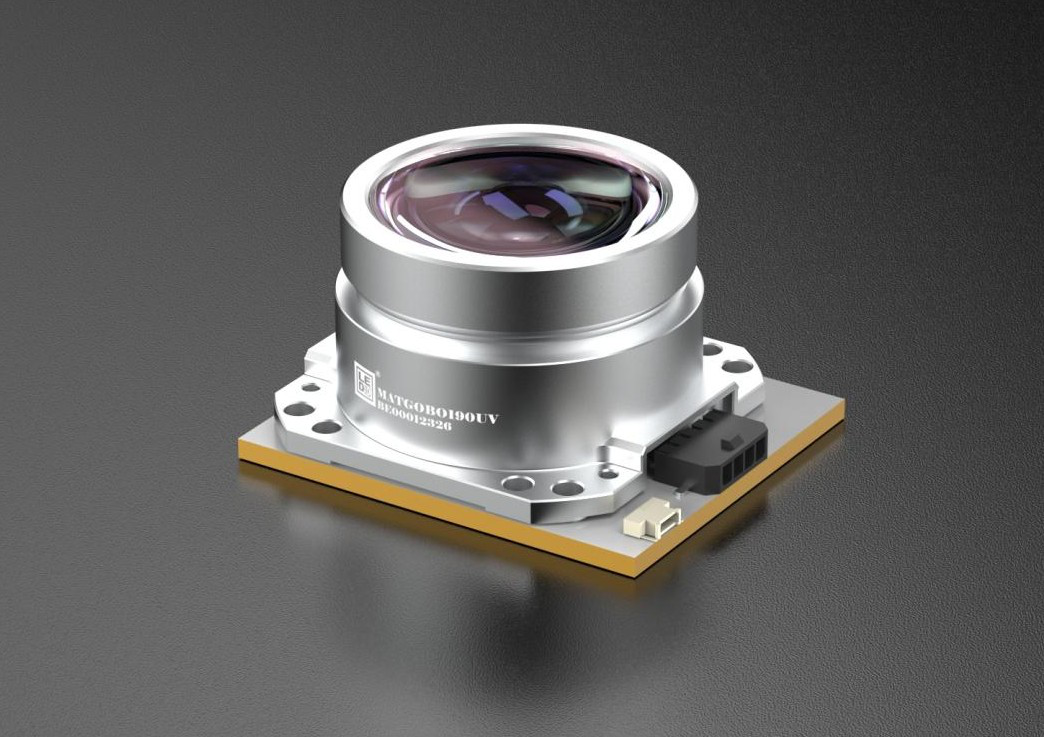

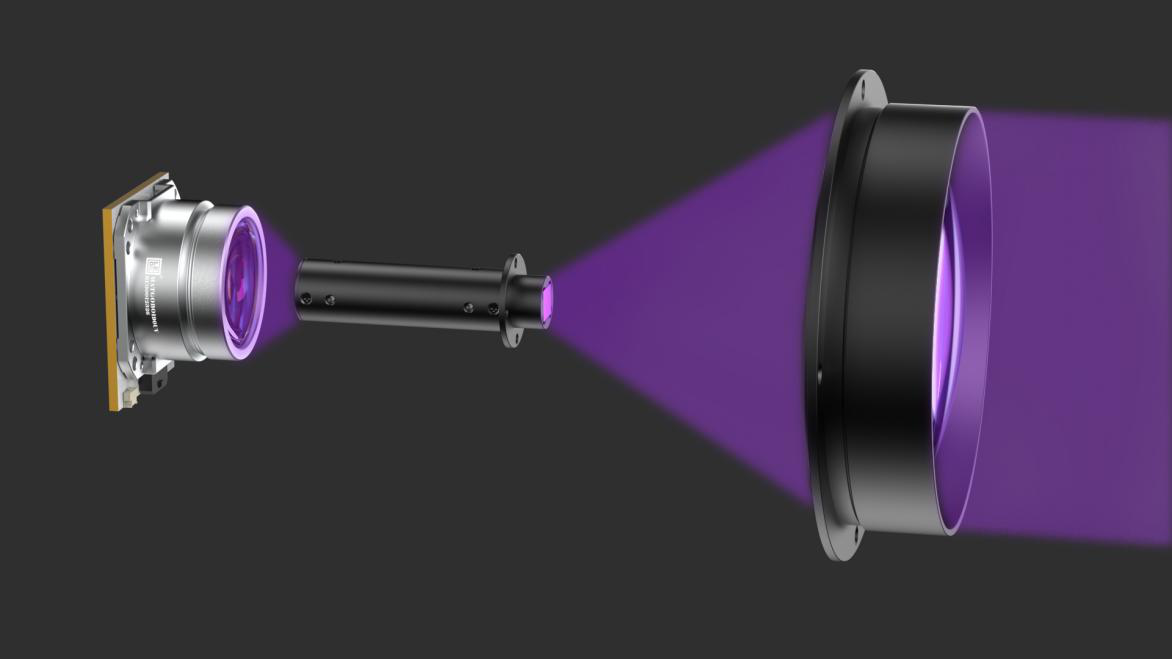

MATGOBO190UV Series LED UV Matrix Optical Module
The MATGOBO190UV series LED UV matrix optical module focuses LED light into a concentrated area with high uniformity and intensity. It adopts a multi-layer optical composite lens matrix design and supports multiple wavelengths such as 365nm, 385nm, 395nm, and 405nm. It is ideal for applications requiring high precision UV light, such as curing, exposure, and industrial manufacturing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| LED Requirements | Quantity≤19, 支持3030/3535/5050封装尺寸 |
| LED Wavelength | 365nm/385nm/395nm/405nm或定制波长 |
| Light Emitting Surface Size | Φ42mm |

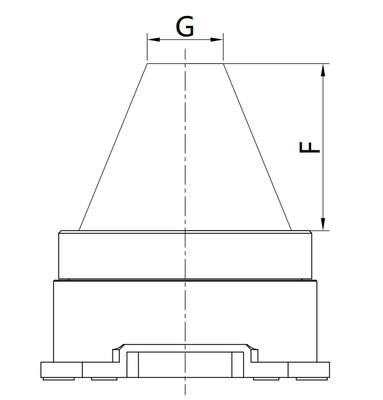

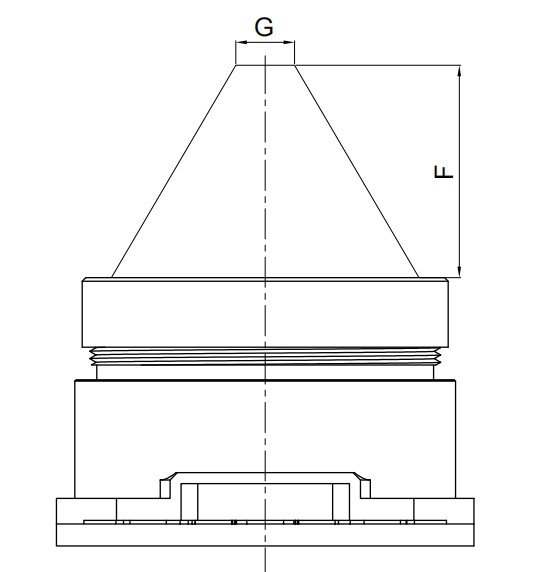

| Focal Length F | 29mm |
| Focus G | 8mm |
| Light Emission Angle | 20°/12°/30° |
| Power | 57~260W |

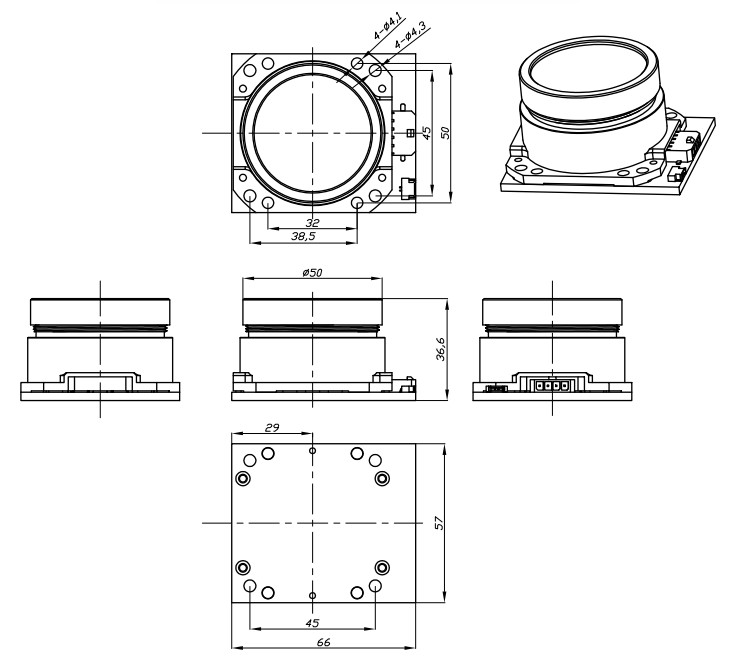

| Dimensions | 66×57×36.6mm |
| Model MATGOBO190UV-D8 | LED: 3535-3W, 波长: 365nm, 电流: 1A×2, 功率: 70W, 辐射强度: 25W/cm², 焦点G: 8mm, 焦距F: 29±2mm, 角度: 30° |

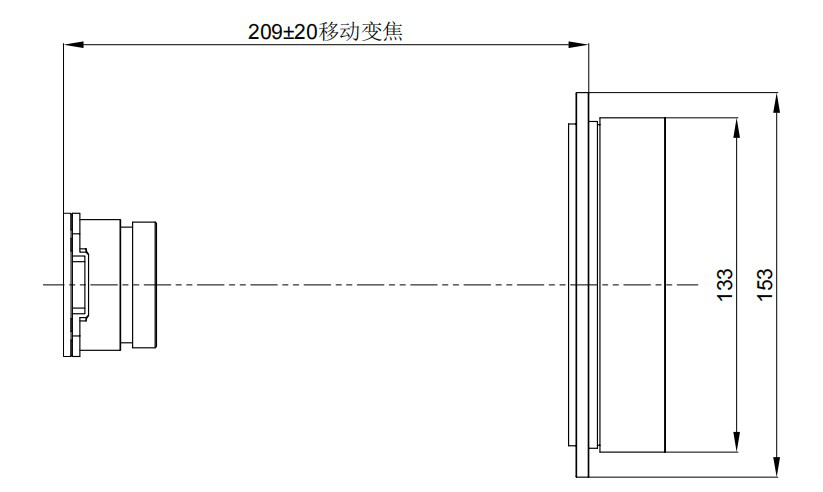

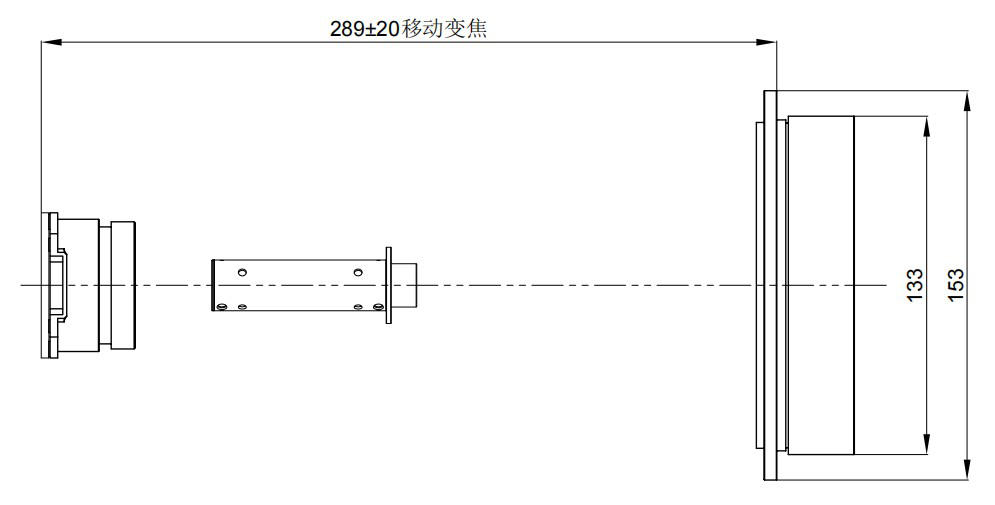

| Model MATGOBO190UV-125 | LED波长: 365nm, 角度: 半角1.5°, 出光口径: Φ125mm, 工作距离1m: >340mW (工作面50×50mm), 工作距离2m: >85mW (工作面120×120mm) |
| Model MATGOBO190UV-125DF80 | LED波长: 365nm, 角度: 半角1.5°, 出光口径: Φ125mm, 工作距离1m: >180mW (工作面65×65mm), 工作距离2m: >45mW (工作面120×120mm) |
