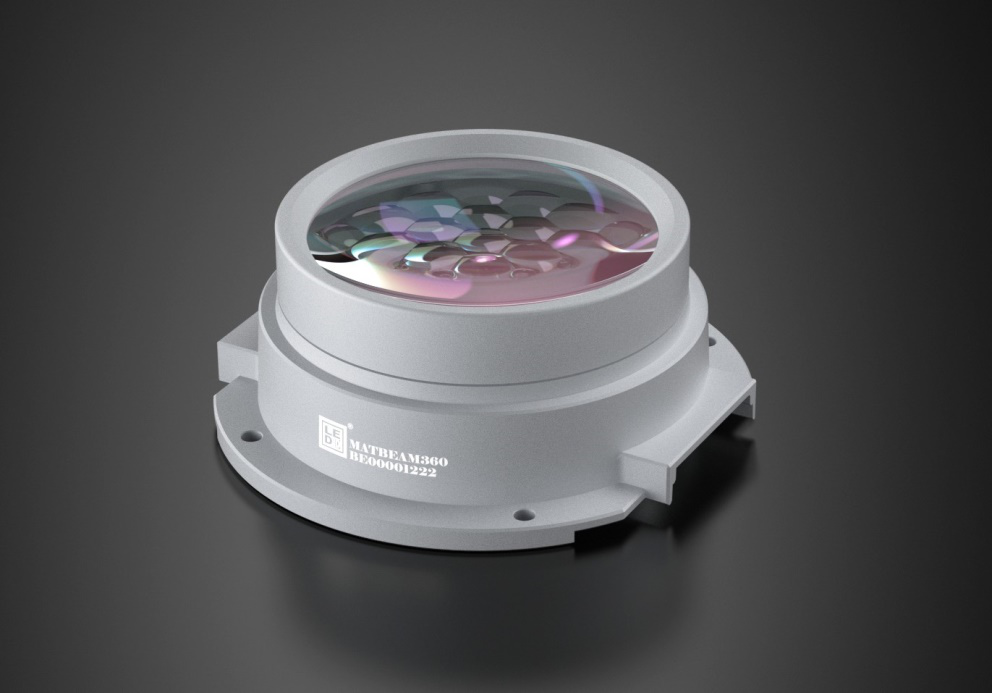

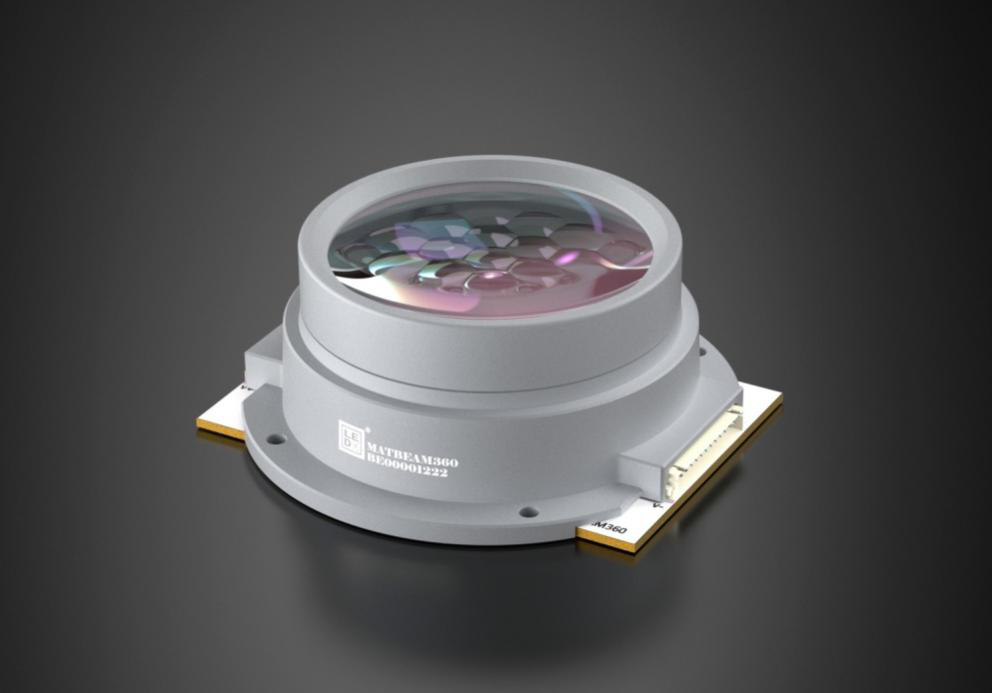

MATBEAM360
MATBEAM360 is a specialized LED array lens designed with multi-layer compound lenses, featuring small focal points, high light density, and high precision. It is suitable for applications requiring high brightness and precision illumination, such as infrared and UV light sources.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

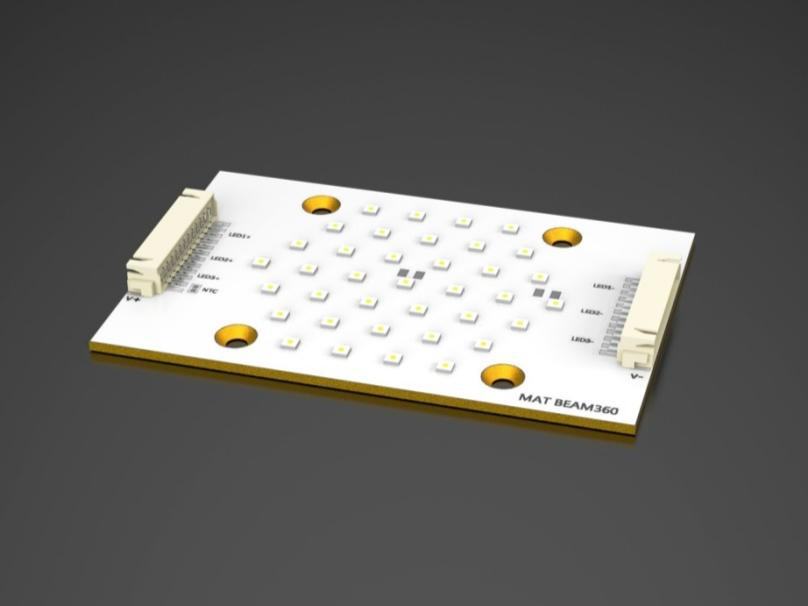

| Compatible LED | 36~37颗灯珠, 支持3030/3535/5050封装 |
| Supported Power | 360~740W |
| Output Aperture | Φ70mm |

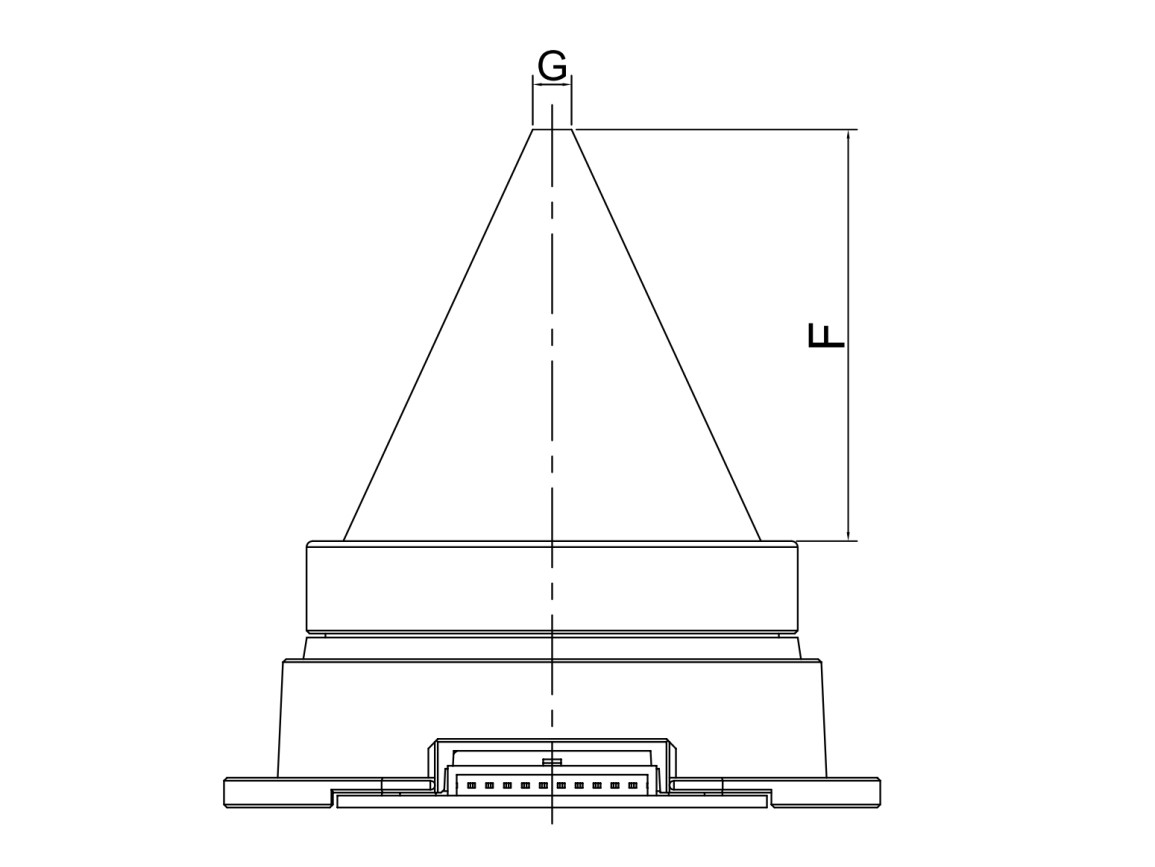

| Focal Length F | 72±2mm |
| Focus G Size | ≥Φ6.5mm |
| Beam Angle | 46° |

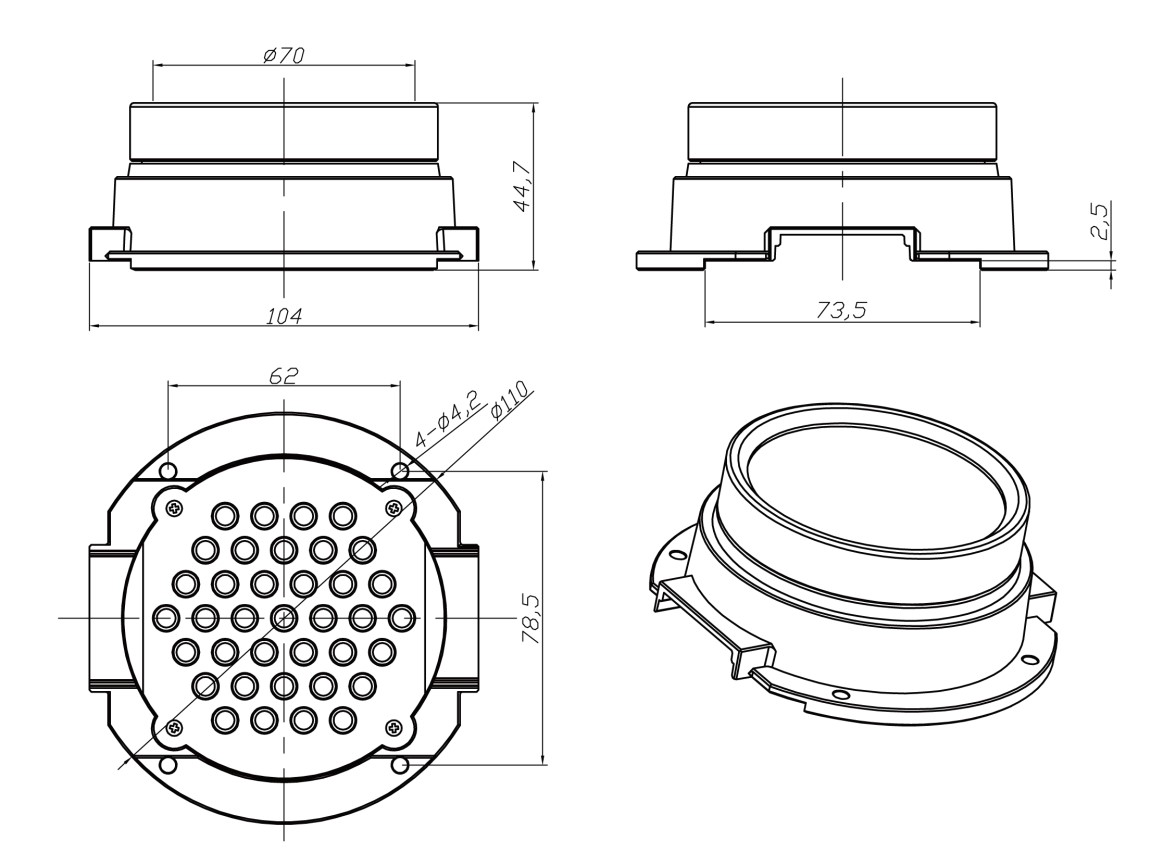

| Dimensions | Φ110mm×L104mm×H44.7mm |
| Number of LEDs | 36~37颗 |
| Input Current | 3.0A/4.0A |
| Luminous Flux | 21600lm/30000lm |
| Beam Angle | 1.5°/1° |
| Beam Intensity 1 | 65000lux/80000lux |
| Beam Intensity 2 | 85000lux/100000lux |
| Recommended Pattern Diameter | ≤6.5mm |
