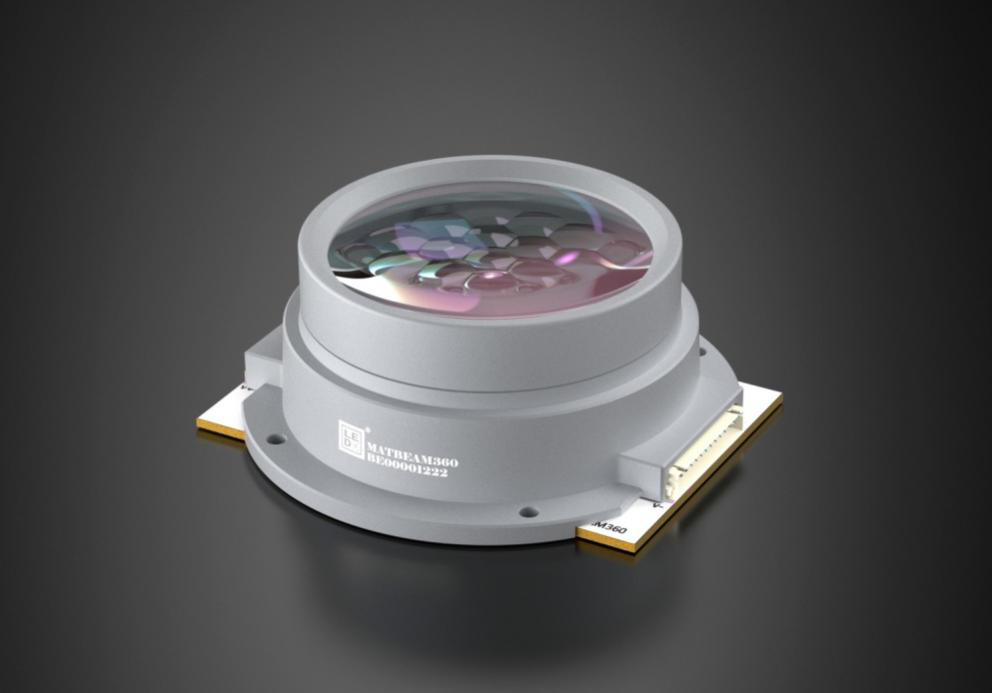

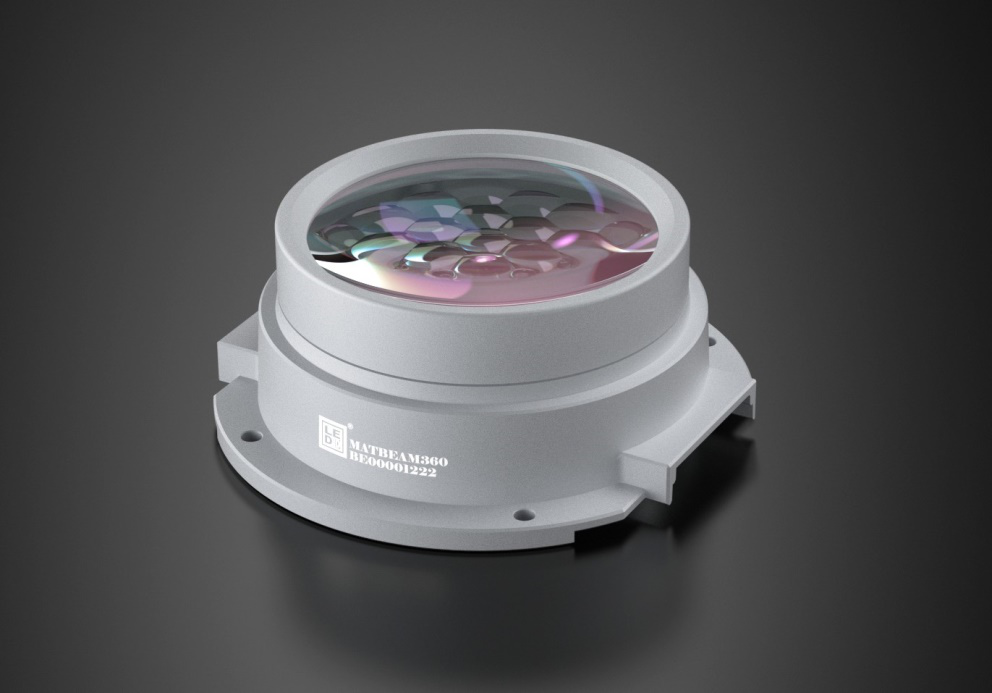

MATBEAM360
MATBEAM360 is a specially designed LED array lens with multi-layer compound eye lens array. It features small focal points, high light density, and high brightness, making it suitable for high-precision lighting applications. It is compatible with high-power LED modules and supports infrared and UV light sources.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

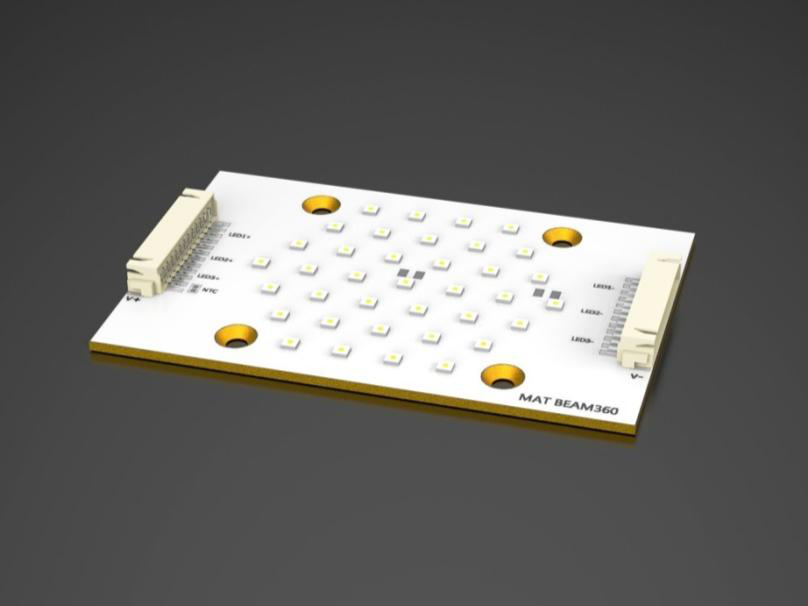

| Compatible LED | 36~37 beads, 3030/3535/5050 |
| Supported Power | 360~740W |
| Light Output Diameter | Φ70mm |

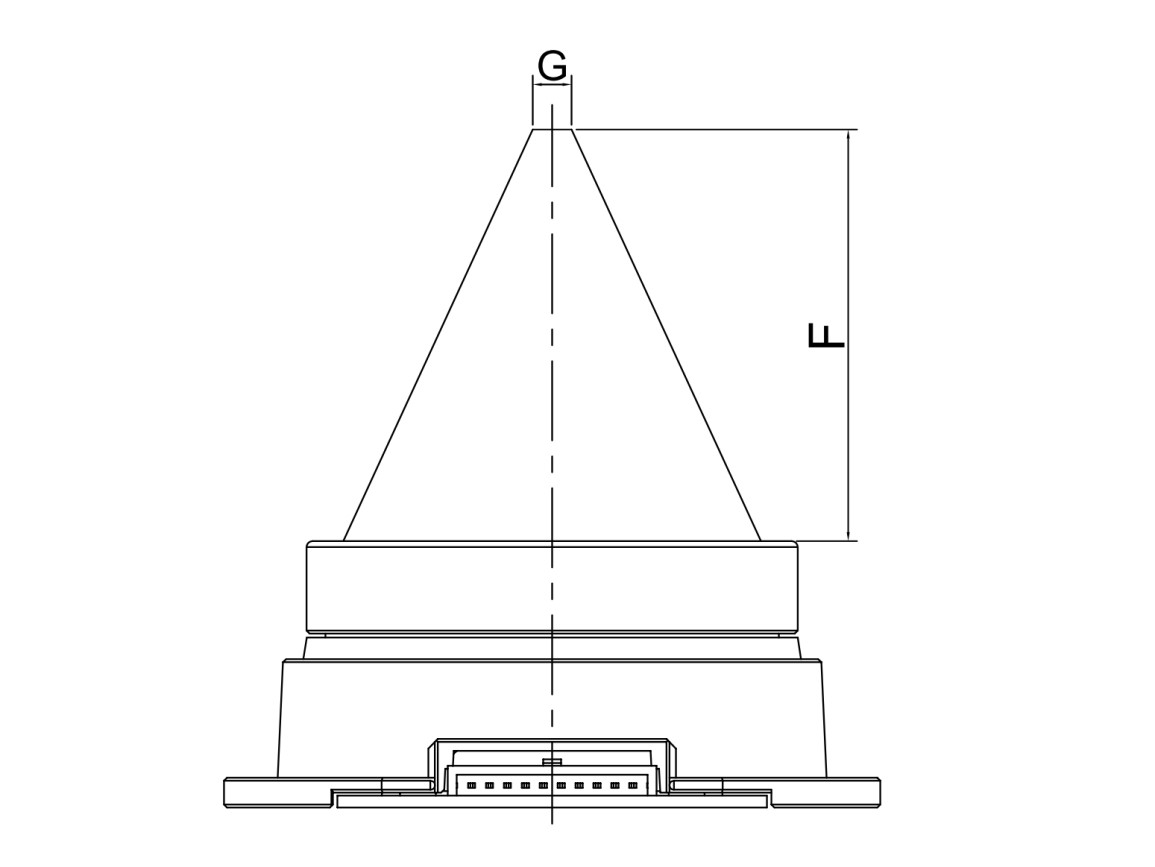

| Focal Length F | 72±2mm |
| Focus G Size | ≥Φ6.5mm |
| Light Output Angle | 46° |

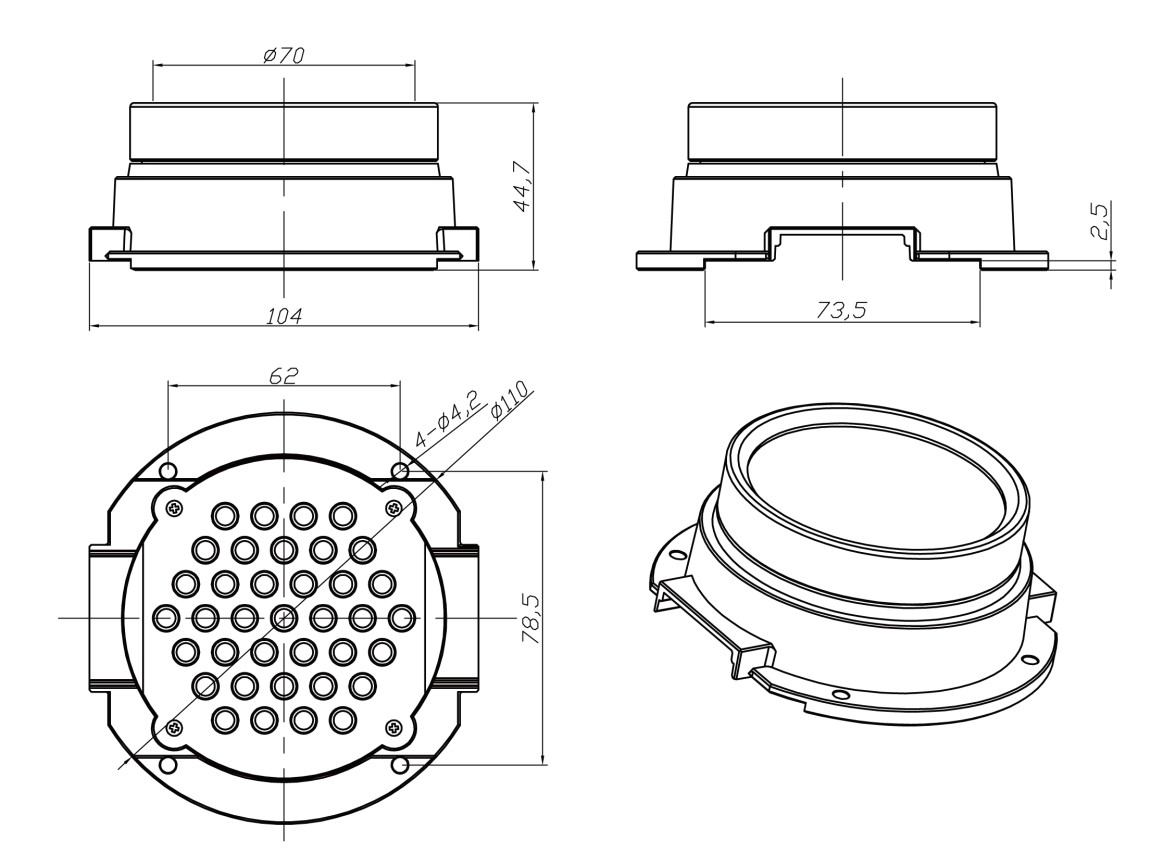

| Dimensions | Φ110mm×L104mm×H44.7mm |
| Number of LED Beads | 36~37 |
| Input Current | 3.0A (OSRAM OSTAR® Projection Compact KW CSLNM1.TG), 4.0A (Luminus SFT12) |
| Luminous Flux | 21600lm (OSRAM OSTAR® Projection Compact KW CSLNM1.TG), 30000lm (Luminus SFT12) |

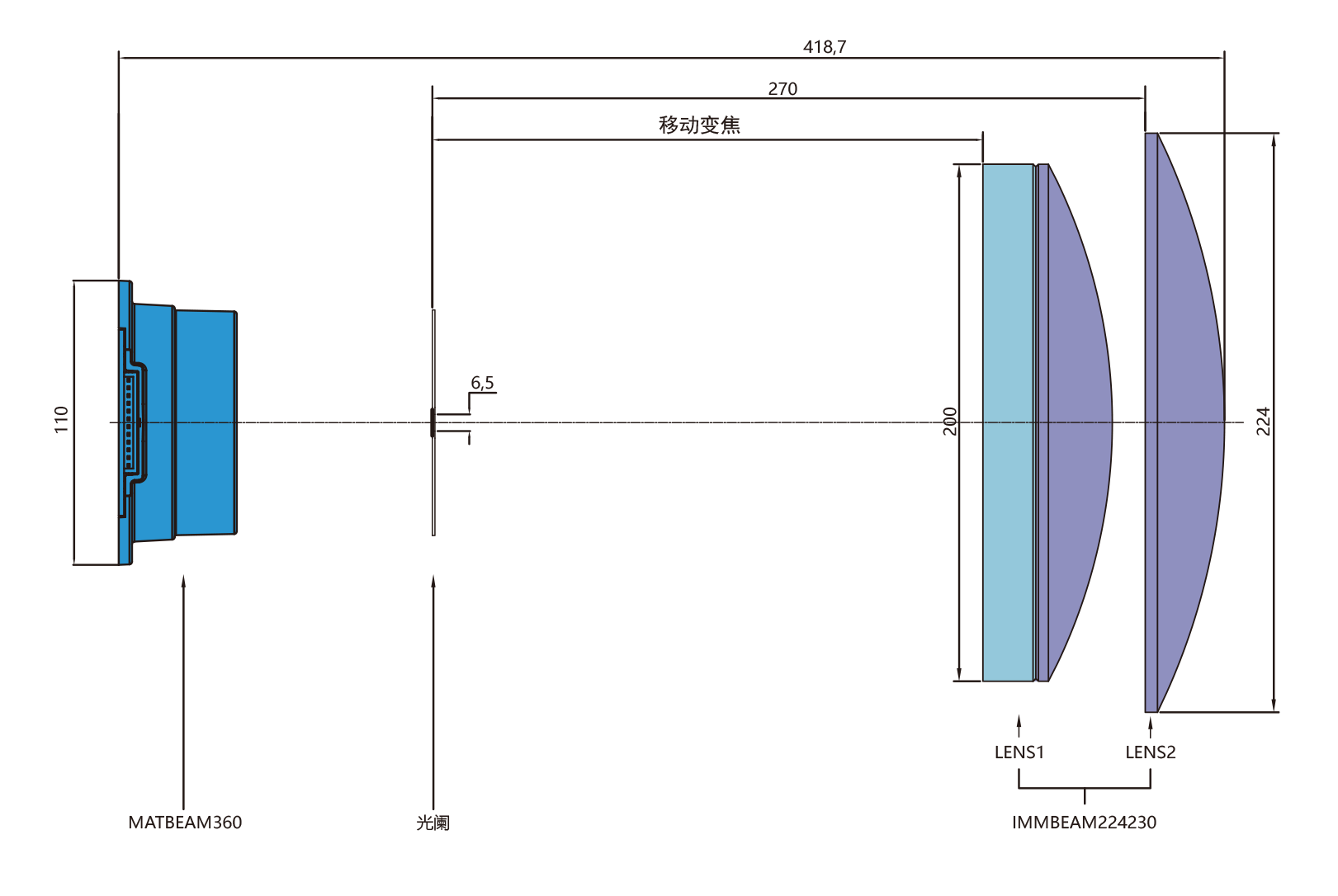

| Beam Angle | 1.5° (IMMBEAM224230), 1° (D-BEAM320) |
| Beam Illuminance 1 | 65000lux (OSRAM OSTAR® Projection Compact KW CSLNM1.TG), 80000lux (Luminus SFT12) |
| Beam Illuminance 2 | 85000lux (OSRAM OSTAR® Projection Compact KW CSLNM1.TG), 100000lux (Luminus SFT12) |
