IMMBEAM Series Optical Lens Group

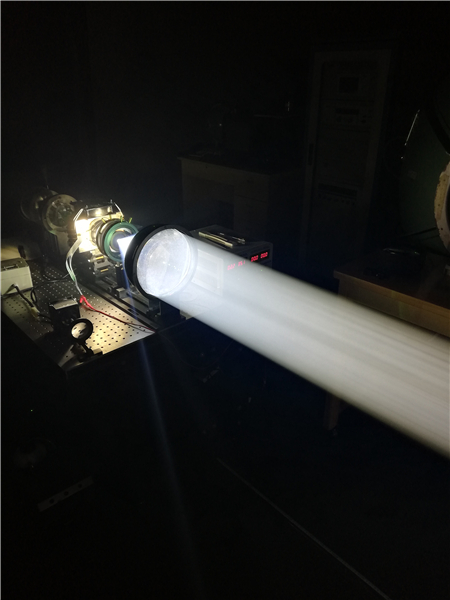

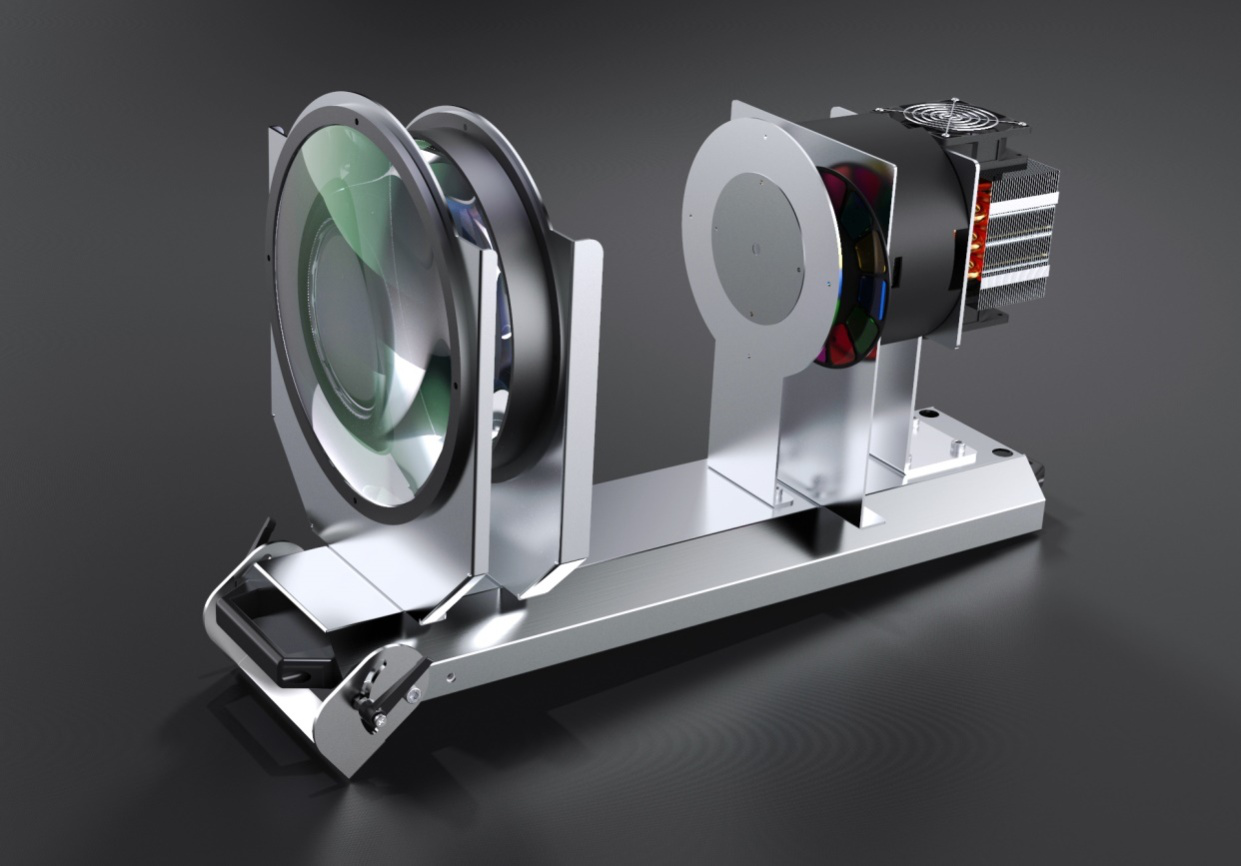

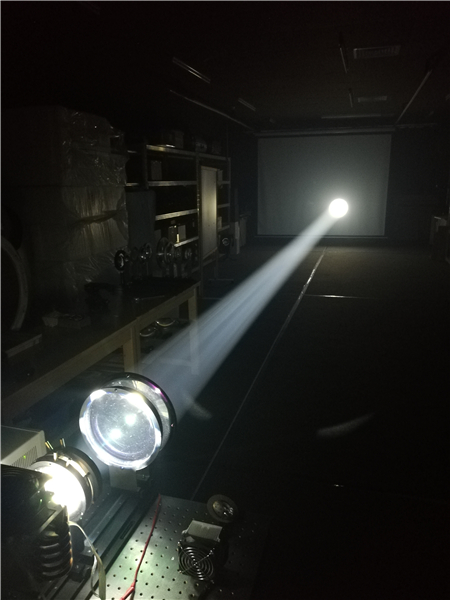

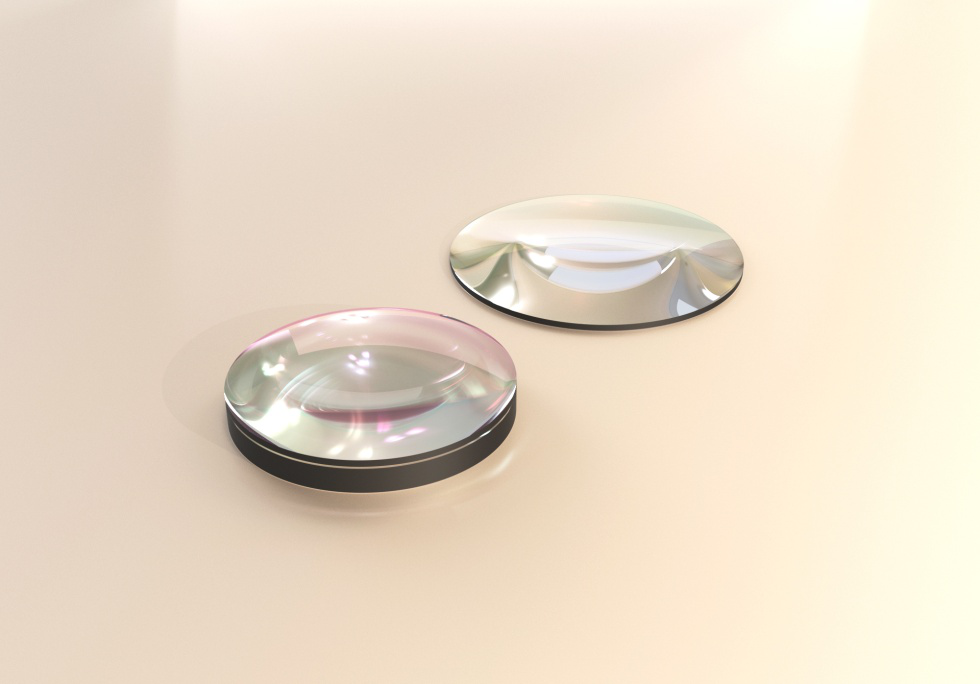

IMMBEAM series is a high-precision optical lens group designed for narrow-angle direct light beams. It consists of a pair of achromatic lenses and a non-planar lens group made of high-quality optical glass with fine grinding technology. The lens group achieves a minimum light beam angle of 0.5° and excellent light efficiency, making it suitable for various light sources such as LED matrix modules and laser matrix modules.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Beam Angle IMMBEAM180180 | ≤1° |
| Beam Angle IMMBEAM224230 | ≤0.5° |
| Lens Diameter IMMBEAM180180 | Lens1:160mm, Lens2:180mm |

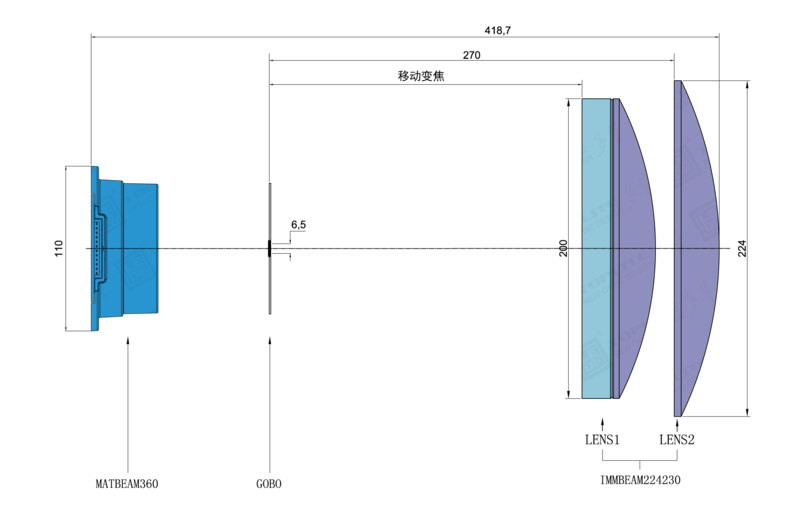

| Lens Diameter IMMBEAM224230 | Lens1:200mm, Lens2:224mm |

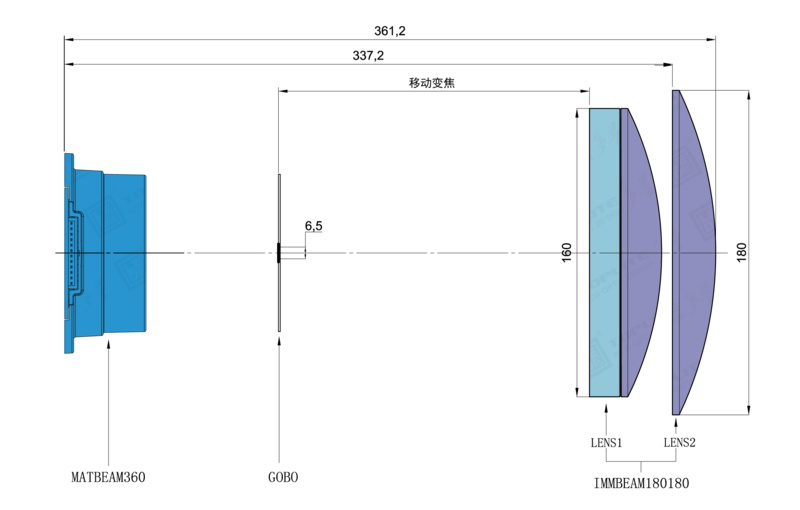

| Lens Movement Zoom Range IMMBEAM180180 | 337.2mm |
| Lens Movement Zoom Range IMMBEAM224230 | 270mm |
| Light Source Module MATBEAM360 | 520W, SFT-12X-W, 37 lamps, Φ12mm, 3.6°, 7.2lx |
| Light Source Module MATBEAM1000 | 800W, DGY-T-TN-50-300-11-A2, 37 lamps, Φ16.8mm, 5.5°, 5.7lx |
| Light Source Module MATGOB0600 | 800W, DGY-T-TN-50-300-11-A2, 61 lamps, Φ25mm, 4.5°, 8.5lx |
| Light Source Module MATLASER150 | 140W, SMD1000, 7 lamps, Φ2mm, 0.5°, 37lx |
Applications
Key Features
Datasheet
