IMM60 High-Definition Imaging Lens Set

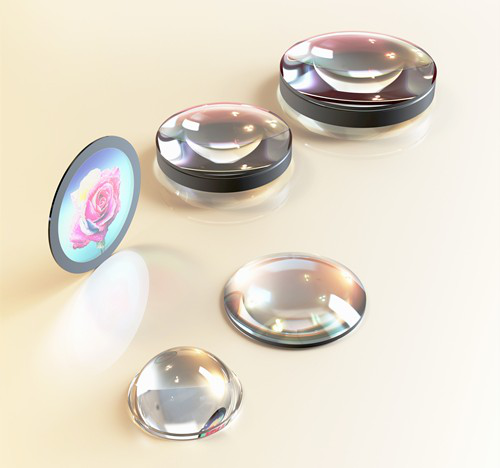

IMM60 series high-definition imaging lens sets include three models with different diameters and thicknesses, designed for high-quality imaging applications. Made of optical glass material, these lenses undergo precision grinding and multi-layer coating processes to ensure high resolution and color fidelity.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Optical Device Series | IMM60 |
| Product Category | High-definition imaging |
| LED Light Source | High-power LED or COB, emitting surface ≤22mm |

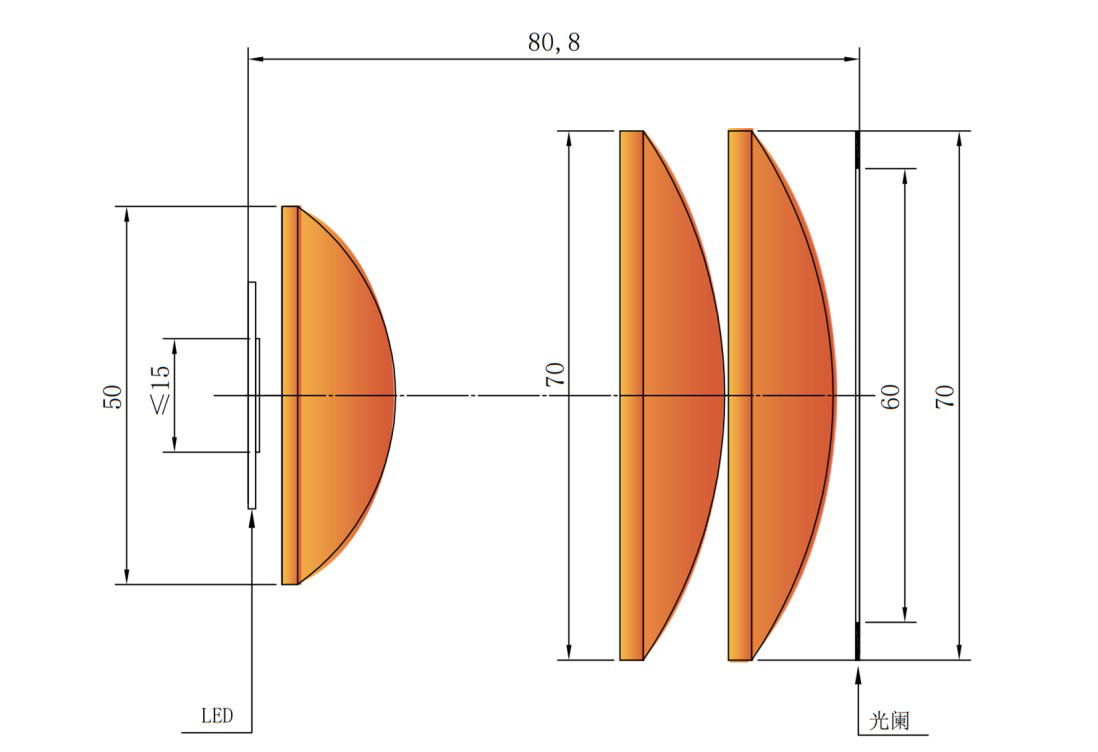

| Condensing Lens Set | IMMDX5070X2, diameter 70mm and 50mm, suitable for light sources with emitting surface ≤15mm |
| Aperture Size | ≤60mm |
| Imaging Lens Size | Ø70mm, Ø100mm, Ø140mm |
| Coating | Multi-layer enhanced coating |
| Fixed Focus Angle | 09°-60° |
| Zoom Angle | 16°-30° |

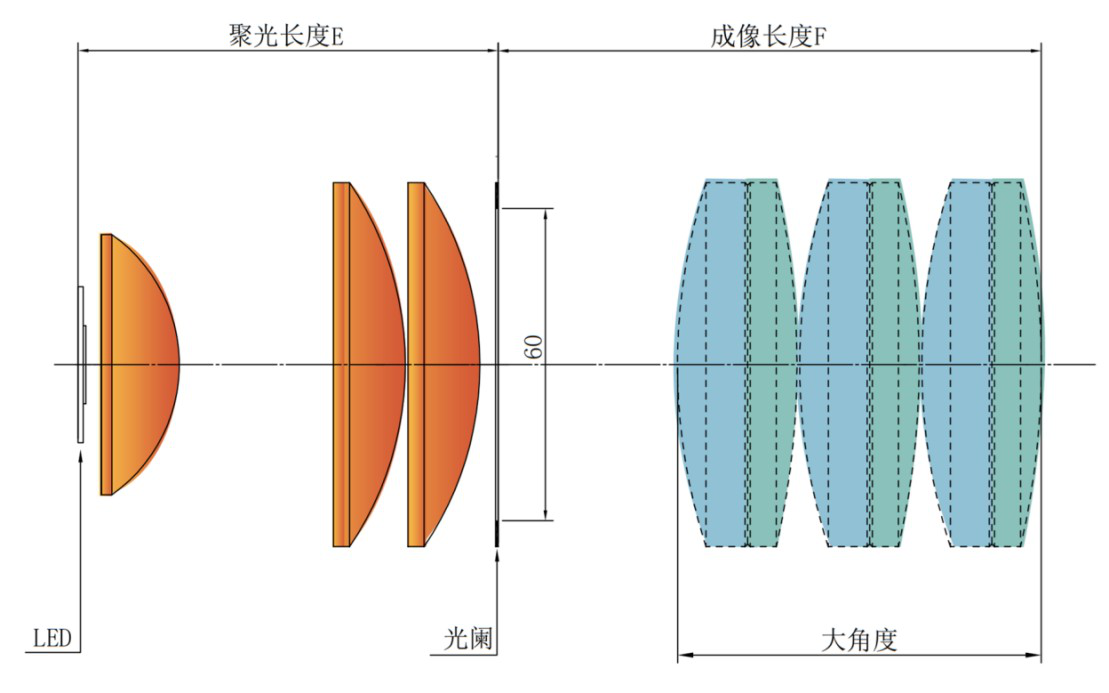

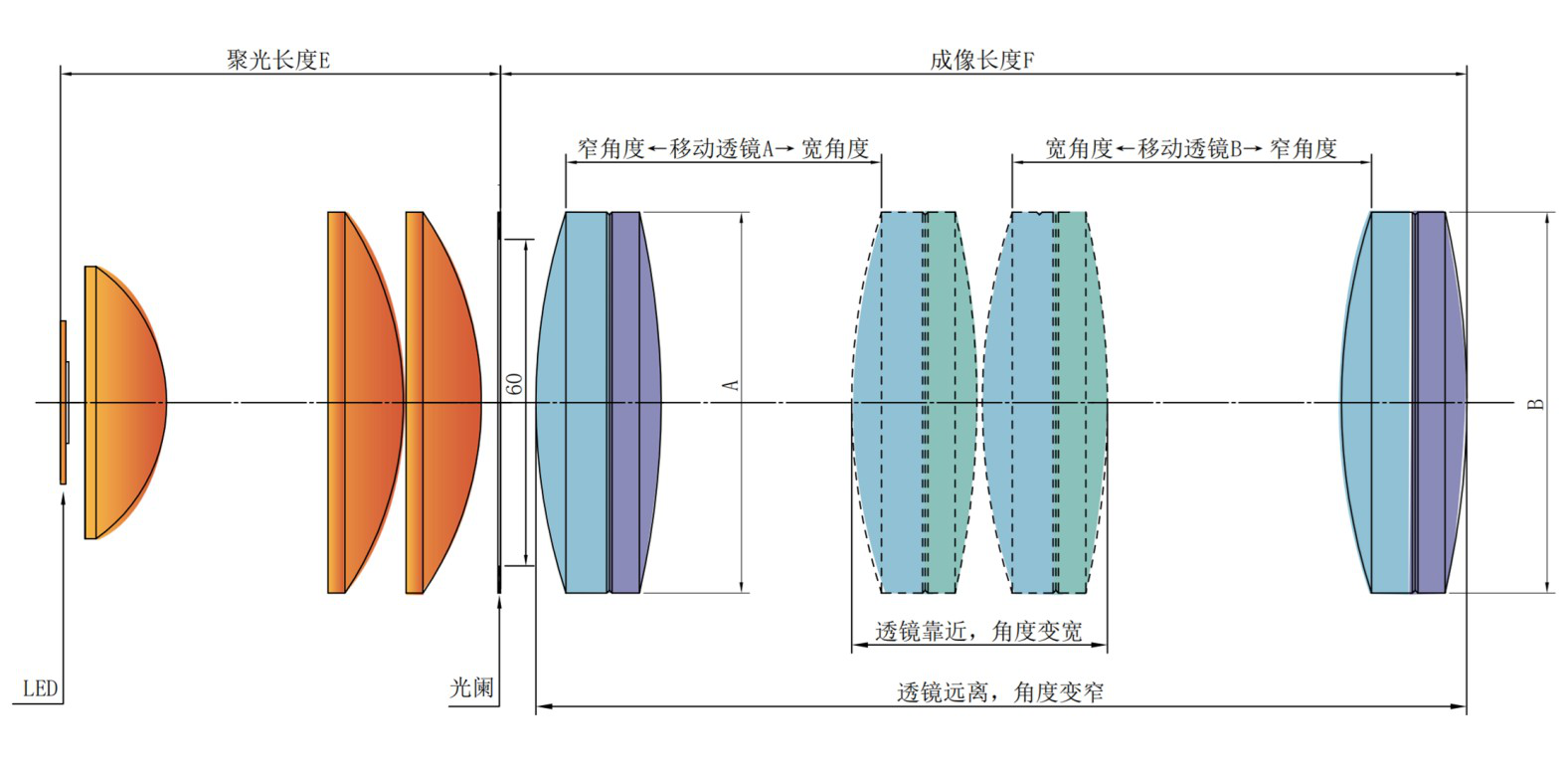

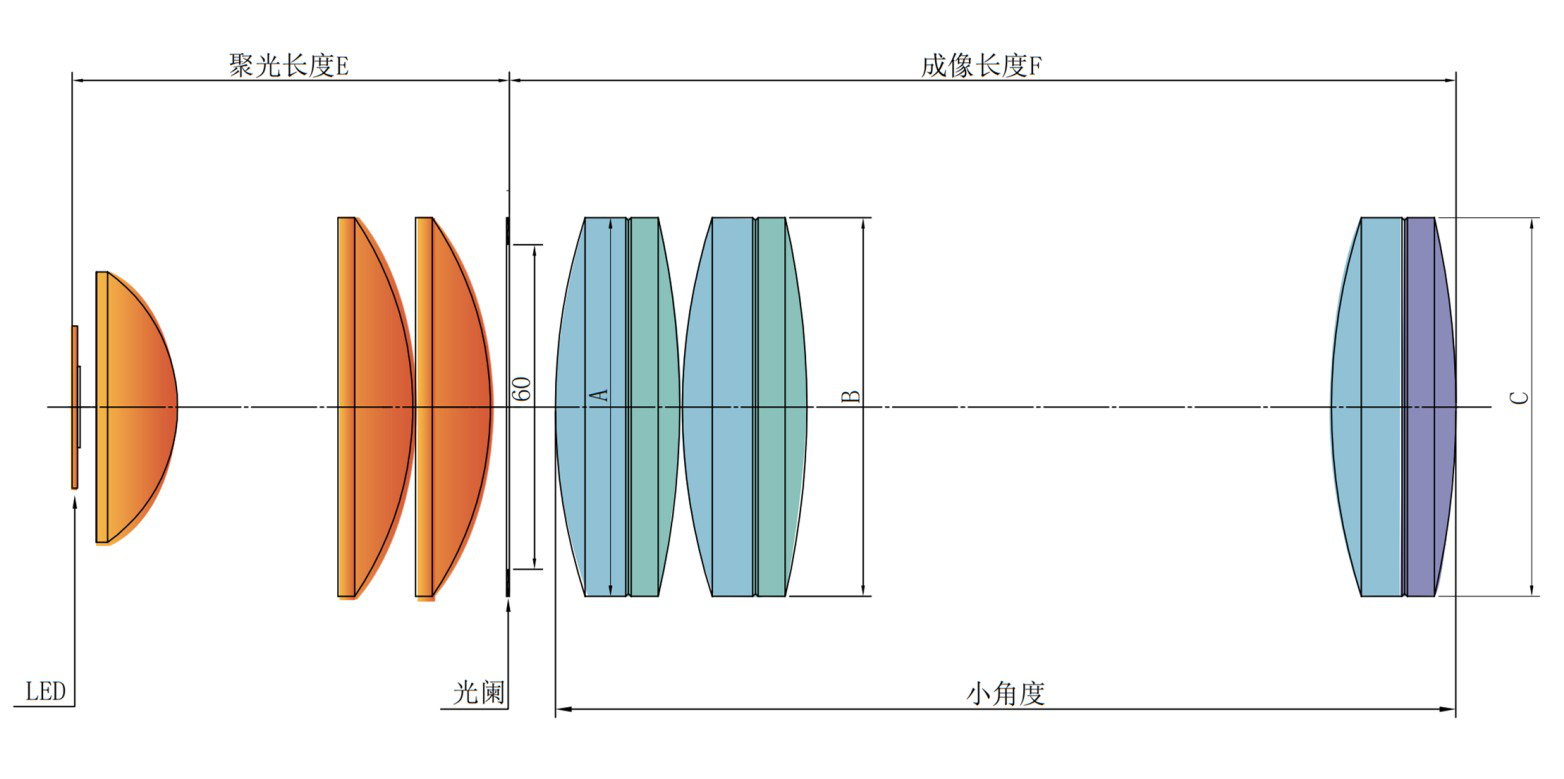

| Selectable Angle for Imaging System | IMM60-F36: F represents fixed focus, angle is 36°; IMM60-Z1630: Z represents zoom, focus range is 16°-30° |
| Total Optical Path Length | E+F=80.8mm |
| Condensing Length E | 80.8mm |
| Imaging Length F | Varies by model, maximum length is 467.4mm |
