IMM16 High-Definition Imaging Lens Group
IMM16 series high-definition imaging lens groups are designed for specialized imaging applications. Utilizing precision optical glass grinding and polishing, these lenses ensure high-quality imaging performance. The lens groups are assembled into systems for uniform light projection, sharp imaging, and edge-free light spots.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Light Emitting Surface Size | <8mm |
| Condensing Lens Group | IMMDX202525, IMMDX2525-8D266, diameter φ20mm and φ25mm |
| Aperture Pattern Content Size | ≤φ16mm |
| Imaging Lens Group Diameter | φ22mm, φ25mm, φ32mm, φ50mm, φ64mm |
| Angle Range | 5°-55° |
| Fixed Focus Angle | 44° |
| Zoom Angle Range | 15°-32° |

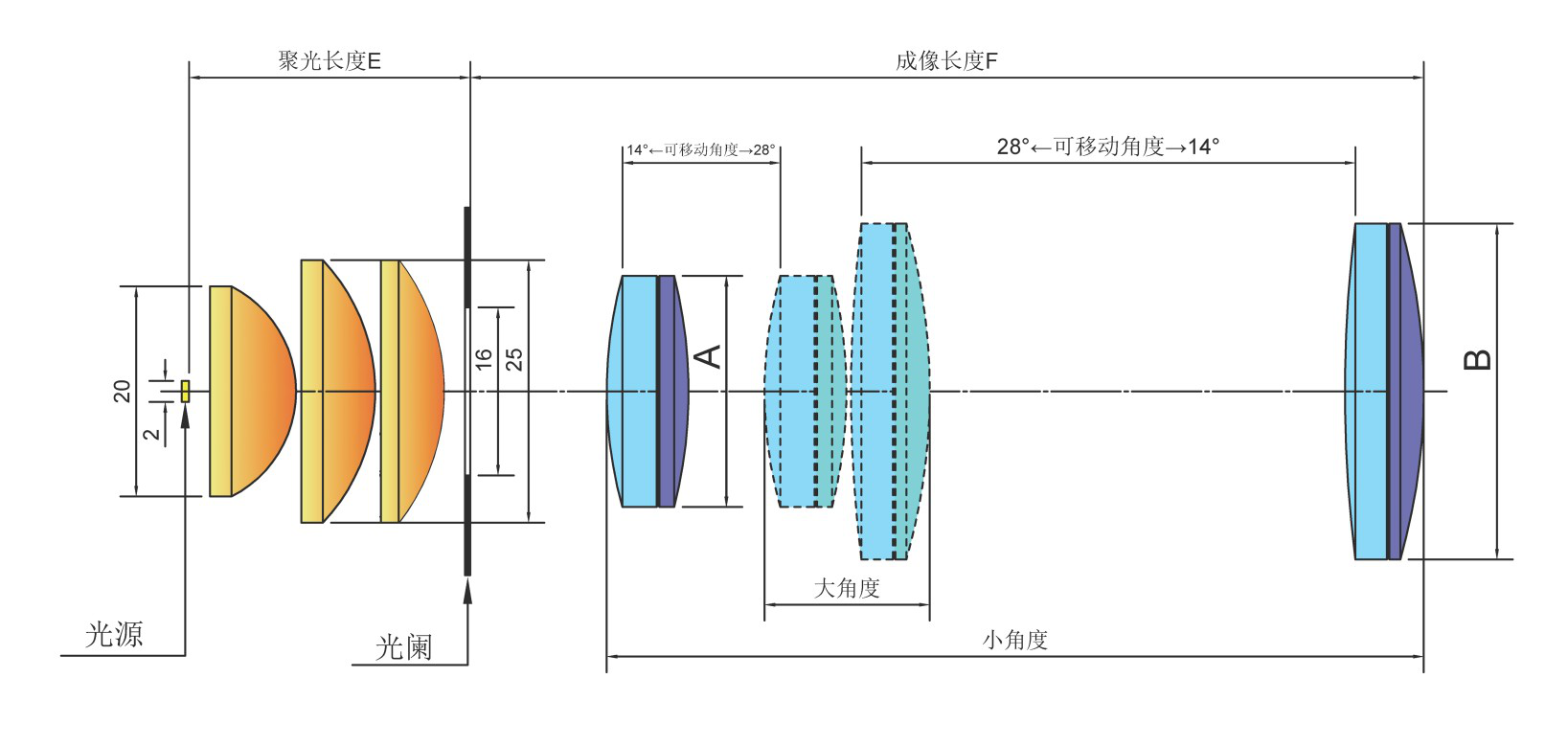

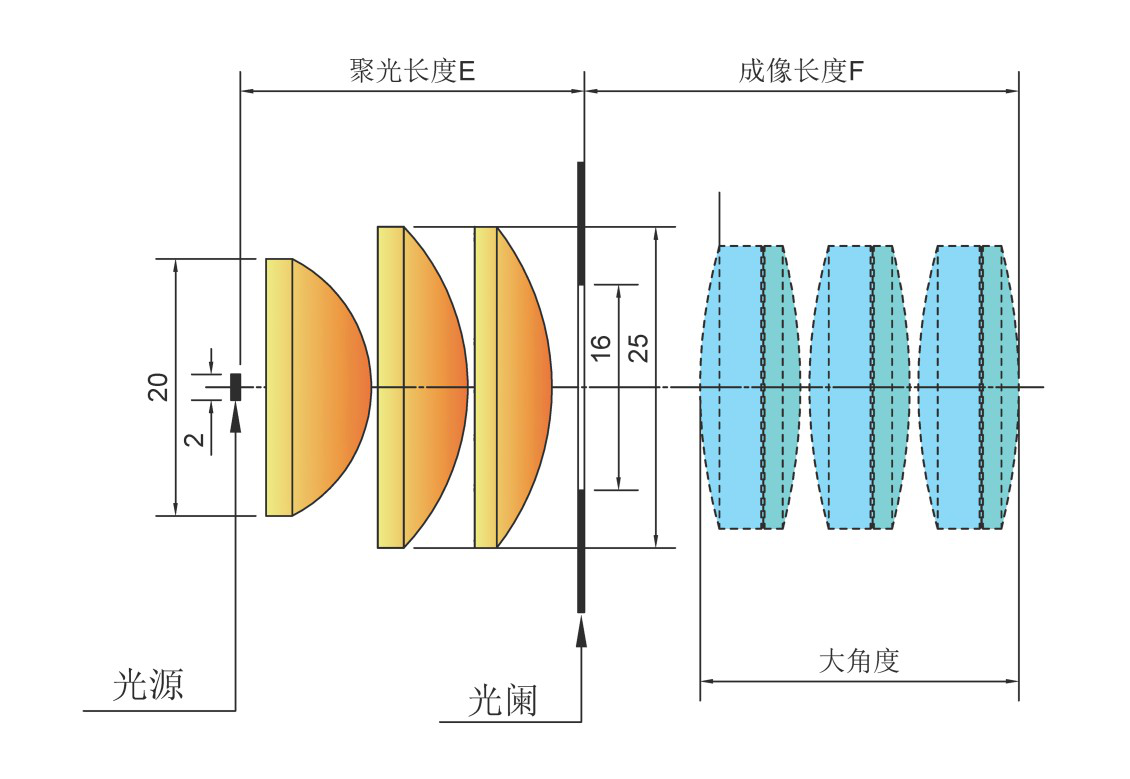

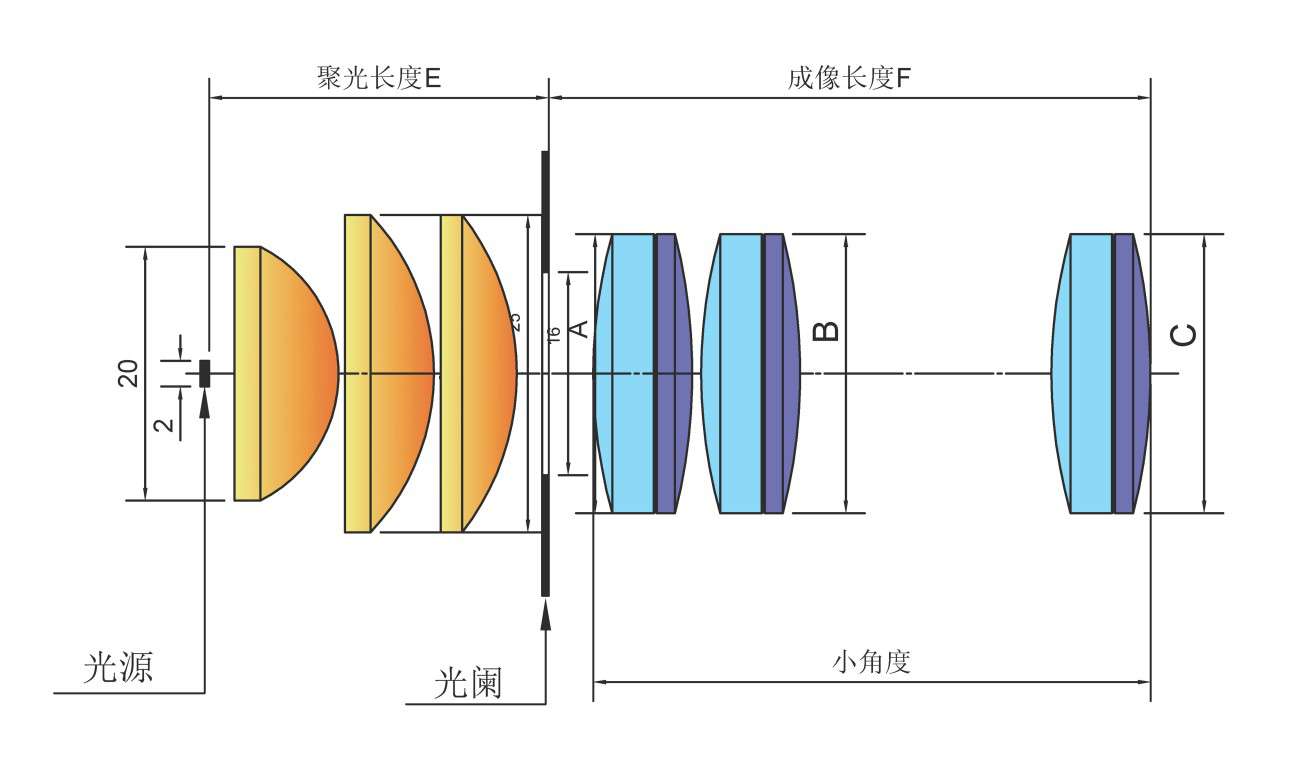

| Total Optical Path Length | 26.7mm-28.5mm |

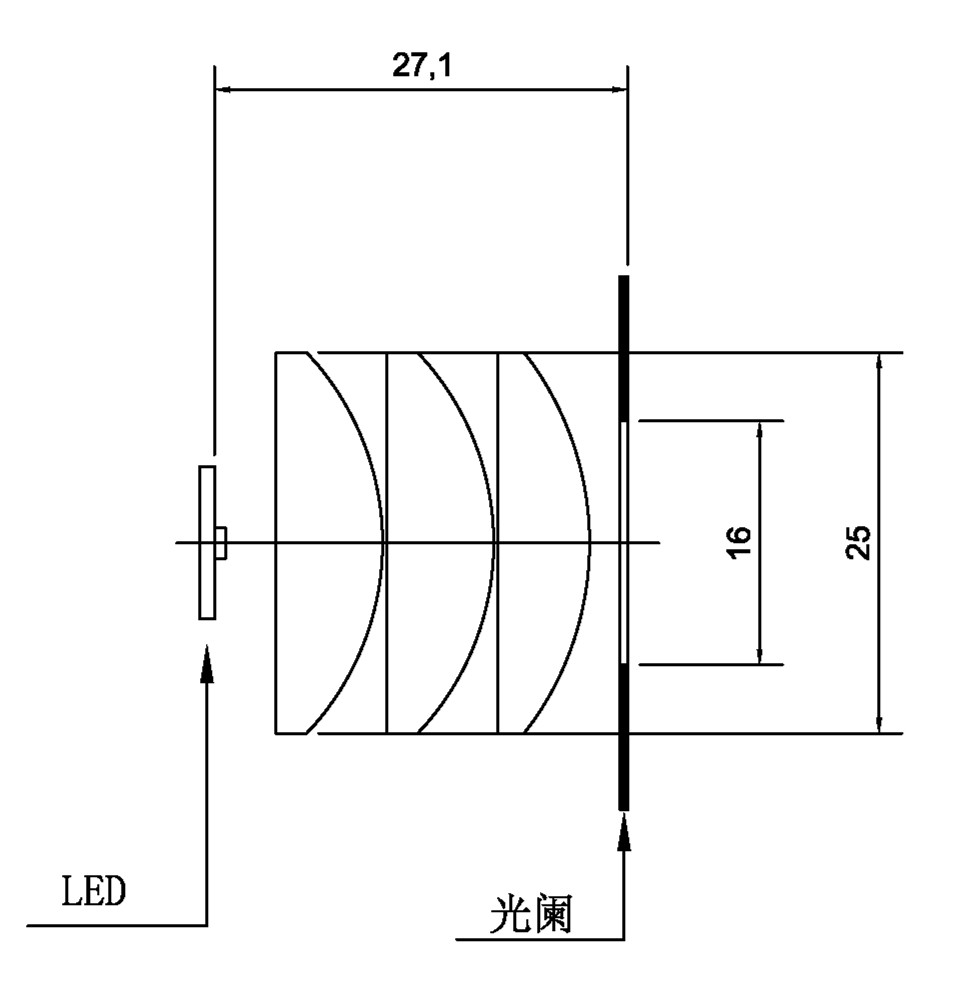

| Condensing Length E | 26.7mm-27.1mm |
| Imaging Length F | 34.6mm-207.8mm |
Applications
Key Features
Datasheet
