IMM30S-F55

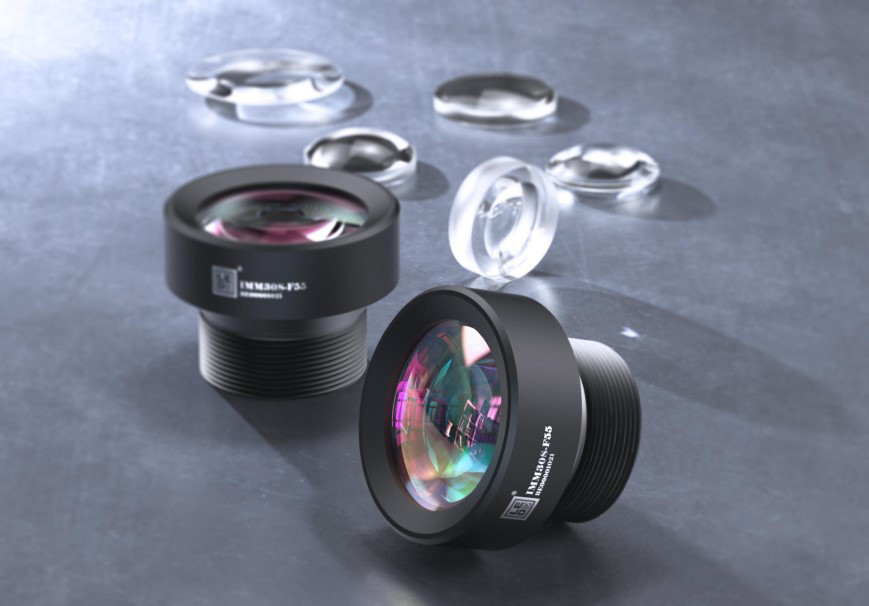

The IMM30S-F55 is a high-definition imaging projection lens designed for small and medium-sized LED projection applications. It features a precise optical design, multi-layer high-quality coating, and a fixed focal angle of 55°. This lens is ideal for applications requiring high brightness and resolution.
Save to Favorites
Overview
Specifications

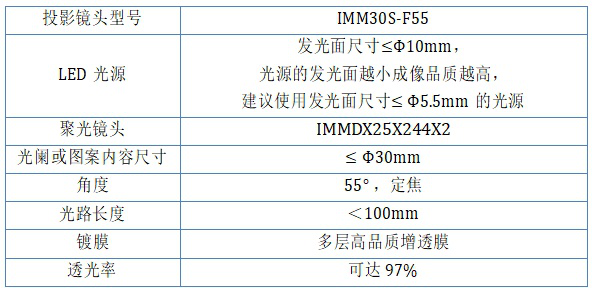

| Parameter | Value |
|---|---|
| Projection Lens Model | IMM30S-F55 |
| LED Light Source | Emission surface size ≤Φ10mm, recommended emission surface size ≤Φ5.5mm |
| Condensing Lens | IMMDX25X244X2 |
| Aperture or Pattern Content Size | ≤Φ30mm |
| Angle | 55°, fixed focus |

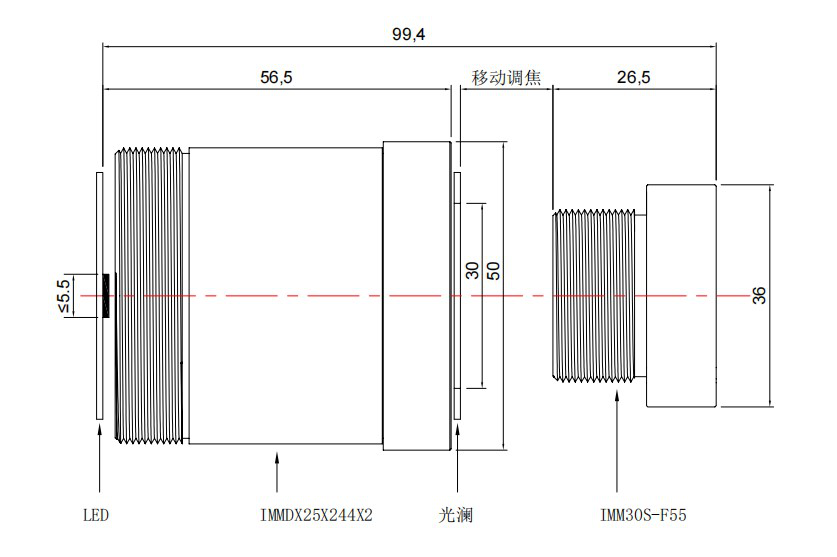

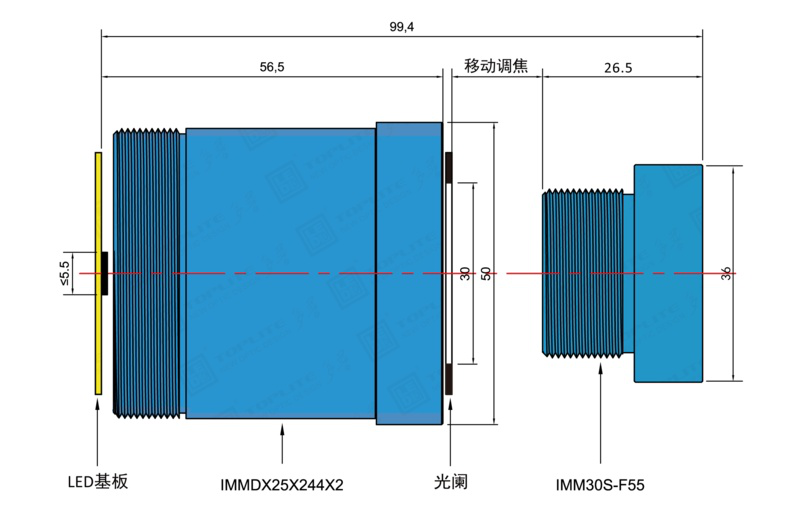

| Optical Path Length | <100mm |
| Coating | Multi-layer high-quality enhancement coating |
| Transmittance | Up to 97% |
