IMM18S-F55

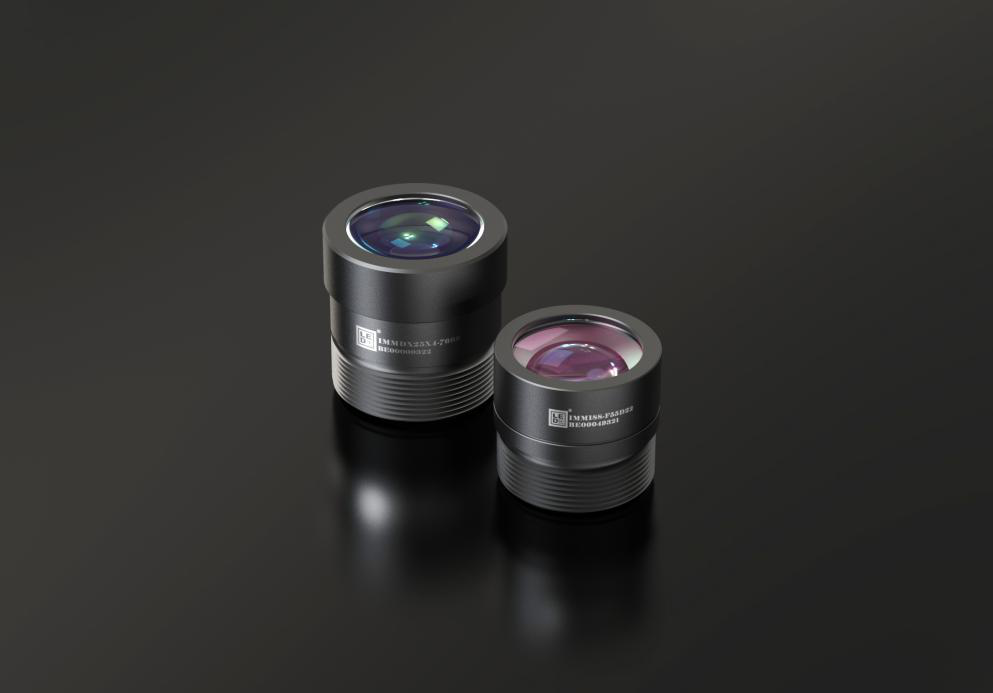

IMM18S-F55 is a high-definition imaging projection lens designed for precision applications. It features a fixed focal length of 55° and is equipped with multi-layer high-quality anti-reflective coatings, ensuring excellent image clarity and uniform brightness. The lens is compatible with high-intensity LED light sources and is ideal for applications requiring sharp and detailed imaging.
Save to Favorites
Overview
Specifications

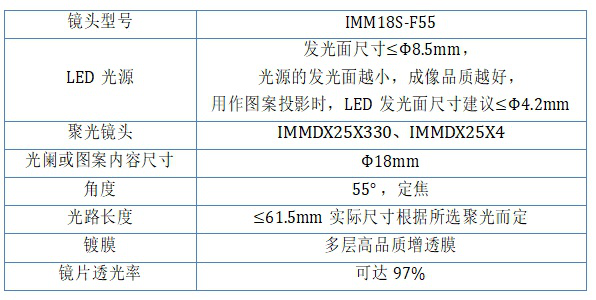

| Parameter | Value |
|---|---|
| Lens Model | IMM18S-F55 |
| LED Light Source | 发光面尺寸≤Φ8.5mm |
| Condensing Lens | IMMDX25X330, IMMDX25X4 |
| Aperture or Pattern Content Size | Φ18mm |
| Angle | 55°, 定焦 |
| Optical Path Length | ≤61.5mm |
| Coating | multiple层高品质增透膜 |
| Lens Transmittance | 可达97% |
Applications
