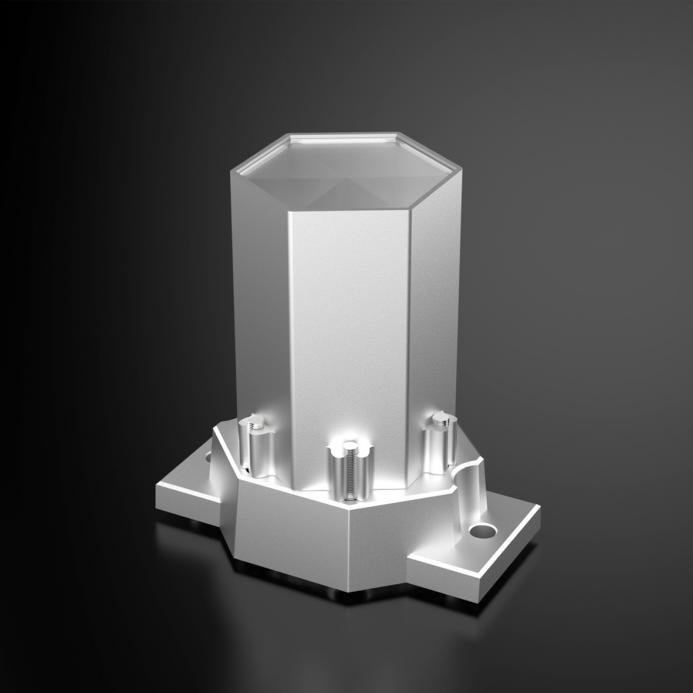

STONEHENGE OS300
STONEHENGE OS300 is a mixed-color optical component designed with advanced matrix technology. It enhances color uniformity, brightness, and projection quality, making it suitable for high-end lighting applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

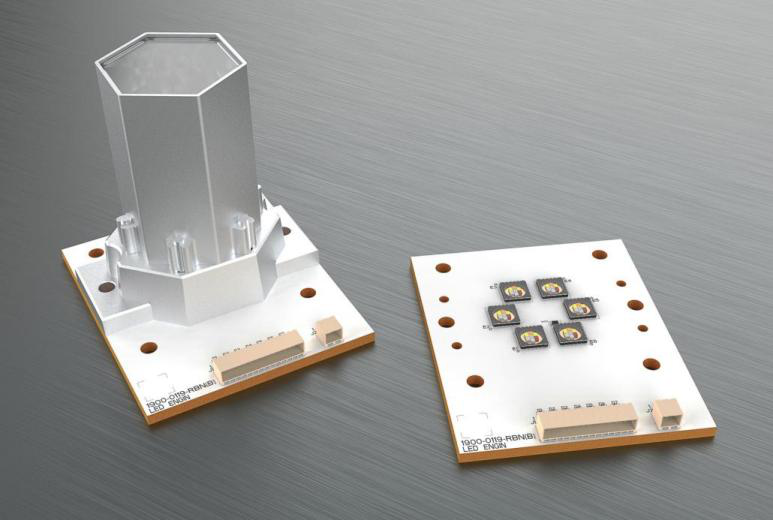

| Compatible LED | 6颗6070/7070封装的RGBW或Moremultiple色合一芯片 |
| Light Output Diameter | Φ29.4mm |
| Housing Material | 金属 |

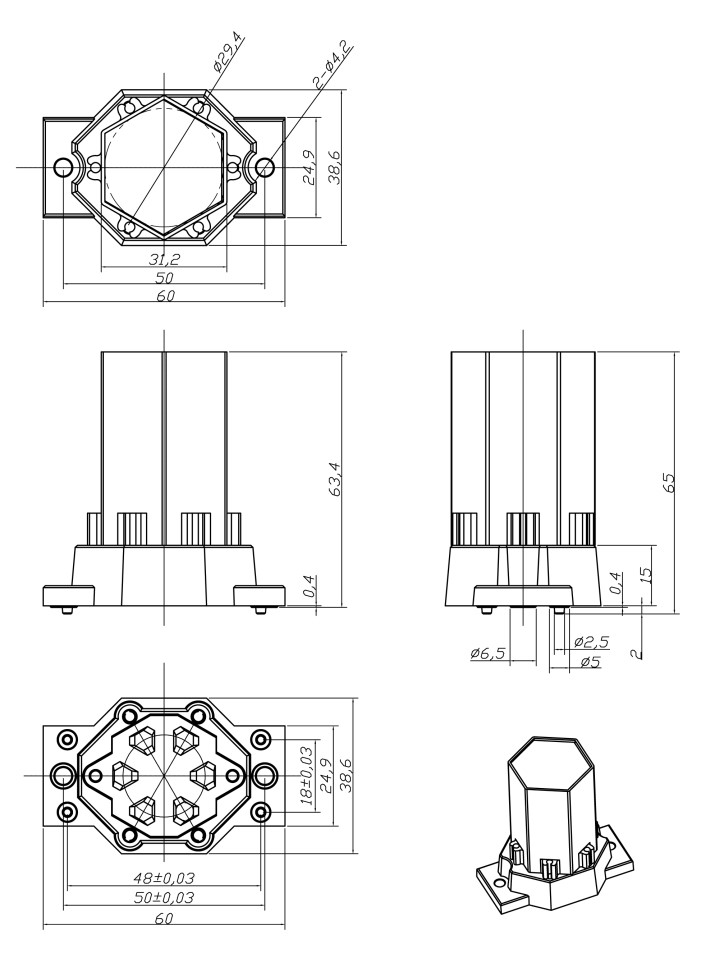

| Dimensions | L60mm×W38.6mm×H63mm |
| Red Power(W) | 53.7 |
| Red Luminous Flux(lm) | 787.8 |
| Green Power(W) | 69.6 |
| Green Luminous Flux(lm) | 1397.7 |
| Blue Power(W) | 80.1 |
| Blue Luminous Flux(lm) | 404.06 |
| PC Lime Power(W) | 133.3 |
| PC Lime Luminous Flux(lm) | 5485.2 |
| PC Amber Power(W) | 39.75 |
| PC Amber Luminous Flux(lm) | 928.87 |
| Cyan Power(W) | 25.8 |
| Cyan Luminous Flux(lm) | 564.61 |
| Total Luminous Flux(lm) | 9568.24 |
| Red Beam Angle 50% Intensity(°) | 31.6 |
| Red Beam Angle 10% Intensity(°) | 56.4 |
| Green Beam Angle 50% Intensity(°) | 33.2 |
| Green Beam Angle 10% Intensity(°) | 57 |
| Blue Beam Angle 50% Intensity(°) | 32.3 |
| Blue Beam Angle 10% Intensity(°) | 58.8 |
| PC Lime Beam Angle 50% Intensity(°) | 32.7 |
| PC Lime Beam Angle 10% Intensity(°) | 58.4 |
| PC Amber Beam Angle 50% Intensity(°) | 32.3 |
| PC Amber Beam Angle 10% Intensity(°) | 58.2 |
| Cyan Beam Angle 50% Intensity(°) | 32.7 |
| Cyan Beam Angle 10% Intensity(°) | 58.1 |
