IMM28-F25

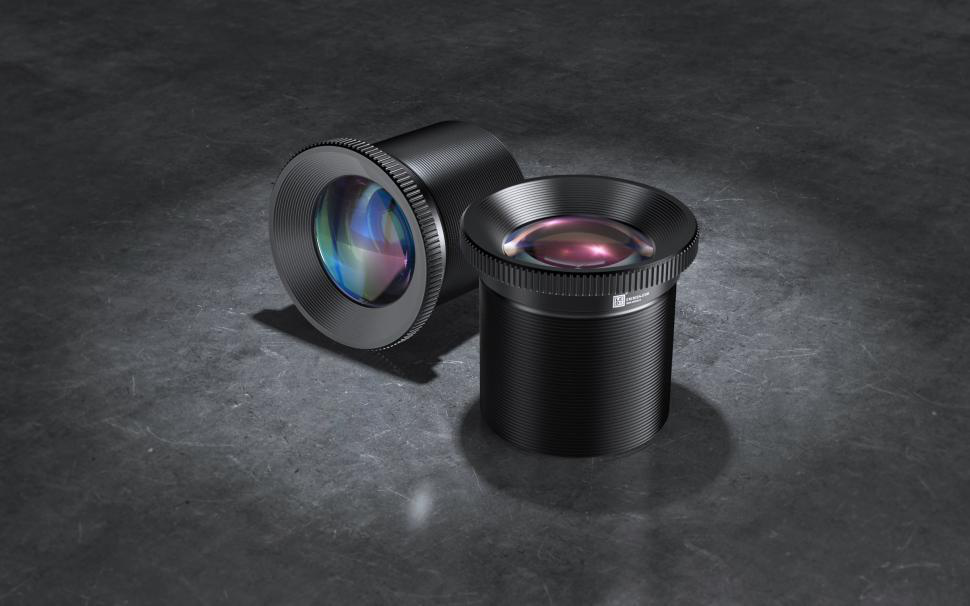

IMM28-F25 is a wide-angle lens designed for imaging projection applications. It adopts a core lens optical solution to shorten the optical path, making it easier to miniaturize lighting equipment. The lens ensures uniform and clear light projection, suitable for water ripple effects, stage lighting, and projection lamps.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Model | IMM28-F25 |
| Compatible Light Source | LED, emitting surface ≤Φ11mm |
| Condensing Lens | IMMDX3035 |
| Aperture | Φ28mm |
| Angle | 30° |

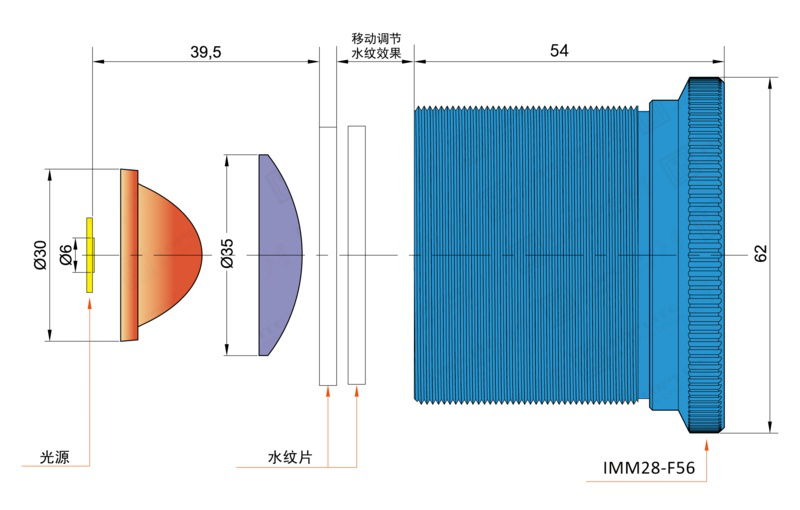

| Optical Path Length | 39.5mm |
| Total Length | 54mm |
| Outer Diameter | 62mm |
Applications
Key Features
Datasheet
