V9+ Arc Fusion Splicer
The V9+ Arc Fusion Splicer is a high-performance fiber optic splicing device designed for efficient and precise fiber optic connections. It features advanced splicing modes, quick heating, and automatic calibration for reliable and accurate results.
Save to Favorites
Overview

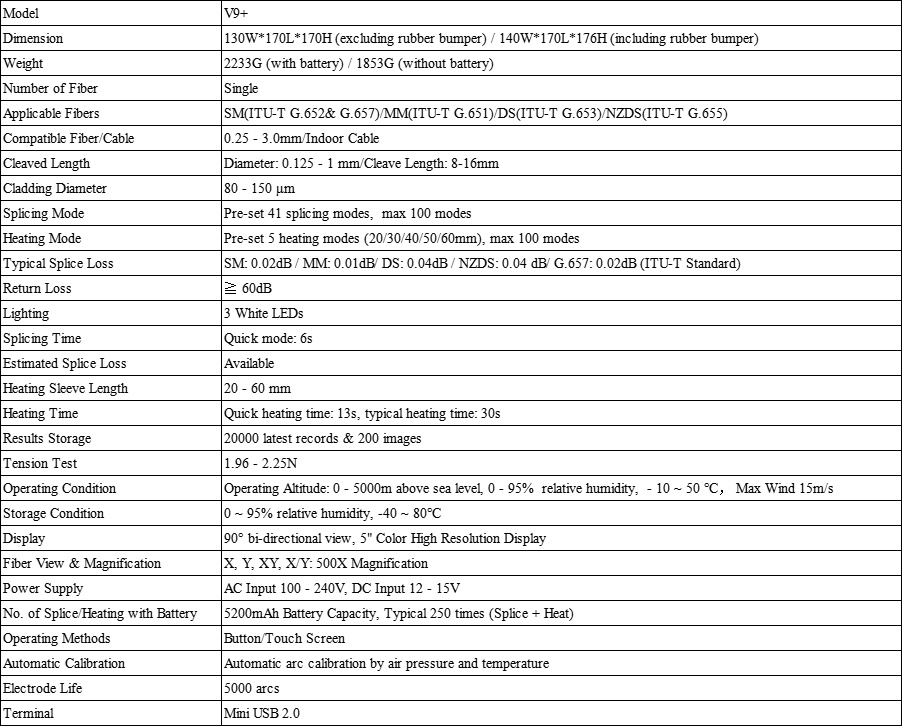

Specifications
| Parameter | Value |
|---|---|
| Model | V9+ |
| Dimension | 130W*170L*170H (excluding rubber bumper) / 140W*170L*176H (including rubber bumper) |
| Weight | 2233g (with battery) / 1853g (without battery) |
| Number of Fiber | Single |
| Applicable Fibers | SM(ITU-T G.652& G.657)/MM(ITU-T G.651)/DS(ITU-T G.653)/NZDS(ITU-T G.655) |
| Compatible Fiber/Cable | 0.25-3.0mm/Indoor Cable |
| Cleaved Length | Diameter: 0.125-1mm / Cleave Length: 8-16mm |
| Cladding Diameter | 80-150μm |
| Splicing Mode | Pre-set all splicing modes, max 100 modes |
| Heating Mode | Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes |
| Typical Splice Loss | SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB (ITU-T Standard) |
| Return Loss | ≥60dB |
| Lighting | 3 White LEDs |
| Splicing Time | Quick mode: 6s |
| Estimated Splice Loss | Available |
| Heating Sleeve Length | 20-60mm |
| Heating Time | Quick heating time: 13s, typical heating time: 30s |
| Results Storage | 20000 latest records & 200 images |
| Tension Test | 1.96-2.25N |
| Operating Condition | Operating Altitude: 0-5000m above sea level, 0-95% relative humidity, -10-50°C, Max Wind 15m/s |
| Storage Condition | 0-95% relative humidity, -40-80°C |
| Display | 90° bi-directional view, 5" Color High Resolution Display |
| Fiber View & Magnification | X, Y, X/Y: 500X Magnification |
| Power Supply | AC Input 100-240V, DC Input 12-15V |
| No. of Splice/Heating with Battery | 200mAh Battery Capacity, Typical 250 times (Splice + Heat) |
| Operating Methods | Button/Touch Screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 5000 arcs |
| Terminal | Mini USB 2.0 |
